14.5.2

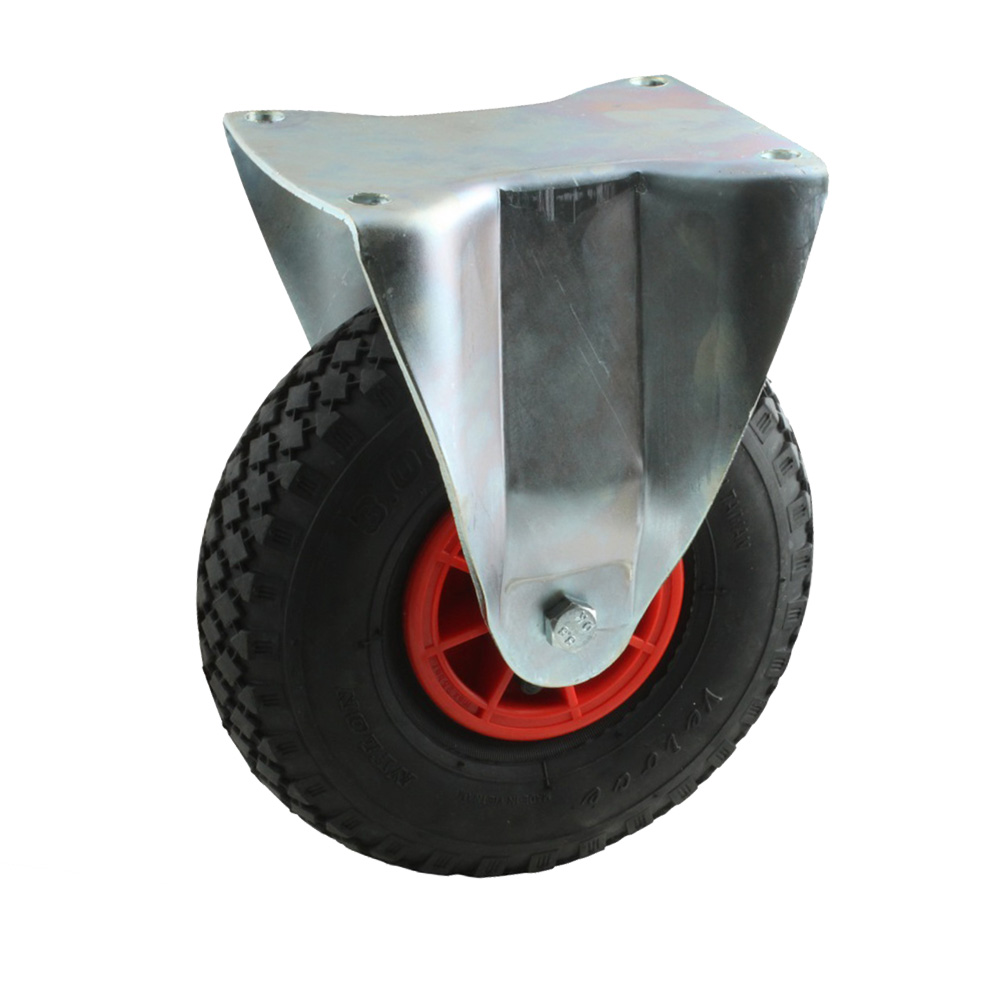

Fixed castor – mounting plate - pneumatic tyre on plastic rim
Product information
- Fixed castors with a pneumatic tyre on a red plastic rim are available with a 3.00-4 2 Ply tyre
- Pressed fork with a flat mounting face, made from galvanised steel sheet
- Block profile tyre tread
- Hub with roller bearing
- Maximum static load capacity of 110kg at 6 km/h and 2.0 bars pressure
- The pneumatic tyre absorbs impacts and dampens vibration
- Versatile range of use, including rough terrain with obstacles and bumps
Material & colour
- Fork: pressed steel sheet, galvanised - zinc-coloured
- Tyre and inner tube: PU (polyurethane) tyre - black
- Rim with hub: PP (polypropylene) – red RAL 3020
- Roller bearing: steel with plastic cage
Types
Type B: Wheel with roller bearing

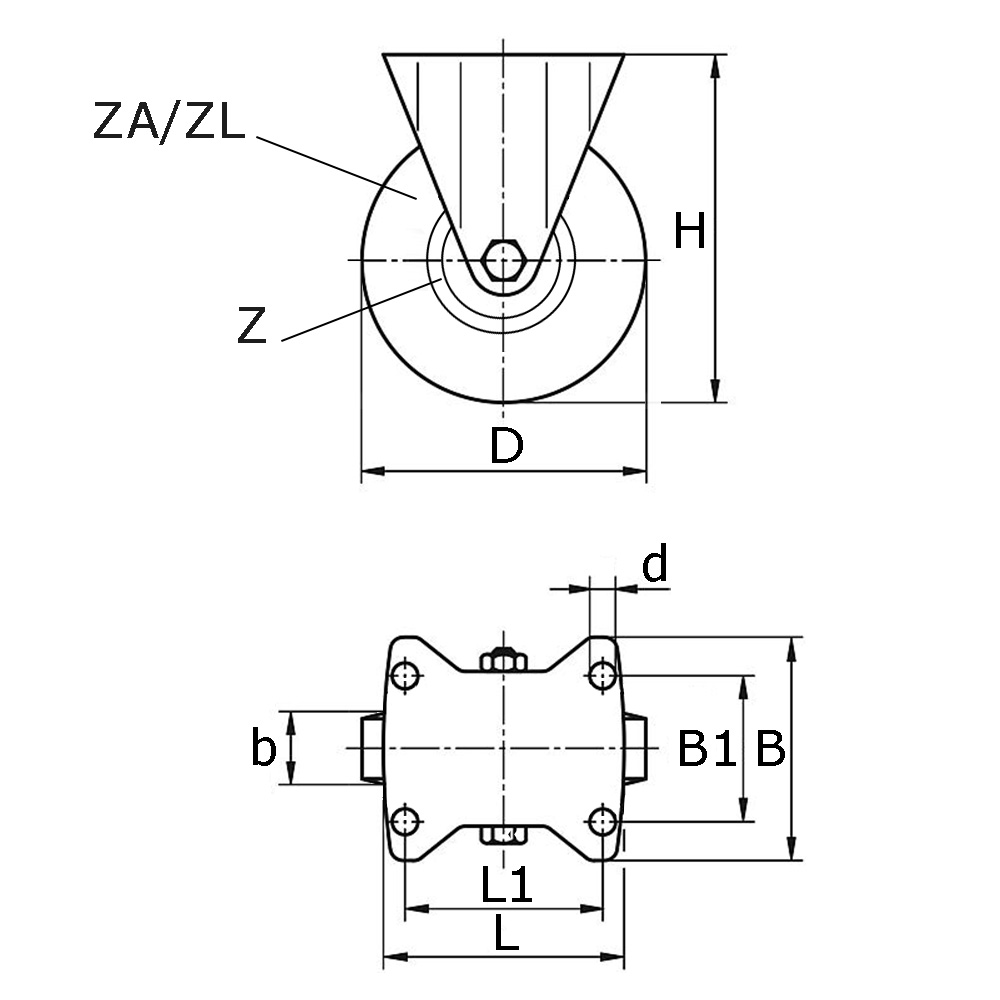

Legend
B=mounting plate width, b=tyre width in mm, B1=dimension between hole centres, D=Øwheel in mm, d=Øhole, H=total height, K=maximum static load capacity in kg at 6 km/h, L=mounting plate length, L1=dimension between hole centres, T=ply rating, Type=type of wheel bearing, Z=rim size (Ø x width), ZA=tyre size in inches
