14.6
Pneumatic tyre on plastic rim - max 250 kg - steel forks
Product information
- Wheels with a plastic rim and standard solid rubber tyre are available in wheel diameters from Ø80mm to Ø300mm inclusive

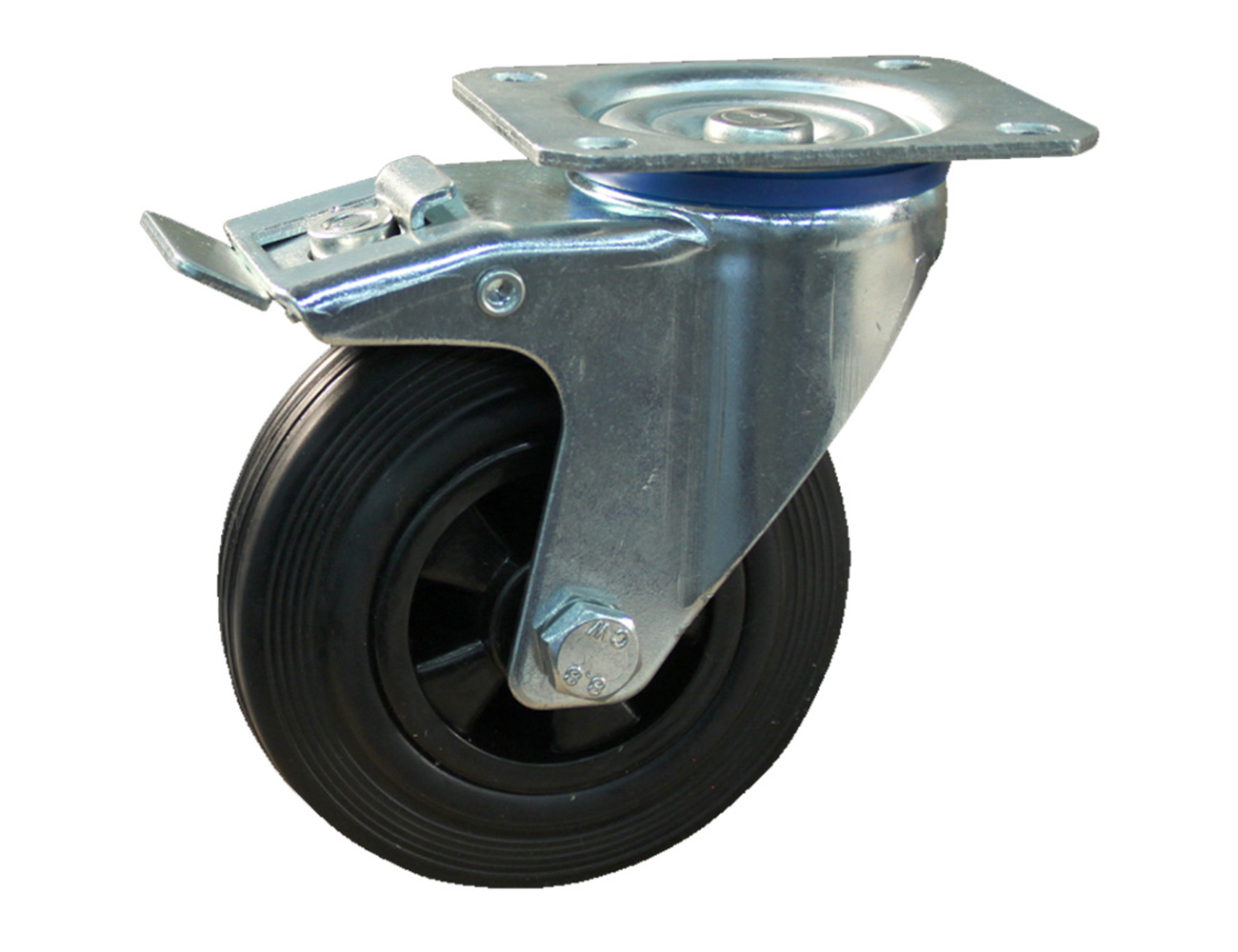

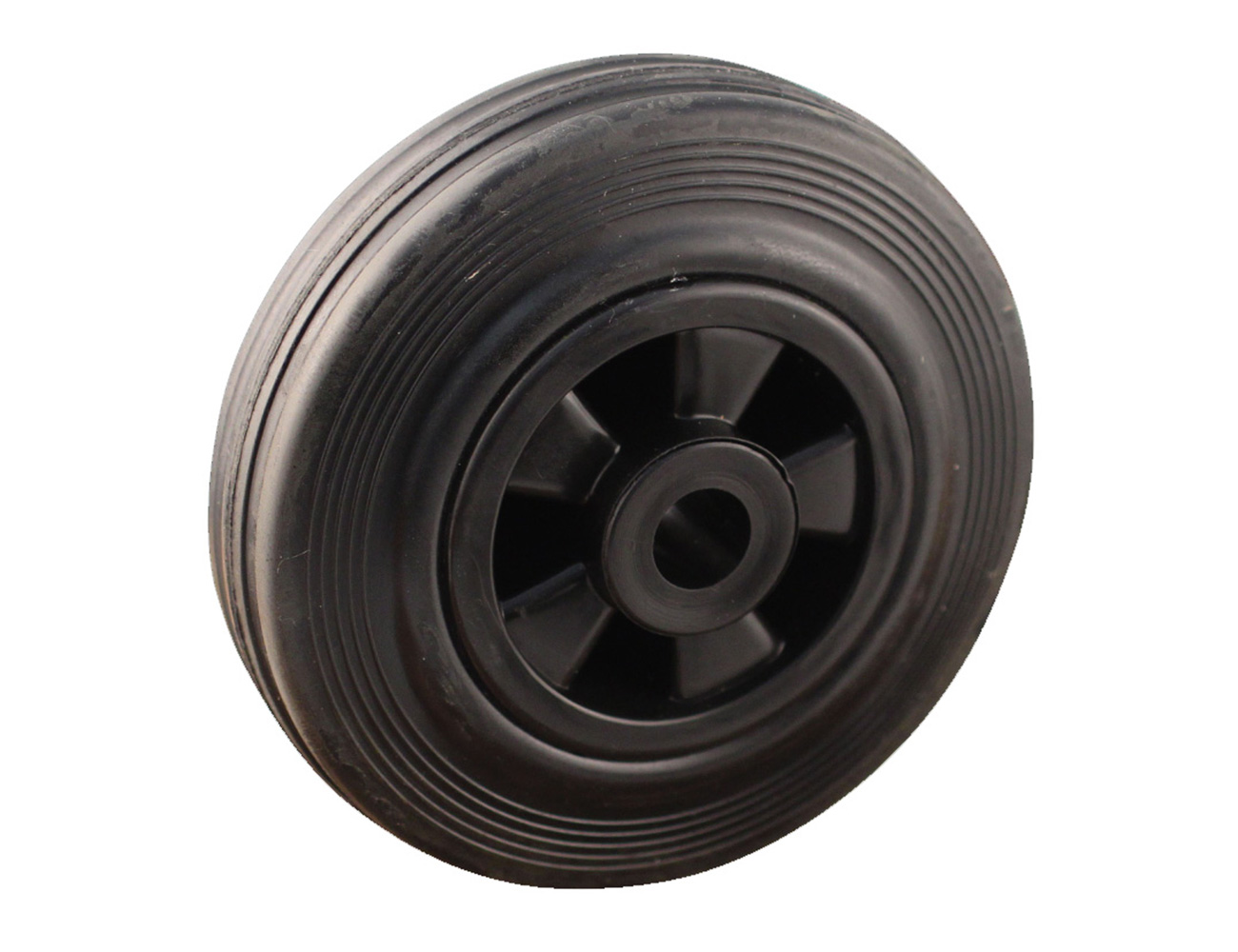

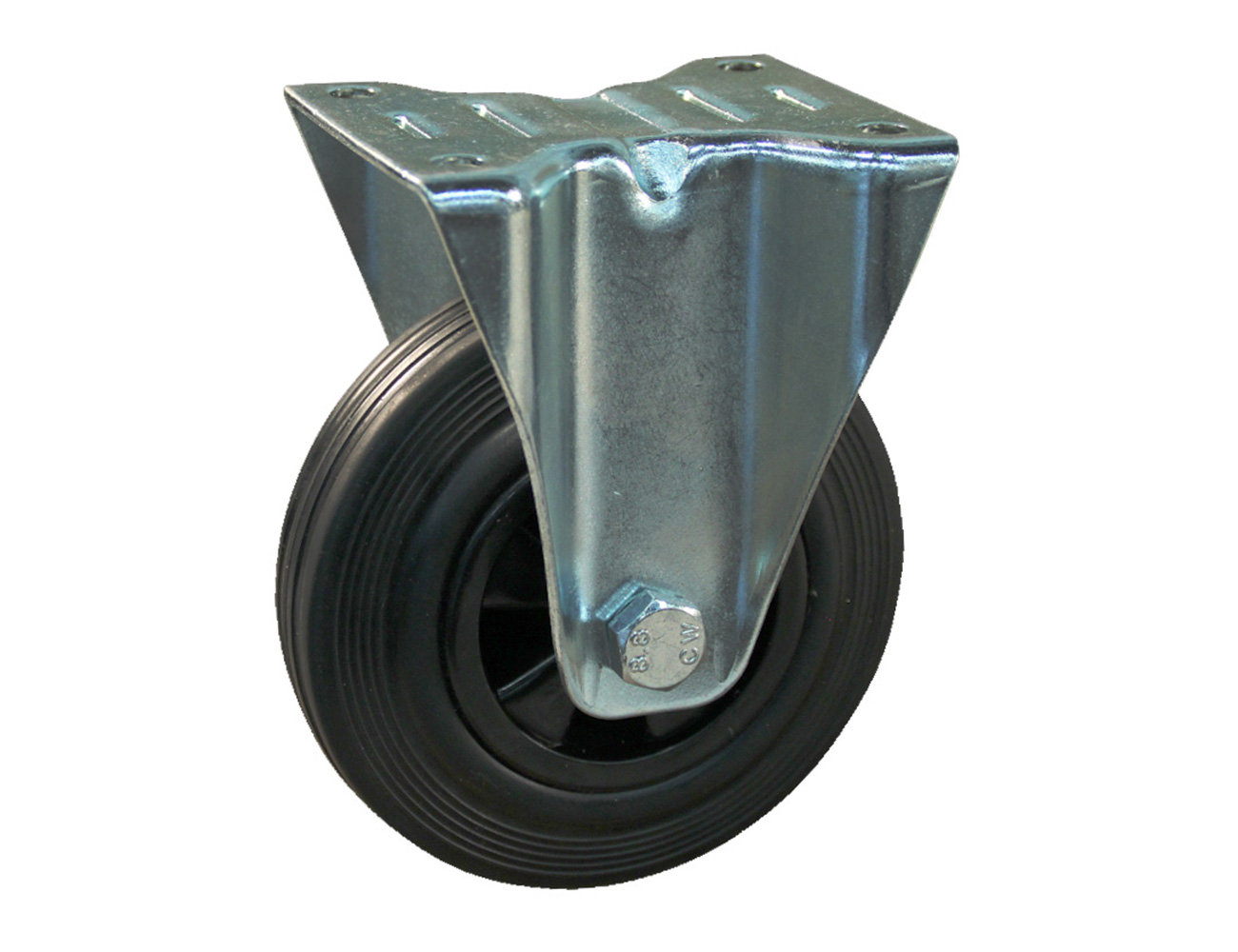

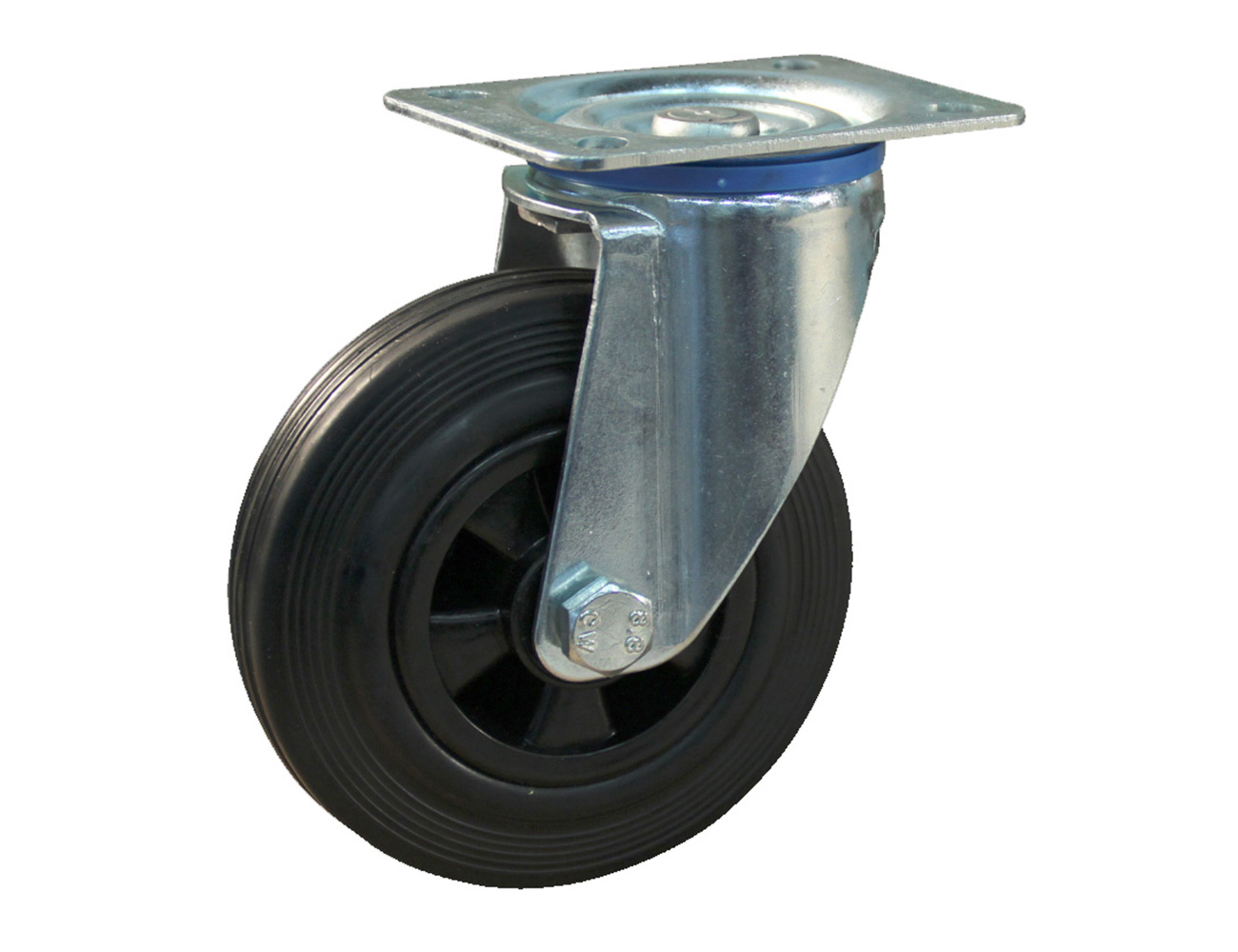

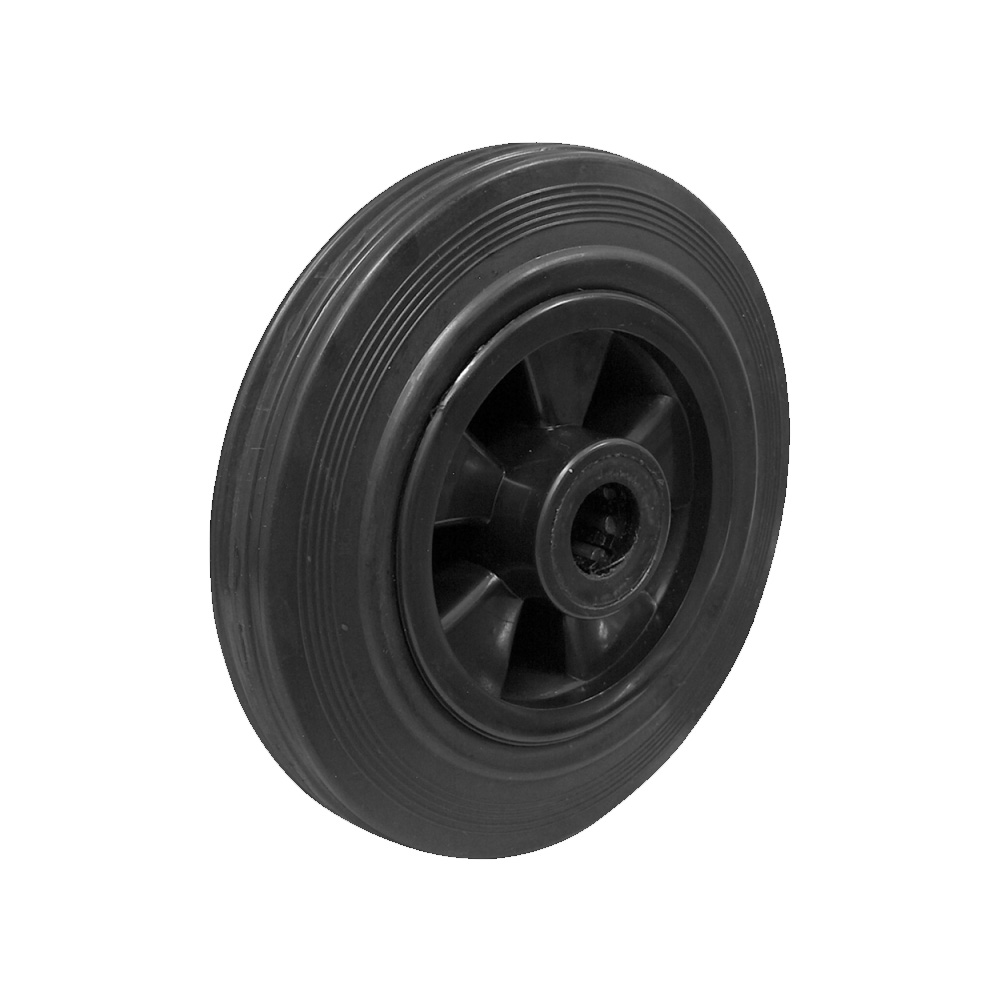

- Available as loose wheel, or with stainless steel forks as swivel castor, braked swivel castor or fixed castor with plate mount (top plate)
- Maximum static load capacity from 50kg to 250kg inclusive
- Shaft hole diameters from Ø12mm to Ø20mm inclusive
- Available with a plain bearing or roller bearing
- Solid rubber tyre, hardness 80° Shore A ±3°
- Temperature resistance: -20 °C to +80 °C
- The black tyre can leave marks on the floor
- Low-noise, durable and maintenance-free under conditions of normal use
- Highly resistant to many aggressive chemicals; not resistant to oil and grease
- For general use indoors and on surfaced areas outdoors
Material & colour
- Tyre: solid rubber - black
- Rim with hub: PP (polypropylene) - black
- Roller bearing: steel
Legend
A=hub width, D=wheel Ø, d2=Ø-shaft bore, E=offset, H=total height, K=maximum static load capacity in kg, Type=type of wheel bearing
