14.7

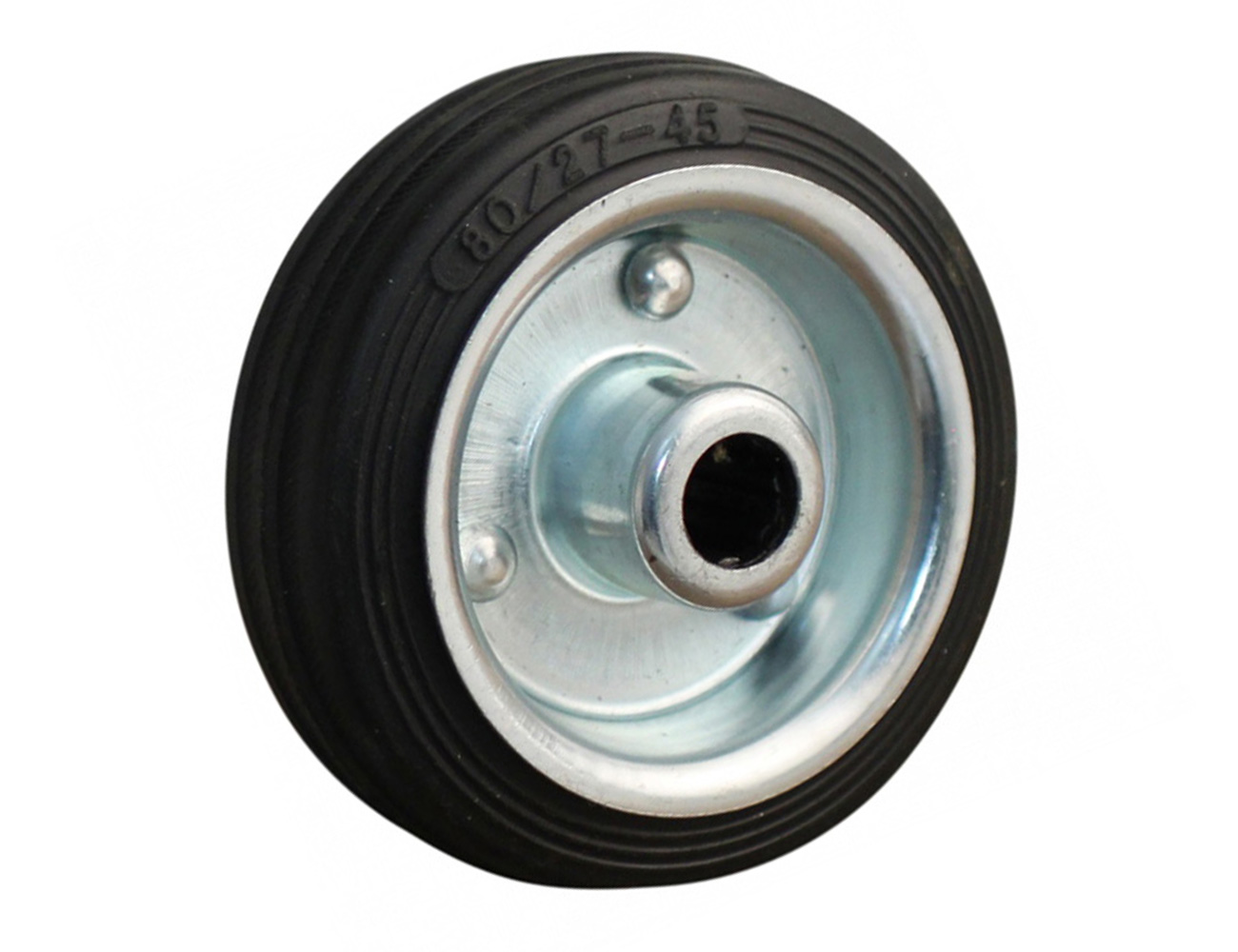

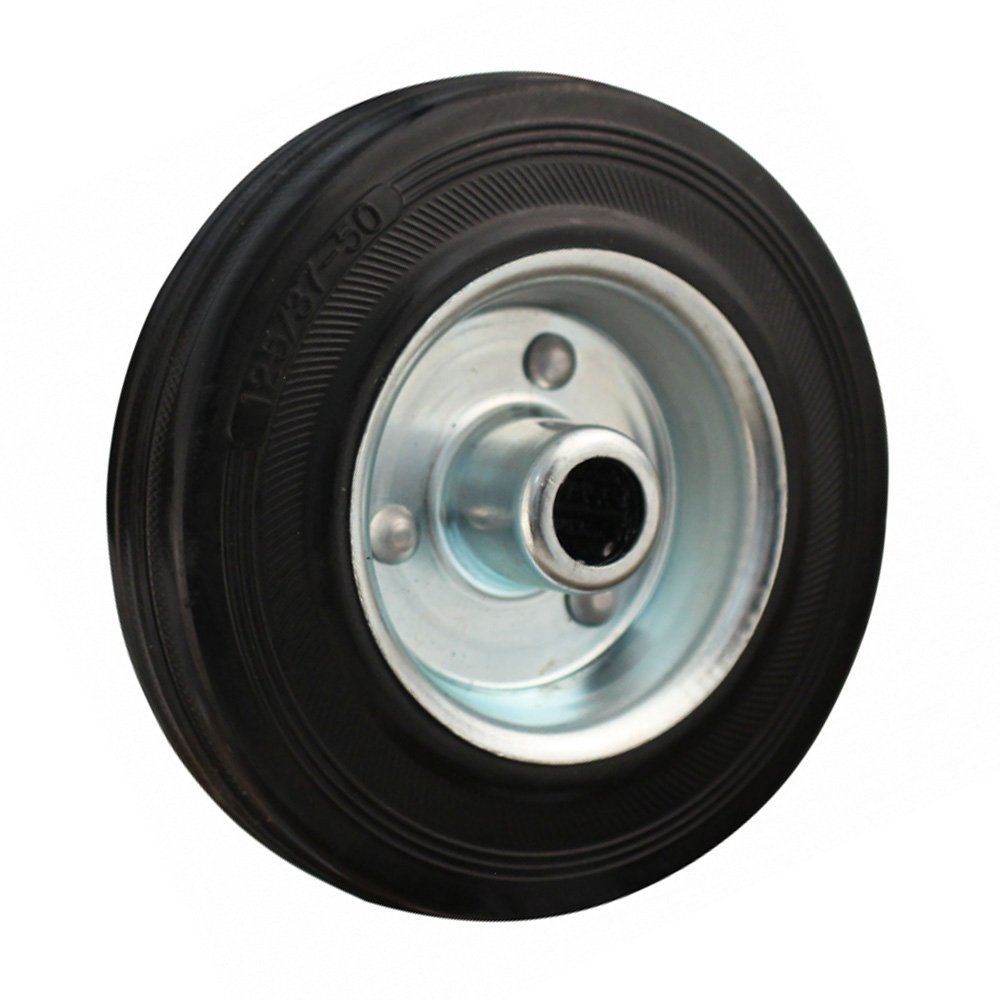

Solid rubber tyre on steel rim - max 400 kg - steel forks
Product information
- Wheels with a standard solid rubber tyre on a steel rim are available in wheel diameters from Ø80mm to Ø400mm inclusive

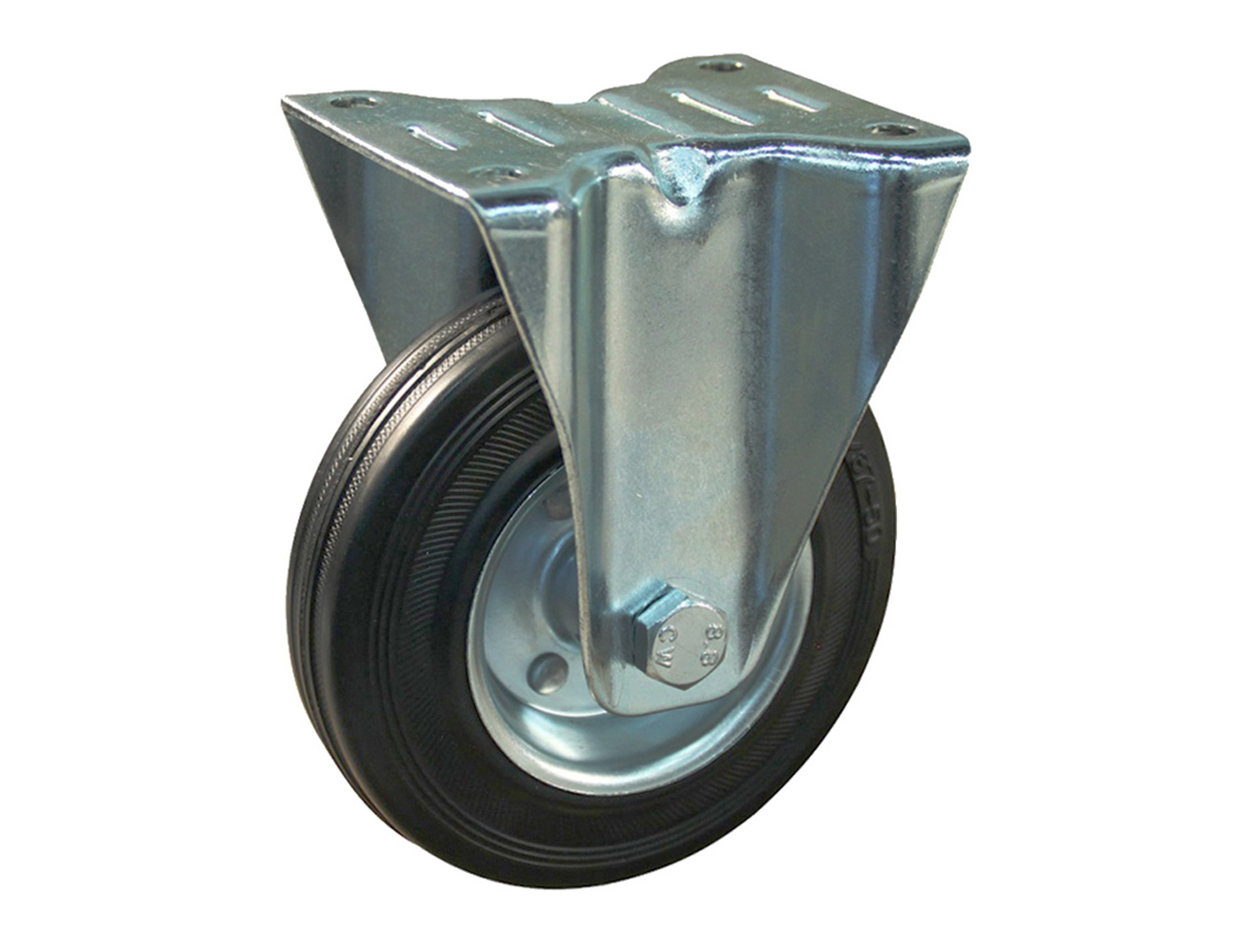

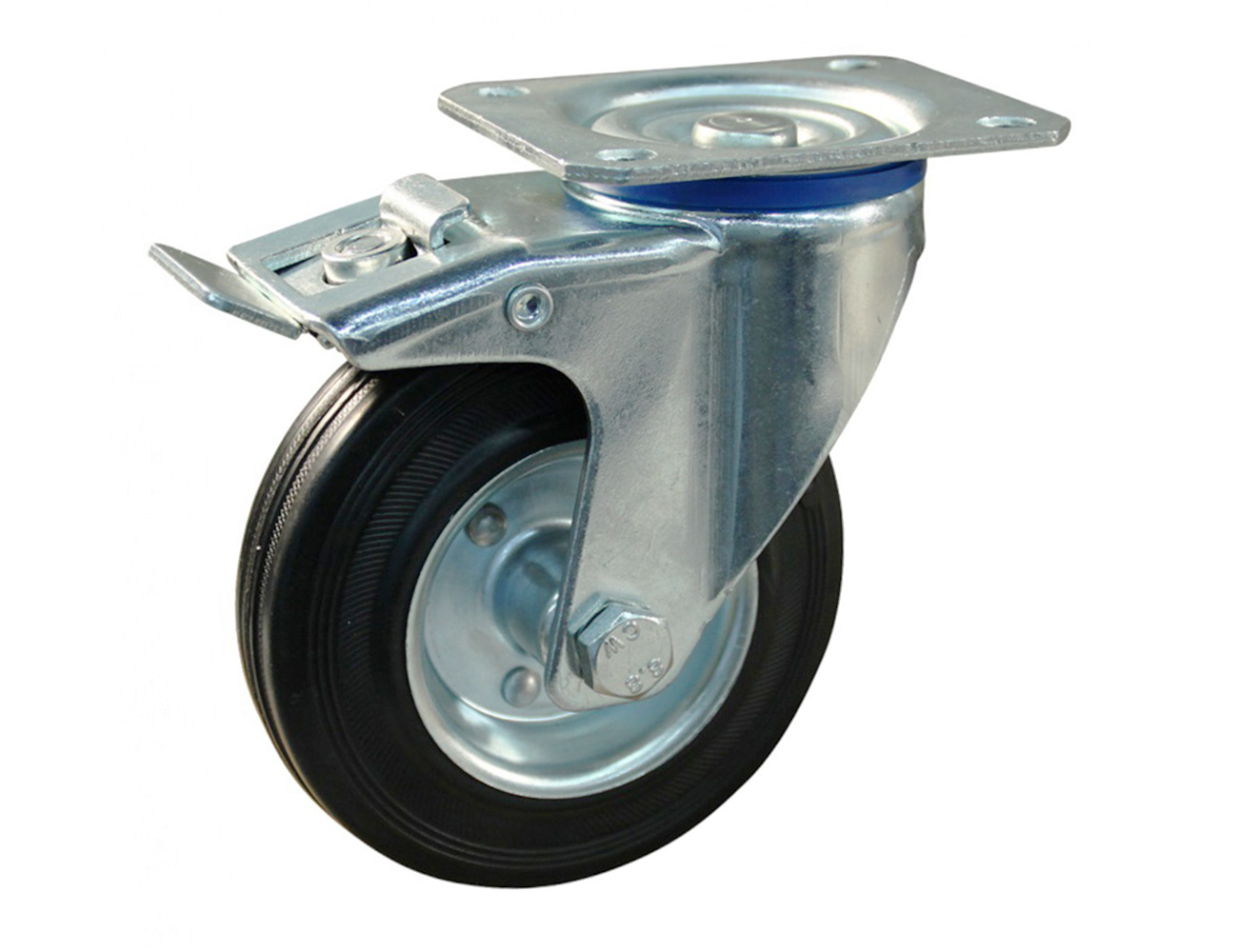

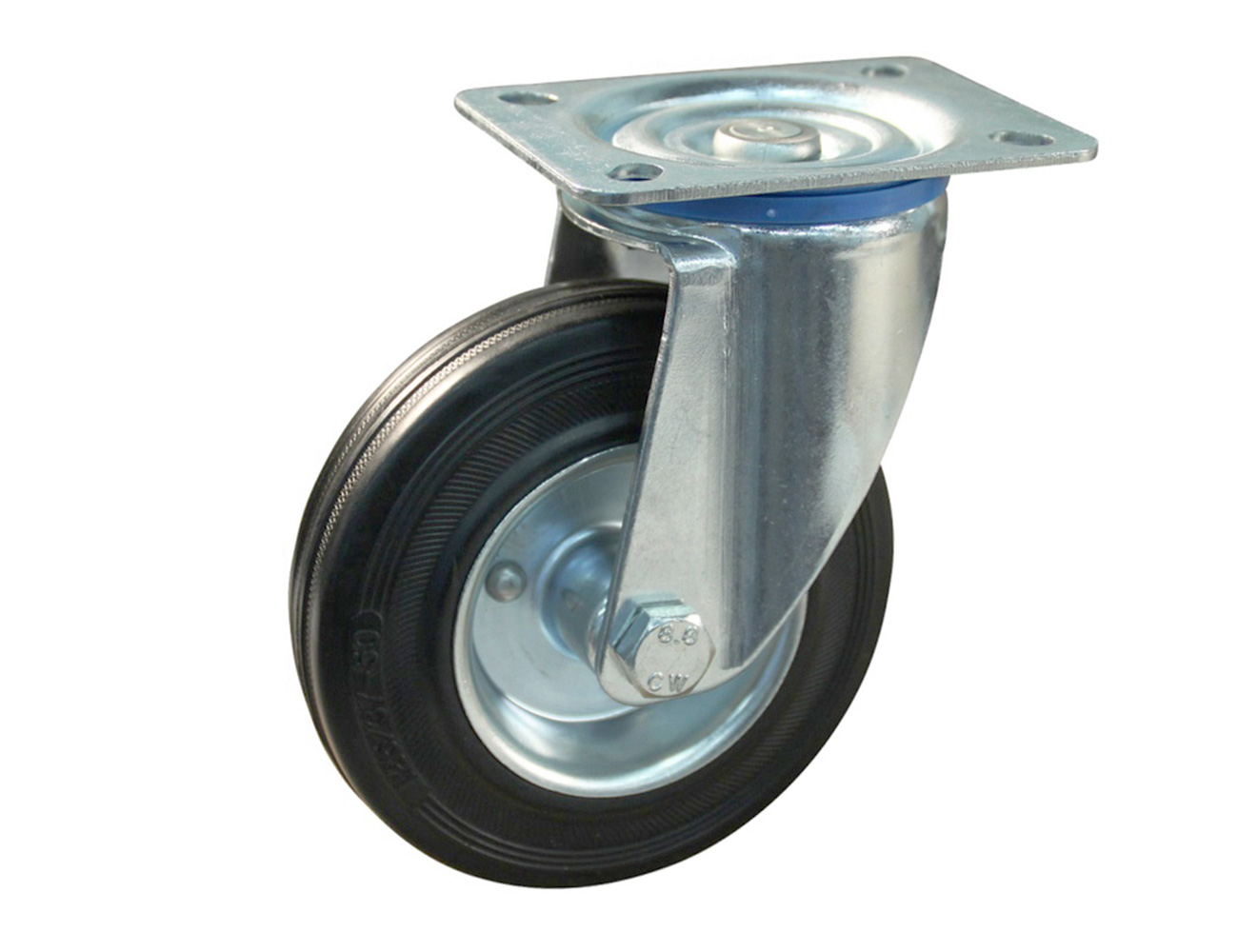

- Available as loose wheel, or with stainless steel forks as swivel castor, braked swivel castor or fixed castor with plate mount (top plate)
- Maximum static load capacity from 50kg to 400kg inclusive
- Pressed rim, galvanised steel sheet
- Hub with roller bearing
- Shaft hole diameters from Ø12mm to Ø25mm inclusive
- Standard solid rubber tyre, hardness 80° Shore A ±3°
- Temperature resistance: -20 °C to +80 °C
- The black tyre can leave marks on the floor
- Highly resistant to many aggressive chemicals; not resistant to oil
- Low-noise, gentle on floor surfaces and maintenance-free under conditions of normal use
- For general use indoors and on surfaced areas outdoors
Material & colour
- Tyre: solid rubber - black
- Rim with hub: galvanised steel – zinc-coloured
- Roller bearing: steel
Legend
A=hub width, D=wheel Ø, d2=Ø-shaft bore, E=offset, H=total height, K=maximum static load capacity in kg
