Apparatus castor TPE tyre on plastic rim - max 100 kg - steel forks
Product information

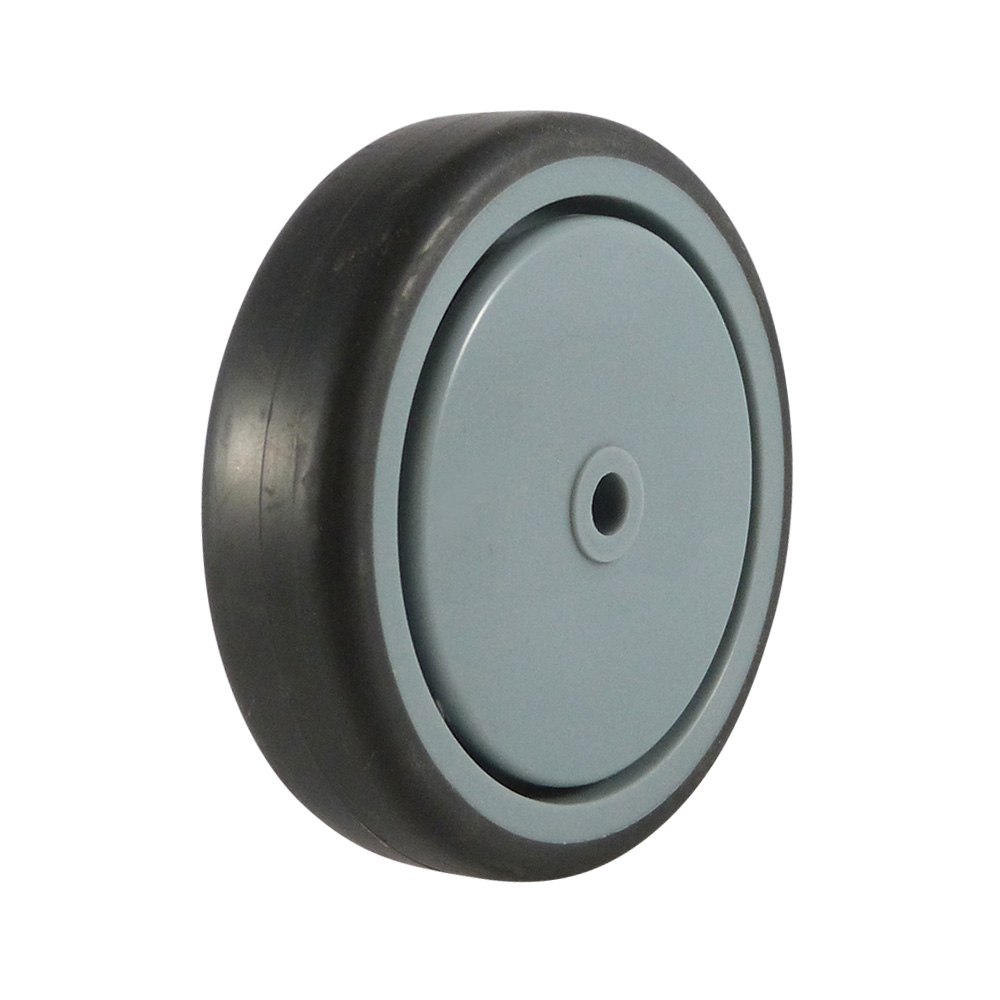

- Apparatus wheels with a TPE tyre on a plastic rim are available in a wheel size of Ø100mm

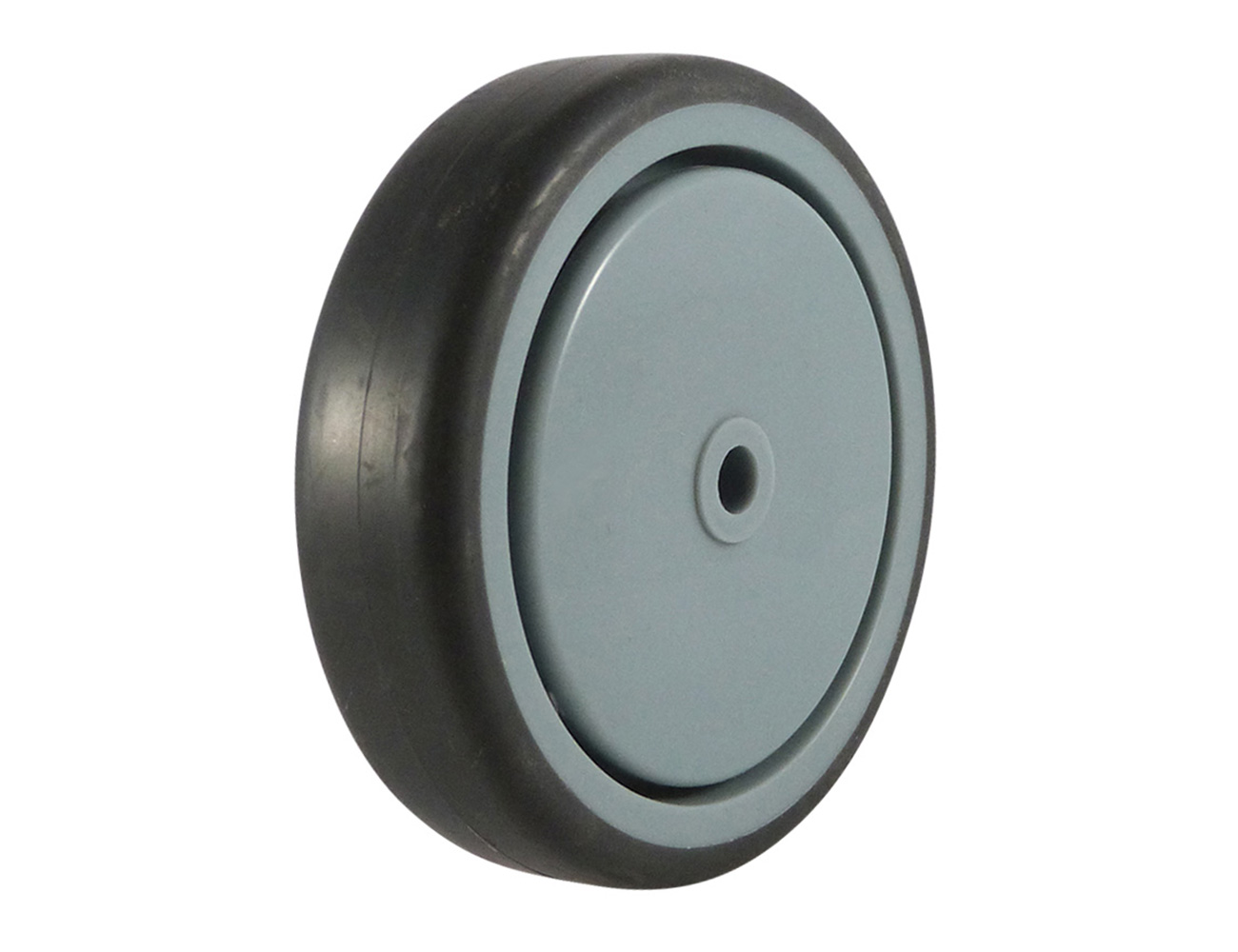

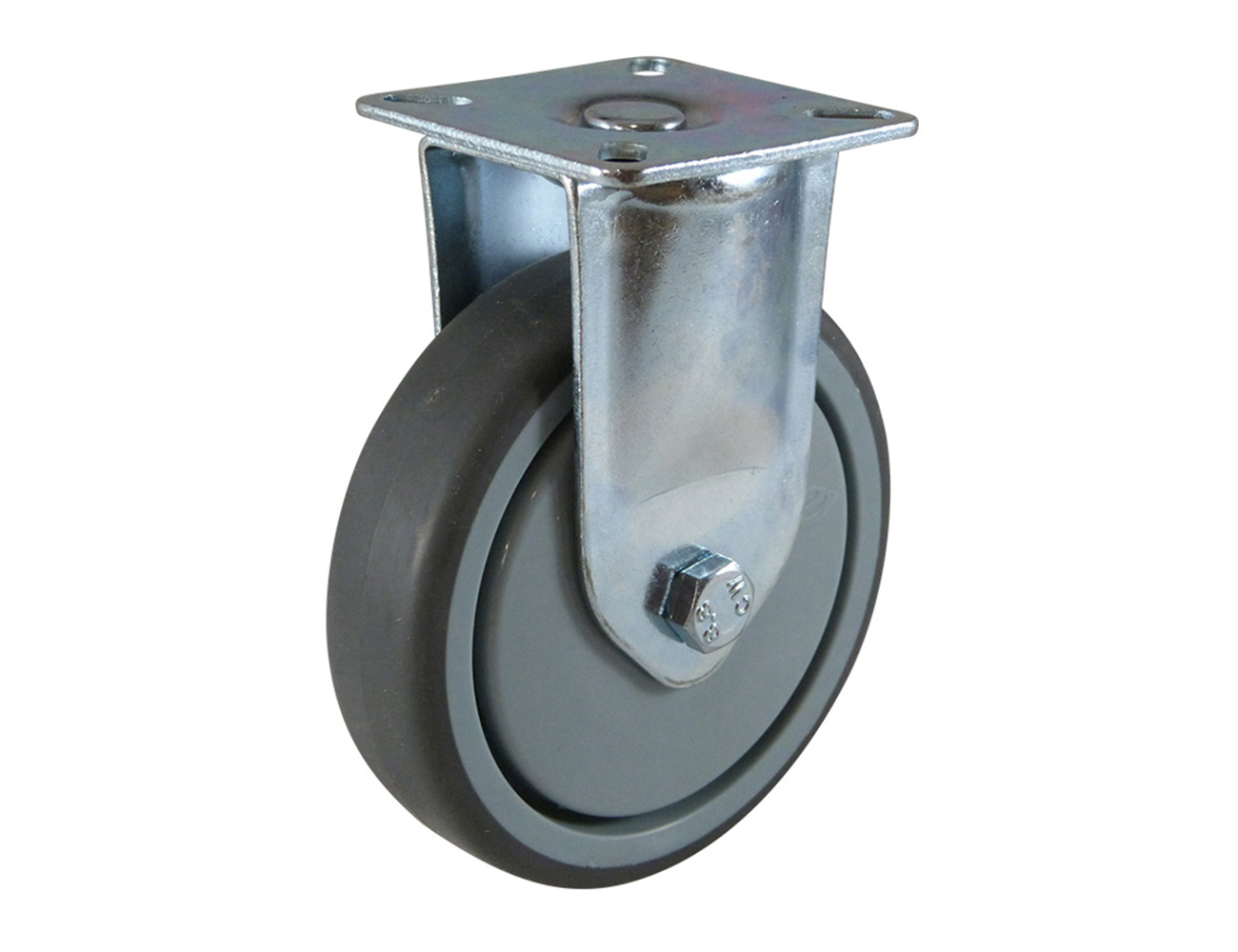

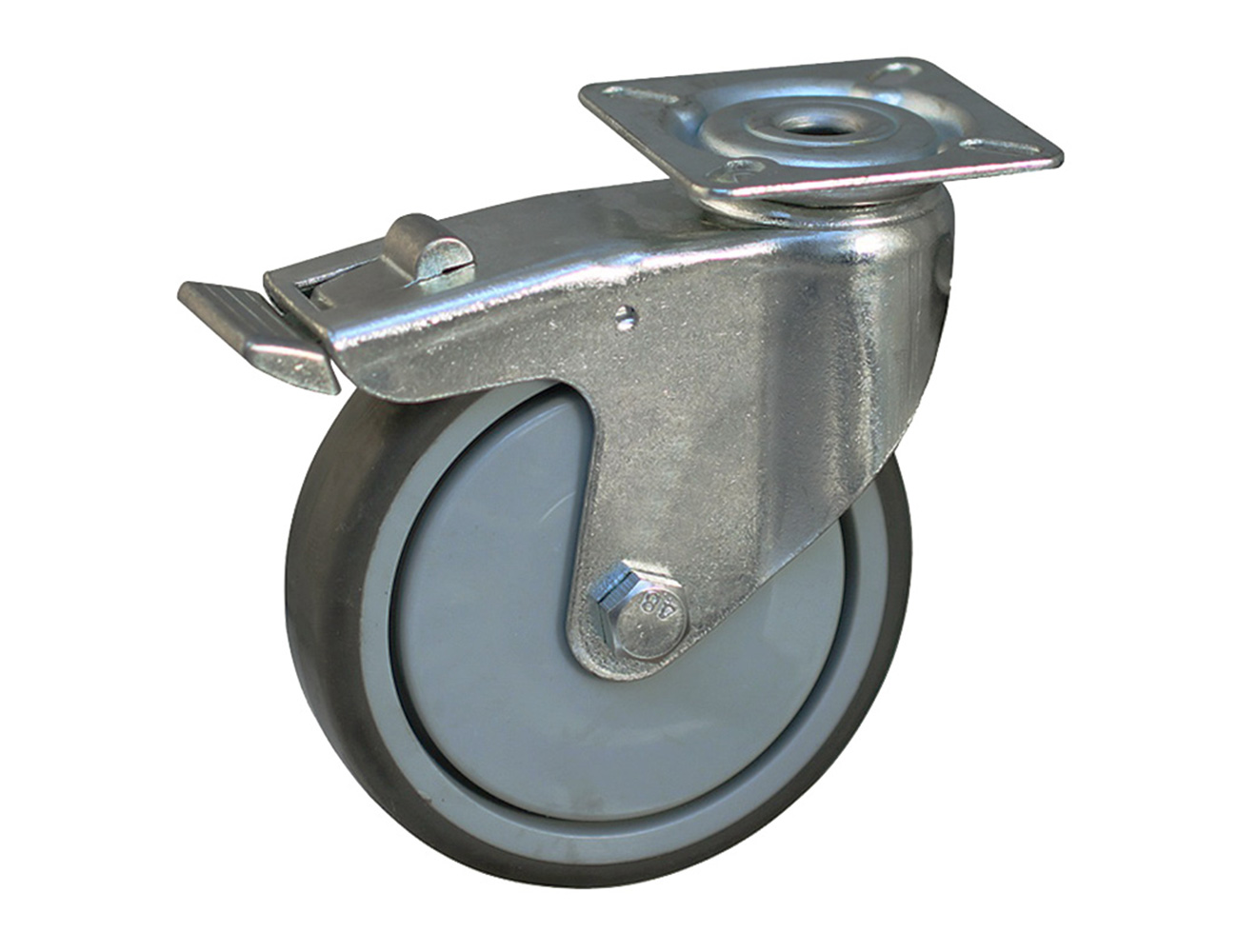

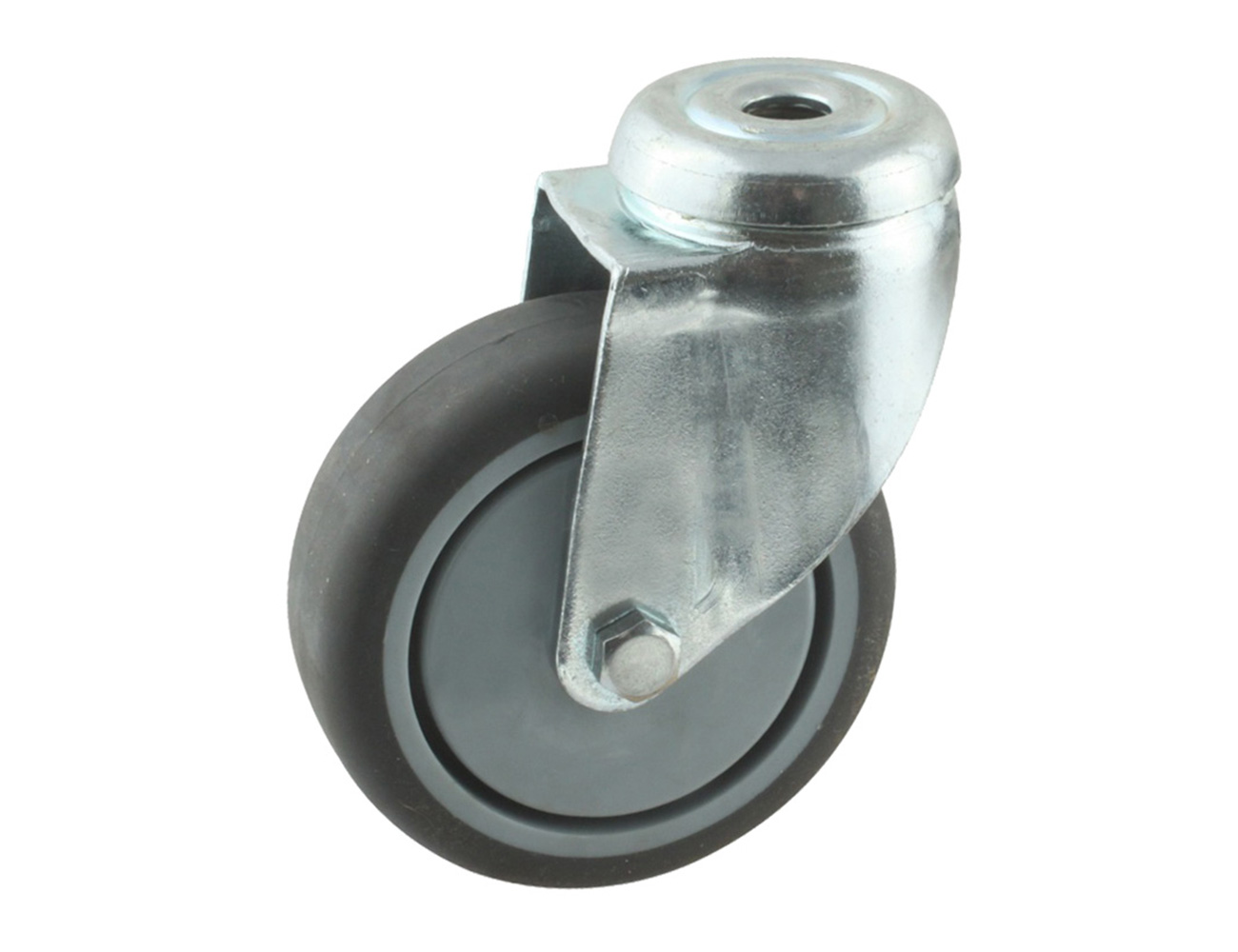

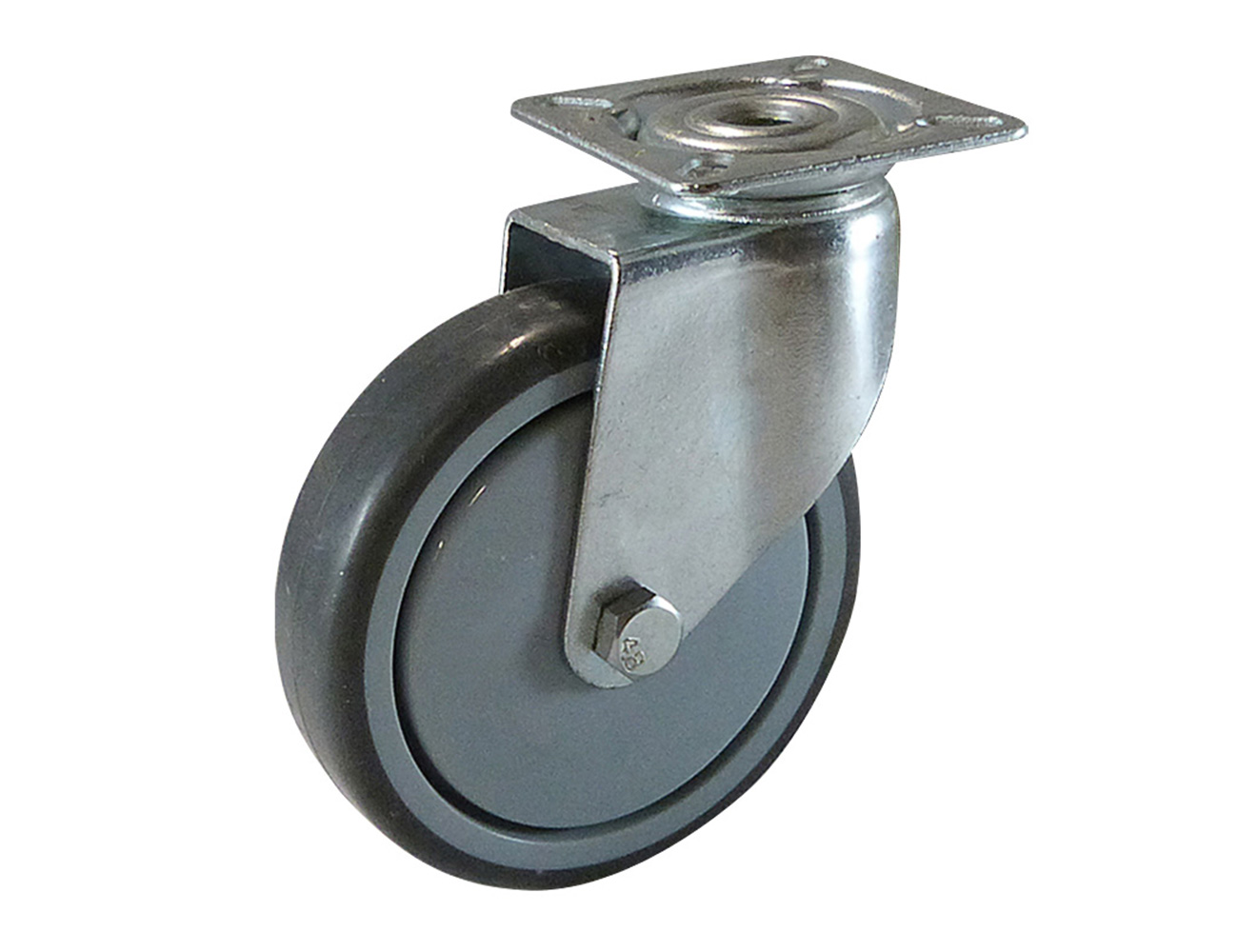

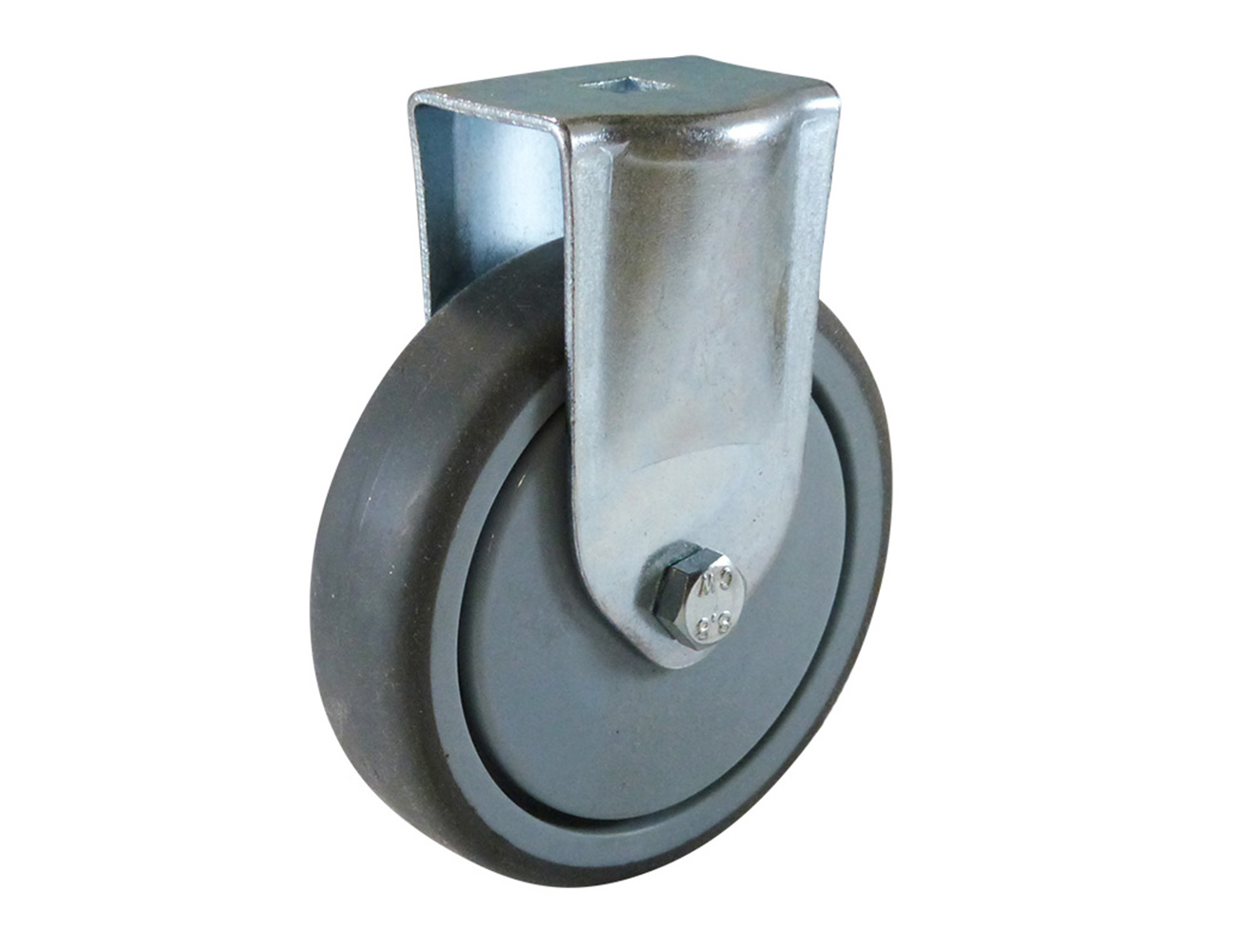

- Available as loose wheel, or with galvanized steel forks as swivel castor, braked swivel castor or fixed castor with plate mount (top plate) or centre mounting hole
- Hub with a ball bearing and Ø8mm shaft hole
- Maximum static load capacity of 100kg
- Temperature resistance from -20°C to +40°C inclusive
- Moulded vulcanised tyre, hardness 70° Shore A ±5°
- Low-noise and smooth-running
- Non-marking
- Highly resistant to many aggressive chemicals
- Industrial wheels are mainly suitable for light use in indoor applications, e.g. items of equipment, mobile displays, furniture, etc.
Material & colour
- Hub: PP (polypropylene) – grey (RAL 7001)
- Tyre: TPE (thermoplastic elastomer) – grey (RAL 7024)
- Ball bearing: Steel
Legend
A=hub width, D=wheel Ø, d2=Ø-shaft bore, E=offset, H=total height, K=maximum static load capacity in kg
