14.1
Castors with blue rubber tyre – max 200kg – steel forks
Product information
- Castors with an elastic blue tyre are available in wheel sizes of Ø100mm or Ø125mm

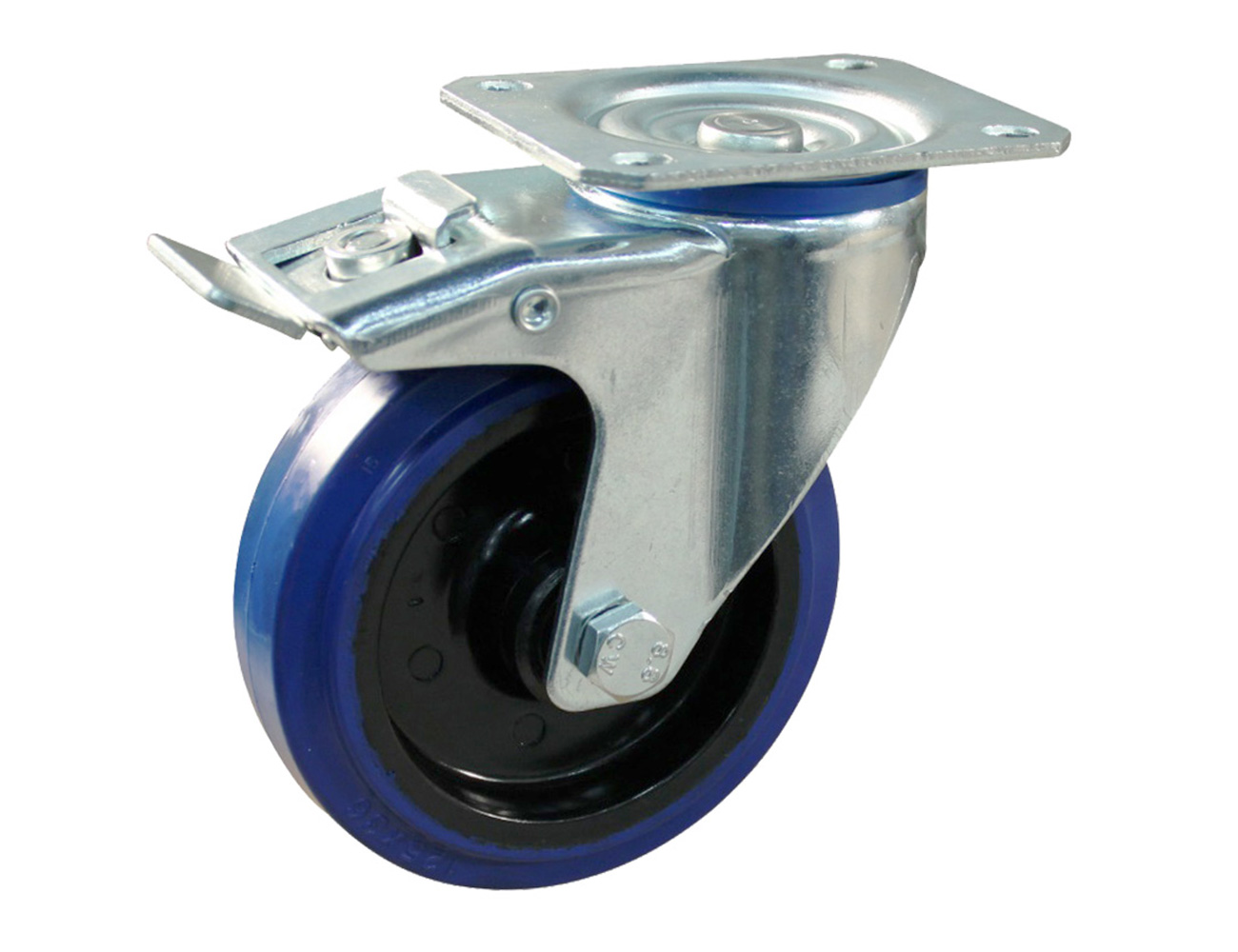

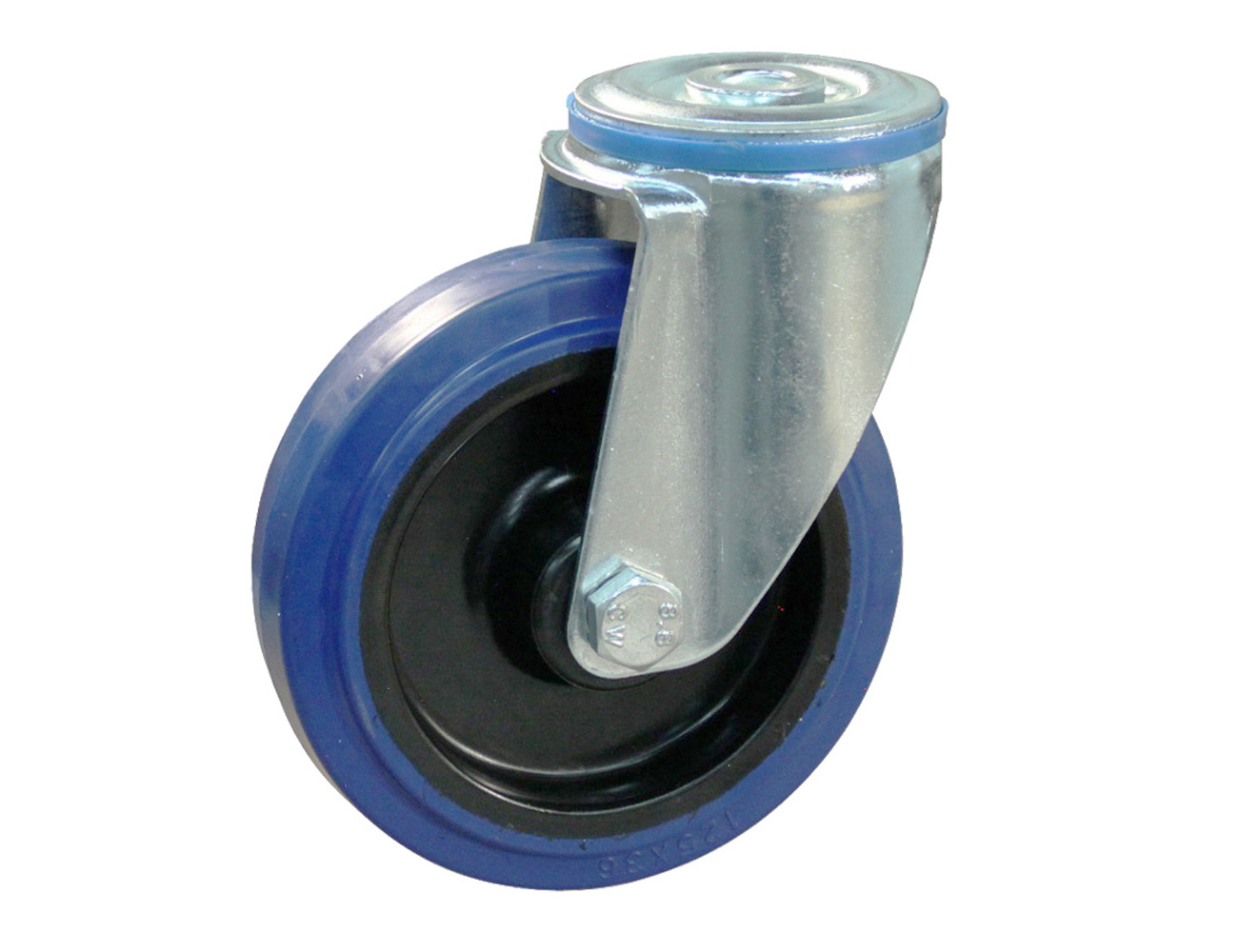

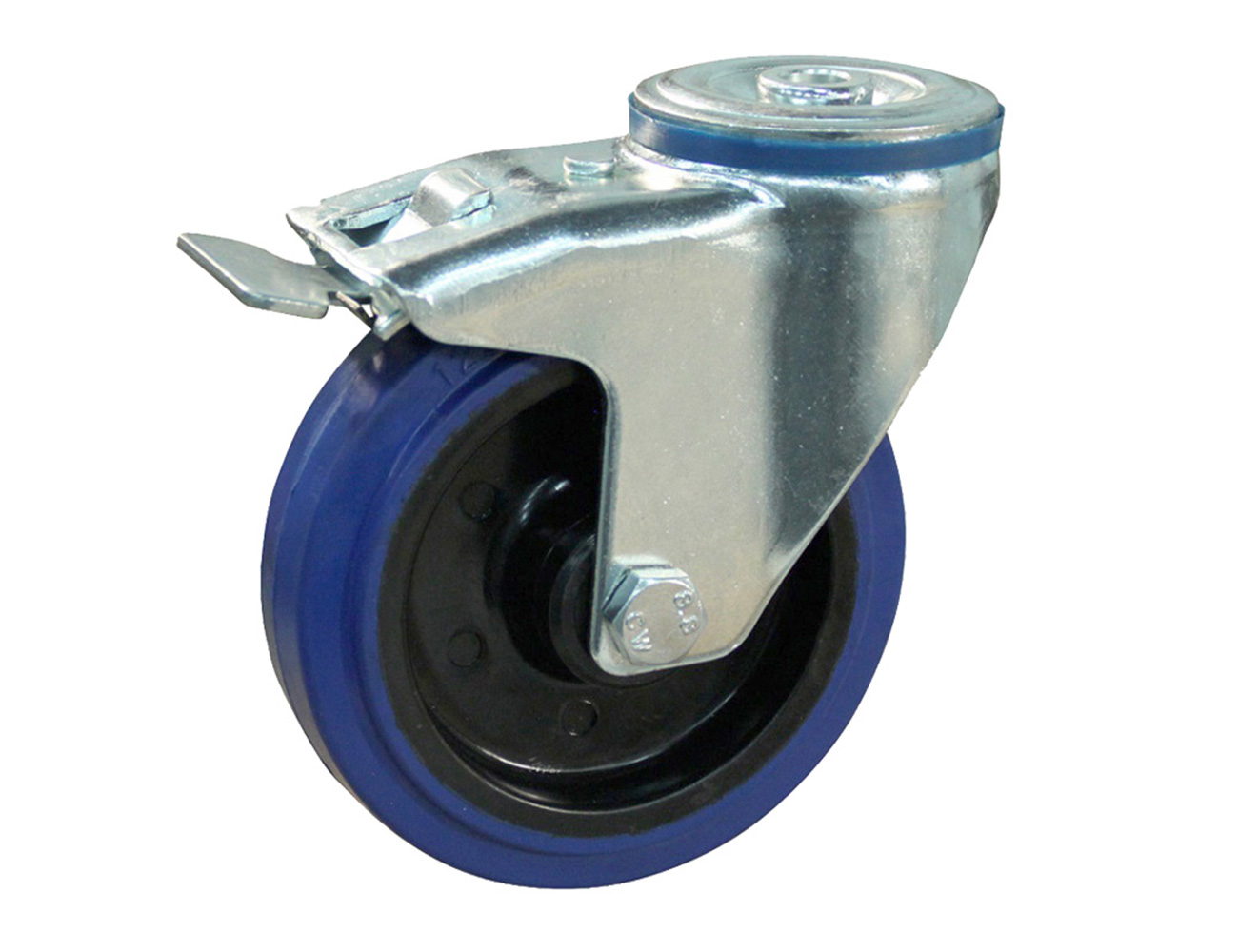

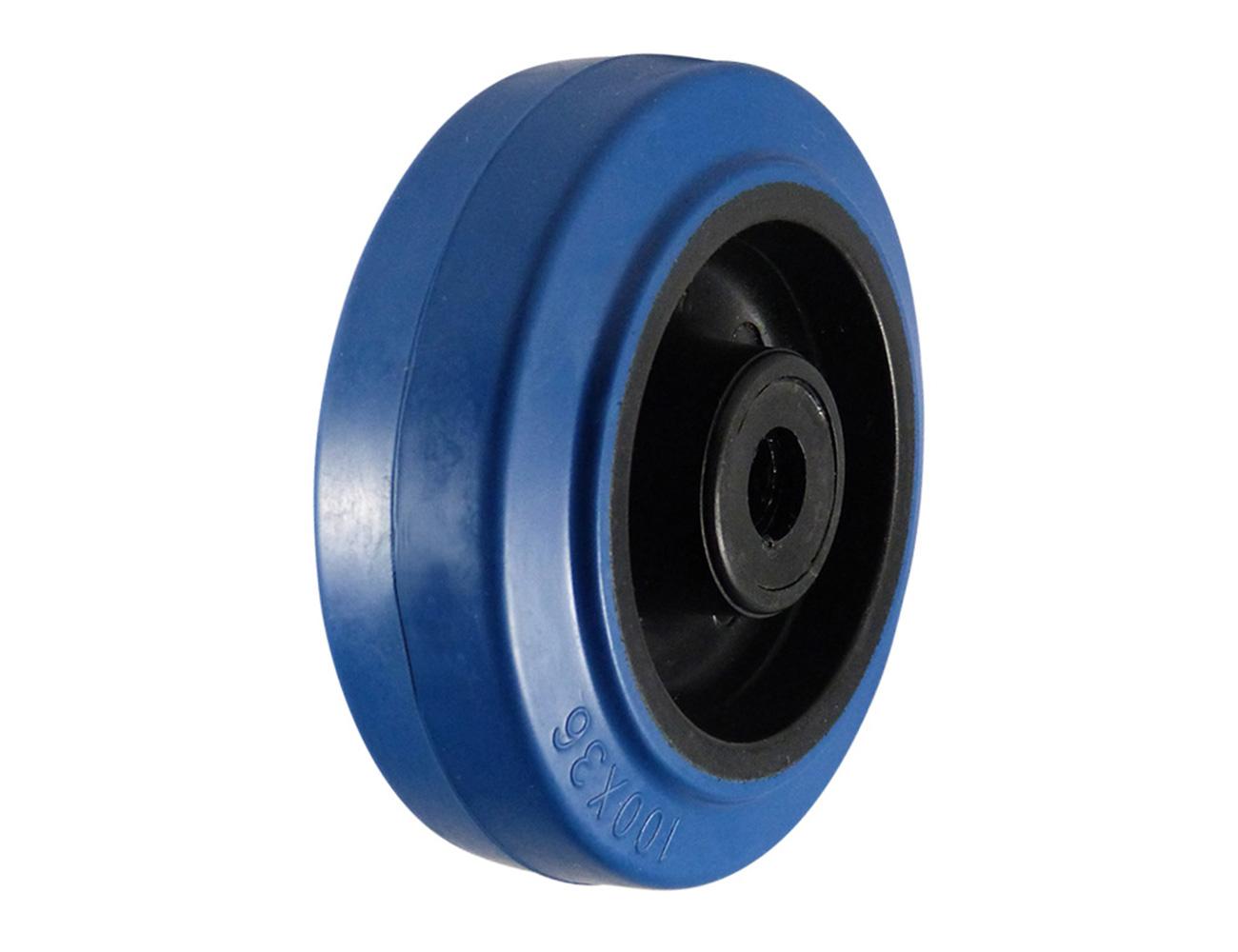

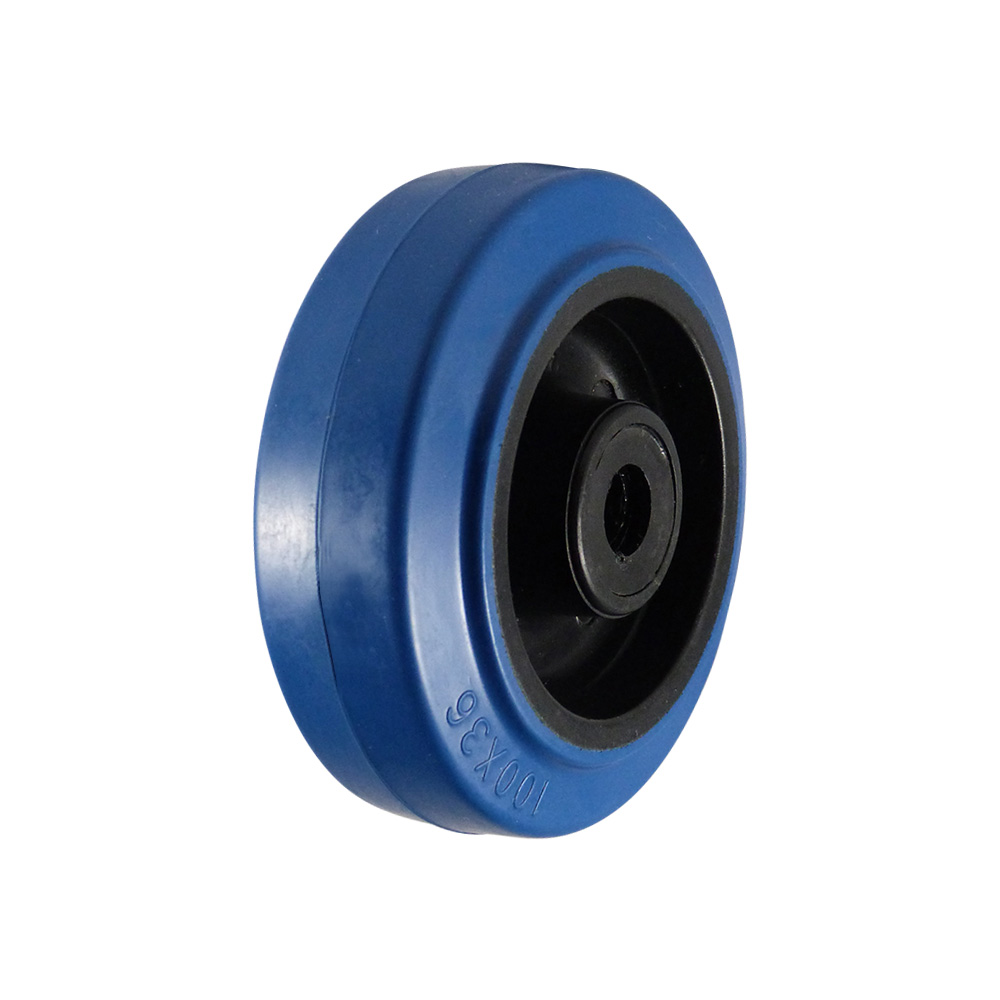

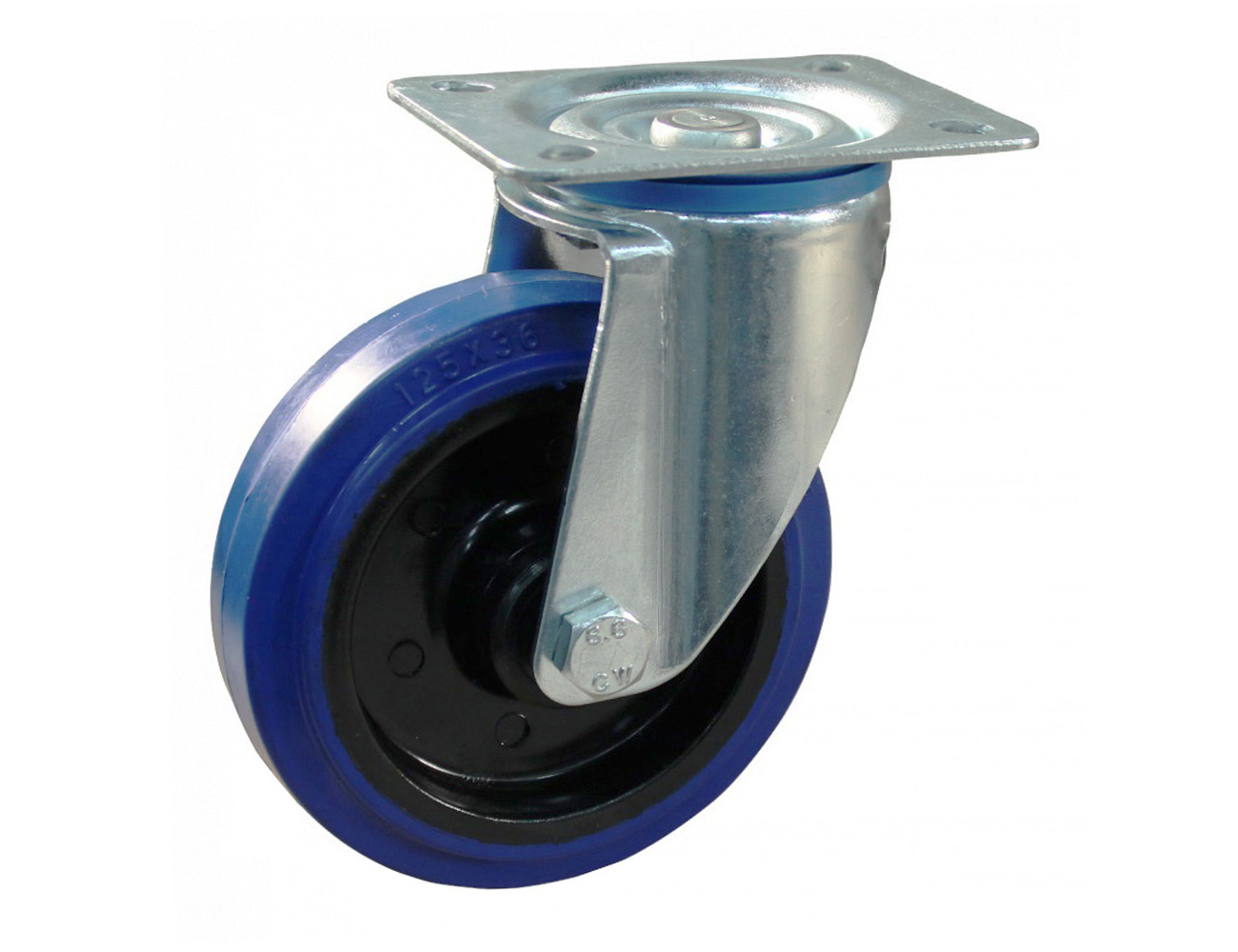

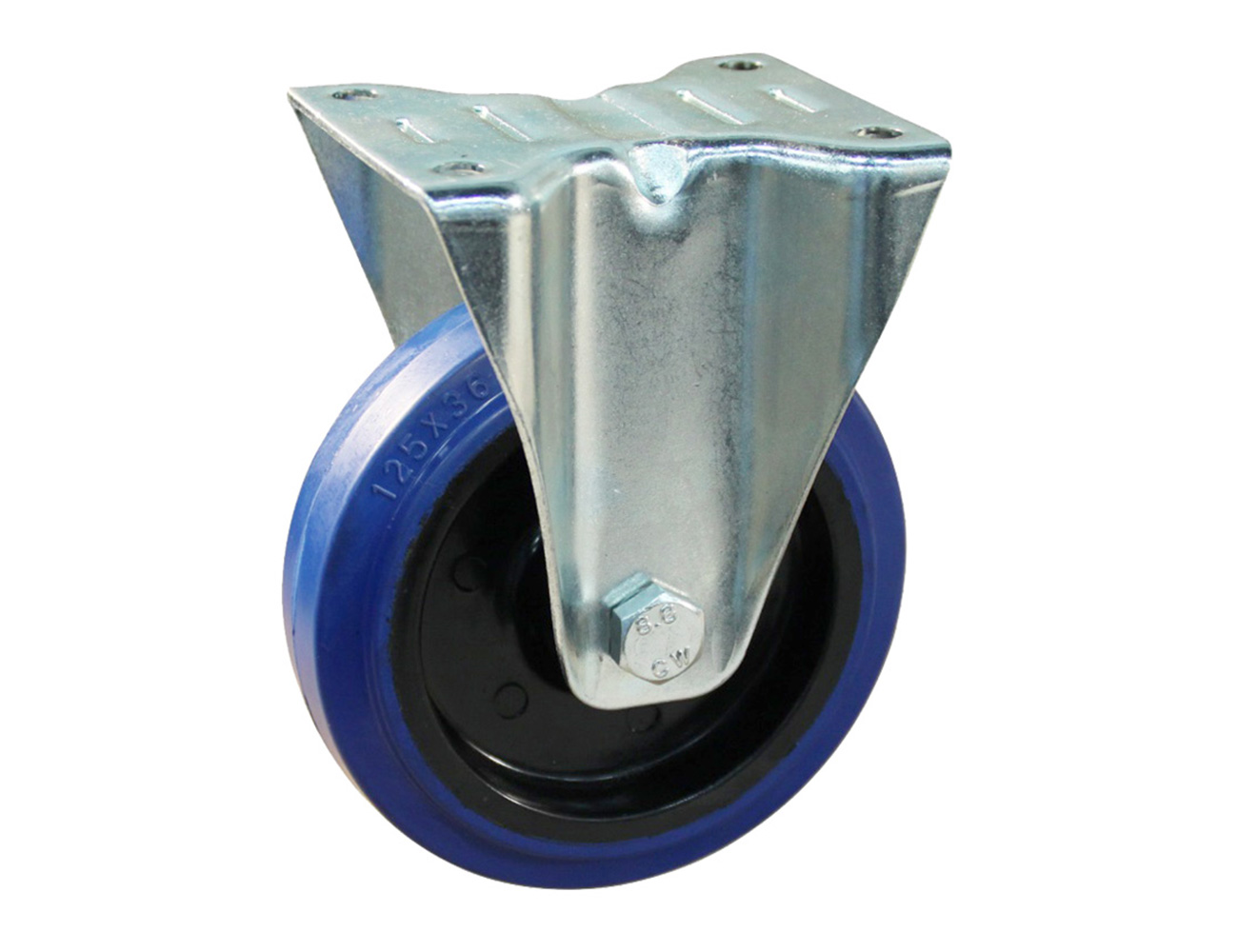

- Available as loose wheel, or with galvanized steel forks as swivel castor, braked swivel castor or fixed castor with plate mount (top plate) or centre mounting hole
- The moulded and vulcanised blue rubber tyre (70° Shore A ±3°) is shock-absorbent, impact-resistant and does not mark the floor (non-marking)
- These castors are maintenance-free, durable and smooth-running
- Maximum static load capacity from 150kg to 200kg
- Temperature resistance: - 30°C to +120 °C
- Highly resistant to chemicals, with the exclusion of oils and greases
- Ideal for mounting under flight cases or mobile music and lighting systems.
Material & colour
- Rim: PA (polyamide) - black (RAL 9005)
- Tyre: rubber tyre - blue (RAL 5010)
Legend
A=Hub width, D=wheel Ø, d2=Ø-shaft bore, E=offset, H=total height, K= maximum static load capacity in kg, Type=type of wheel bearing
