14.15

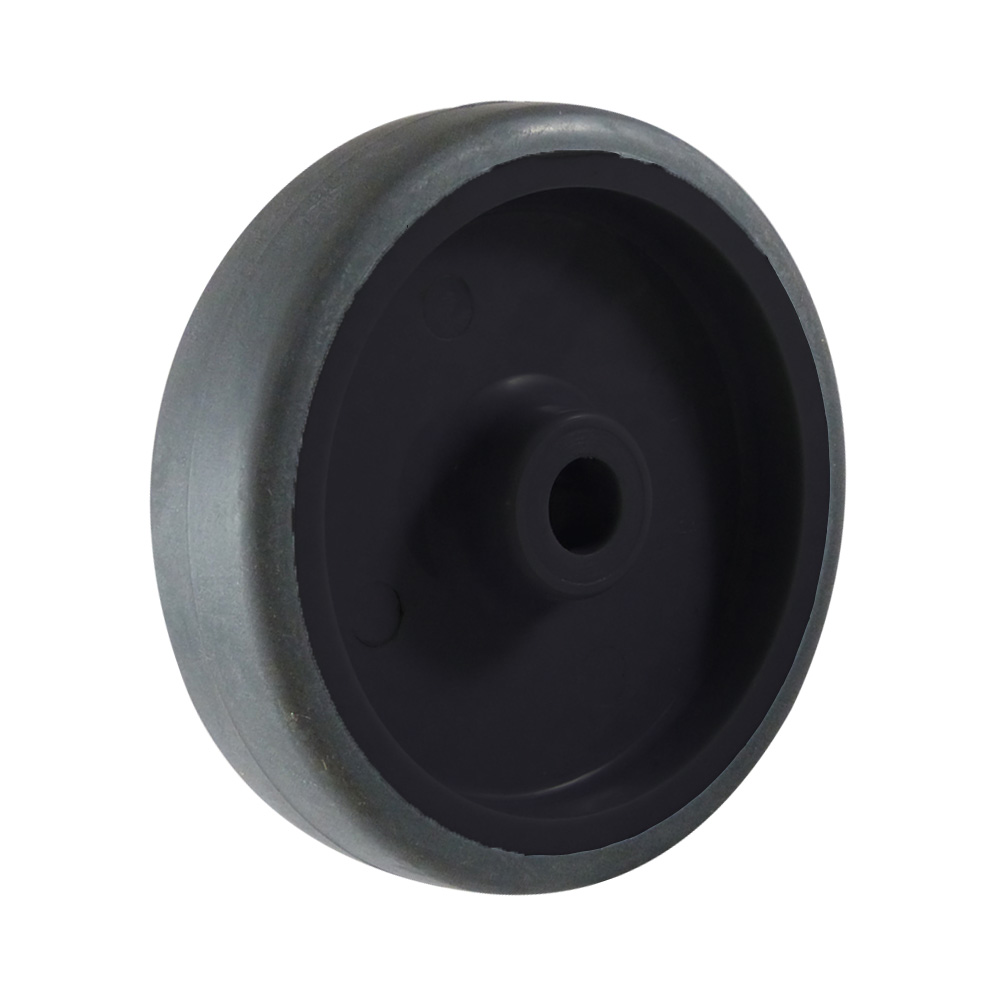

Apparatus wheels with TPE tread – plain bearing - black
Product information
- Apparatus wheels with a TPE tyre on a black plastic rim are available in wheel sizes of Ø50mm or Ø75mm
- Hub with plain bearing, shaft holes from Ø6mm to Ø12mm inclusive
- Maximum static load capacity from 40kg to 60kg
- Temperature resistance from -20°C to +40°C inclusive
- Moulded vulcanised tyre, hardness 70° Shore A ±5° /li>
- Low-noise and smooth-running
- Non-marking
- Highly resistant to many aggressive chemicals
- Industrial wheels are mainly suitable for light use in indoor applications, e.g. items of equipment, mobile displays, furniture, etc.
Material & colour
- Hub: PP (polypropylene) – jet black (RAL 9005)
- Tyre: TPE (thermoplastic elastomer) – slate grey (RAL 7015)
Models
Type A: Wheel with plain bearing
Legend
A=hub width, b=tread width, D=Øwheel, d2=Ø-shaft bore, K=maximum static load capacity in kg
