Heavy-duty castors rubber tyre on aluminium rim - max 525 kg - steel forks
Product information
- Heavy-duty transport wheels with a solid rubber tyre on an aluminium rim are available in wheel diameters from Ø100mm to Ø250mm inclusive

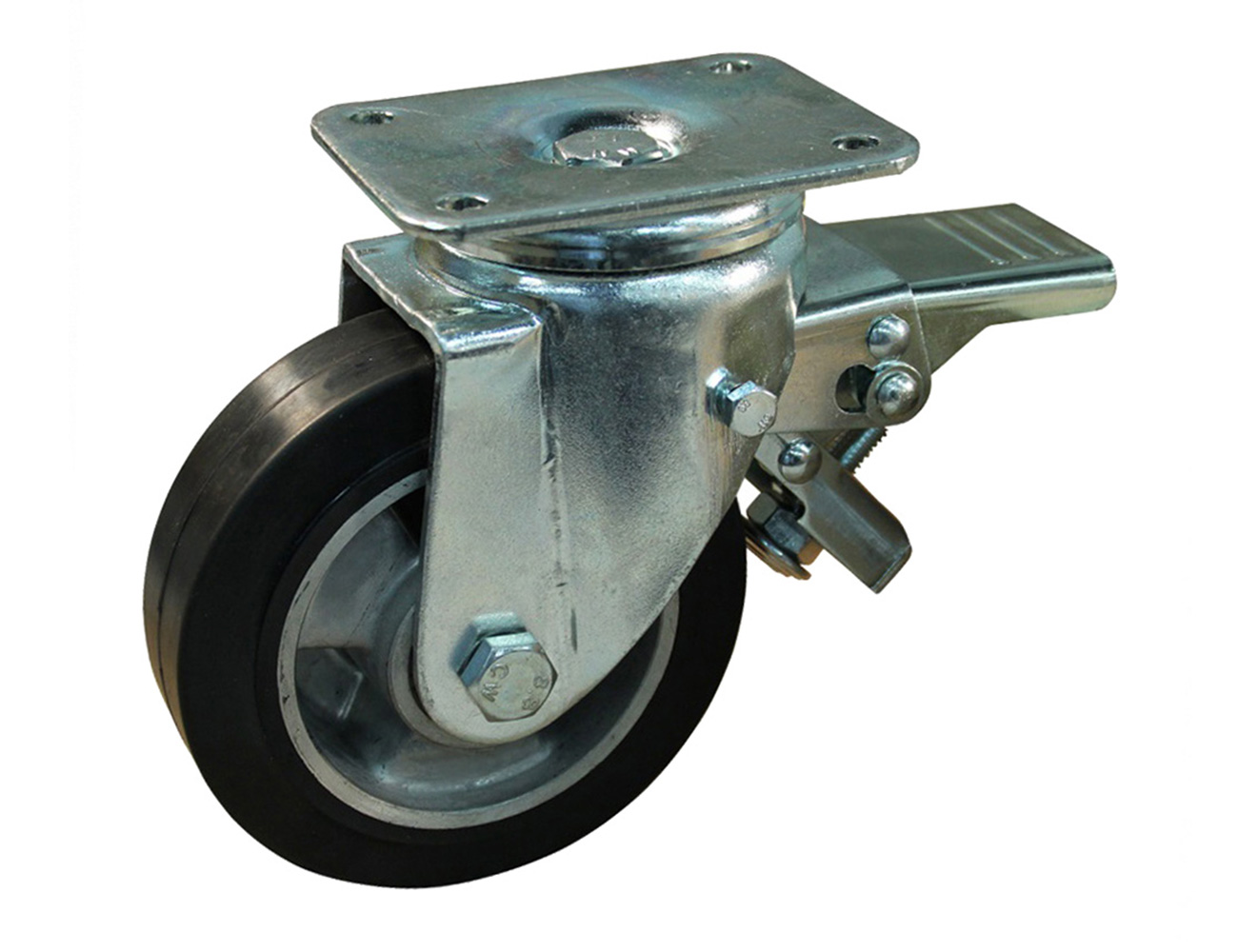

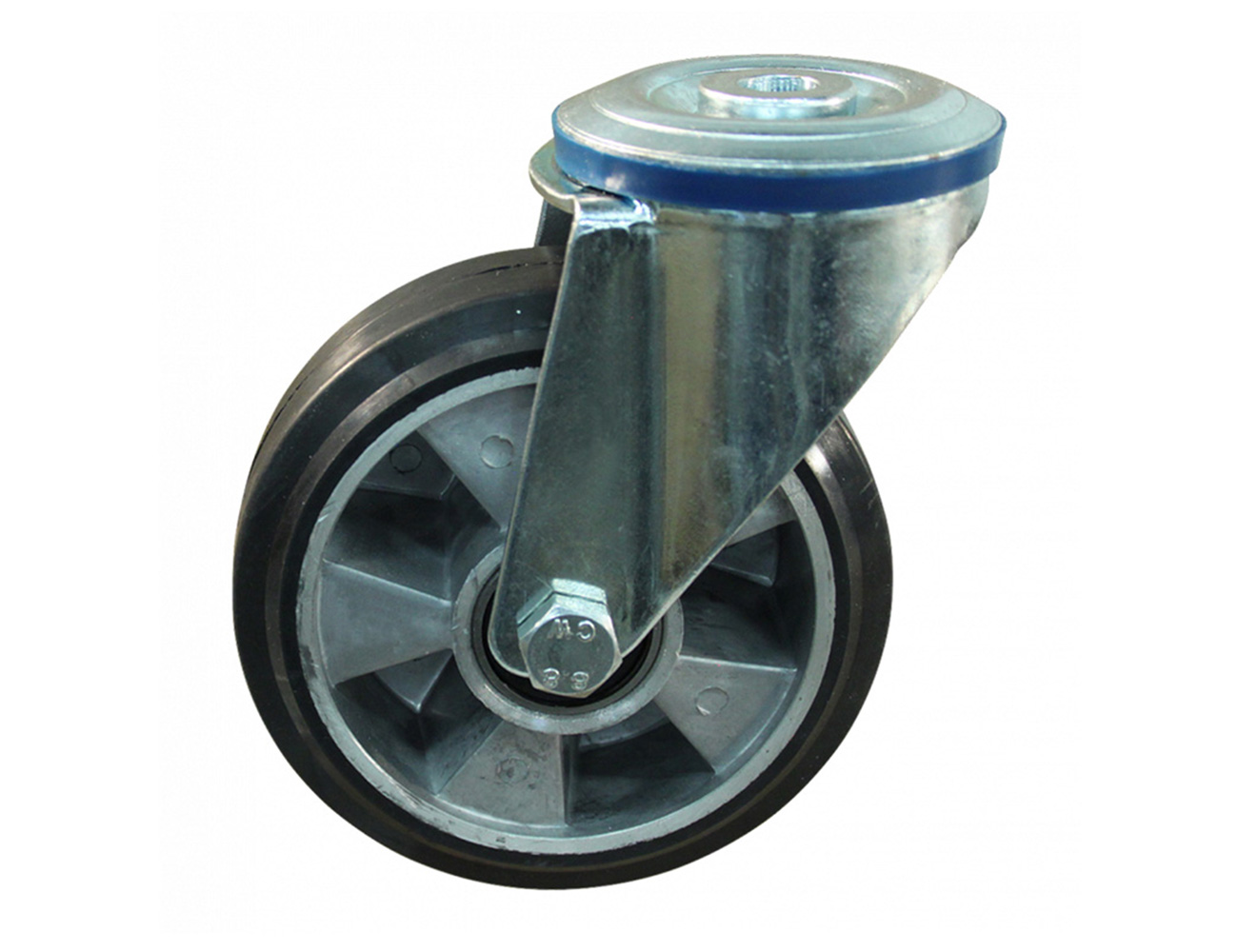

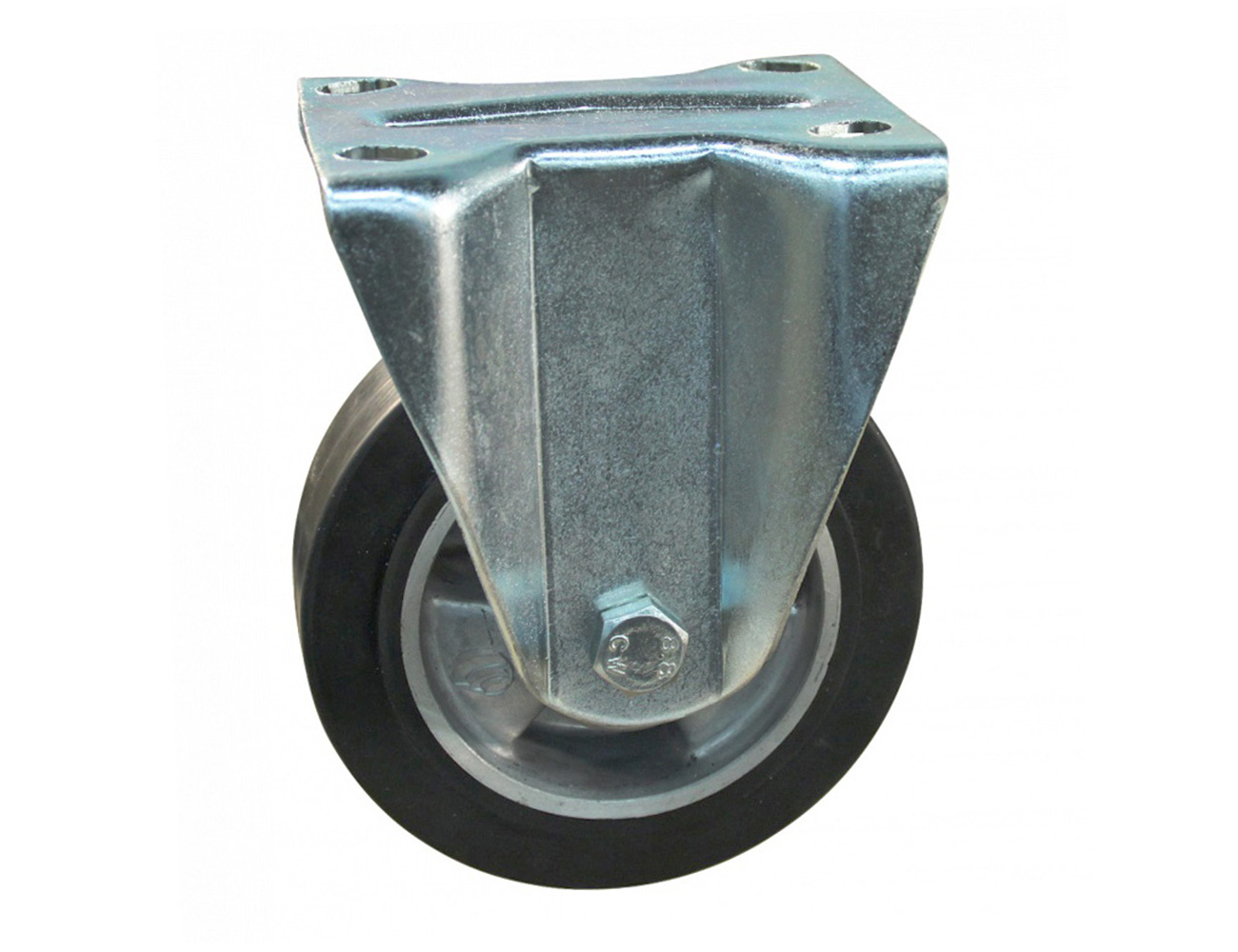

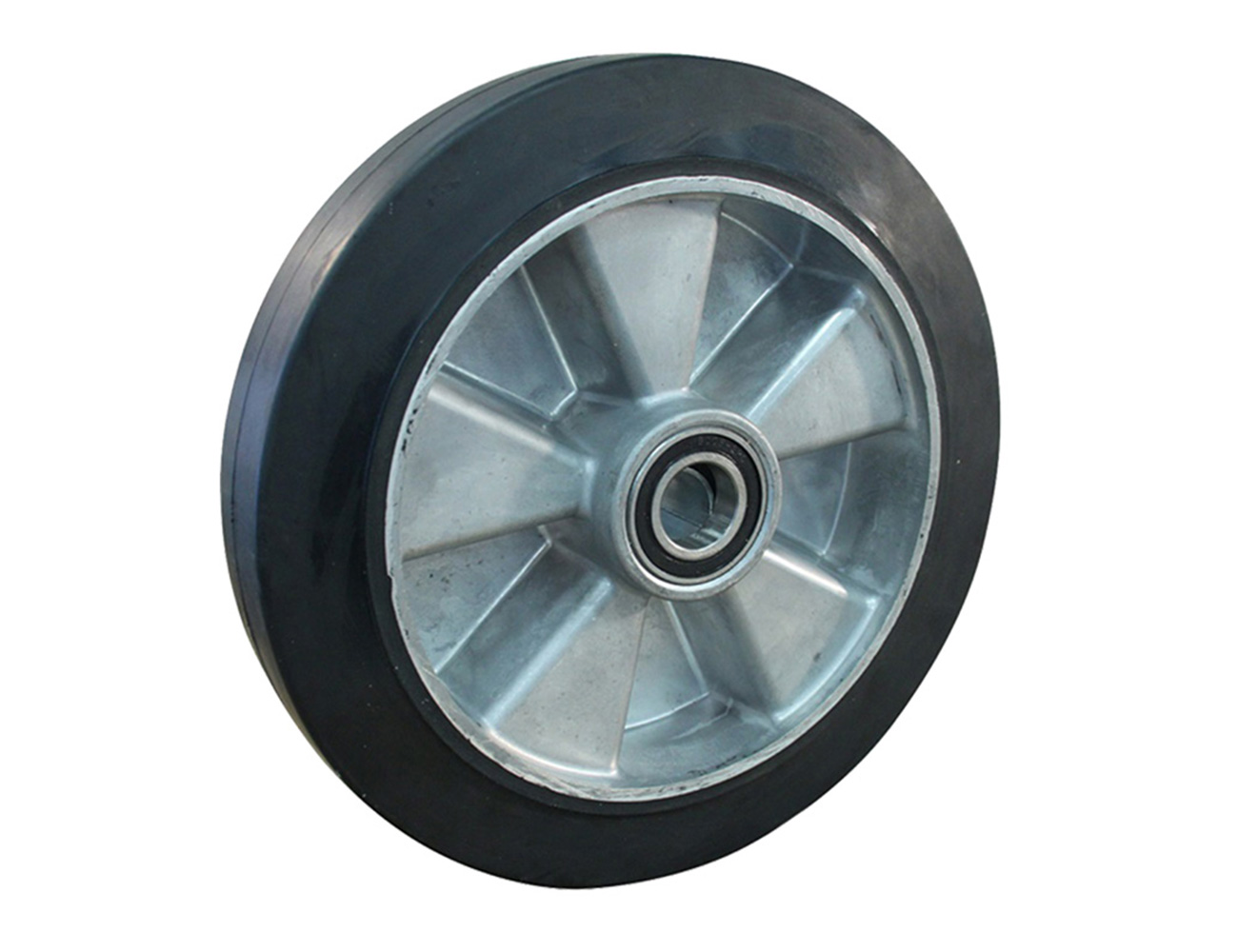

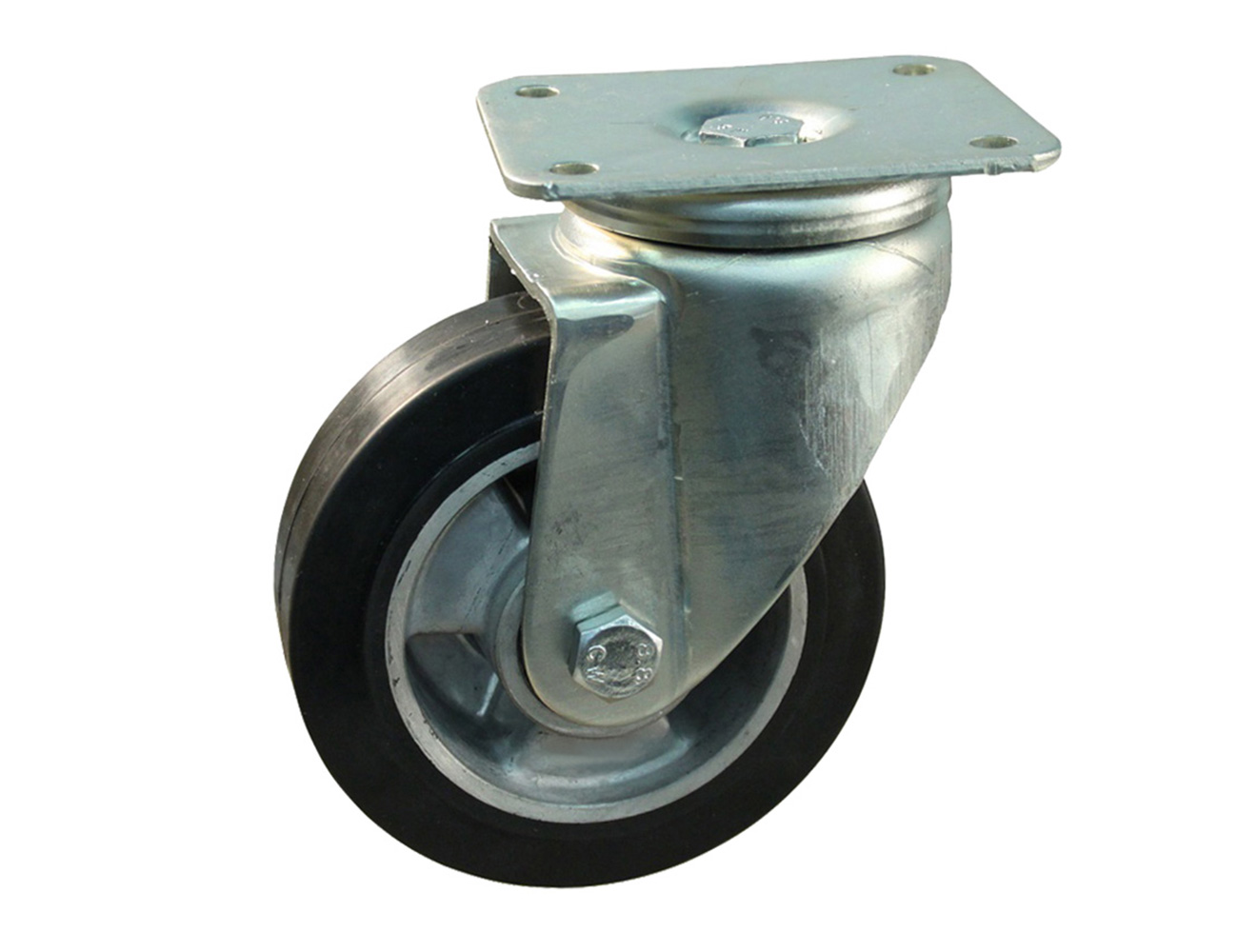

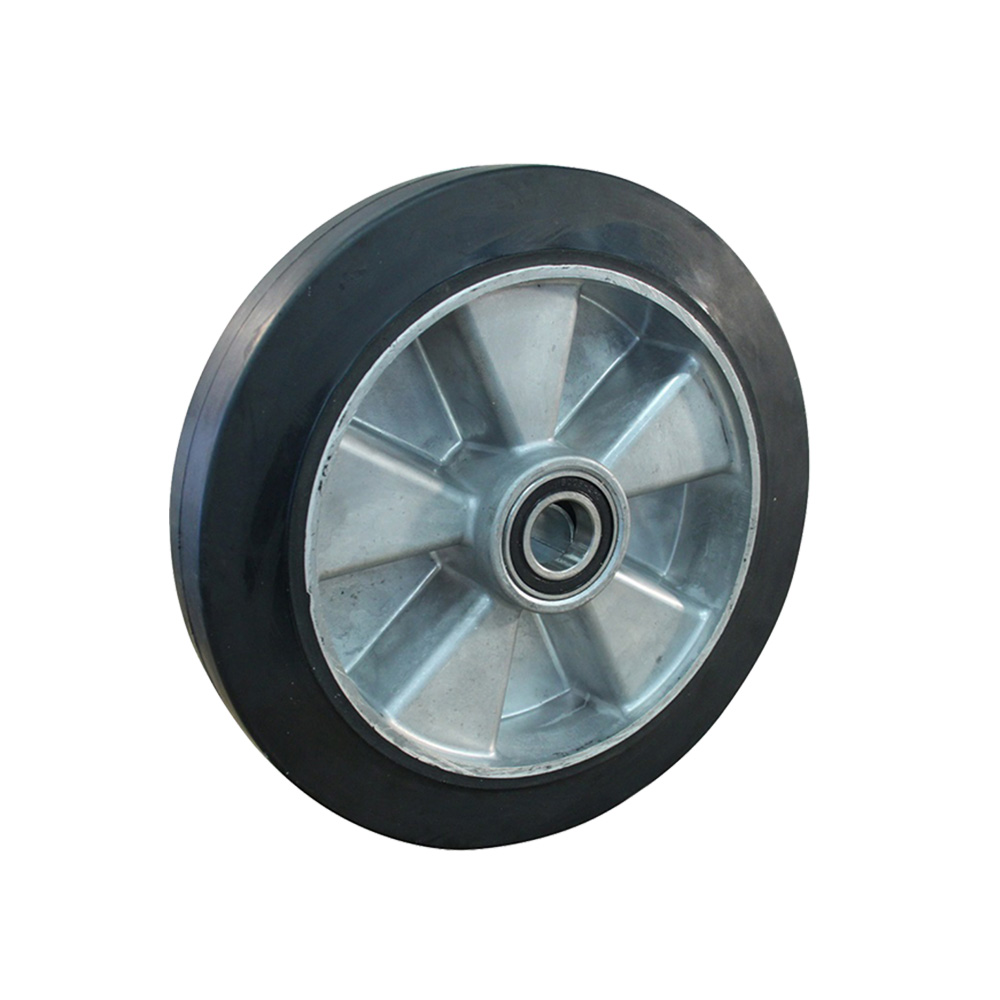

- Available as loose wheel, or with galvanized steel forks as swivel castor, braked swivel castor or fixed castor with plate mount (top plate) or centre mounting hole
- High load-bearing capability: maximum static load of 625kg
- Die-cast aluminium rim
- Wheel bearing assembly comprising two double seal ball bearings
- Moulded and vulcanised solid tyre made from elastic rubber, hardness 68° Shore A ±4°
- Smooth-running (low rolling resistance), extremely durable, low-noise and suitable for intensive use
- Temperature resistance: -20 °C to +40 °C
- Highly resistant to chemicals, with the exclusion of oils and greases
- The black tyre can leave marks on the floor
- Ideal for moving heavy loads on materials handling trolleys, pallet trucks, machines and equipment.
Material & colour
- Wheel: die-cast aluminium - aluminium-coloured
- Tyre: rubber - black
Available on request:
- Complete forks, e.g. for fixed castors, swivel castors or swivelling wheels with a brake, are available on request
- Also available with a polyurethane tyre (non-marking)
Legend
A=hub width, D=wheel Ø, d2=Ø-shaft bore, E=offset, H=total height, K=maximum static load capacity in kg
