Mini heavy-duty castors PU tyre - max 150 kg - steel forks
Product information
- Mini heavy-duty swivelcastors with a solid polyurathane tyre on a steel rim are available in wheel diameters from Ø35mm to Ø50mm inclusive

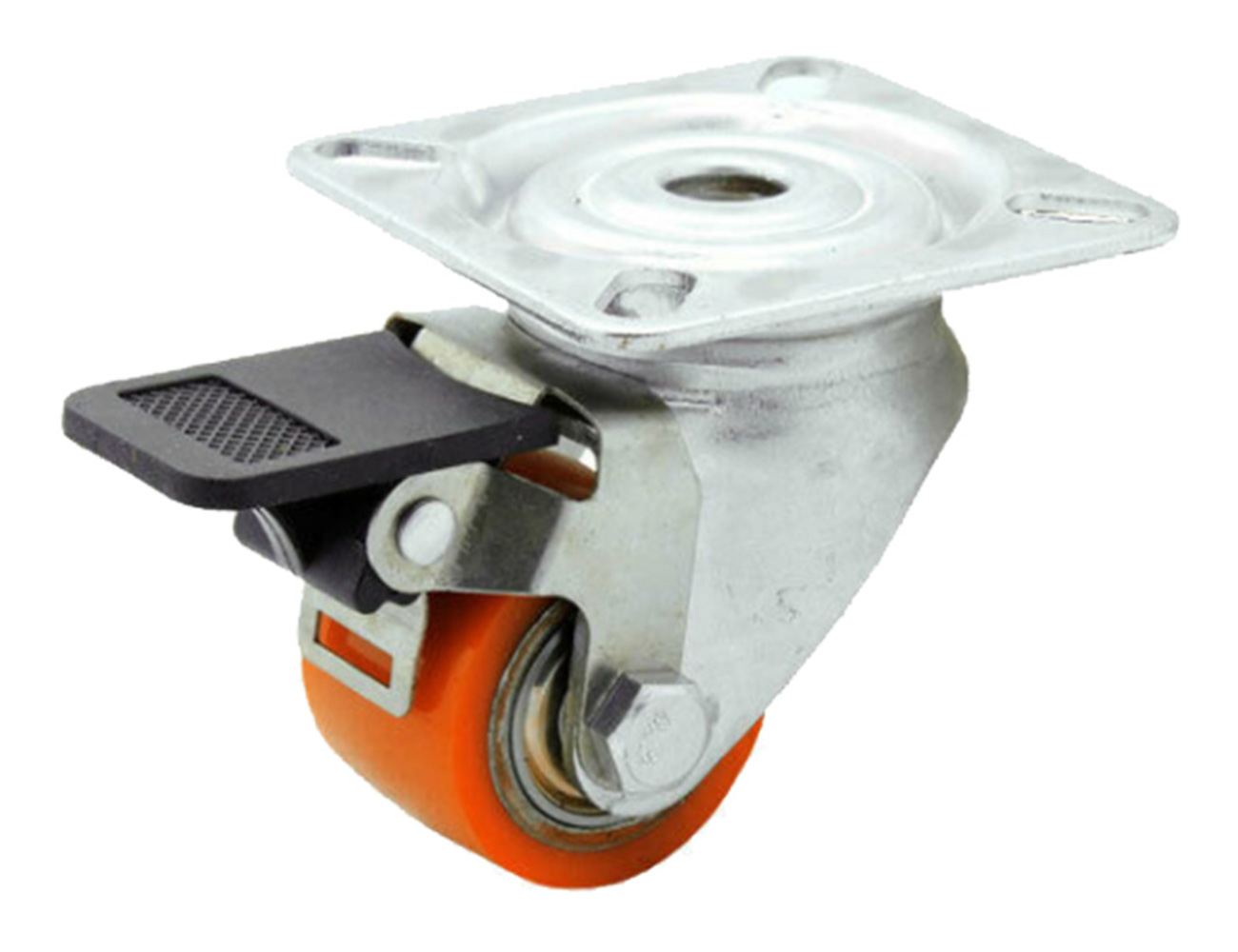

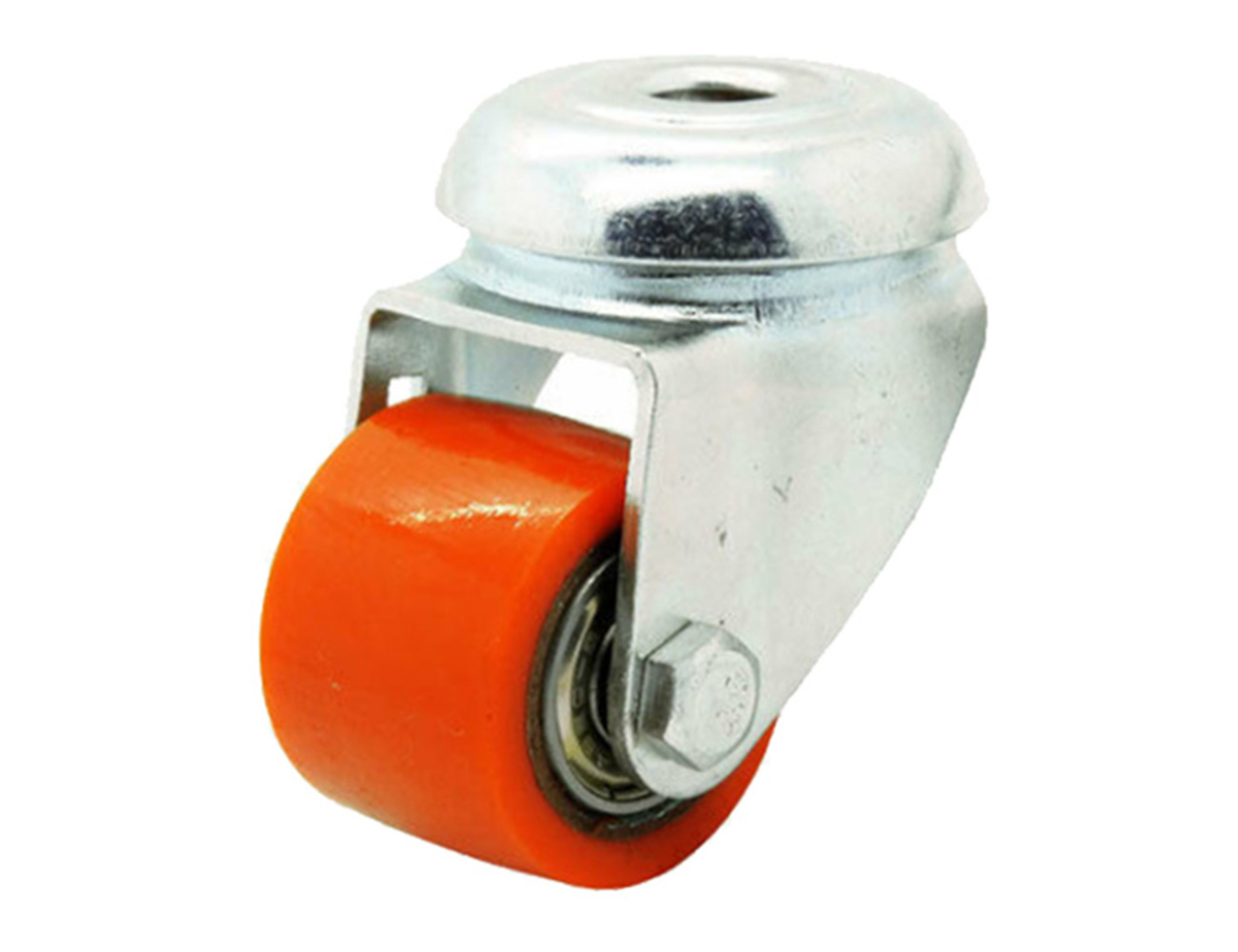

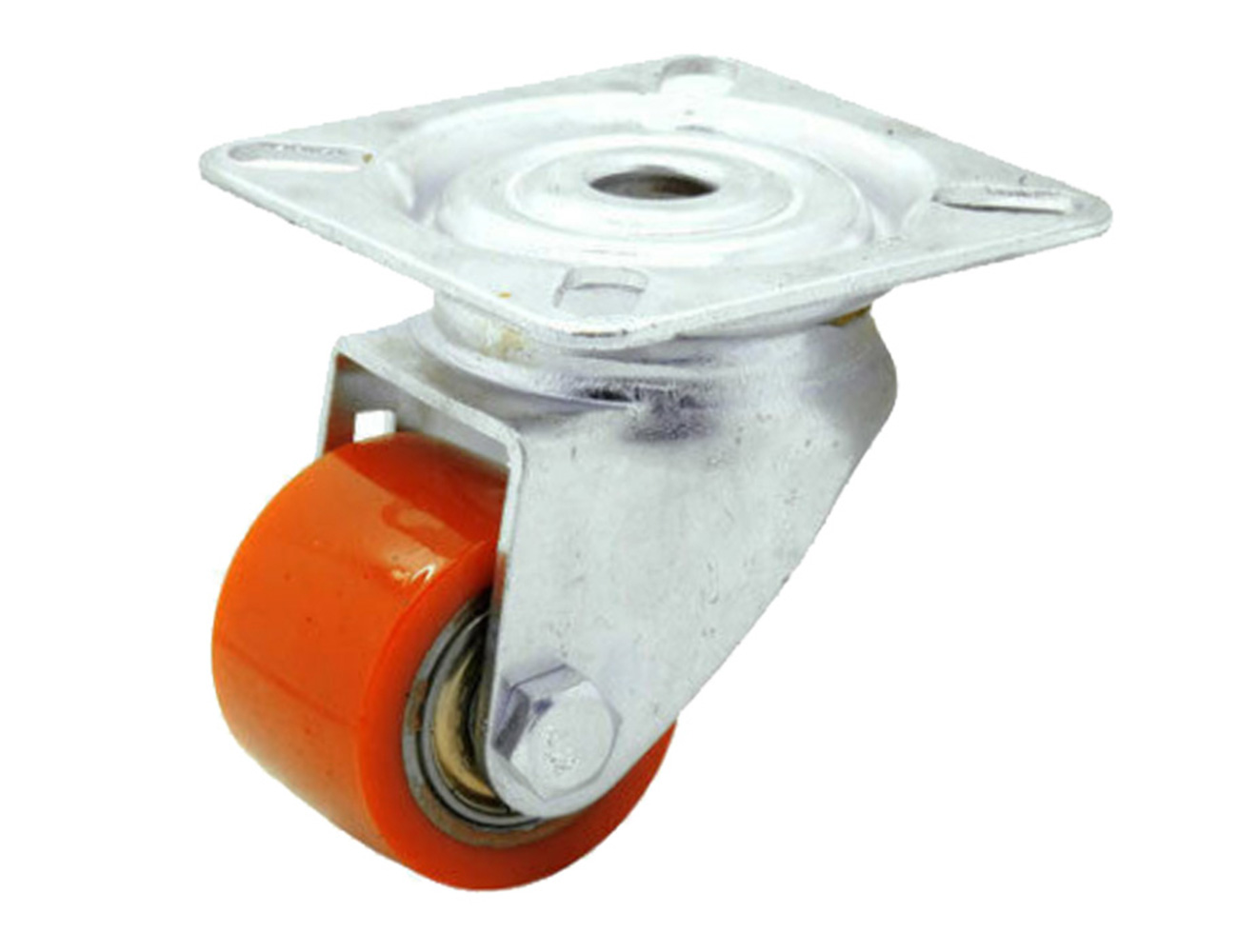

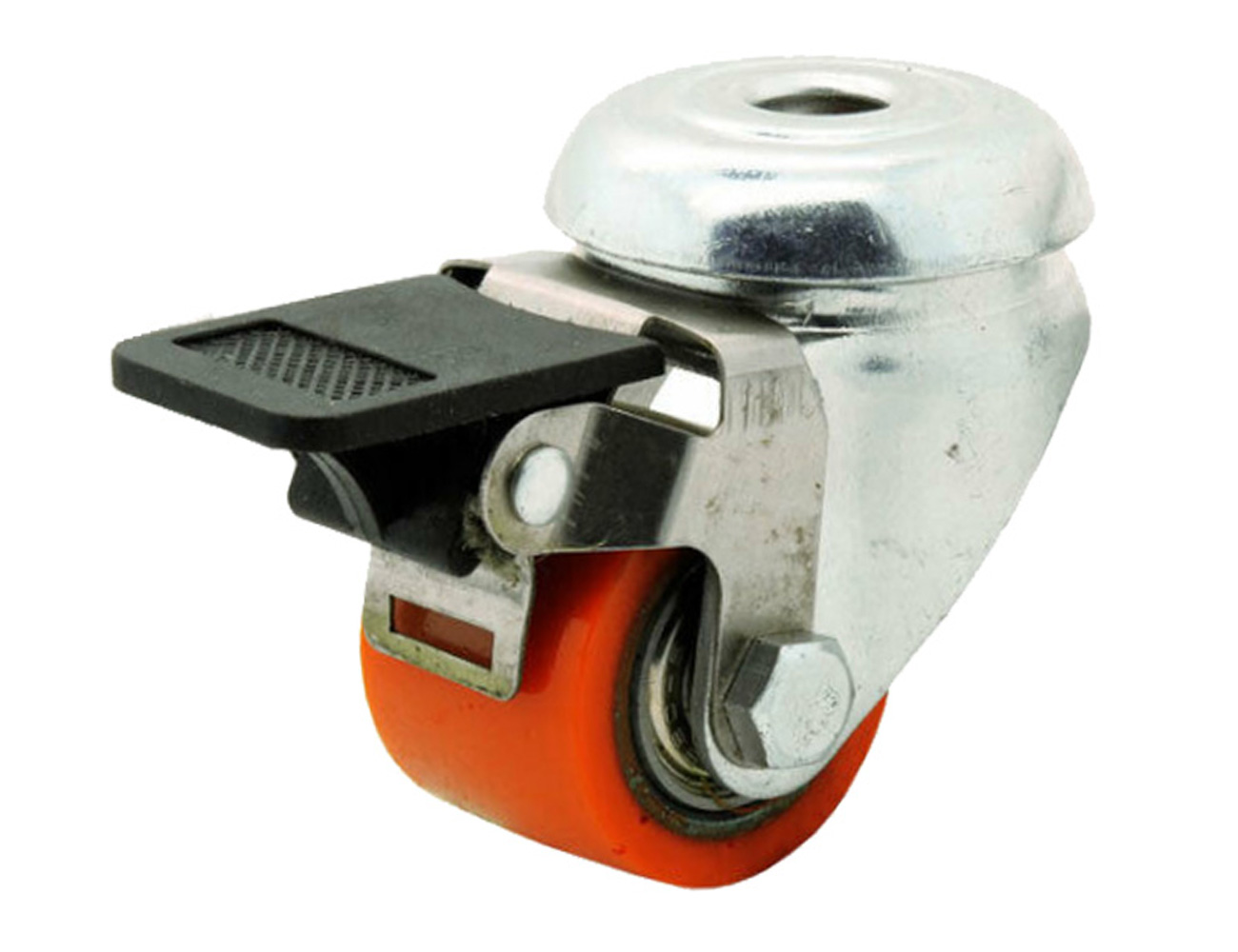

- Available with galvanized steel fork as swivel castor or braked swivel castor with plate mount (top plate) or centre mounting hole
- Swivel arrangement with a double thrust bearing
- Mounting plate size of 60x60mm
- High load-bearing capability: maximum static load of 100kg
- Wheel bearing assembly comprising two double seal ball bearings
- Moulded and vulcanised solid tyre made from elastic rubber, hardness 92° Shore A ±4°
- Smooth-running (low rolling resistance), extremely durable, low-noise and suitable for intensive use
- Temperature resistance: -20 °C to +40 °C
- Highly resistant to chemicals, with the exclusion of oils and greases
- These mini heavy duty swivelcastors are ideal for moving heavy loads on materials handling trolleys, pallet trucks, machines and equipment.
Material & colour
- Fork: steel sheet - galvanised
- Wheel: steel
- Tyre: PU (Polyurathane) - orange
Legend
D=wheel Ø, d2=Ø-shaft bore, H=total height, K=maximum static load capacity in kg
