14.11.4

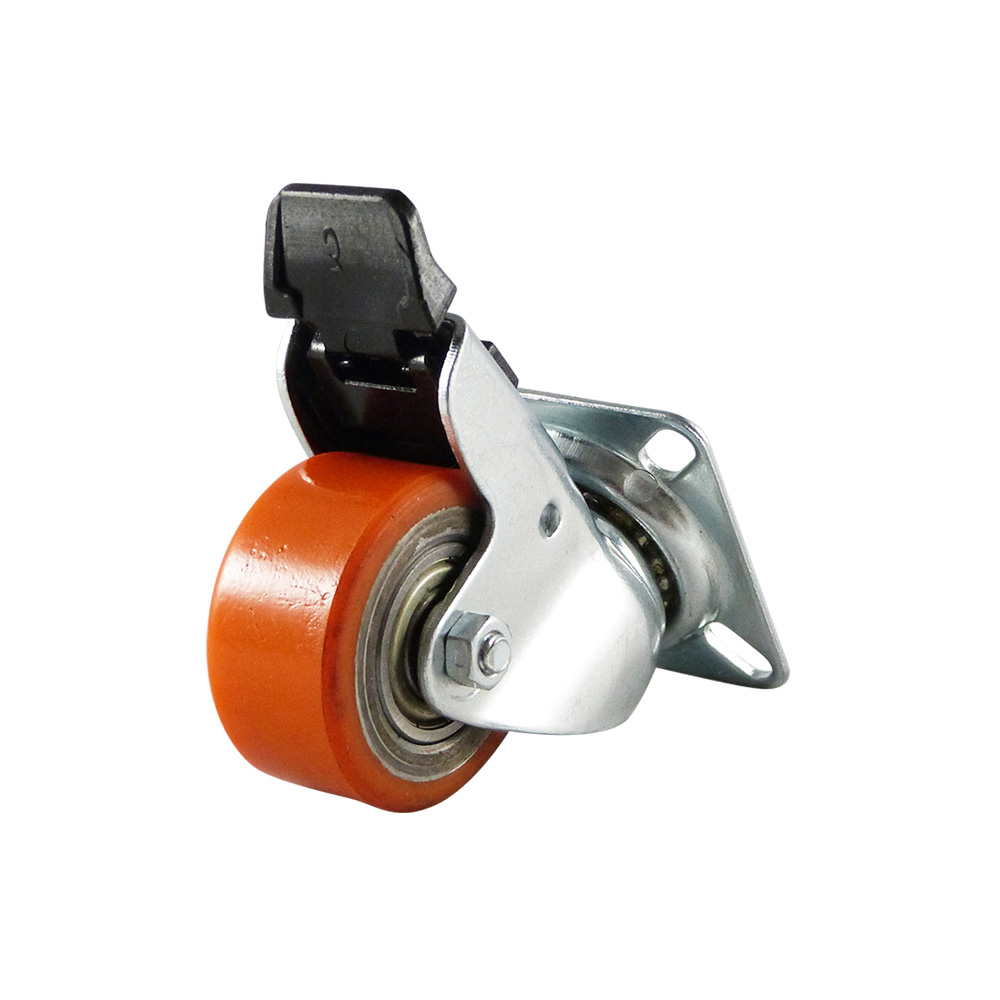

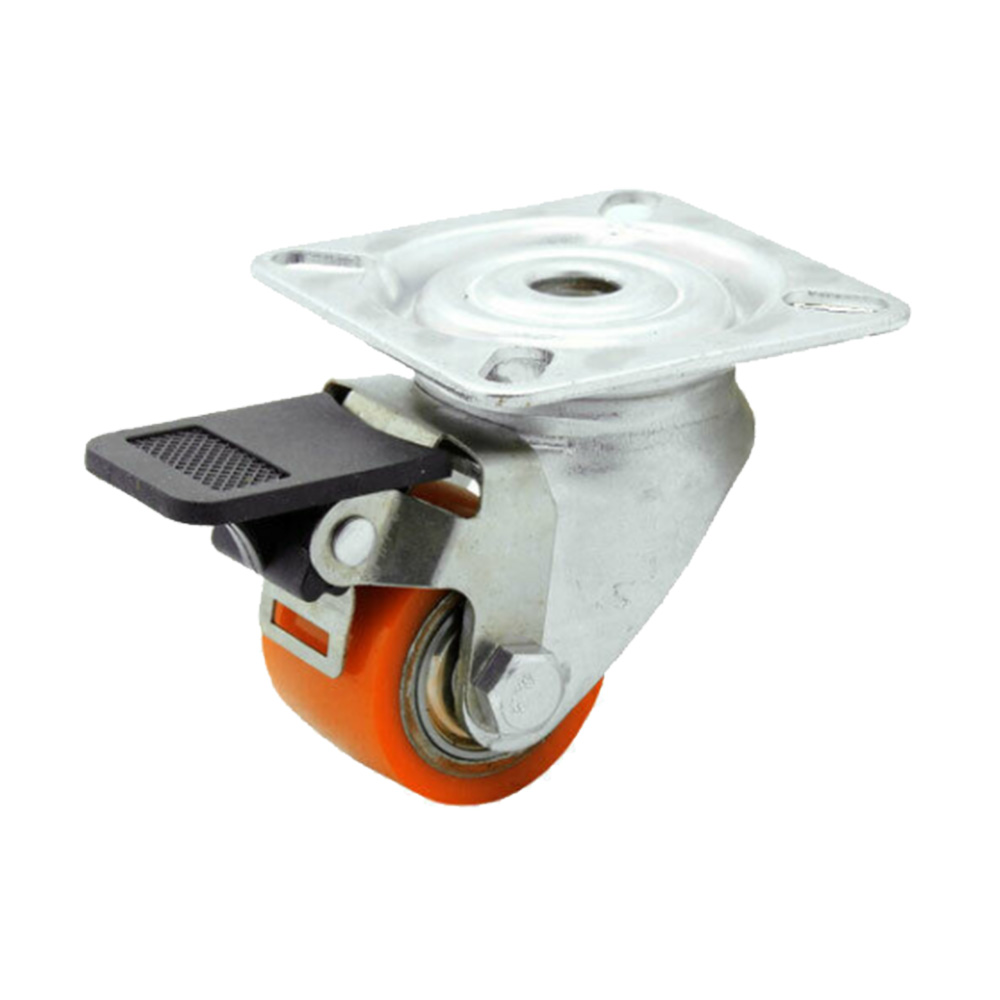

Mini heavy-duty apparatus swivel castors with brake - mounting plate
Product information
- Mini heavy-duty swivelcastors with a brake and solid polyurathane tyre on a steel rim are available in wheel diameters from Ø35mm to Ø50mm inclusive
- Pressed swivel fork with a flat mounting face, made from galvanised steel sheet
- Swivel arrangement with a double thrust bearing

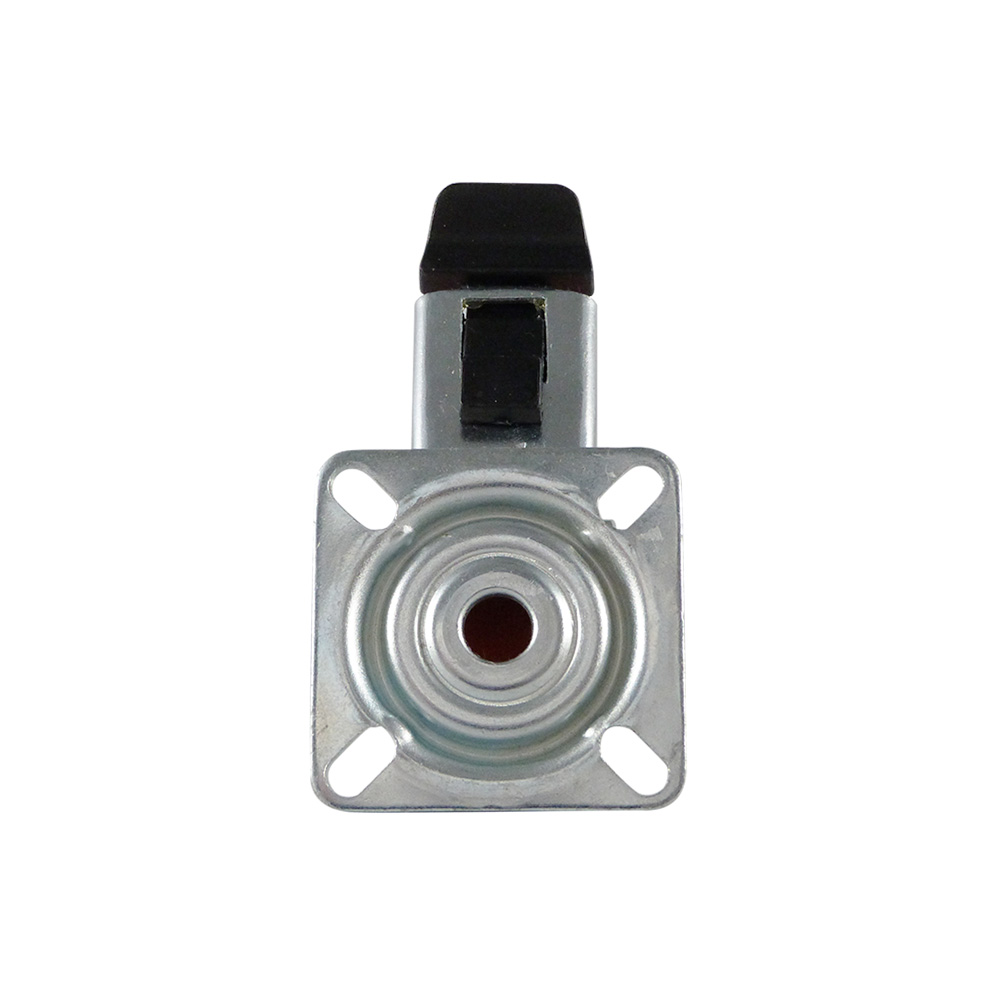

- Mounting plate size of 60x60mm
- High load-bearing capability: maximum static load of 100kg
- Wheel bearing assembly comprising two double seal ball bearings
- Moulded and vulcanised solid tyre made from elastic rubber, hardness 92° Shore A ±4°
- Smooth-running (low rolling resistance), extremely durable, low-noise and suitable for intensive use
- Brake: locks the wheel and from wheel diameter Ø50mm simultaneously the swivel (Double-action brake)
- Temperature resistance: -20 °C to +40 °C
- Highly resistant to chemicals, with the exclusion of oils and greases
- These mini heavy duty swivelcastors are ideal for moving heavy loads on materials handling trolleys, pallet trucks, machines and equipment.
Material & colour
- Fork: steel sheet - galvanised
- Wheel: steel
- Tyre: PU (Polyurathane) - orange
Models:
Type C: double seal ball bearings

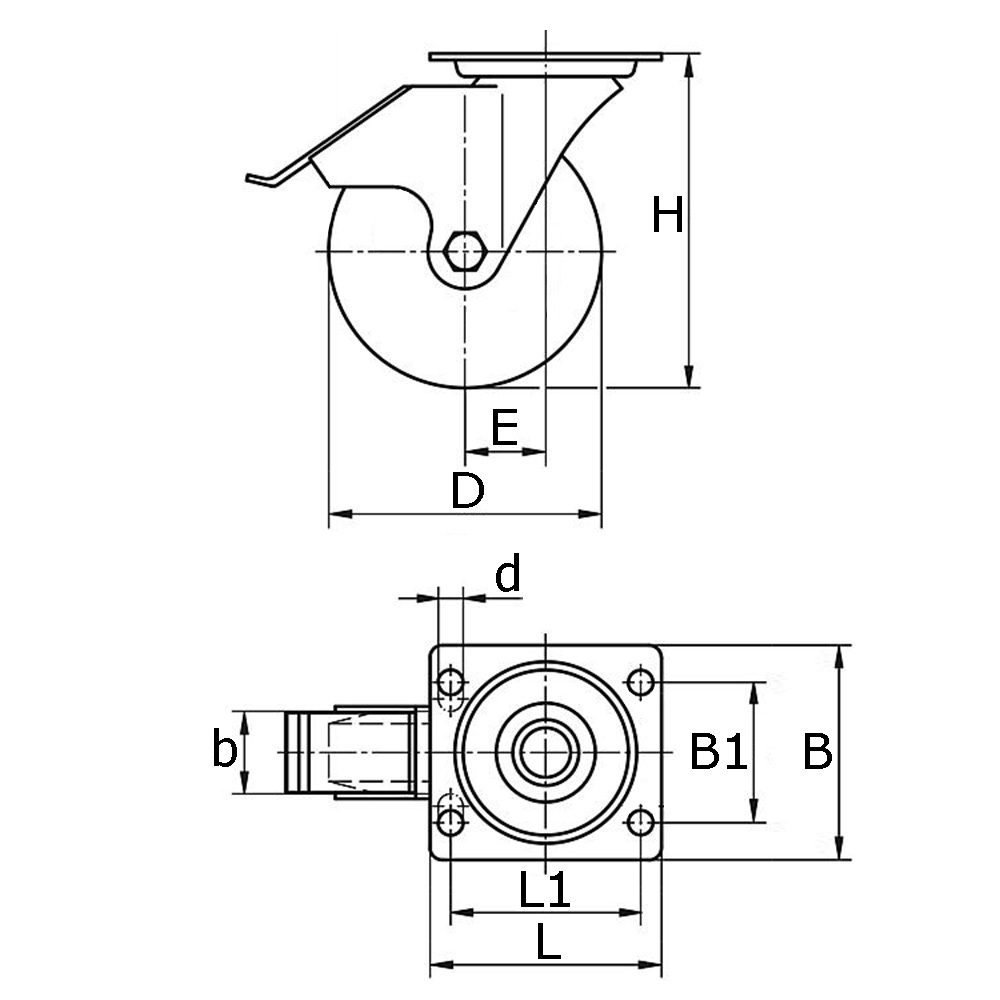

Legend
B=mounting plate width, b=tread width, B1=dimension between hole centres, D=wheel Ø, d=hole Ø, E=offset, H=total height, K= maximum static load capacity in kg, L=mounting plate length, L1=dimension between hole centres, Type=type of wheel bearing
