14.11.5

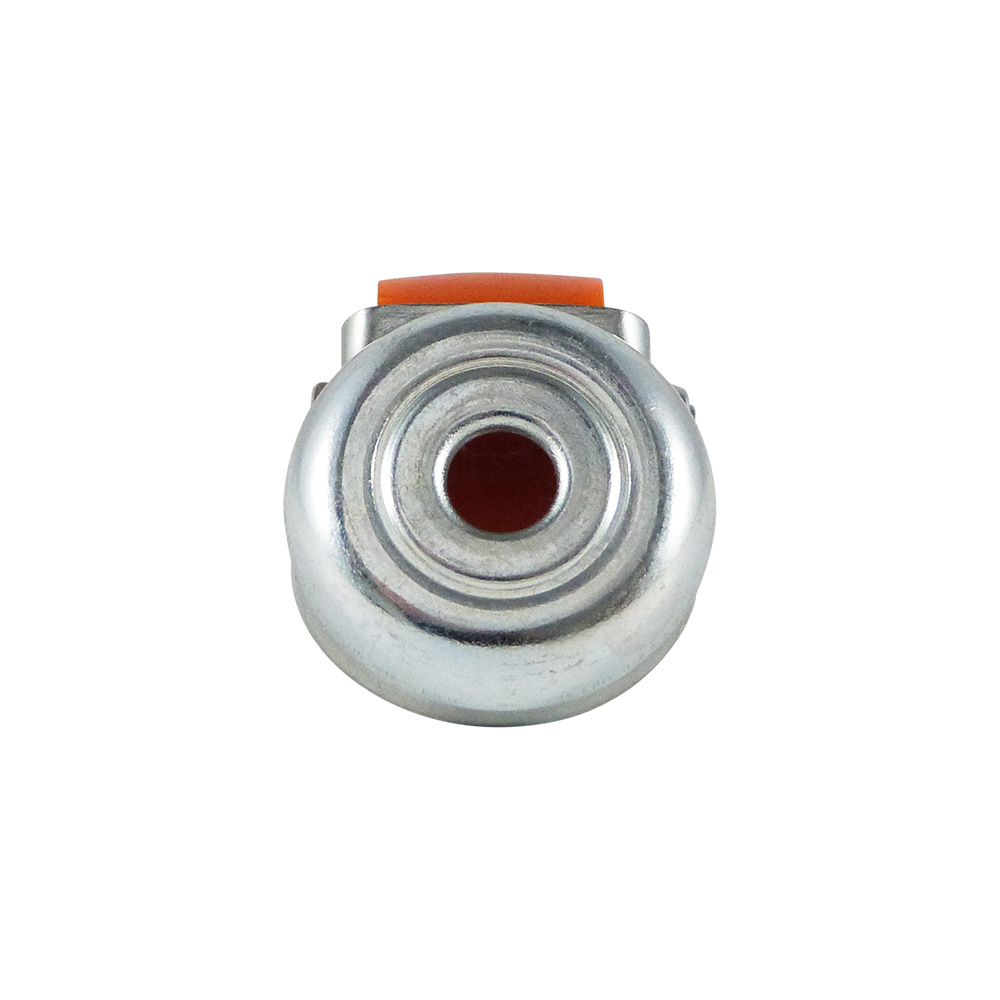

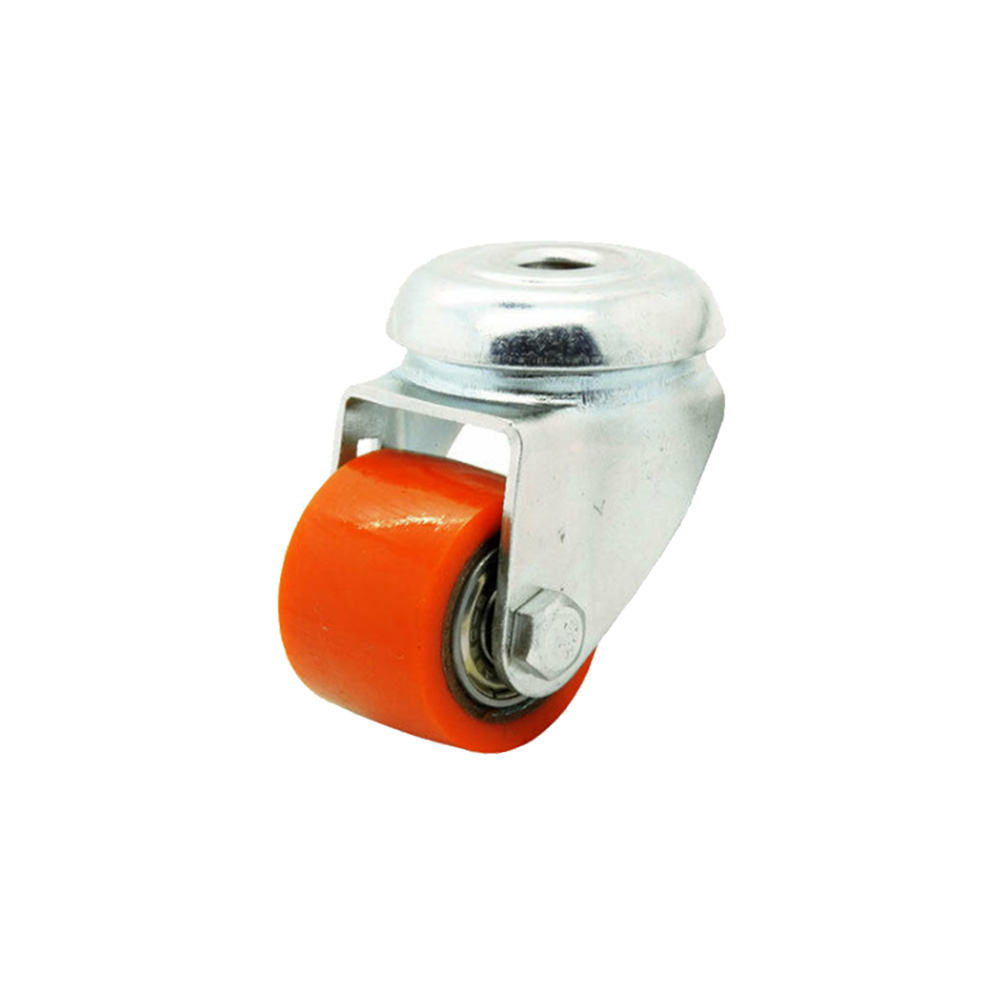

Mini heavy-duty apparatus swivel castors - centre mounting hole
Product information
- Mini heavy-duty swivelcastors with a solid polyurathane tyre on a steel rim are available in wheel diameters from Ø35mm to Ø50mm inclusive
- Pressed swivel fork with a centre mounting hole, made from galvanised steel sheet
- Swivel arrangement with a double thrust bearing
- Mounting plate size of 60x60mm
- High load-bearing capability: maximum static load of 100kg
- Wheel bearing assembly comprising two double seal ball bearings
- Moulded and vulcanised solid tyre made from elastic rubber, hardness 92° Shore A ±4°
- Smooth-running (low rolling resistance), extremely durable, low-noise and suitable for intensive use
- Temperature resistance: -20 °C to +40 °C
- Highly resistant to chemicals, with the exclusion of oils and greases
- These mini heavy duty swivelcastors are ideal for moving heavy loads on materials handling trolleys, pallet trucks, machines and equipment.
Material & colour
- Fork: steel sheet - galvanised
- Wheel: steel
- Tyre: PU (Polyurathane) - orange
Models:
Type C: double seal ball bearings

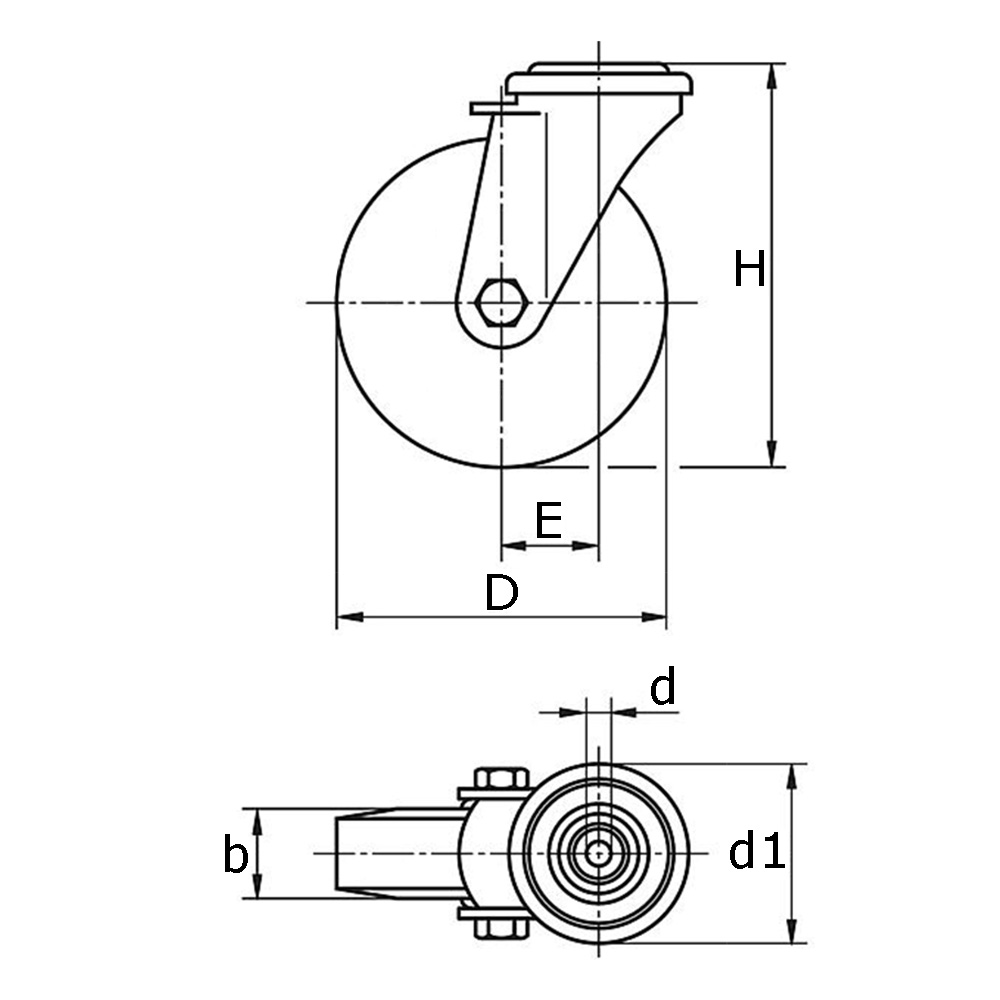

Legend
b=tread width, D=wheel Ø, d=hole Ø, E=offset, H=total height, K= maximum static load capacity in kg, Type=type of wheel bearing
