14.6.4

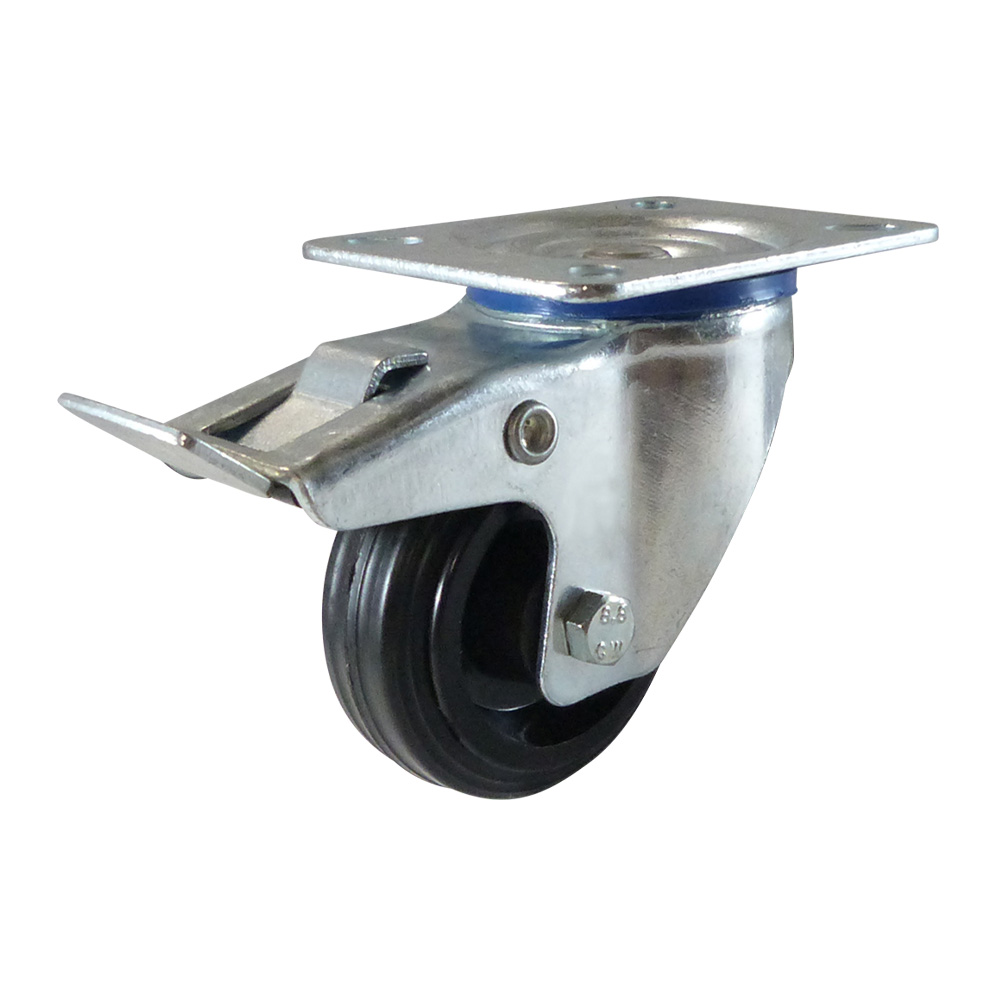

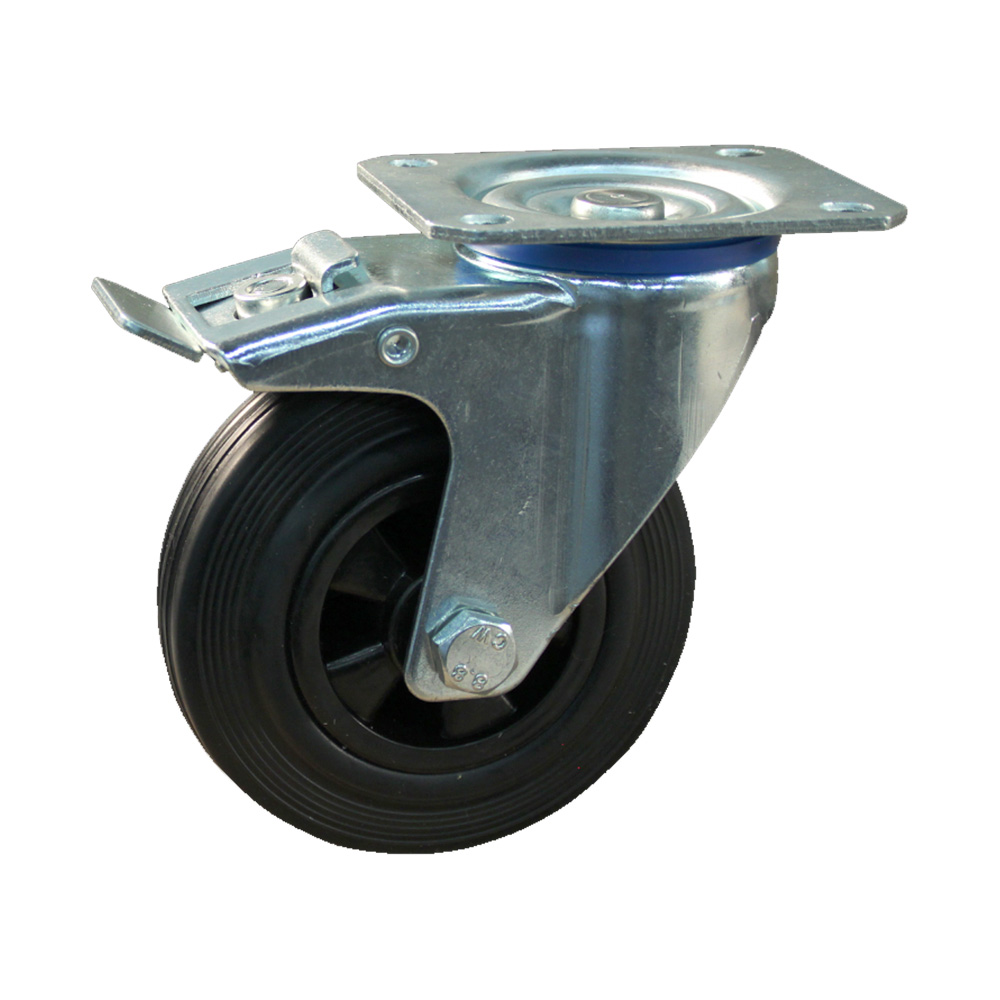

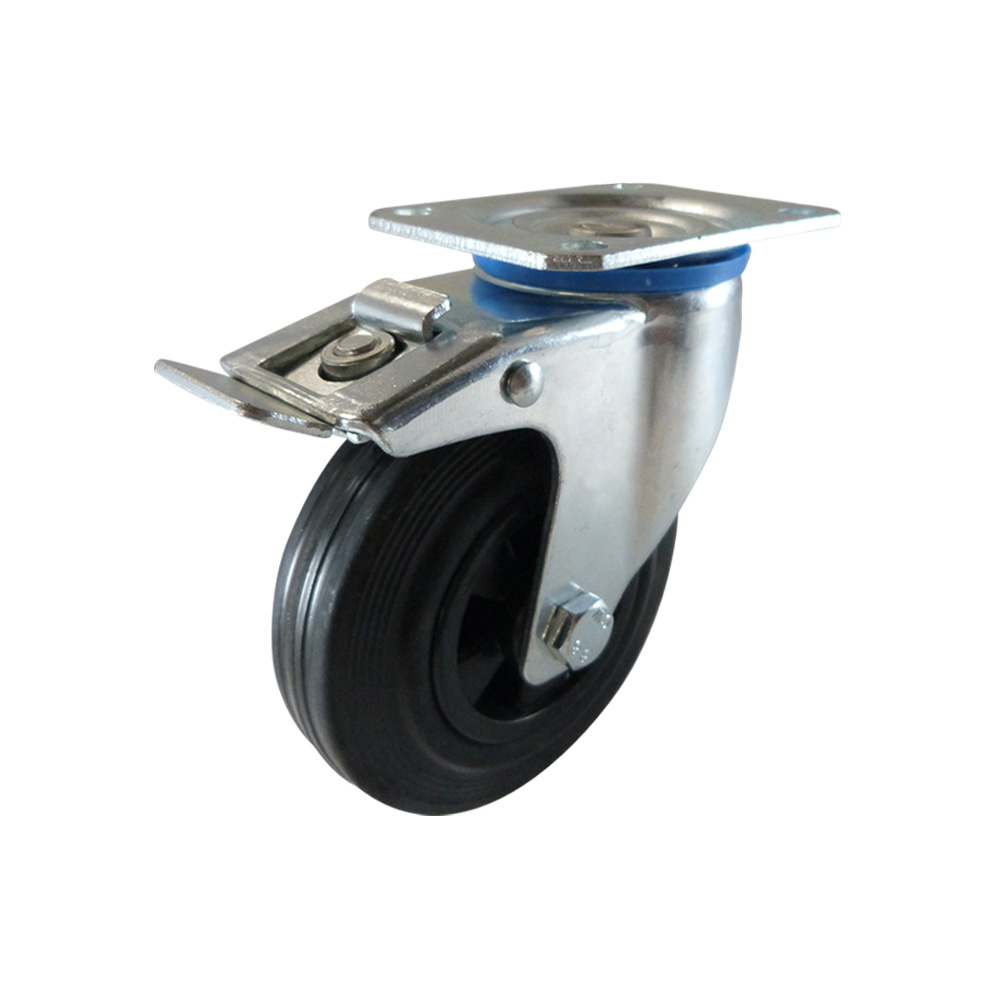

Swivel caster with brake – plate - solid rubber tyre on plastic rim
Product information
- Swivel castors with a brake, mounting plate, plastic rim and standard solid rubber tyre are available in wheel diameters from Ø80mm to Ø250mm inclusive
- Pressed fork with a flat mounting face, made from galvanised steel sheet
- Swivel arrangement with a sealed double thrust bearing
- Double-action brake: locks both the wheel and the swivel
- Maximum static load capacity from 50kg to 250kg inclusive
- Standard solid rubber tyre, hardness 80° Shore A ±3°
- Temperature resistance: -20 °C to +80 °C
- The black tyre can leave marks on the floor
- Highly resistant to many aggressive chemicals; not resistant to oil and grease
- Low-noise, durable and maintenance-free under conditions of normal use
- For general use indoors and on surfaced areas outdoors
Material & colour
- Fork: Galvanised steel - zinc-coloured
- Tyre: solid rubber - black
- Rim with hub: PP (polypropylene) – black (RAL9005)
- Plain bearing: Plastic
Types
Type A: Wheel with plain bearing
Available on request
- Wheels with roller bearing

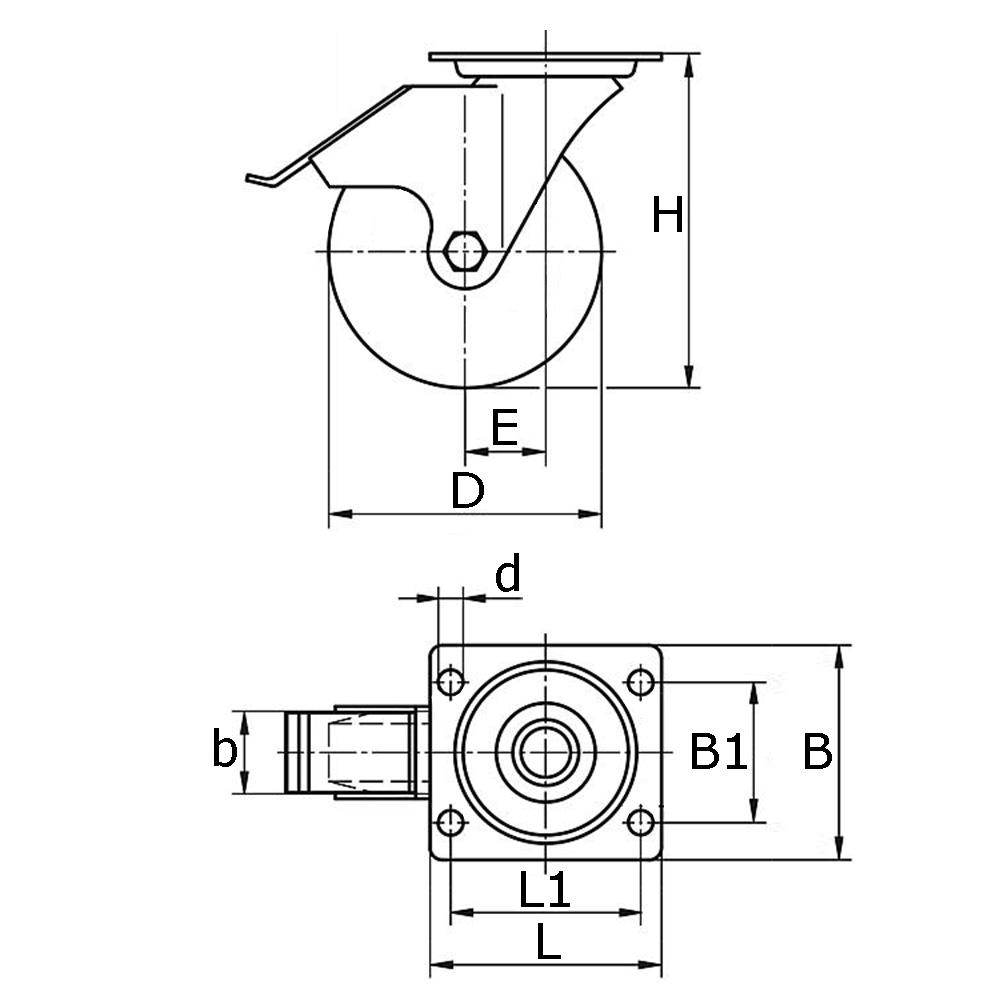

Legend
B=mounting plate width, b=tread width, B1=dimension between hole centres, D=wheel Ø, d=hole Ø, E=offset, H=total height, K= maximum static load capacity in kg, L=mounting plate length, L1=dimension between hole centres, Type=type of wheel bearing
