14.8.1

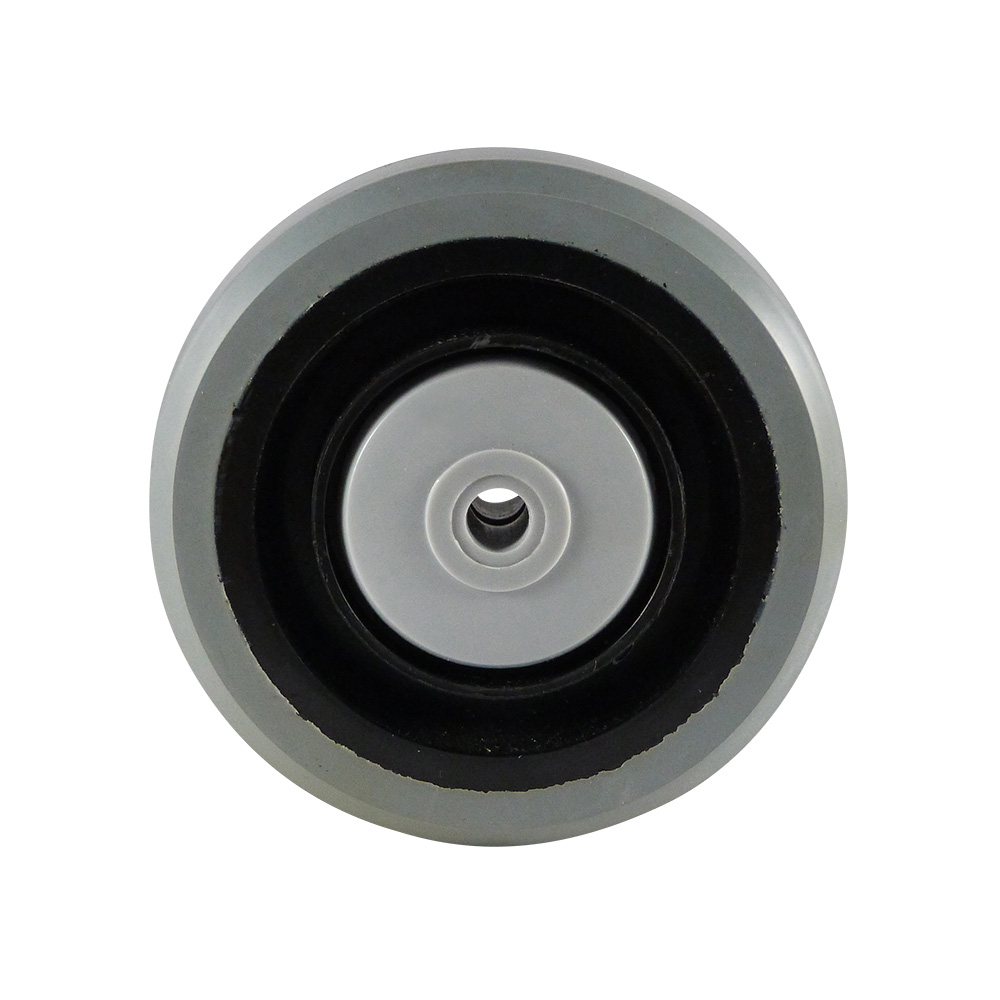

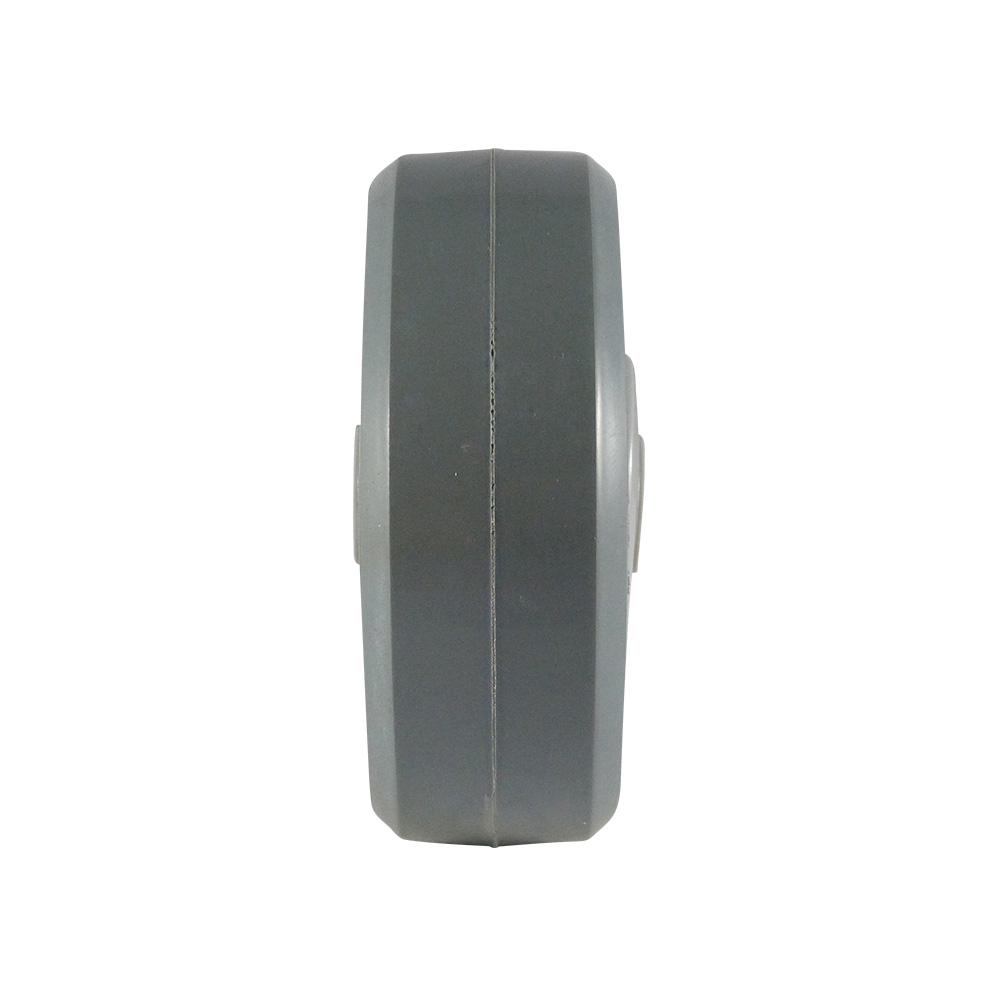

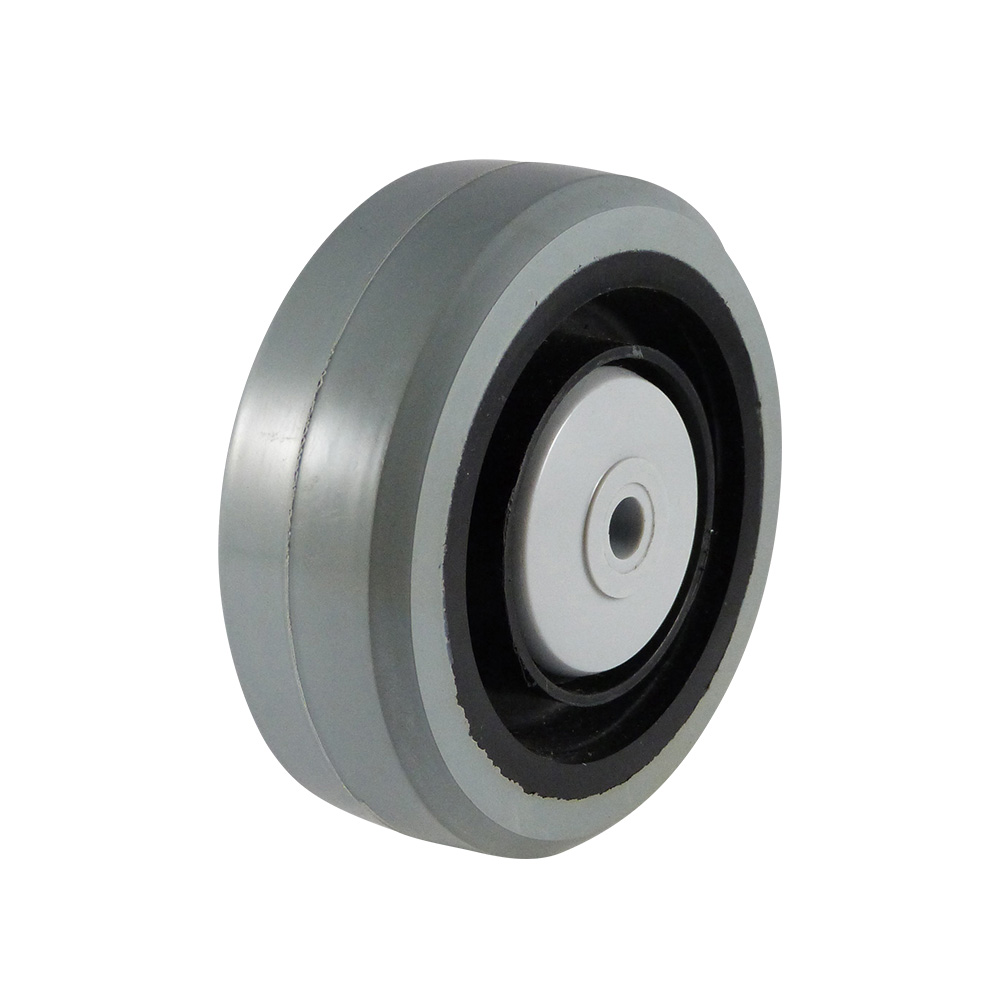

Wheel - elastic rubber tyre on plastic rim
Product information
- Wheels with an elastic rubber tyre on a plastic rim are available in wheel diameters from Ø80mm to Ø200mm inclusive
- Heavy-duty wheels with a maximum static load capacity from 100kg to 450kg inclusive
- Black plastic hub with grey dust covers
- Hub with double seal ball bearing
- Shaft hole diameters from Ø8mm to Ø20mm inclusive
- Non-marking, moulded and vulcanised solid rubber tyre, hardness 70° Shore A ±4°
- Temperature resistance: -20 °C to +40 °C
- Highly resistant to many aggressive chemicals; not resistant to oil an grease
- Low rolling resistance, shock-absorbent, low-noise, gentle on floor surfaces and maintenance-free under conditions of normal use
- Suitable for practically all hard and level surfaces
- This type of wheel is often used for industrial materials handling equipment such as warehouse trolleys, shipping containers, tool chests and wheeled material bins, etc.
Material & colour
- Tyre: solid rubber – grey (RAL 7001)
- Rim: PA (polyamide) – black (RAL 9005)
- Dust covers: PP (polypropylene) - grey
- Ball bearing: steel
Bearing types
Type C: Wheel with ball bearing (lubricated with grease)

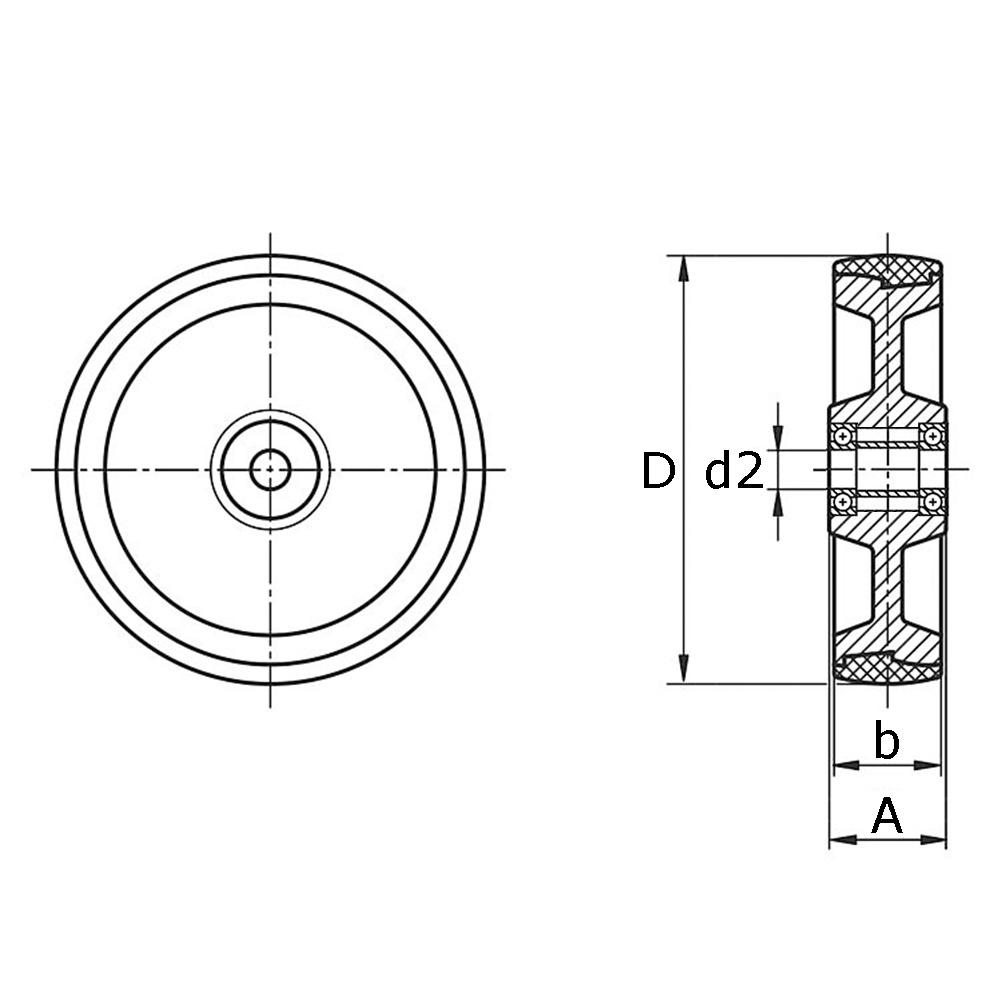

Legend
A=hub width, b=rim width, D=Øwheel, d2=Ø-shaft bore, K=maximum static load capacity in kg
