14.8.3

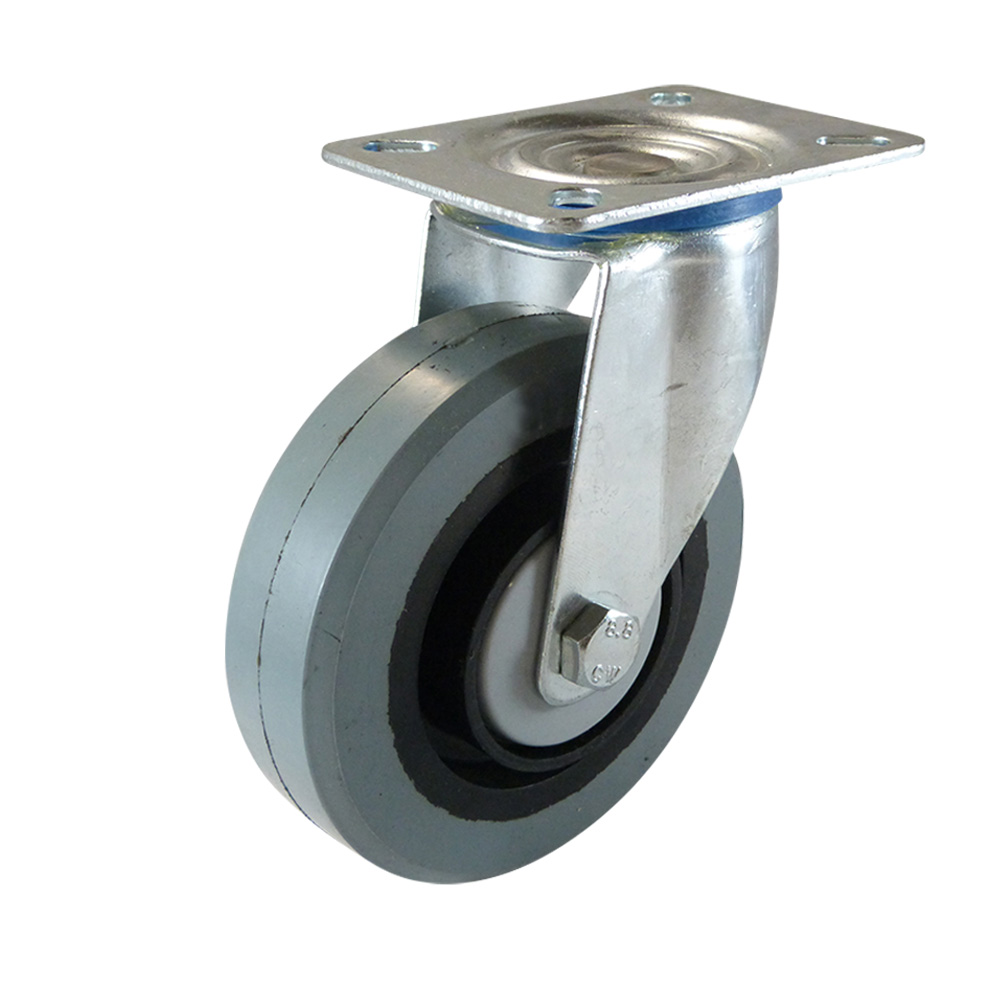

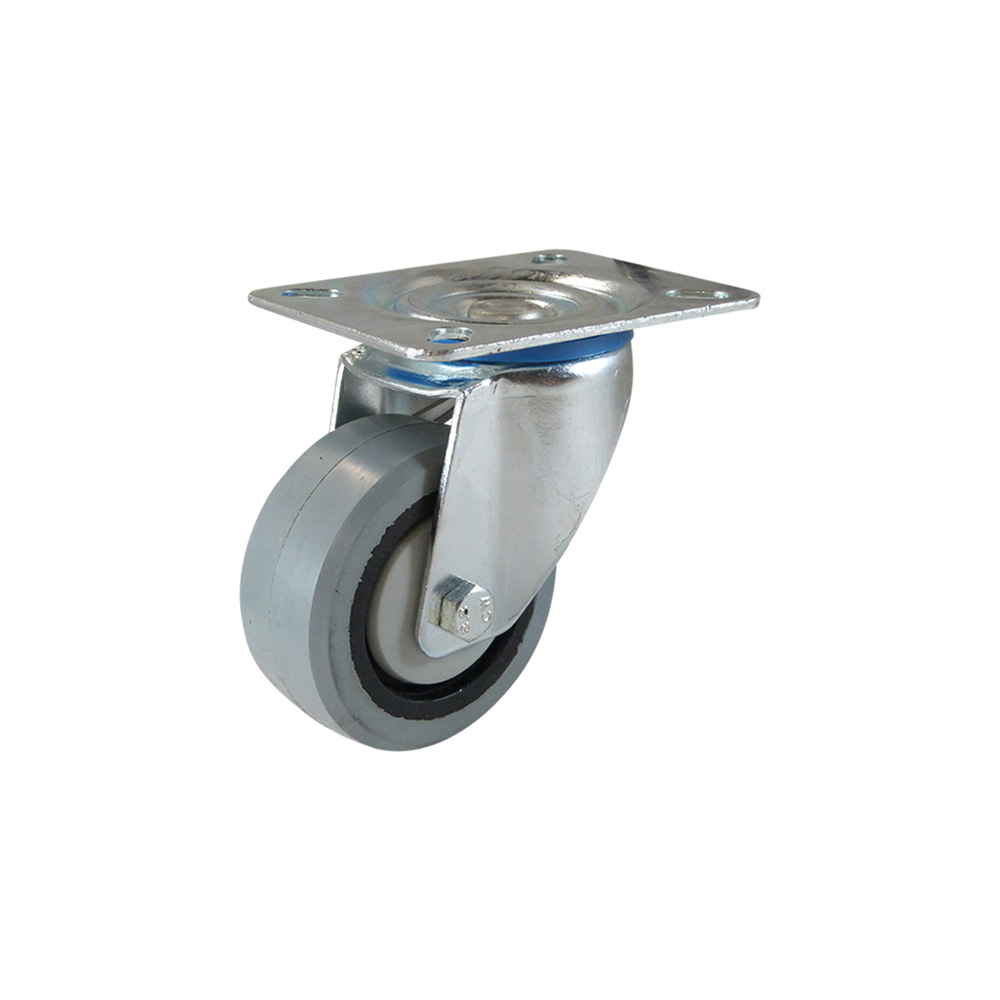

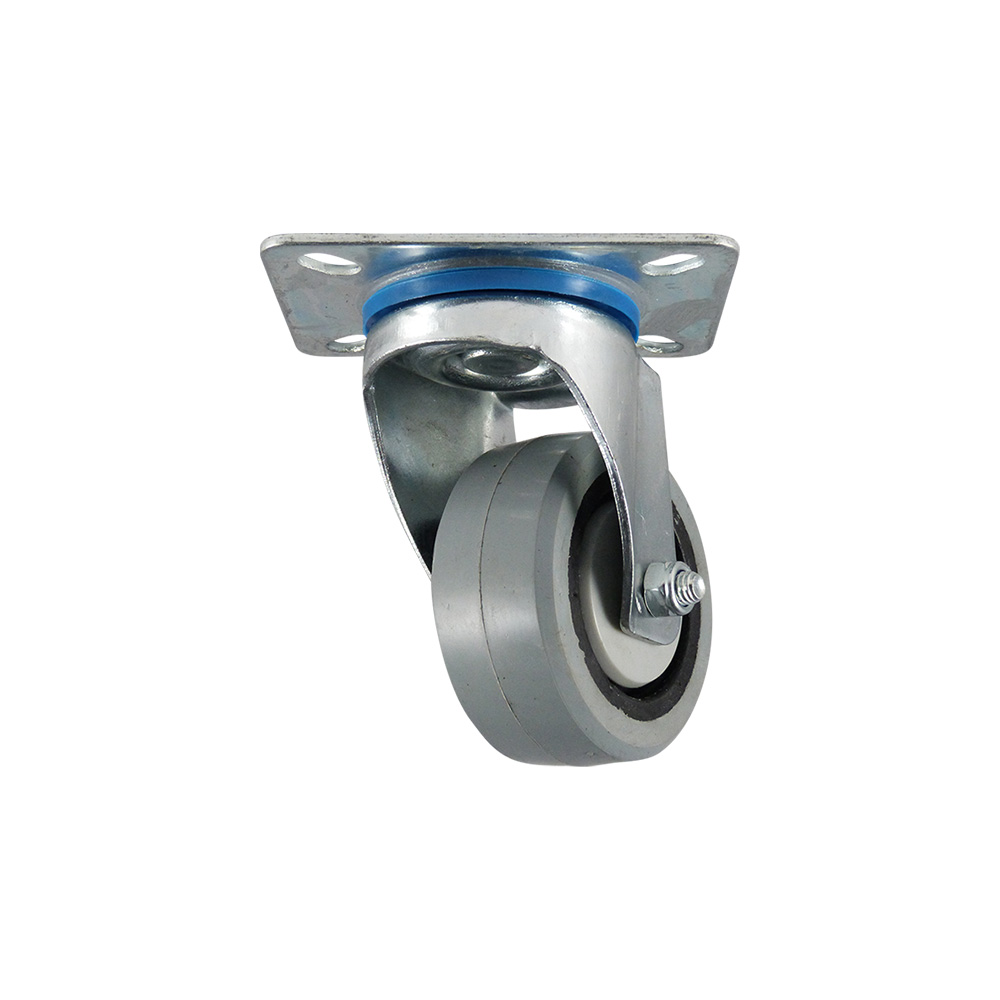

Swivel castor - mounting plate - elastic rubber tyre on plastic rim
Product information
- Swivel castors with an elastic rubber tyre on a plastic rim are available in wheel diameters from Ø80mm to Ø200mm inclusive
- Pressed fork with a flat mounting face, made from galvanised steel sheet
- Swivel arrangement with a sealed double thrust bearing
- Heavy-duty wheels with a maximum static load capacity from 100kg to 250kg inclusive
- Black plastic hub with grey dust covers
- Hub with double seal ball bearing
- Non-marking, moulded and vulcanised solid rubber tyre, hardness 70° Shore A ±4°
- Temperature resistance: -20 °C to +40 °C
- Highly resistant to many aggressive chemicals; not resistant to oil
- Low rolling resistance, shock-absorbent, low-noise, gentle on floor surfaces and maintenance-free under conditions of normal use
- Suitable for practically all hard and level surfaces
- This type of wheel is often used for industrial materials handling equipment such as warehouse trolleys, shipping containers, tool chests and wheeled material bins, etc.
Material & colour
- Fork: Galvanised steel - zinc-coloured
- Tyre: solid rubber – grey (RAL 7001)
- Rim: PA (polyamide) – black (RAL 9005)
- Dust covers: PP (polypropylene) - grey
- Ball bearing: steel
Types
Type C: Wheel with ball bearing

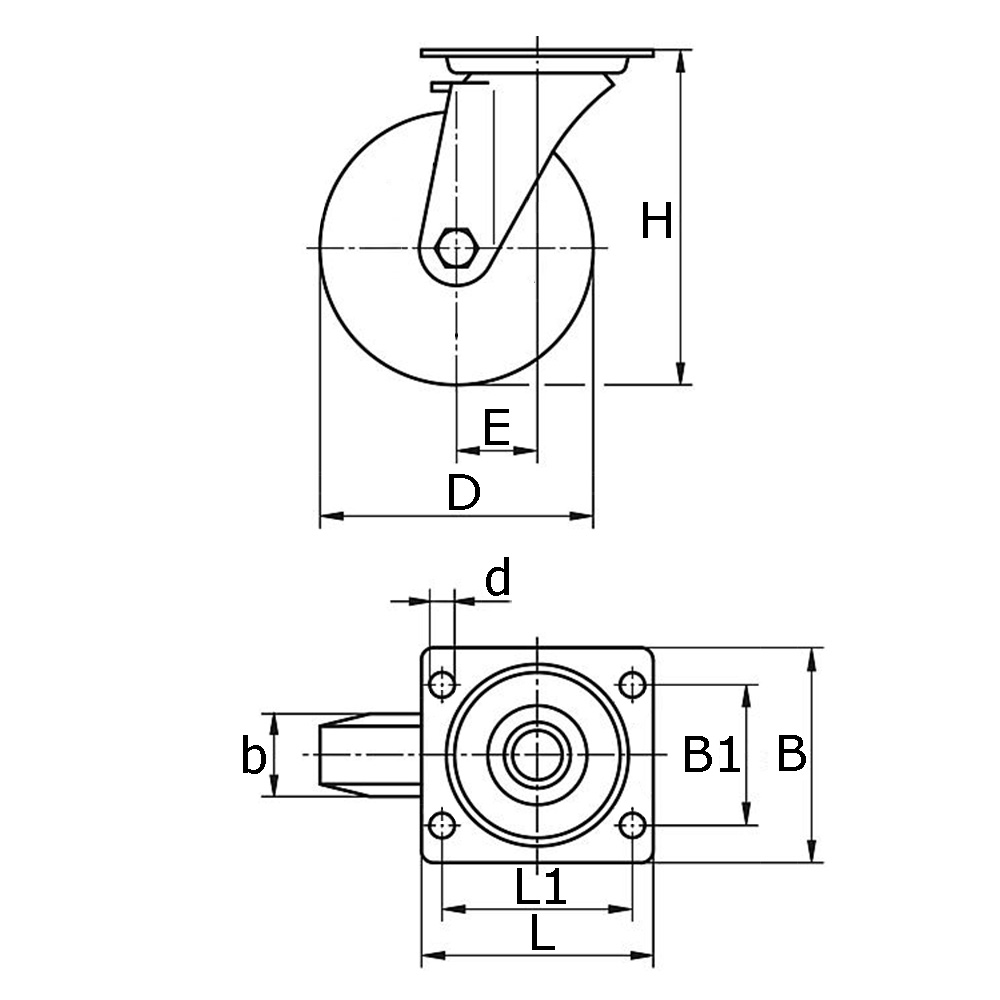

Legend
B=mounting plate width, b=tread width, B1=dimension between hole centres, D=wheel Ø, d=hole Ø, E=offset, H=total height, K= maximum static load capacity in kg, L=mounting plate length, L1=dimension between hole centres, Type=type of wheel bearing
