14.3.5

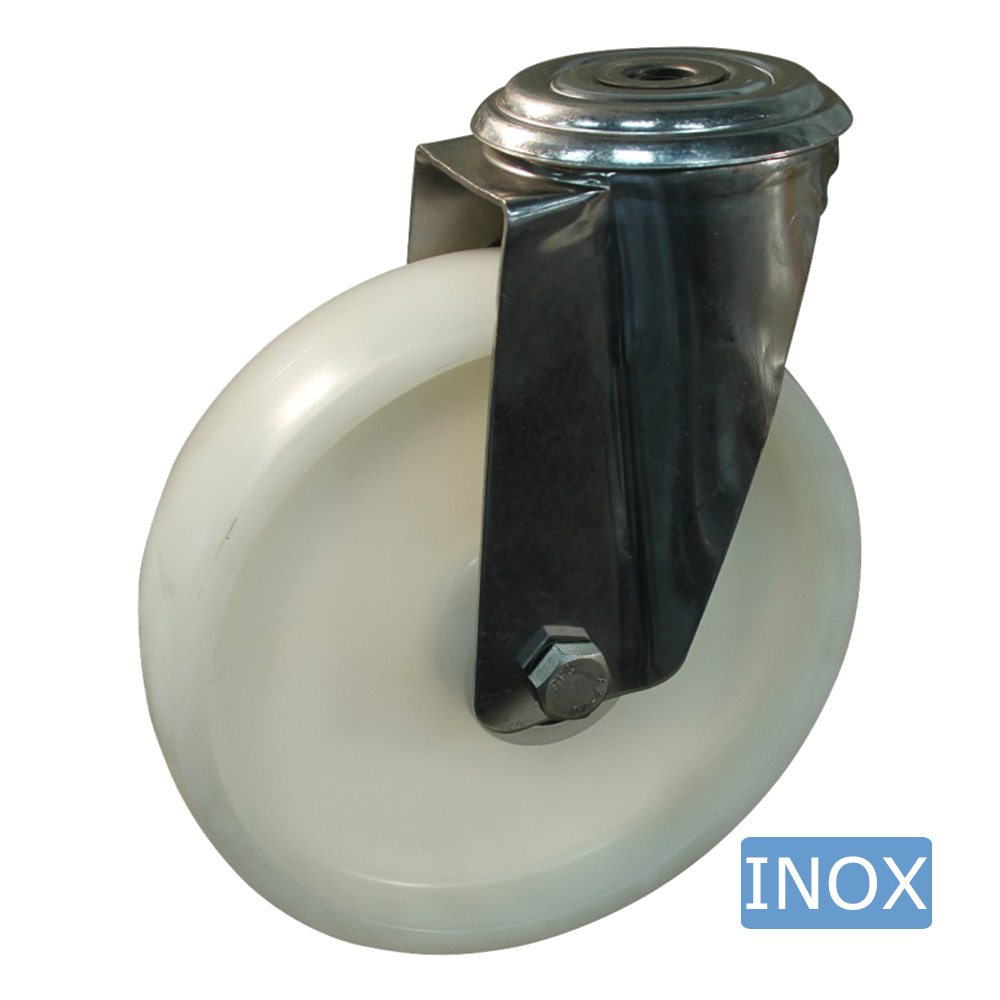

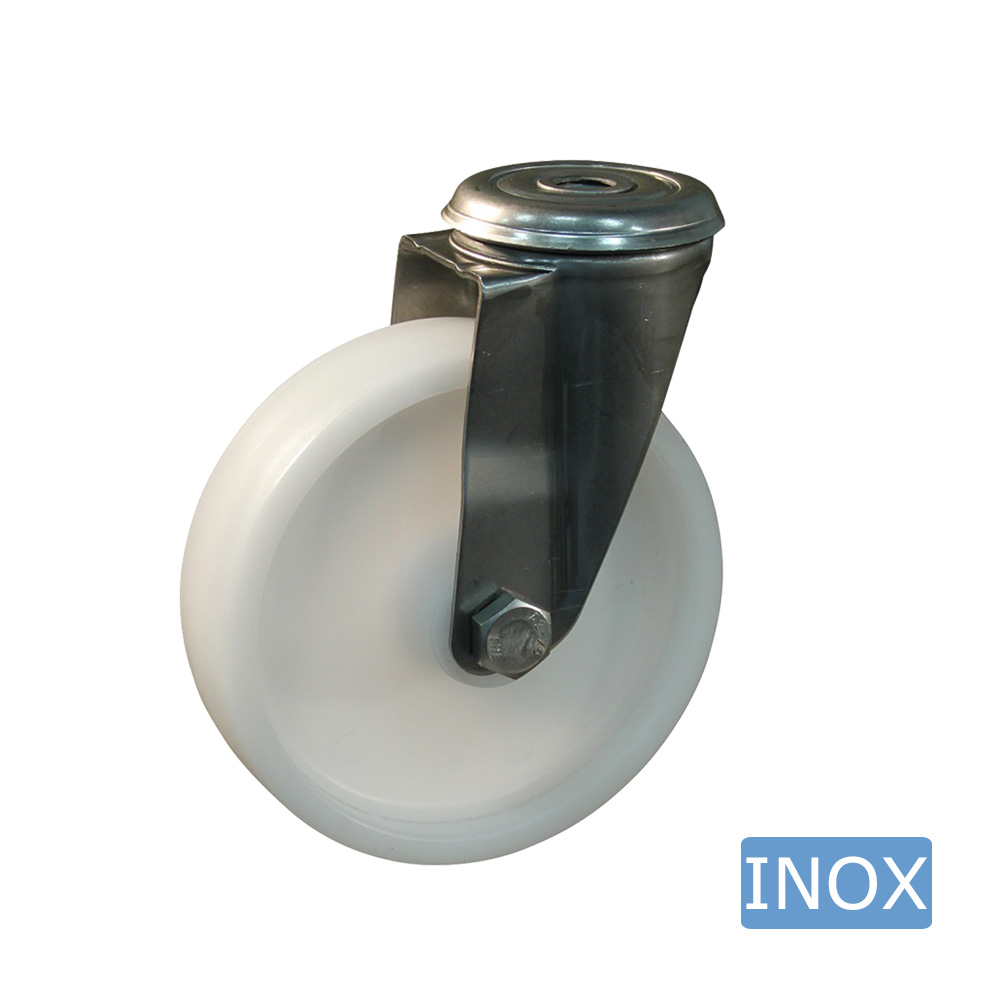

Stainless steel swivel castor – centre mounting hole - polyamide wheel
Product information
- Stainless steel swivel castors with a plastic wheel are available in a range of wheel sizes from Ø80mm to Ø200mm inclusive
- Pressed fork with a centre mounting hole, made from stainless steel
- Swivel arrangement with a sealed double thrust bearing
- Maximum static load capacity from 130kg to 200kg inclusive
- Temperature resistance from -40°C to +90°C inclusive
- Low rolling resistance and friction-free swivelling on smooth flat floors
- Highly resistant to many aggressive chemicals
- These wheels are maintenance-free and hygienic, offer extremely good resistance to impact and knocks, and are very hard-wearing
- As the wheel and fork are easy to clean, they are suitable for applications where demanding hygienic requirements apply
- Ideal for use in damp areas or in an environment where harsh cleaning detergents are used frequently and where a low rolling resistance and high load capacity are required
Material & colour
- Fork/roller bearing: stainless steel (AISI 304)
- Bearing: stainless steel (AISI304)
- Wheel: PA (polyamide)
Models
Type A: Wheel with plain bearing
Type B: Wheel with stainless steel roller bearing (lubricated with grease)

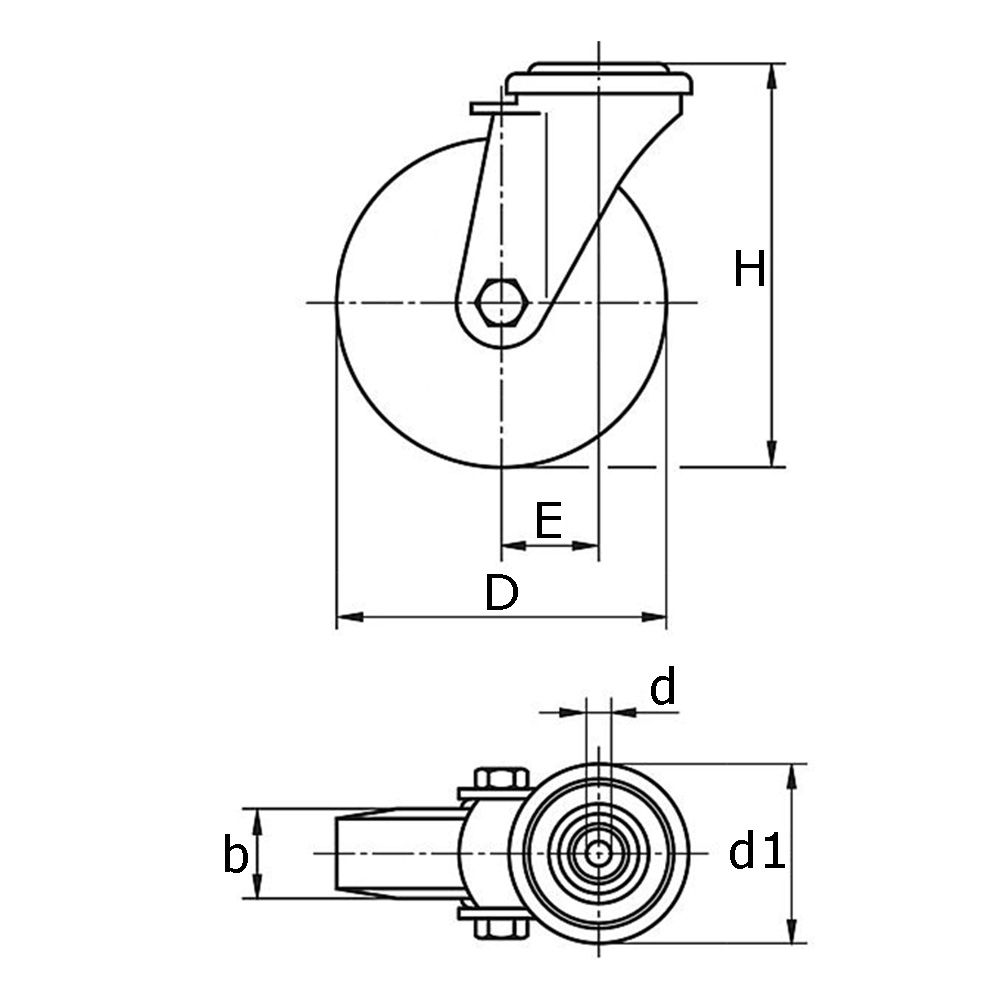

Legend
b=tread width, D=diameter, d1=mounting hole Ø, E=offset, H=total height, K= maximum static load capacity in kg, Type=type of wheel bearing
