14.2.4

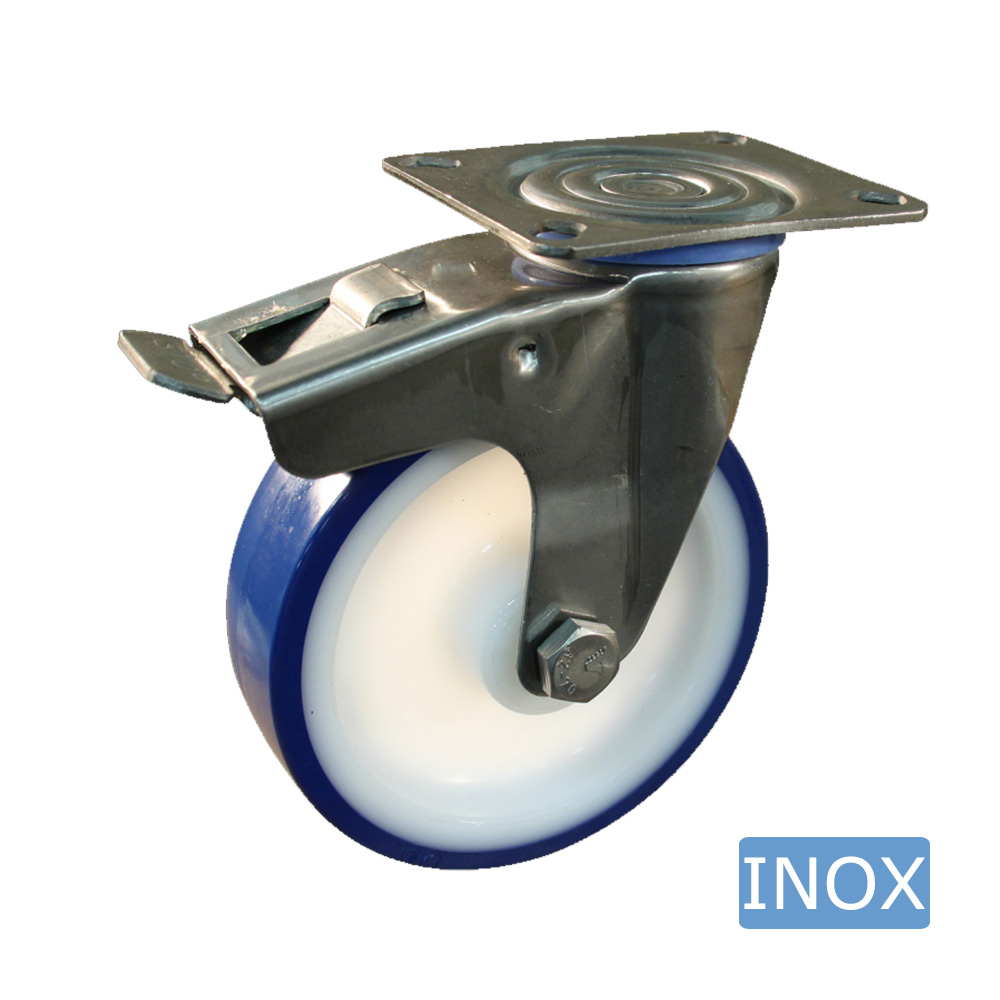

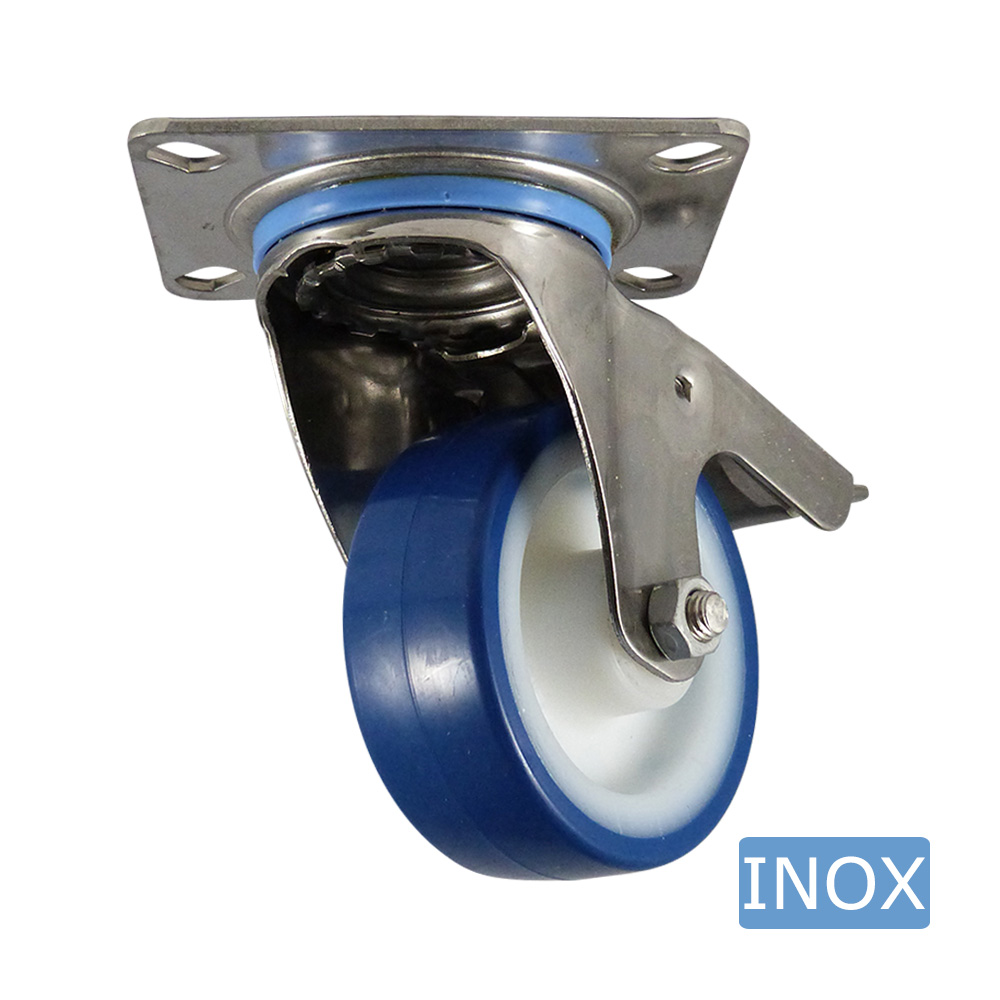

Hygienic, stainless steel swivel castor with brake – mounting plate - TPU tyre
Product information
- Hygienic stainless steel swivel castors with a brake and a sapphire blue tyre are available in wheel sizes from Ø80mm to Ø150mm inclusive
- The moulded and vulcanised TPU tyre (+/-97 shore A ±3°) is shock-absorbent, impact-resistant and does not mark the floor (non-marking)
- Blue tyre for greater detectability in the food industry or hygienic production environments

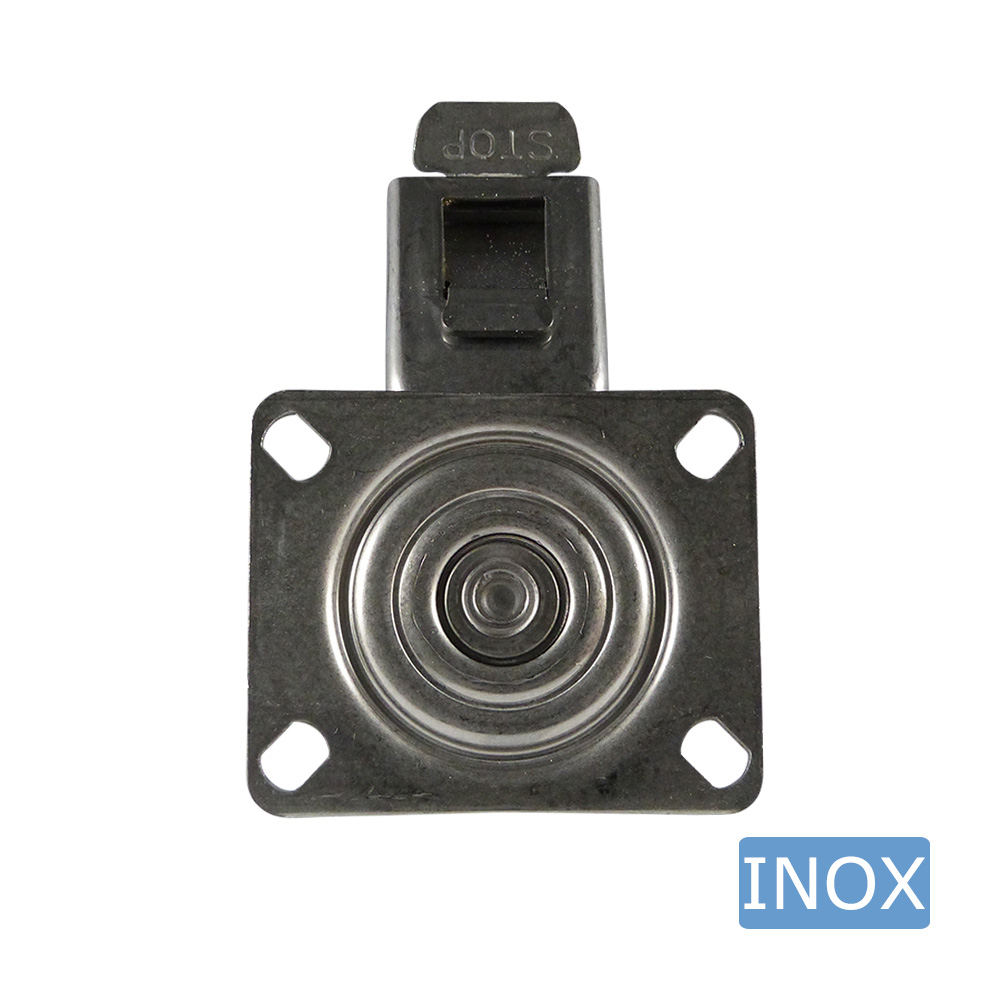

- Pressed fork with a flat mounting face, made from stainless steel
- Double-action brake: locks both the wheel and the swivel
- Swivel arrangement with a sealed double thrust bearing - Maximum static load capacity from 120kg to 300kg
- Temperature resistance: -20 °C to +40 °C
- Highly resistant to chemicals
- As the wheel and fork are easy to clean, they are suitable for applications where demanding hygienic requirements apply
- The wheels are maintenance-free, durable, smooth-running and ideal for use in an environment where hygiene plays an important role, such as the food sector.
Material & colour
- Swivel body and swivel bearing arrangement: stainless steel (AISI304)
- Rim: PA (polyamide) - black
- Tyre: TPU (thermoplastic polyurethane) – blue (RAL 5010)
Models
Type B: Wheel with plain bearing

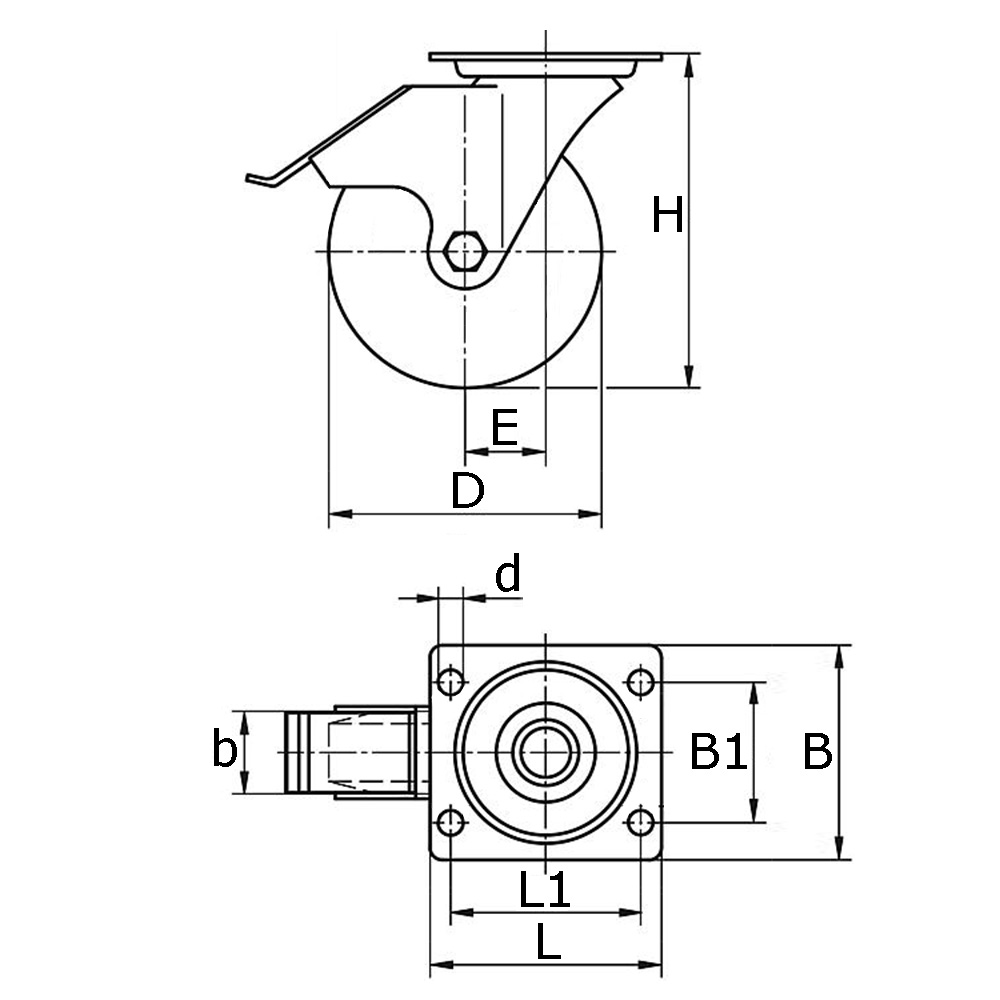

Legend
B=mounting plate width, b=tread width, B1=dimension between hole centres, D=wheel Ø, d=hole Ø, E=offset, H=total height, K=maximum static load capacity in kg, L=mounting plate length, L1=dimension between hole centres, Type=type of wheel bearing
