14.24.3.4

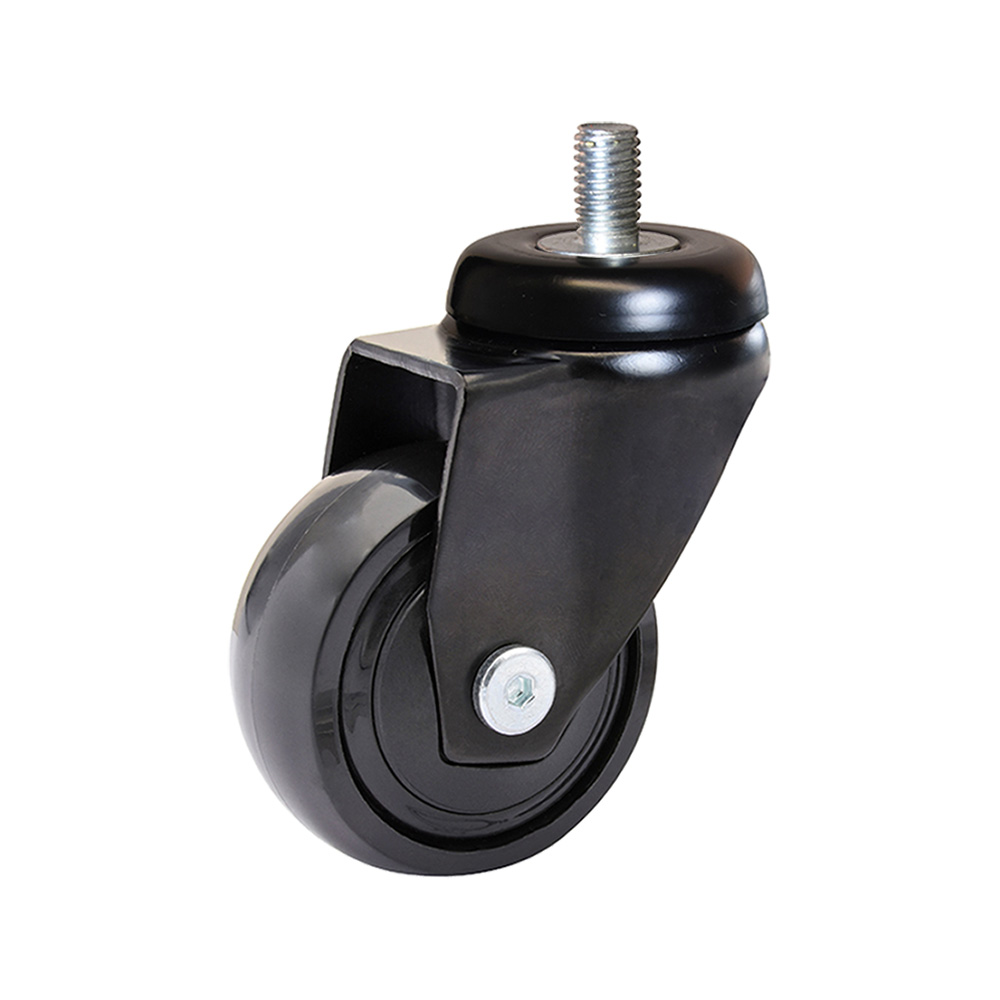

Design swivel castor 3C-series - threaded stem
Product information
- Design swivel castors with threaded stem from the 3C-series are available in wheel diameters from Ø50mm up to Ø75mm inclusive
- Wheel with soft TPE rubber tread - non-marking
- Wheel bearing: plain bearing or ballbearing
- Threaded stem M10 x 16mm
- Suitable for hard and/or sensitive floor types, such as concrete, tiles, cork, laminate, parquet, PVC, linoleum, marble and natural stone floors
Material & colour
- Fork: steel either galvanized or powdercoated
- Wheel: hub – plastic, tread – TPE (Thermoplastic elastomers)
- Colours: black

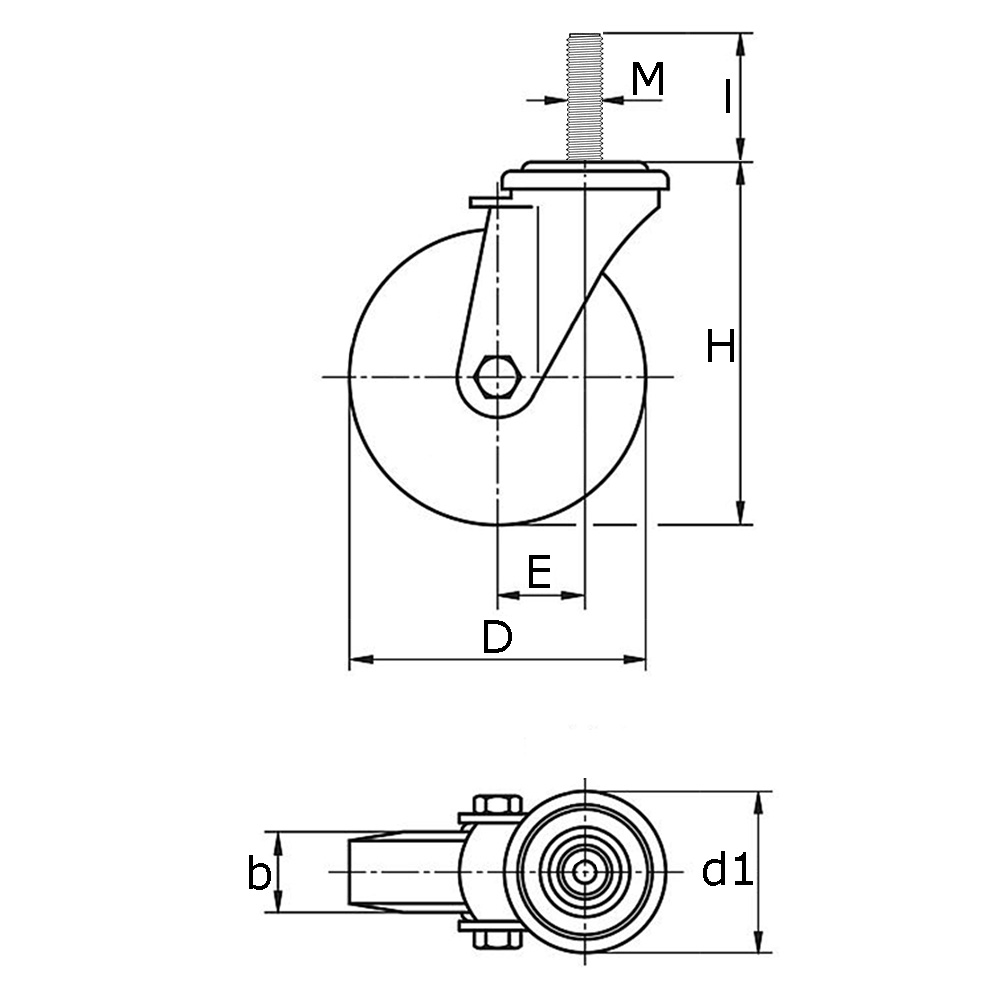

Legend
b=tread width, D=wheel Ø, E=offset, H=total height, K=maximum static load capacity in kg, l=stem length, M=thread size stem, Type=type of wheel bearing
