14.17.8
Apparatus swivel castor – stem fitting
Product information
- Apparatus swivel castors with stem fitting and a TPE tyre on a plastic rim are available in wheel sizes from Ø50mm
- Stem fitting Ø11mm with ring grip
- Pressed swivel fork made from galvanised steel sheet
- Swivel arrangement with a double thrust bearing
- Wheel with double seal ball bearing and grey dust covers
- Maximum static load capacity of 40kg to 80kg inclusive
- Temperature resistance from -20°C to +40°C inclusive
- Moulded vulcanised tyre, hardness 70° Shore A ±5°
- Low-noise and smooth-running
- Non-marking
- Highly resistant to many aggressive chemicals
- Industrial swivel castors are mainly suitable for light use in indoor applications, e.g. items of equipment, workbenches, mobile displays, trolleys, furniture, etc.
Material & colour
- Fork: Galvanised steel - zinc-coloured
- Hub and thread guards: PP (polypropylene) – grey (RAL 7001)
- Tyre: TPE (thermoplastic elastomer) – grey (RAL 7024)
- Ball bearing: Steel
Bearing types
Type C: Wheel with sealed ball bearing

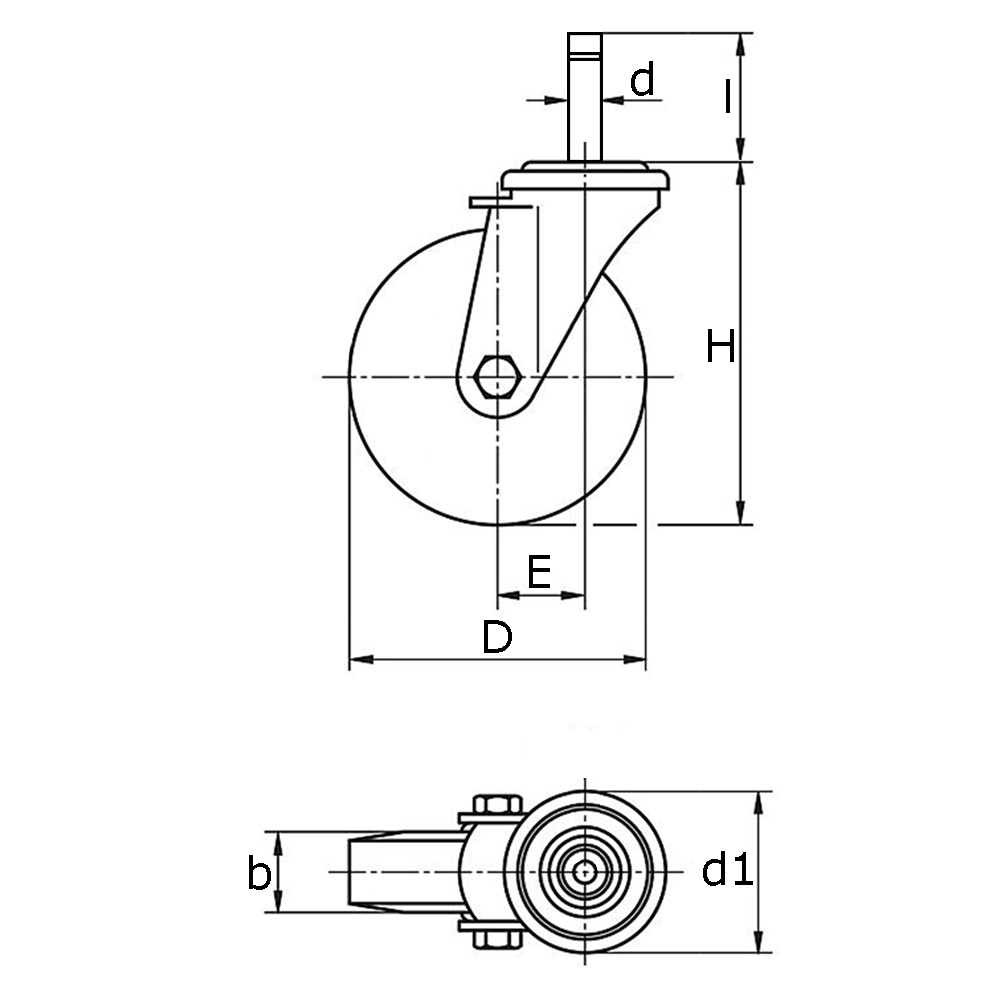

Legend
b=tread width, D=wheel Ø, d=hole Ø, E=offset, H=total height, K= maximum static load capacity in kg, Type=type of wheel bearing
