14.15.2

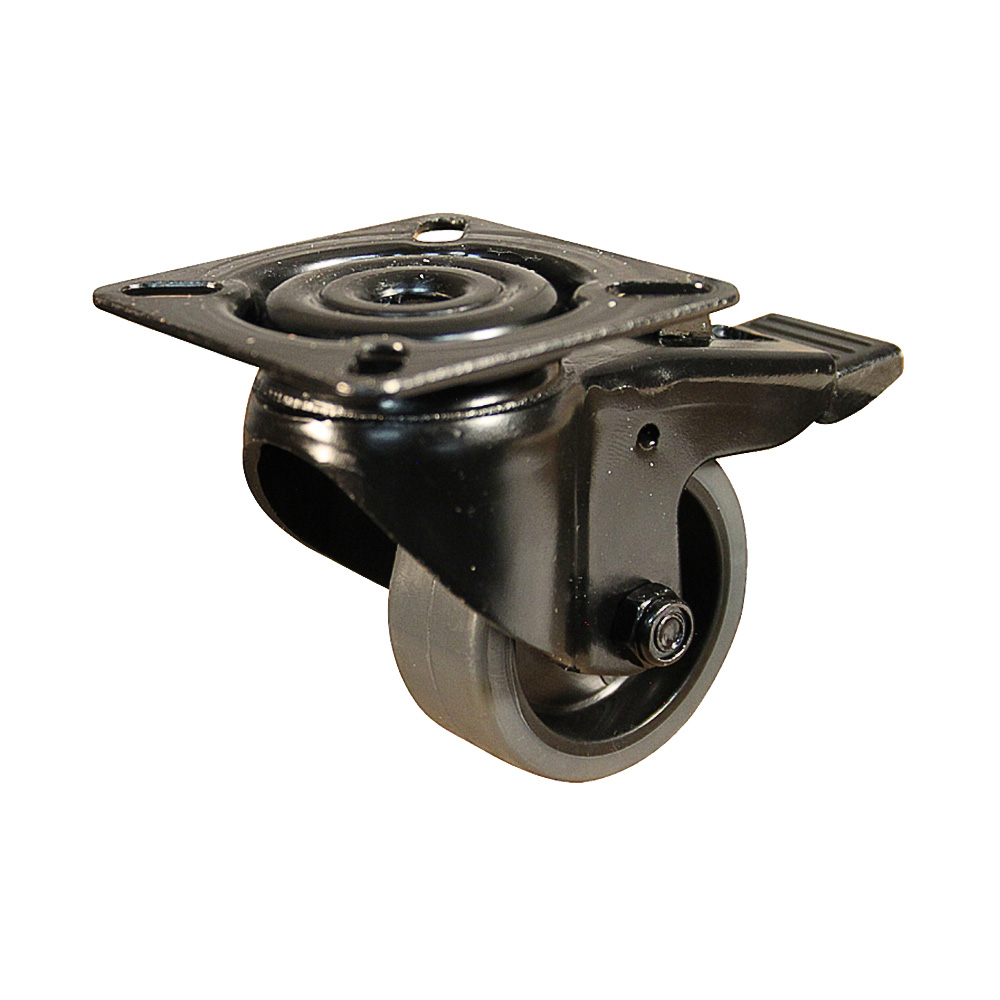

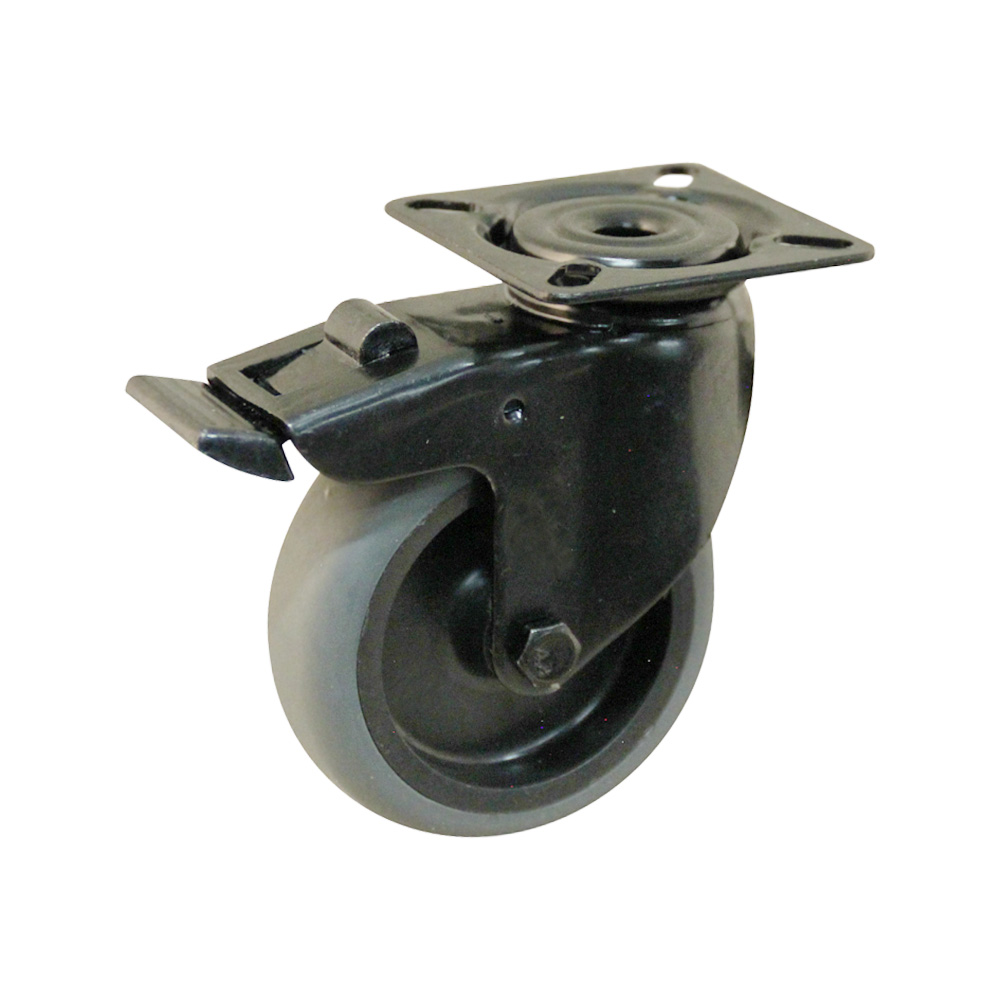

Apparatus swivel castors with brake - mounting plate - black
Product information
- Black apparatus swivel castors with brake and TPE tyre on a plastic rim are available in wheel sizes from Ø50mm to Ø75mm inclusive
- Pressed fork with a flat mounting face, made from steel sheet
- Swivel arrangement with a double thrust bearing
- Double-action brake: locks both the wheel and the swivel
- Wheel with plain bearing
- Maximum static load capacity of 40kg to 60kg inclusive
- Temperature resistance from -20°C to +40°C inclusive
- Moulded vulcanised tyre, hardness 70° Shore A ±5°
- Low-noise and smooth-running
- Non-marking
- Highly resistant to many aggressive chemicals
- Industrial swivel castors are mainly suitable for light use in indoor applications, e.g. items of equipment, workbenches, mobile displays, trolleys, furniture, etc.
Material & colour
- Fork: steel – jet black (RAL 9005)
- Hub: PP (polypropylene) – jet black (RAL 9005)
- Tyre: TPE (thermoplastic elastomer) – slate grey (RAL 7015)
Bearing types
Type A: Wheel with plain bearing

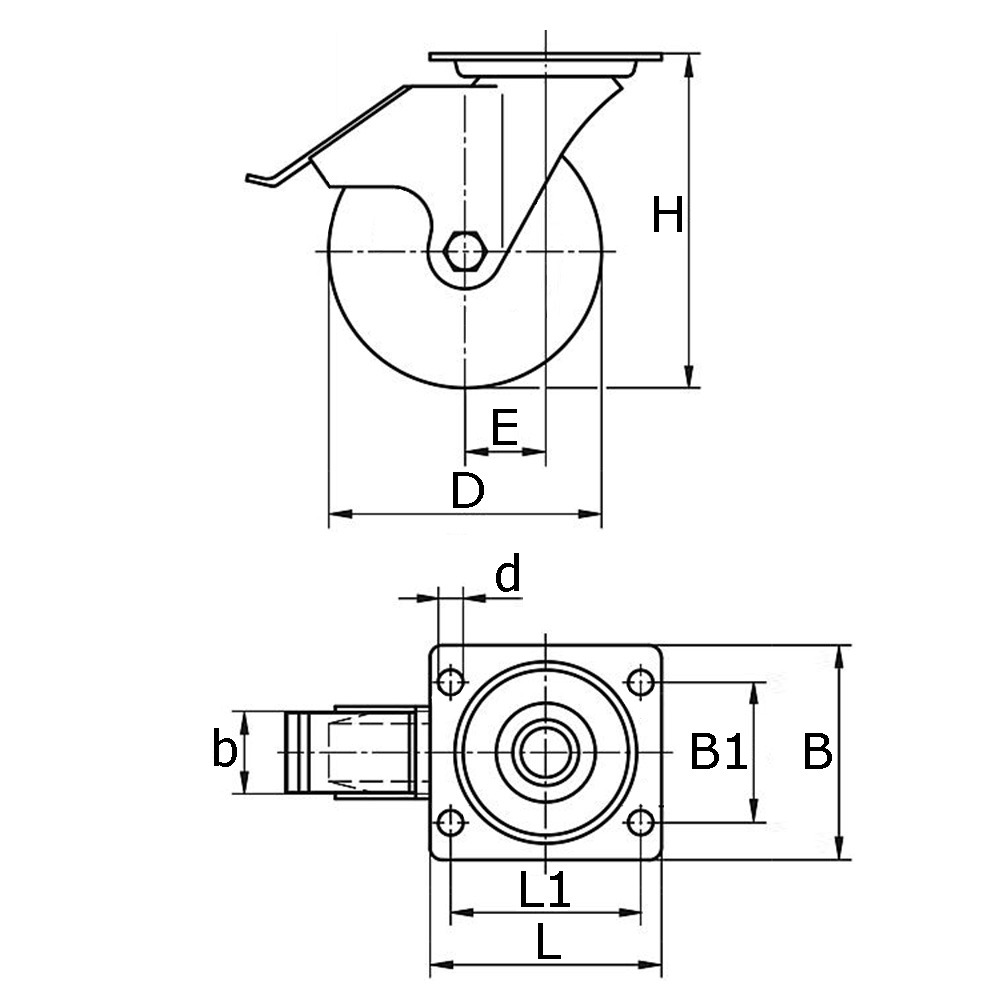

Legend
B=mounting plate width, b=tread width, B1=dimension between hole centres, D=wheel Ø, d=hole Ø, E=offset, H=total height, K= maximum static load capacity in kg, L=mounting plate length, L1=dimension between hole centres, Type=type of wheel bearing
