14.14

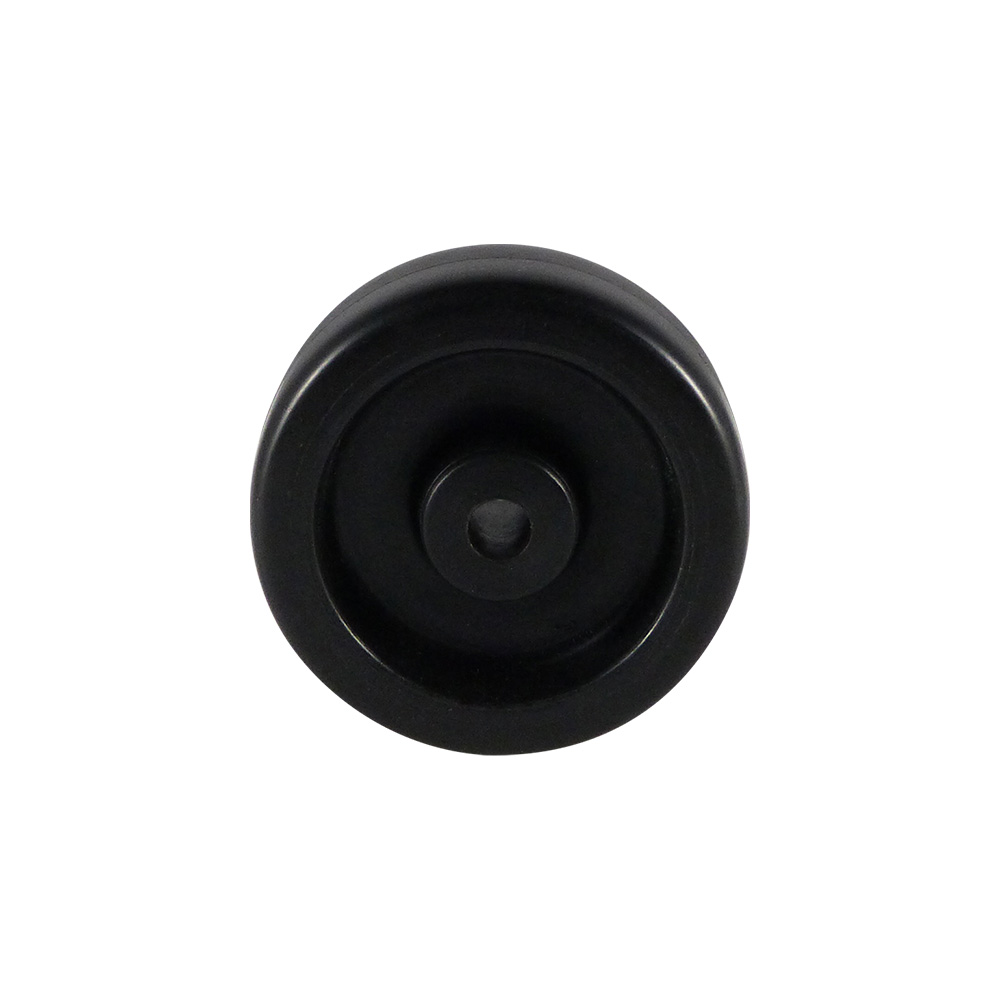

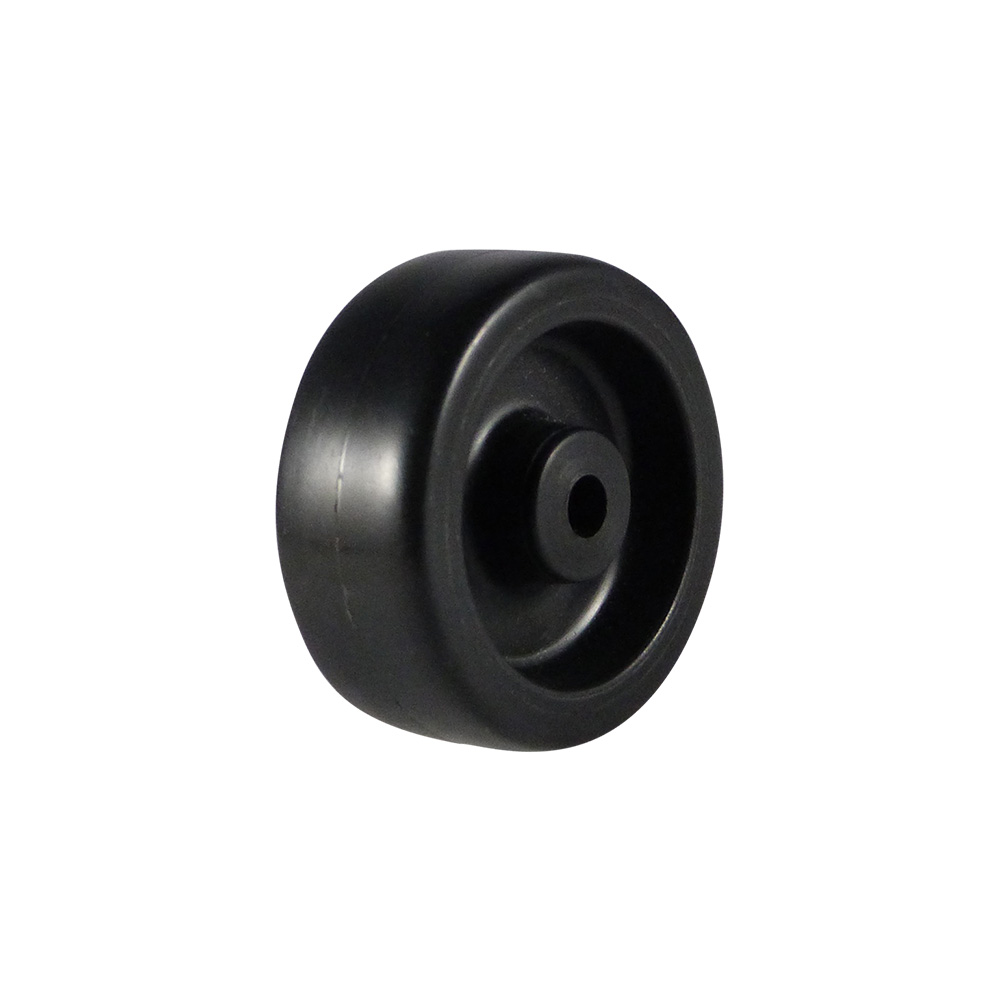

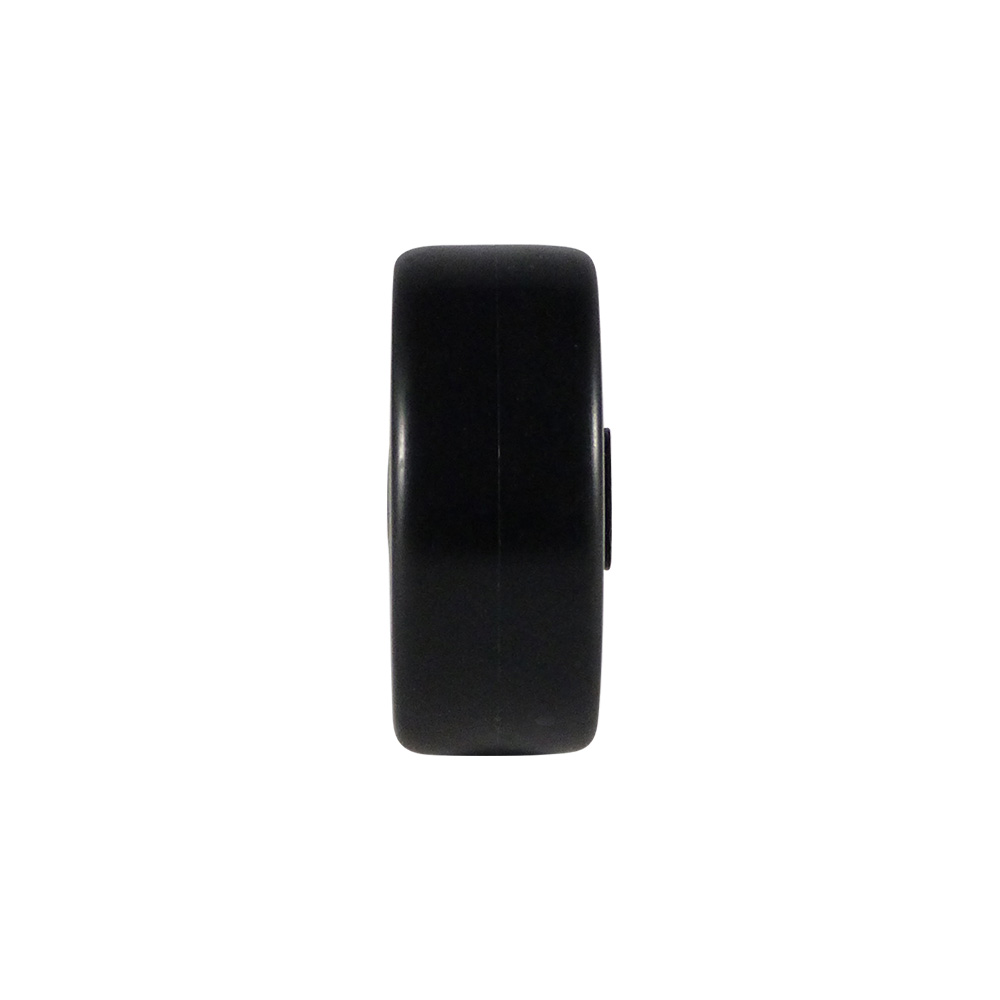

Apparatus wheels Polyamid – plain bearing
Product information
- Apparatus wheels made of solid Nylon are available in wheel sizes of Ø50mm
- Hub with plain bearing, shaft hole of Ø6mm
- Maximum static load capacity from 80kg at 3 km/h
- Temperature resistance from -40°C to +90°C inclusive
- Highly resistant to many aggressive chemicals
- Industrial wheels are mainly suitable for light use in indoor applications, e.g. items of equipment, mobile displays, furniture, etc.
Material & colour
- Wheel: PA (Polyamide) – black
Models
Type A: Wheel with plain bearing

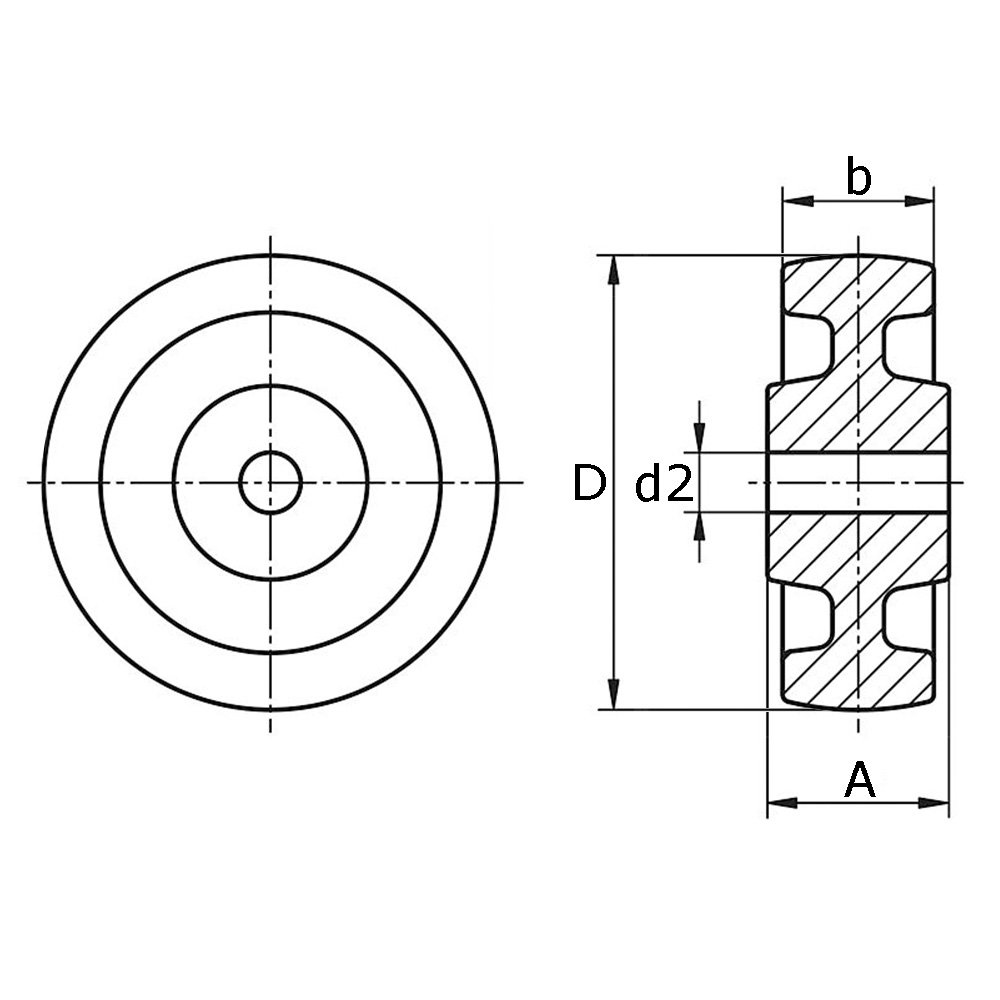

Legend
A=hub width, b=tread width, D=Øwheel, d2=Ø-shaft bore, K=maximum static load capacity in kg
