Tiltsert end caps with stainless steel pad for square tube

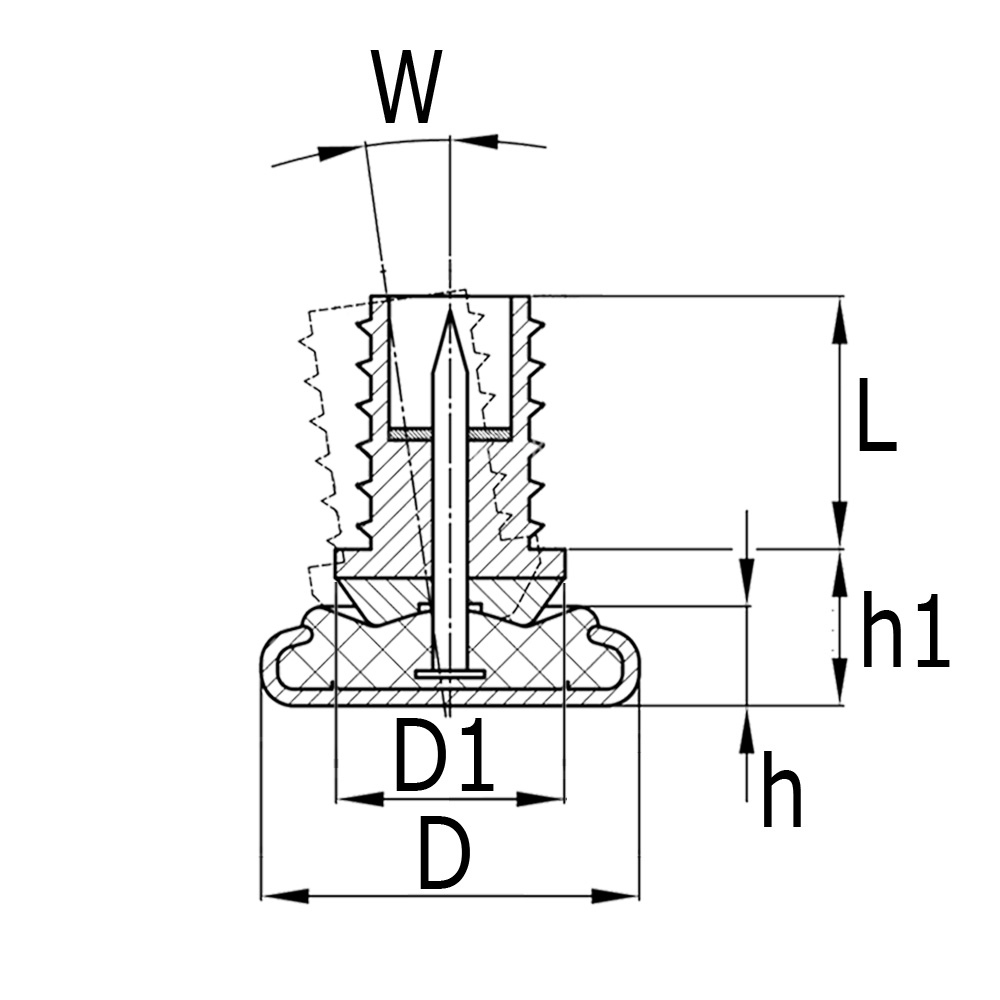

Tiltsert end caps with stainless steel pad for square tubedrawing_1

Product information

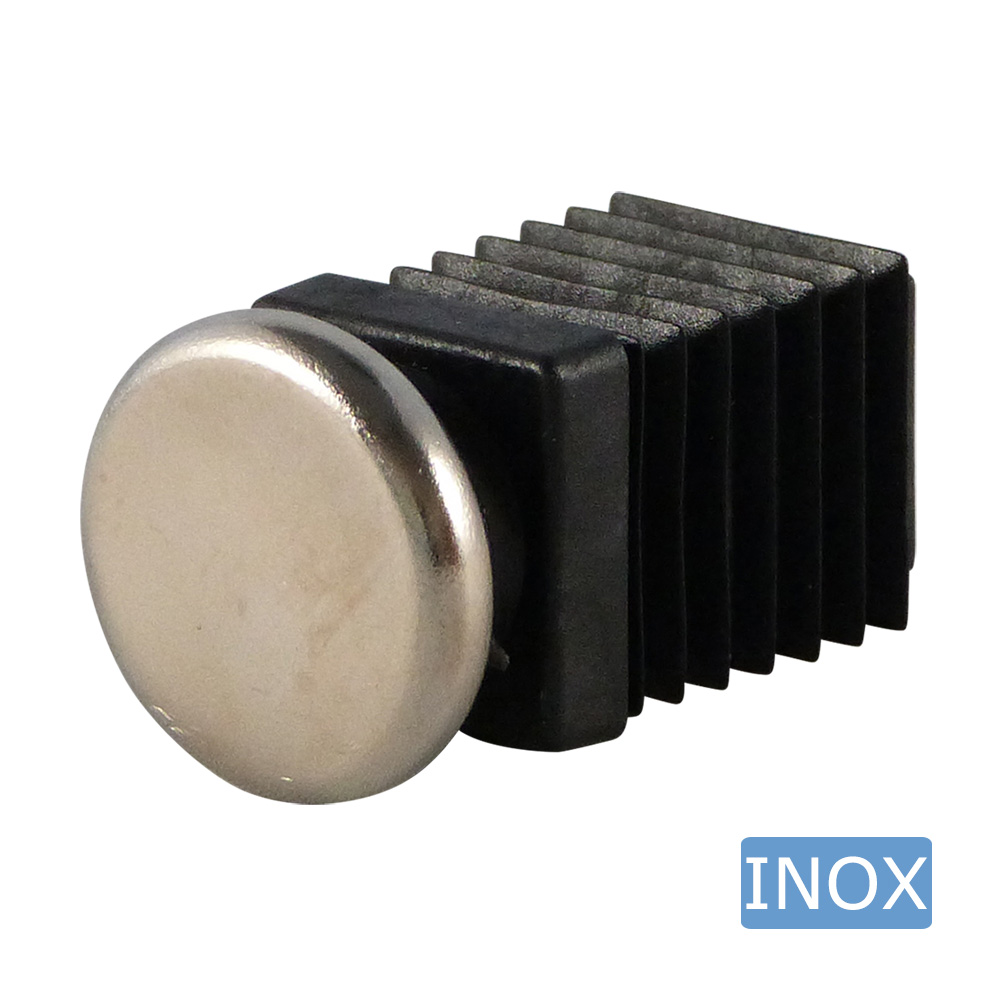

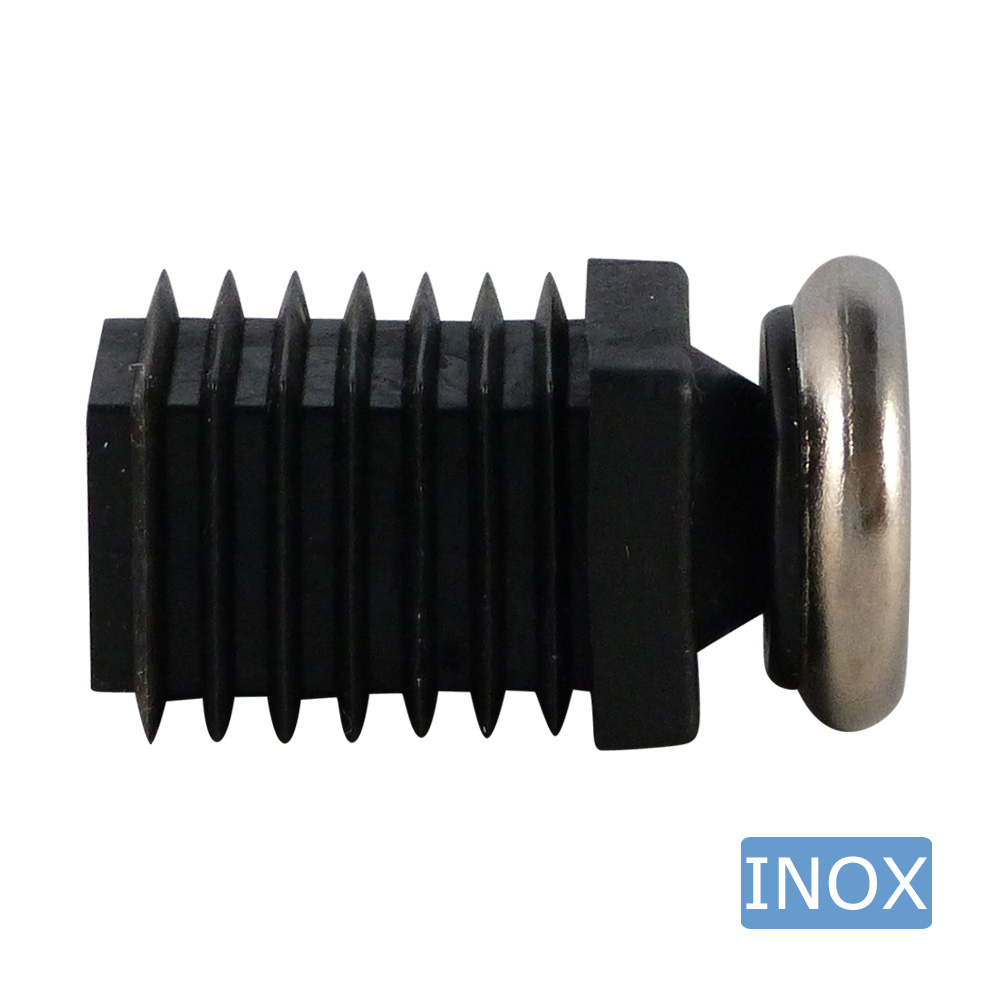

Square end cap inserts with a round tilting base and stainless steel pad are available for square chair legs measuring 20 x 20 mm with a wall thickness of 1.5 mm
Base diameters from Ø 23 mm to Ø 27 mm inclusive
Maximum angle of inclination 20°
For use on floor coverings and carpeting
Used as a tilting glide or foot for chairs with angled legs on floor coverings and carpeting. Often used for major interior design projects, in the hospitality industry, hospitals and schools.

Material: end cap - PA (polyamide), pad - stainless steel (V2A), connector - steel
Colour: black with stainless steel coloured base

Legend
D=foot Ø, D1=collar size, h=foot height, h1=ball joint + foot, L=shaft length, Tube size=external tube dimension, Version=tube wall thickness, W=angle of inclination in °

Filter by

Show all filters

Show less filters

Reset all filters

Articles

1 pages - 1

Article	Description	D	Tube size	Version	Colour/RAL	D1	h	h1	L	W
6532320215	Tilt glides PA with stainless steel V2A glide base Ø23mm 20x20x1,5 - metal pin - black	23	20x20	1,5	Stainless steel	20	7	16	24	Max 20°
65327202015	Tilt glides PA with stainless steel V2A glide base Ø27mm 20x20x1,5 - metal pin - black	27	20x20	1,5	Stainless steel	20	7	16	24	Max 20°

1 pages - 1
