Square end cap inserts with TPE-U pad

Square end cap inserts with TPE-U paddrawing_1

Product information

End cap inserts, also referred to as ribbed inserts, with glued on TPU (PUR) pad for square tubing are available for tube sizes from 20x20 mm to 35x35 mm and in wall thickness ranges from 1.5 mm to 2.5 mm
The TPU pad prevents slipping
These end cap inserts are ideal for use as feet on chairs and tables or for other types of furniture and tubular fabrications in situations requiring anti-slip properties.

Material: end cap - PA 6 (polyamide 6), anti-slip pad – TPU (thermoplastic polyurethane) in hardness ±80° Shore A
Colour: insert - black, pad – brownish

Legend

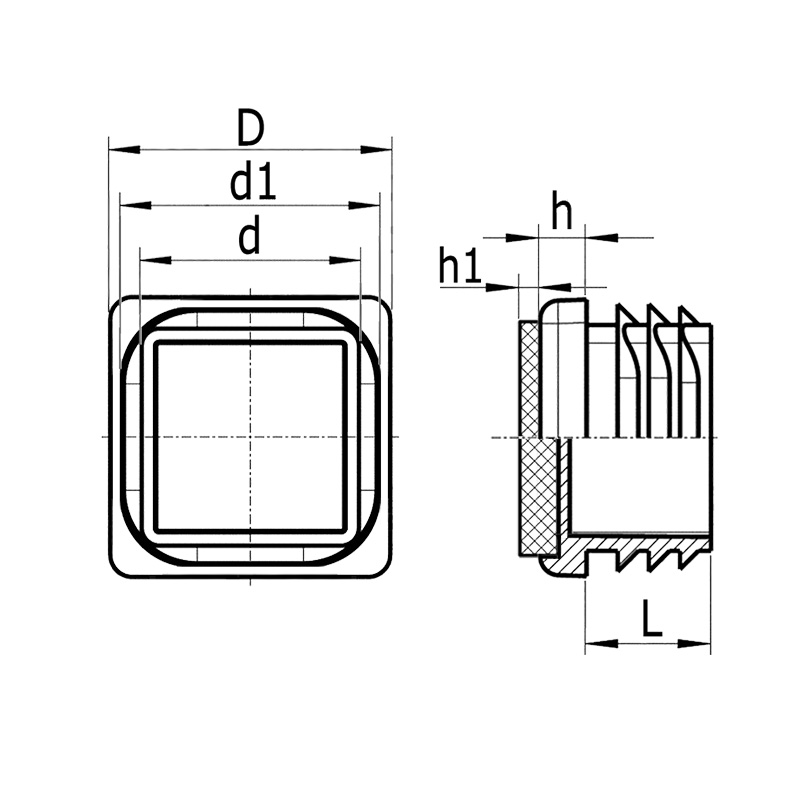

D=head size, d=shaft size, d1=ribbing size, h=head height, h1=height, L=shaft height, Version=tube wall thickness, Tube size=external tube size

Filter by

Show all filters

Show less filters

Reset all filters

Articles

1 pages - 1

Article	Description	Tube size	D	Colour/RAL	h	L
6102020/TPU	Inserts PA for square tubes with TPU 20x20x1,5-2,5	20x20	20	Black	5	15,5
6102525/TPU	Inserts PA for square tubes with TPU 25x25x1,5-2,5	25x25	25	Black	5	15,5
6103030/TPU	Inserts PA for square tubes with TPU 30x30x1,5-2,5	30x30	30	Black	5	15,5
6103535/TPU	Inserts PA for square tubes with TPU 35x35x1,5-2,5	35x35	35	Black	5	15,5
