Square end cap inserts - angled base with felt

Square end cap inserts - angled base with feltdrawing_1

Product information

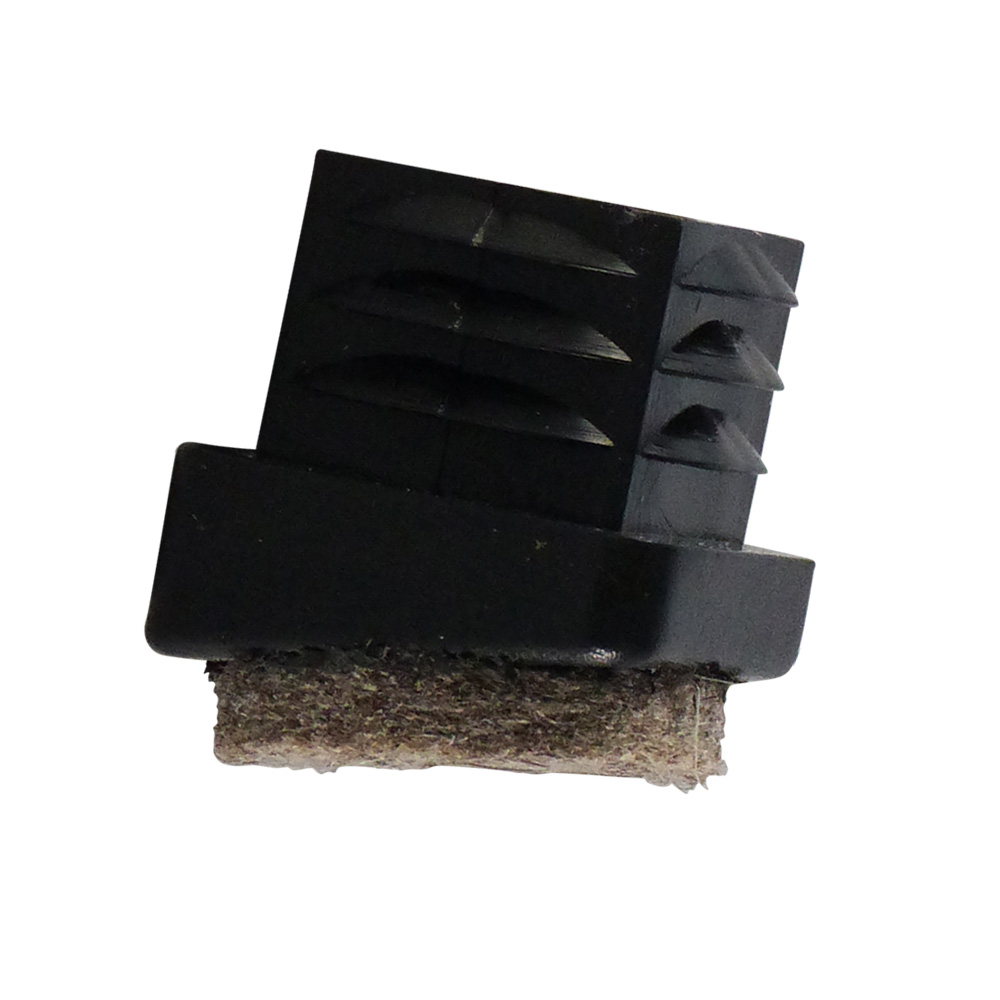

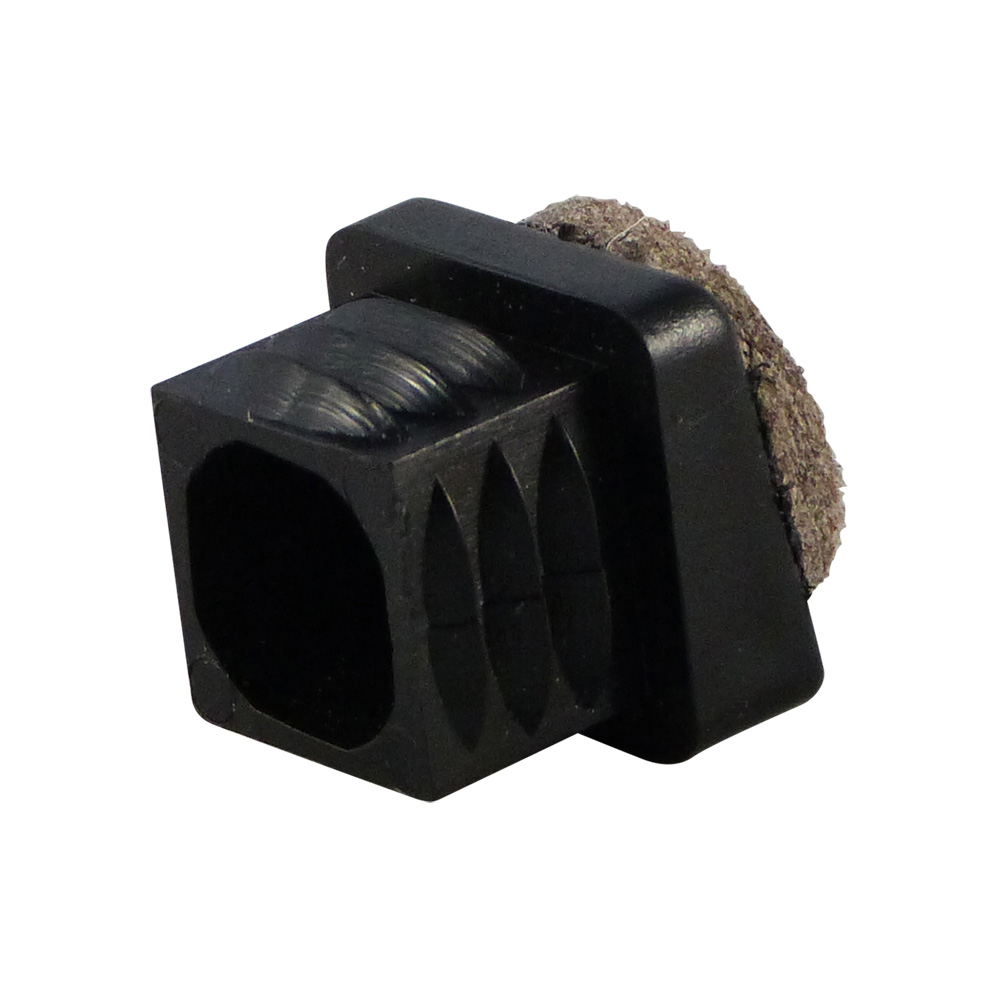

Square end cap inserts with an angled base with felt are available for tubing sizes from 20 x 20 mm to 25 x 25 mm inclusive, with a wall thickness varying from 1.0 mm to 2.0 mm inclusive

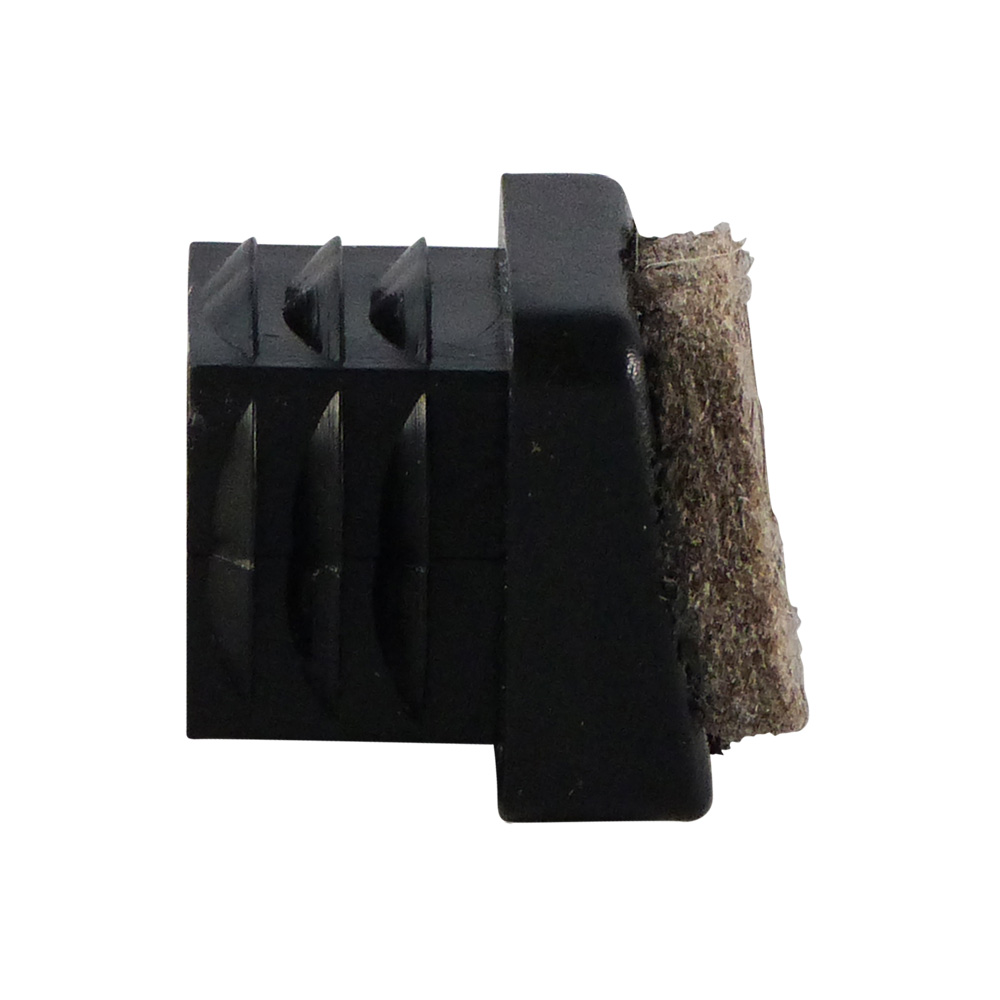

The base is angled at 10°

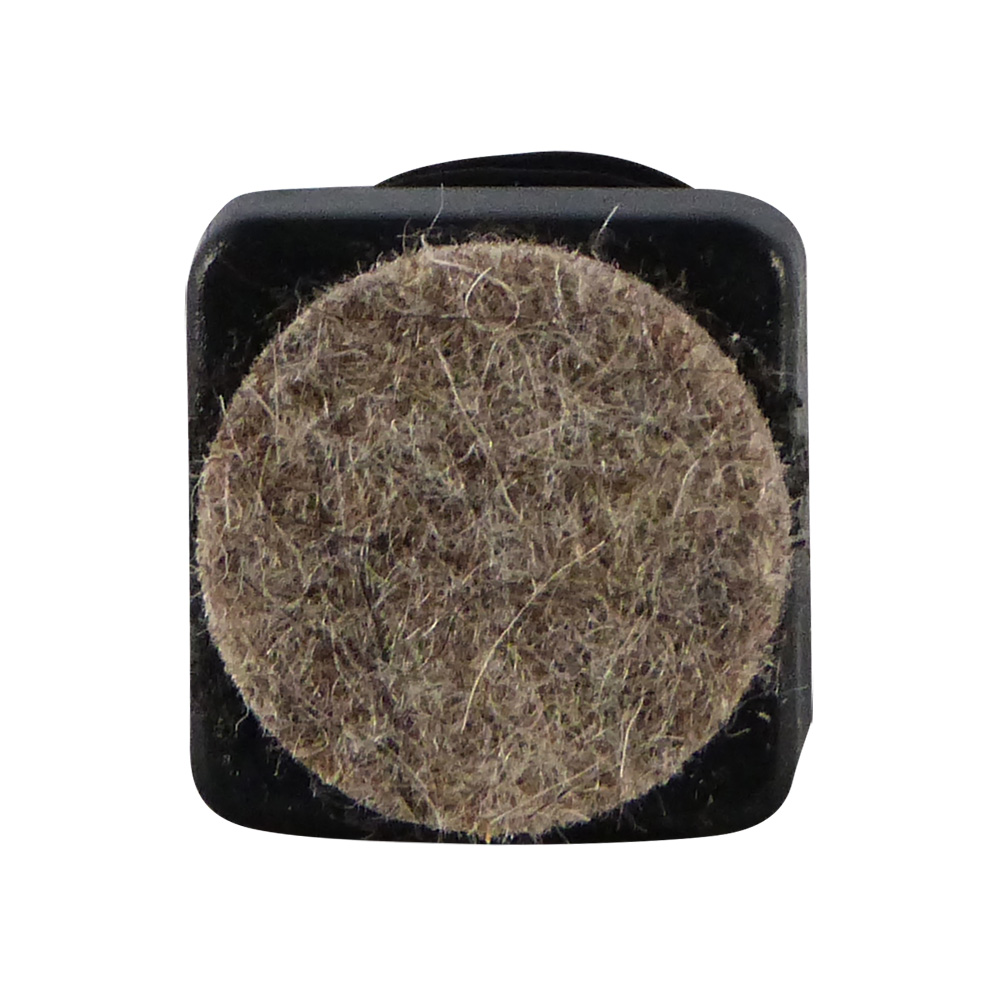

The round felt pad, which is 3 to 4 mm thick, is vibration-welded to the insert
In general, these end cap inserts are used as glides/feet for table legs, chair legs or other types of furniture and tubular fabrications.

Material: PE (polyethylene) and felt
Colour: black

Legend

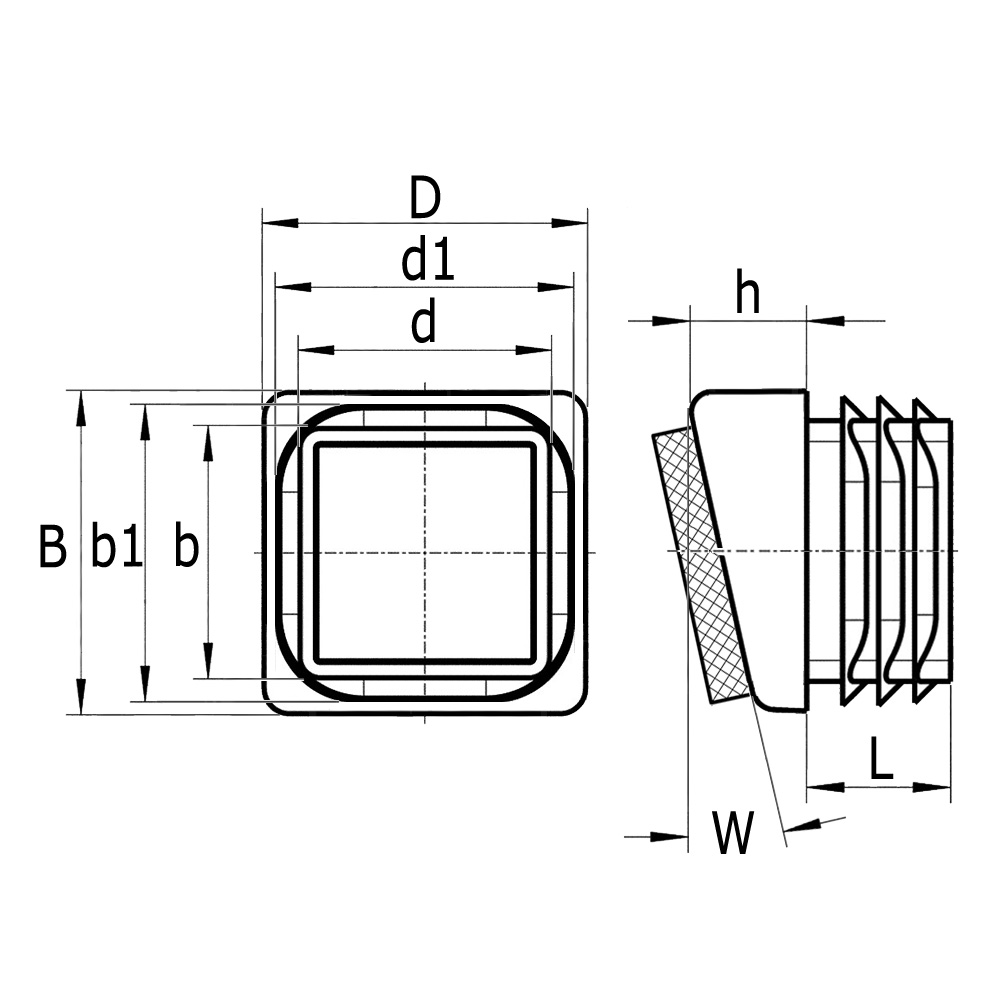

B=head width, b x d=shaft size, b1 x d1=ribbing size, D=head length, h=head height, L=shaft length, Version=tube wall thickness, Tube size=external tube dimension, W=angle of inclination in °

Filter by

Show all filters

Show less filters

Reset all filters

Articles

1 pages - 1

Article	Description	Tube size	B	D	d	d1	b	b1	h	L	Version	Colour/RAL	W
6502020/FI	Inserts with angled bottom 20 x 20 10º black, with felt	20 x 20	20,2	20,2	14,8	18	14,8	18	8	12	1-2	Black	10
6502515/FI	Inserts with angled bottom 25 x 15 10º black, with felt	25 x 15	15	24,5	15,5	22,7	10,5	13,7	7	12	1-2	Black	10
6502525/FI	Inserts with angled bottom 25 x 25 10º black, with felt	25 x 25	25	25	20	24	20	24	8,5	14	1-2	Black	10

1 pages - 1
