Tiltsert end caps with PA pad for square tube

Tiltsert end caps with PA pad for square tubedrawing_1

Product information

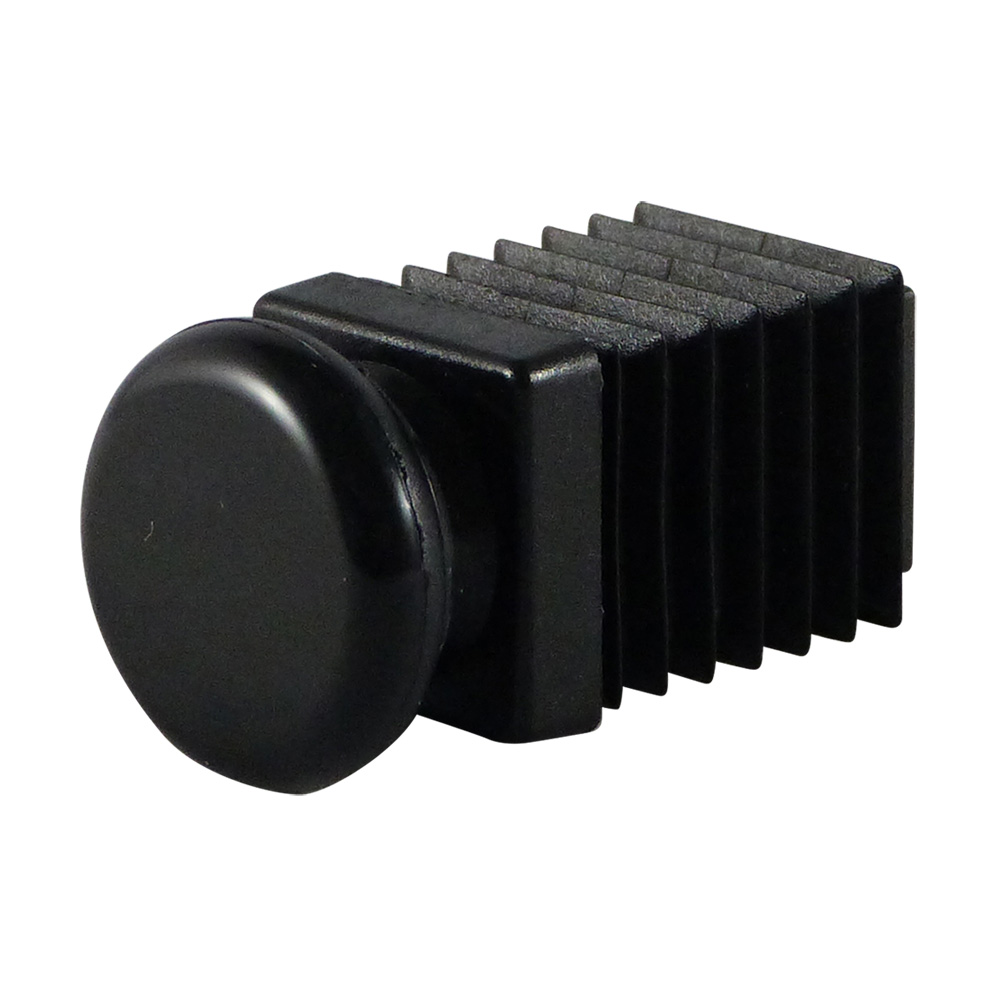

Square end cap inserts with a round tilting base and nylon pad are available for square chair legs from a size of 20 x 20 mm to 25 x 25 mm inclusive, with a wall thickness of 1.5 mm
Base diameters from Ø 23 mm to Ø 30 mm inclusive
Maximum angles of inclination: 20° from vertical
These end cap inserts are ideal as a glide under chairs with angled legs that are typically used for major interior design projects, the hospitality industry, hospitals and schools.

Material: end cap - PE (polyethylene), pad - PA (polyamide), connector - steel
Colour: black

Make your selection below

Legend

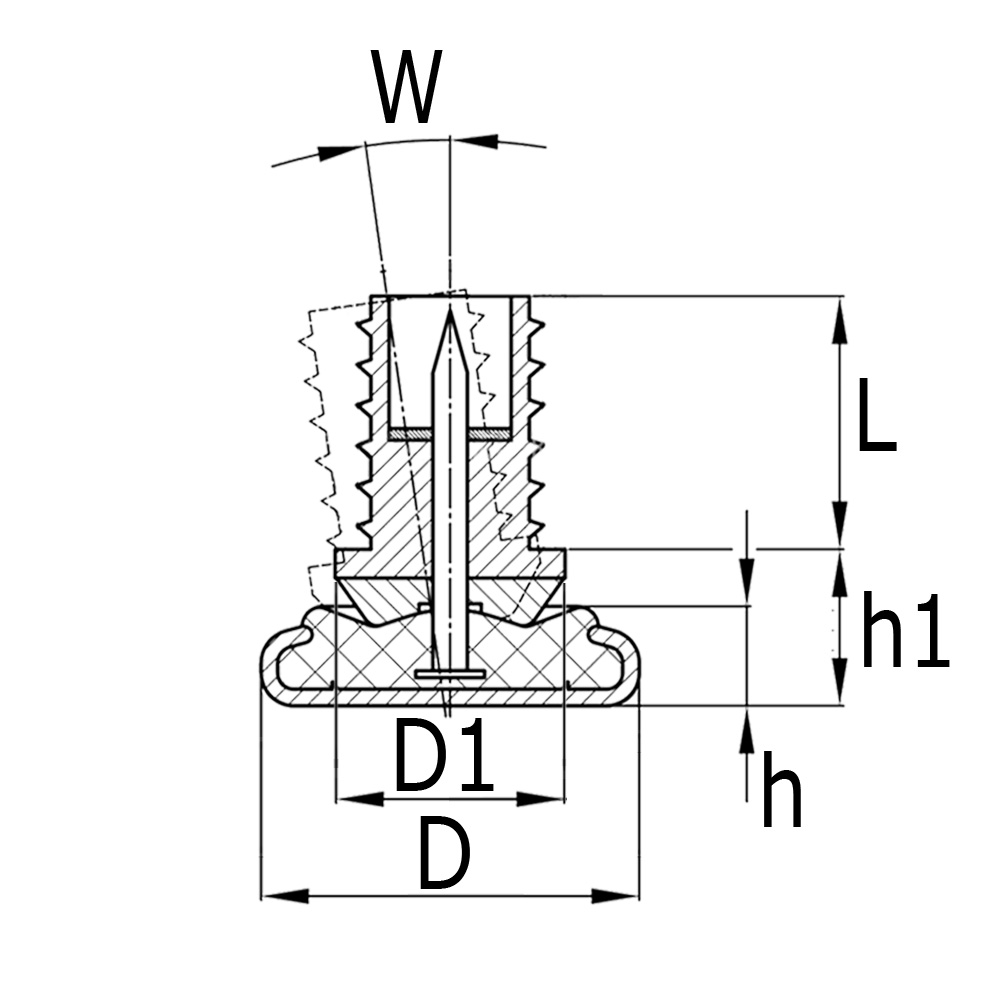

D=foot Ø, D1=collar size, h=foot height, h1=ball joint + foot, L=shaft length, Tube size=external tube dimension, Version=tube wall thickness, W=angle of inclination in °

Filter by

Show all filters

Show less filters

Reset all filters

Articles

1 pages - 1

Article	Description	D	Version	Colour/RAL	h	h1	L	W	Tube size	D1
6512320215	Tilt glides with PA glide base 23mm 20x20x1,5 - metal pin - black	23	1,5	Black	7	15	24	Max 20°	20x20	20
65127202015	Tilt glides with PA glide base 27mm 20x20x1,5 - metal pin - black	27	1,5	Black	7	15	24	Max 20°	20x20	20
65125202015	Tilt glide for square tubes PA Ø25mm - 20x20mm - 1.0mm - PA glide base - Black	25	1,0	RAL 9005 - Jet black	0	0	20	Max 24°	20x20	20
651302020 Z	Tilt glide for square tubes PA Ø30mm - 20x20mm - 1.5mm - PA glide base - Black	30	1,5	RAL 9005 - Jet black	0	0	20	Max 24°	20x20	20
65137202015	Tilt glide for square tubes PA Ø37mm - 20x20mm - 1.5mm - PA glide base - Black	37	1,5	RAL 9005 - Jet black	0	0	20	Max 24°	20x20	20

1 pages - 1
