2.1.14

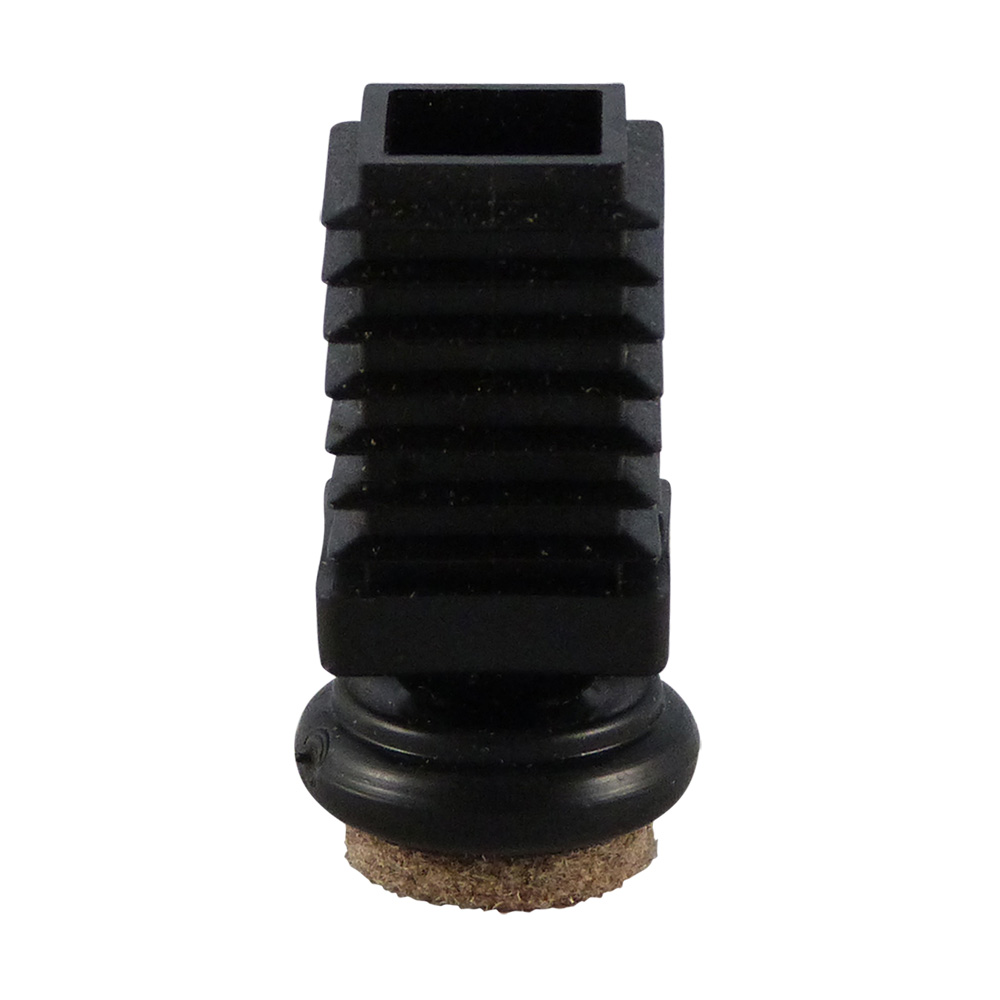

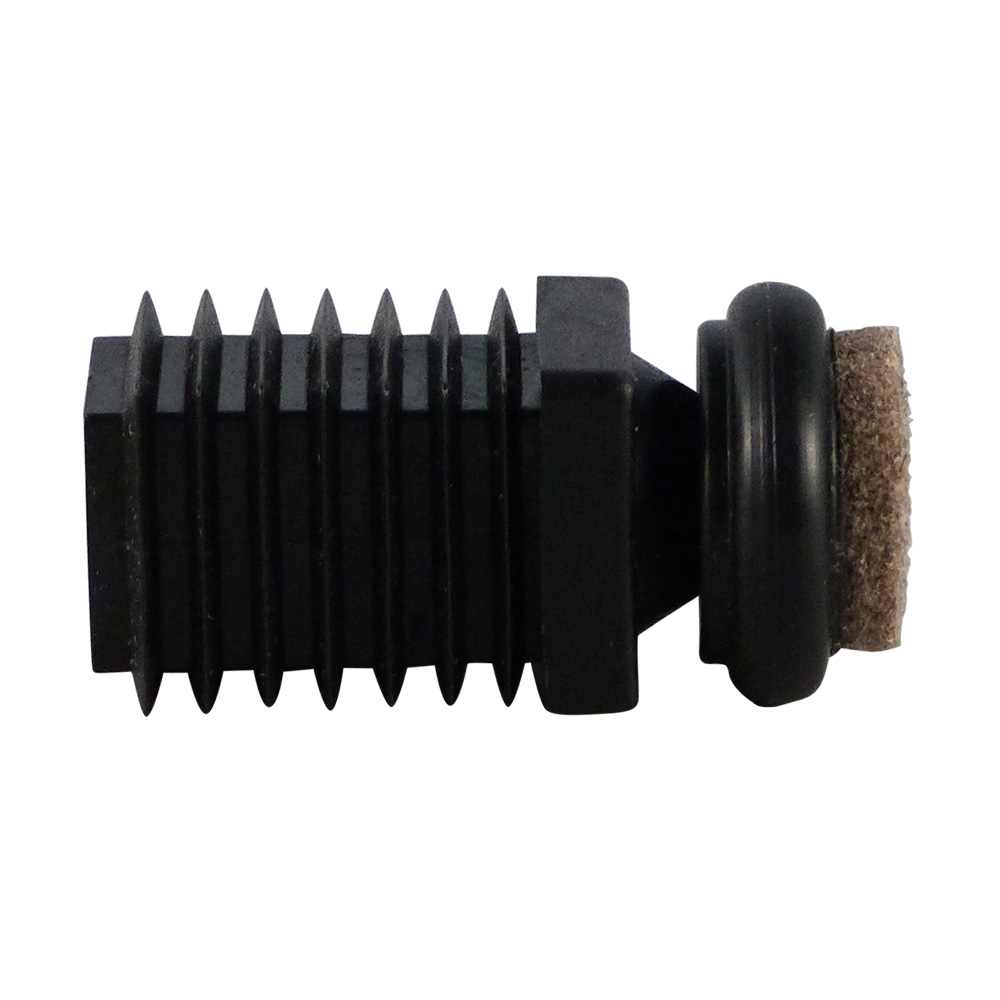

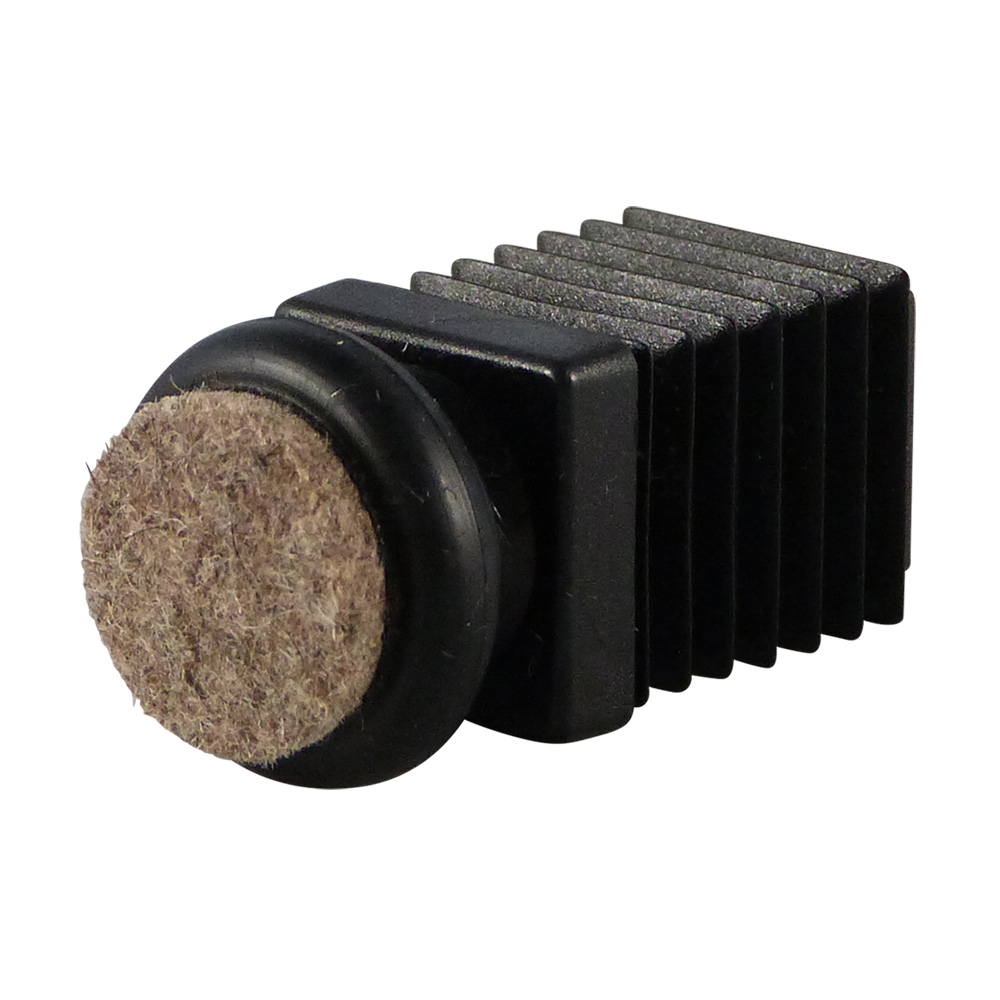

Tiltsert end caps with felt pad for square tube
Product information
- Square end cap inserts with a round tilting base and felt pad are available for square chair legs measuring 20 x 20 mm with a wall thickness of 1.5 mm
- Maximum angle of inclination 20°
- Base diameters from Ø 23 mm to Ø 27 mm inclusive
- Suitable for use on flooring such as parquet floors, floor tiles (smooth, without joints/with flush joints), laminate flooring, linoleum, PVC flooring, etc. -
- For use as a tilting foot/glide for chairs with angled legs in conference centres, party centres, hospitals, schools, nursing homes, etc.
Material: end cap - PA (polyamide), pad - felt, connector - steel
Colour: end cap insert - black, felt pad - grey

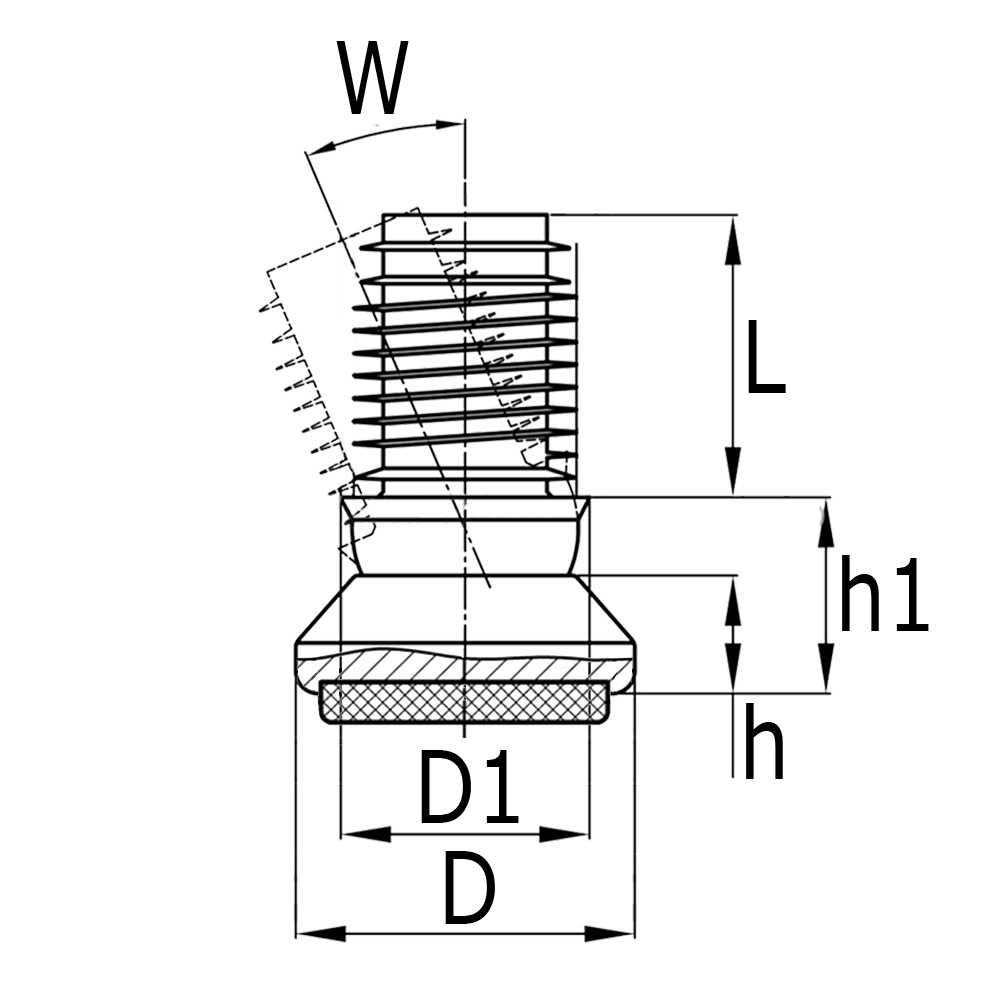

Legend
D=foot Ø, D1=collar size, h=foot height, h1=ball joint + foot, L=shaft length, Tube size=external tube dimension, Version=tube wall thickness, W=angle of inclination in °
