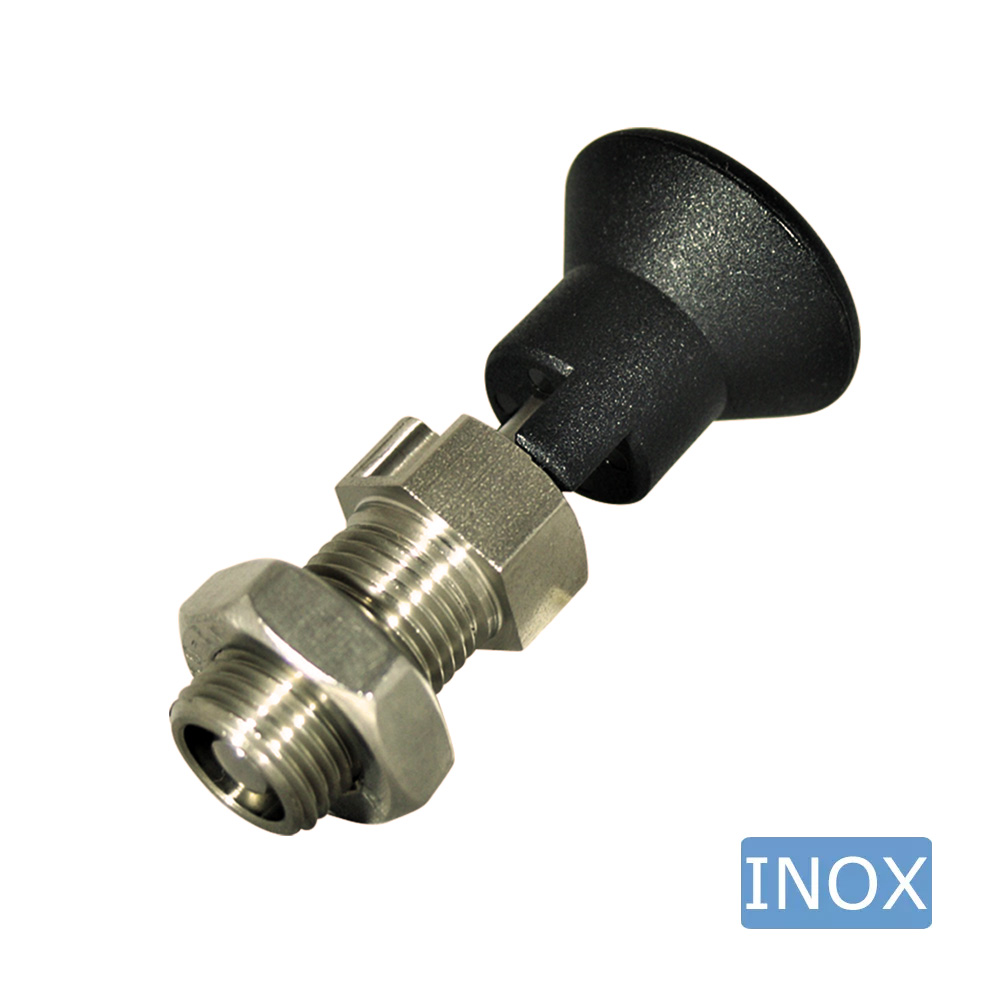

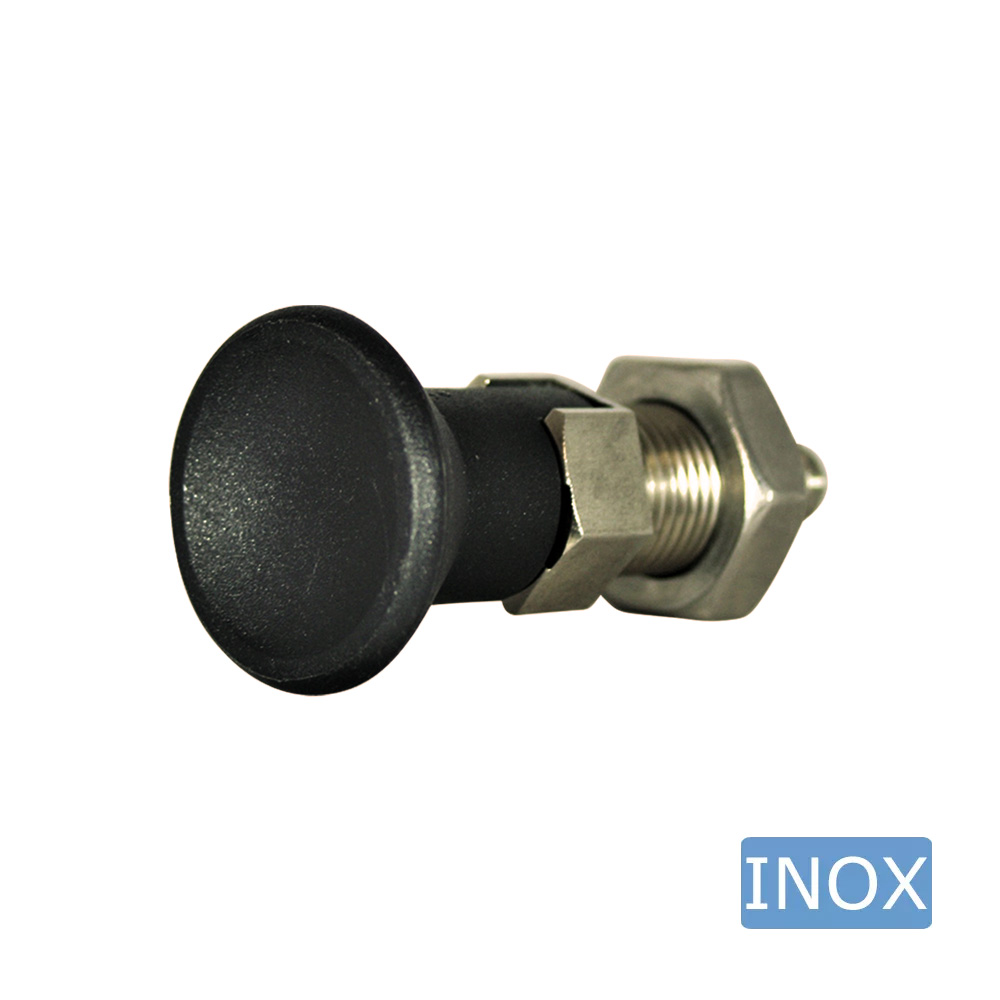

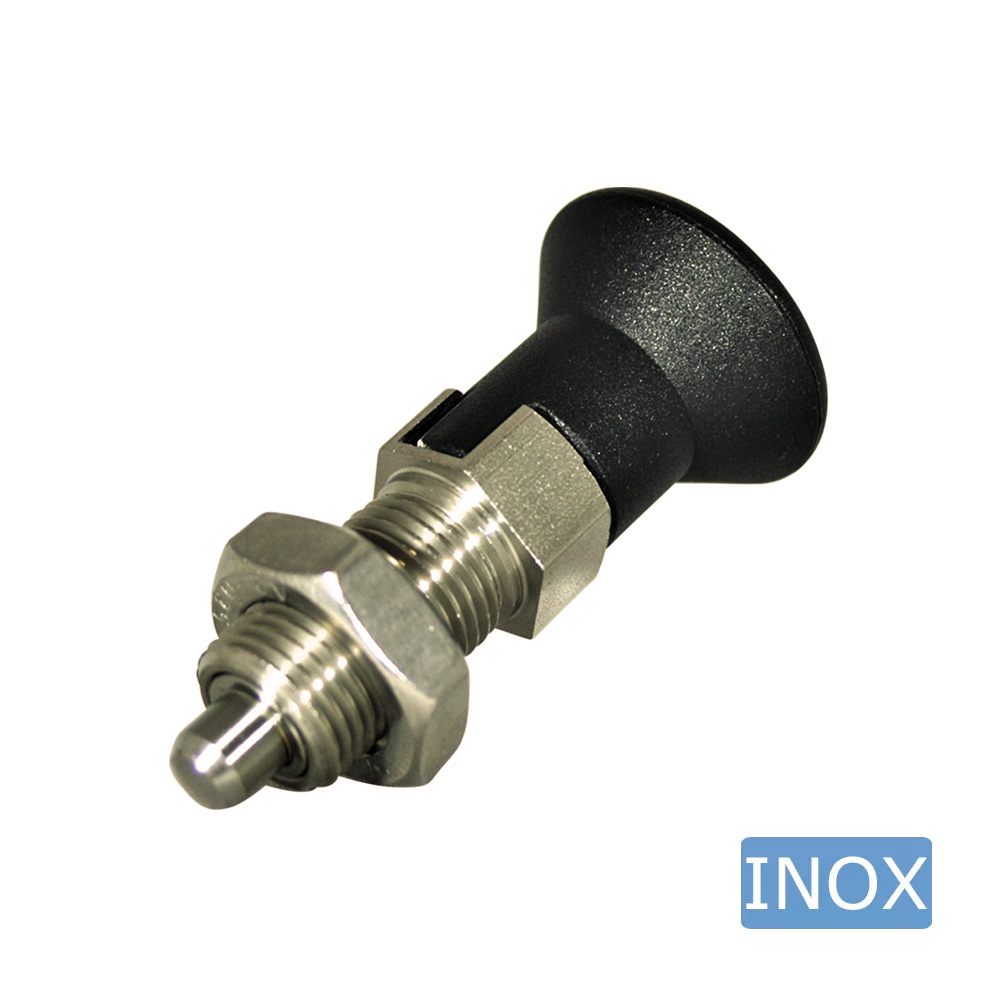

Indexing plungers with hexagonal bond – stainless steel – with Locking rest position
Product information
- Indexing plungers mit hexagonal collar and lock nut are available with full fine threaded body of M8x1 up to M20x1,5 inclusive
- Model with locking rest position
- Hardened plunger of Ø4mm up to Ø10mm inclusive
- Spring operated plunger
- Metal parts in stainless steel
- Plastic Knob
- Indexing plungers are used for indexing, aligning, holding or latching parts on which side forces are applied, like in machines, installations, vihicles and furniture.
Material: Knob – PA (Polyamid), Housing + Nut – stainless steel (1.4305), Plunger – hardened stainless steel (1.4304)
Colour: Knob – black, Metal parts – Stainless steel coloured
Available on request:
- Other sizes and plunger lengths
Legend

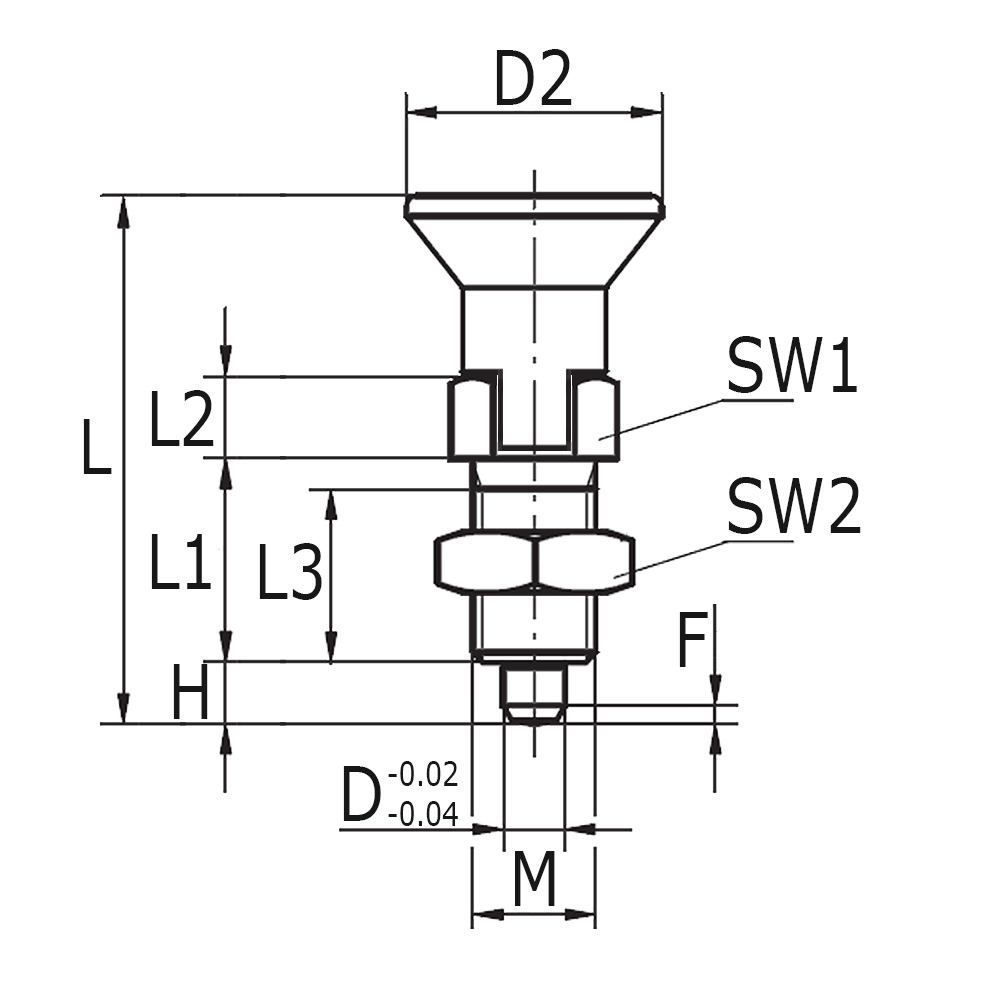

D=Ø-Plunger, D2=Ø-Knob, F=Height Plungerfacet, F1=Spring force initial in Newton, F2=Spring force final in Newton, H=Plungerlength, L=Total length, L1=Length, L2=Height hexagonal bond, L3=Length thread, M=Threadsize (metric fine), SW1=Spannerwidth collar, SW2=Spannerwidth lock nut
