13.5.9

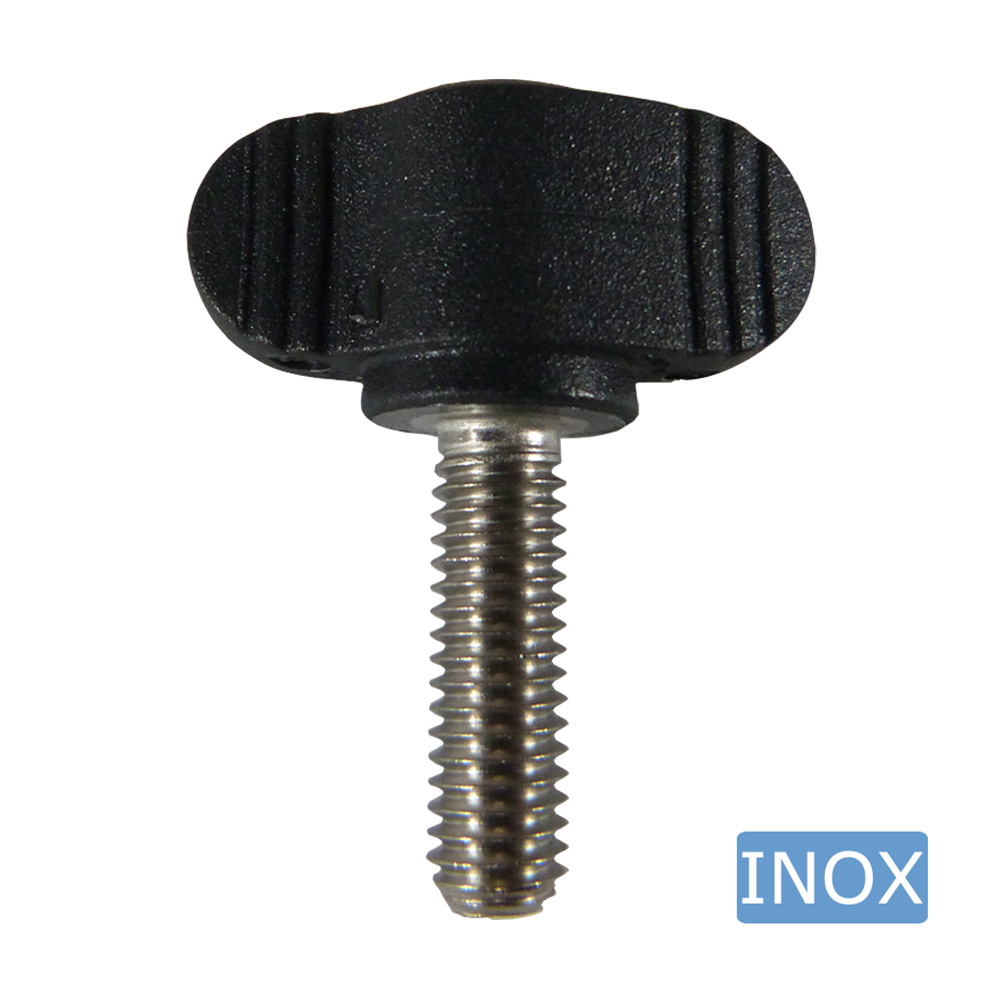

Wing nut Model 4 - PA - threaded stud stainless steel A2
Product information
- Plastic wing nuts with a stainless steel A2 threaded stud are available in thread sizes from M5 to M8 inclusive, and thread lengths from 10 mm to 40 mm inclusive
- Wing nut lengths from 28 mm to 60 mm inclusive
- Impact-resistant head
- Suitable for temperatures from -30°C to approx. 90°C
- Good resistance to oil, grease and petrol
- Wide range of uses, e.g. for adjustment or locking purposes on furniture and equipment.
Material: Knob - PA (polyamide), Thread – stainless steel A2 (AISI 304)
Colour: Knob – matt black, Thread - zinc-coloured
Legend
D=wing length, d=shoulder Ø, H=height, h=collar height, l=thread length, M=thread size
