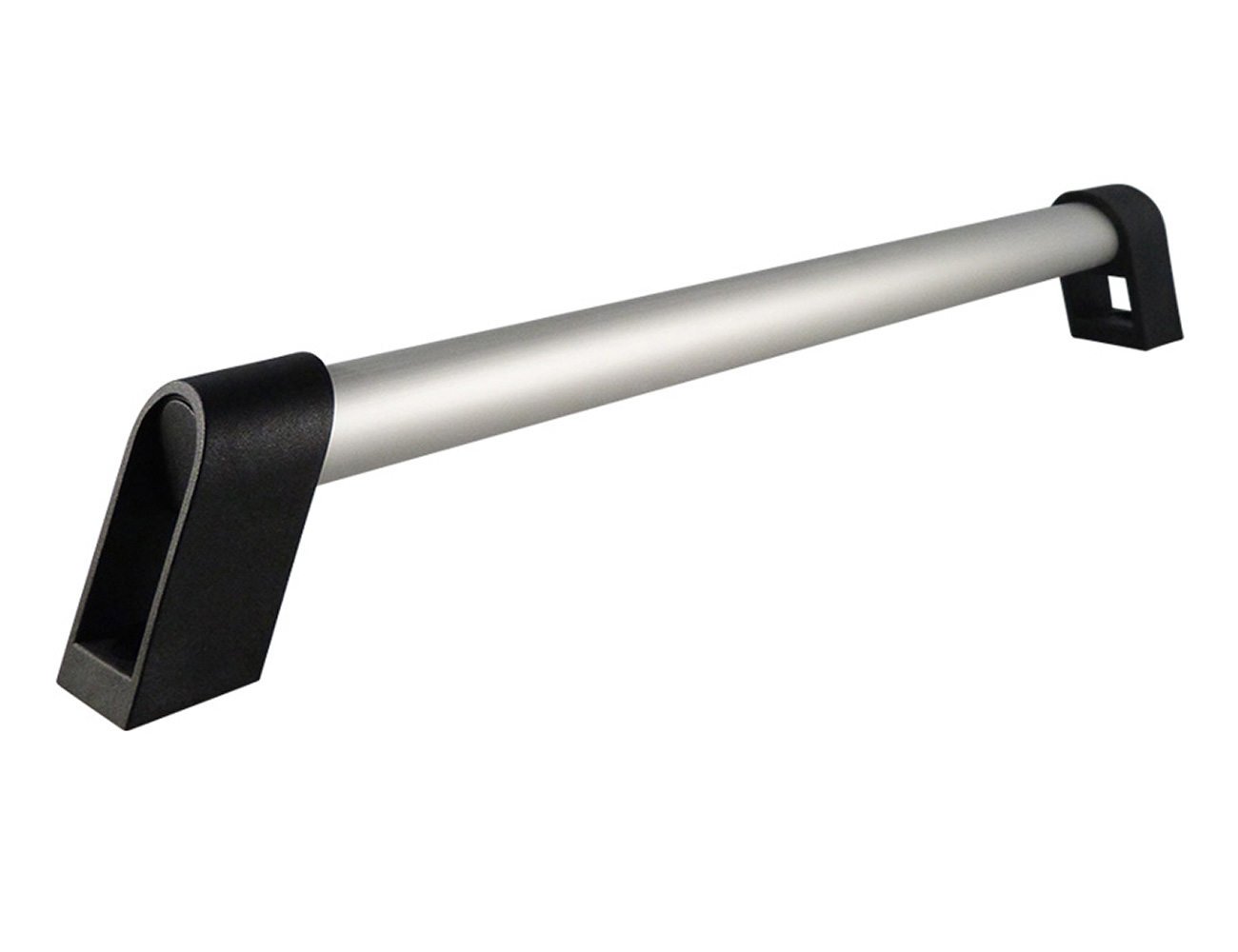

      1. Pull handle - aluminium handle with PA end pieces
        1. Pull handle - aluminium handle with PA end pieces

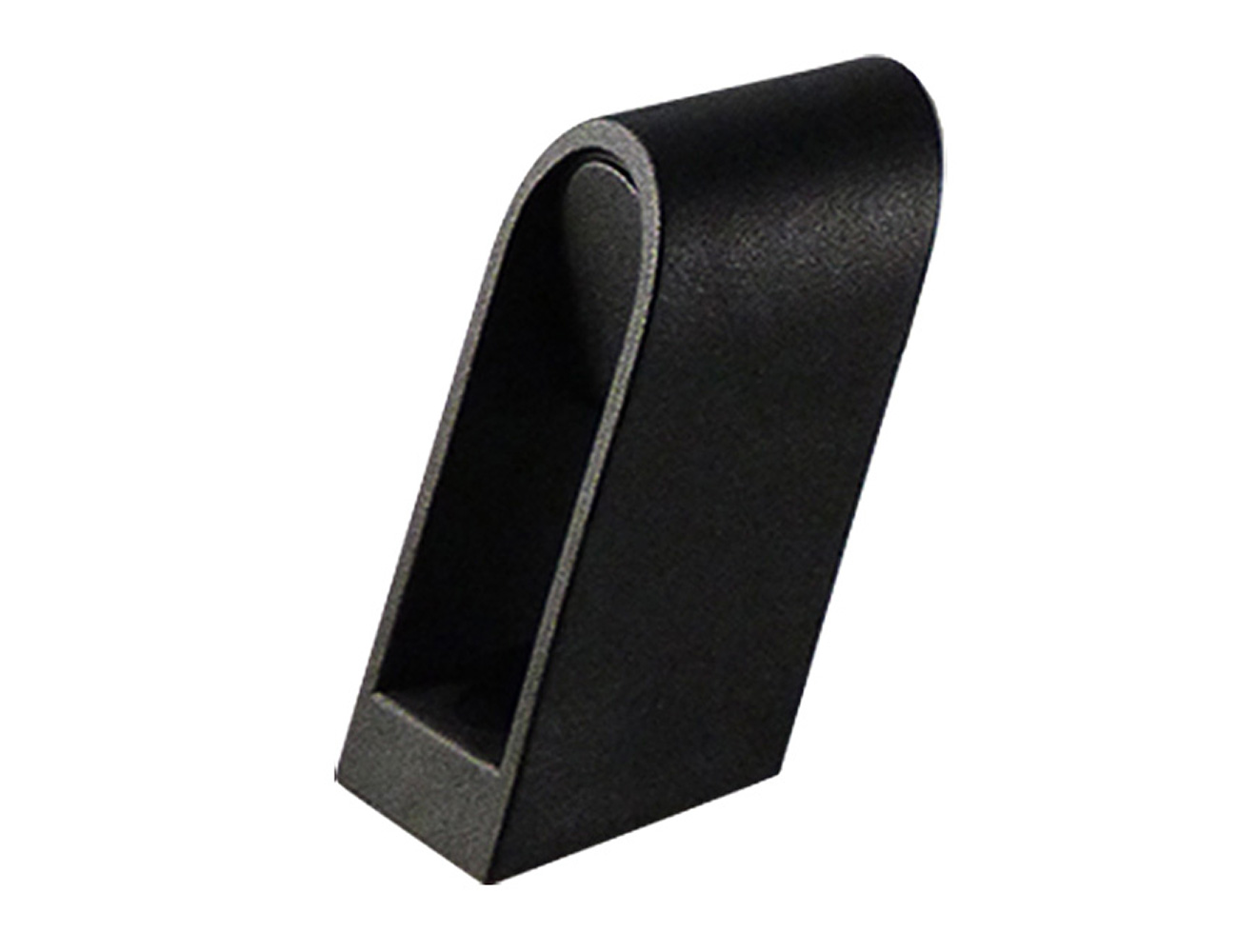

        2. Seperate end pieces PA for handlebars
      2. Pull handle – PA – optional trim caps
      3. Pull handle - PA - with clearance hole or thread insert
      4. U-handle - bakelite - with internal thread
      5. U-handle angular with enlarged base - bakelite - with internal thread
      6. D-handle - bakelite - with thread insert
      7. D-handle - bakelite
      8. Stainless steel D-Handle – 3-A sanitary standard
    13. Stainless steel components 3-A Hygiene
  14. Wheels Castors
  15. Gas springs and accessories
  16. Fencing accessories
  17. Furniture glides and furniture feet
  18. Self adhesive feet and felt
  19. Door stoppers and frame silencers
  20. Push in feet and glass buffers
  21. Cable management
  22. Ergonomics
  23. Chair ganging clips and clamps
  24. Stairs and ladders
  25. Building and construction
  26. Tube & pipe collars
  27. Sundries
  28. Decorative nails, upholstery nails and furniture nails
ProductsKnobs, handwheels, handles and gripsPull handlesPull handle - aluminium handle with PA end pieces
13.12.1

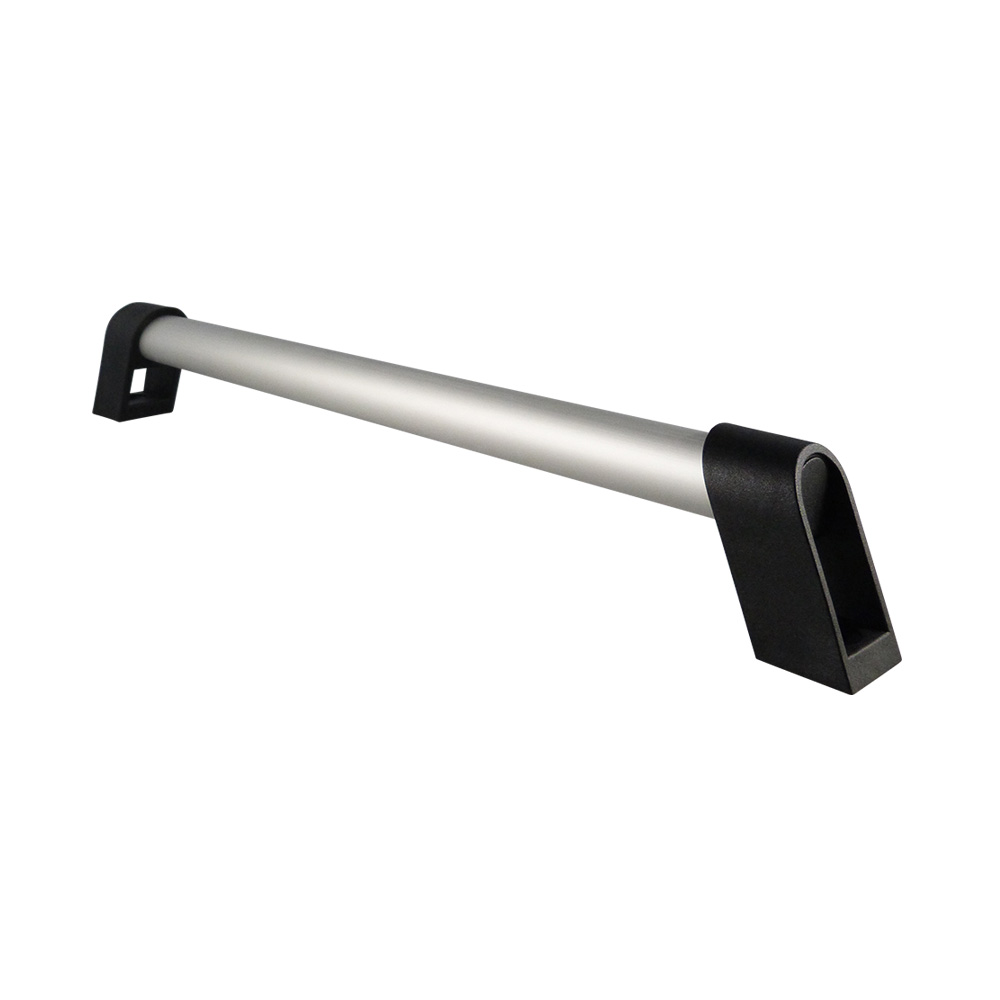

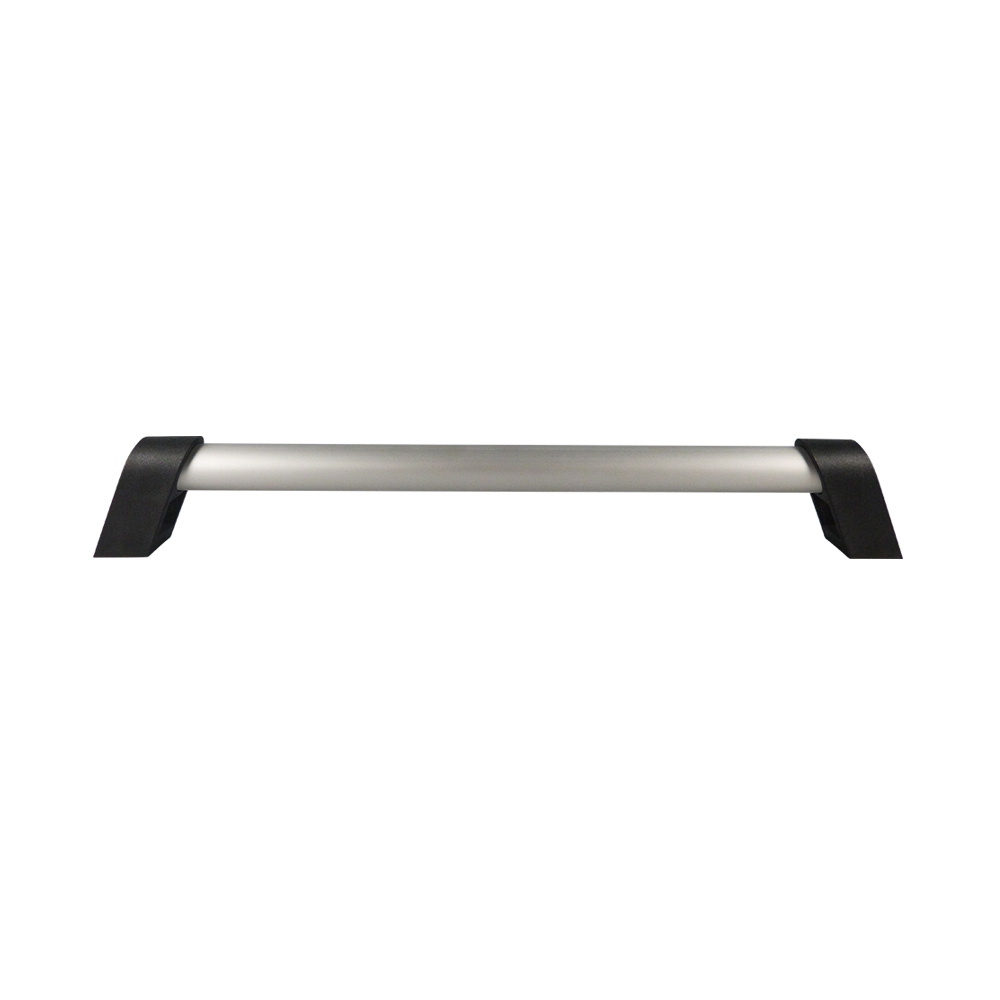

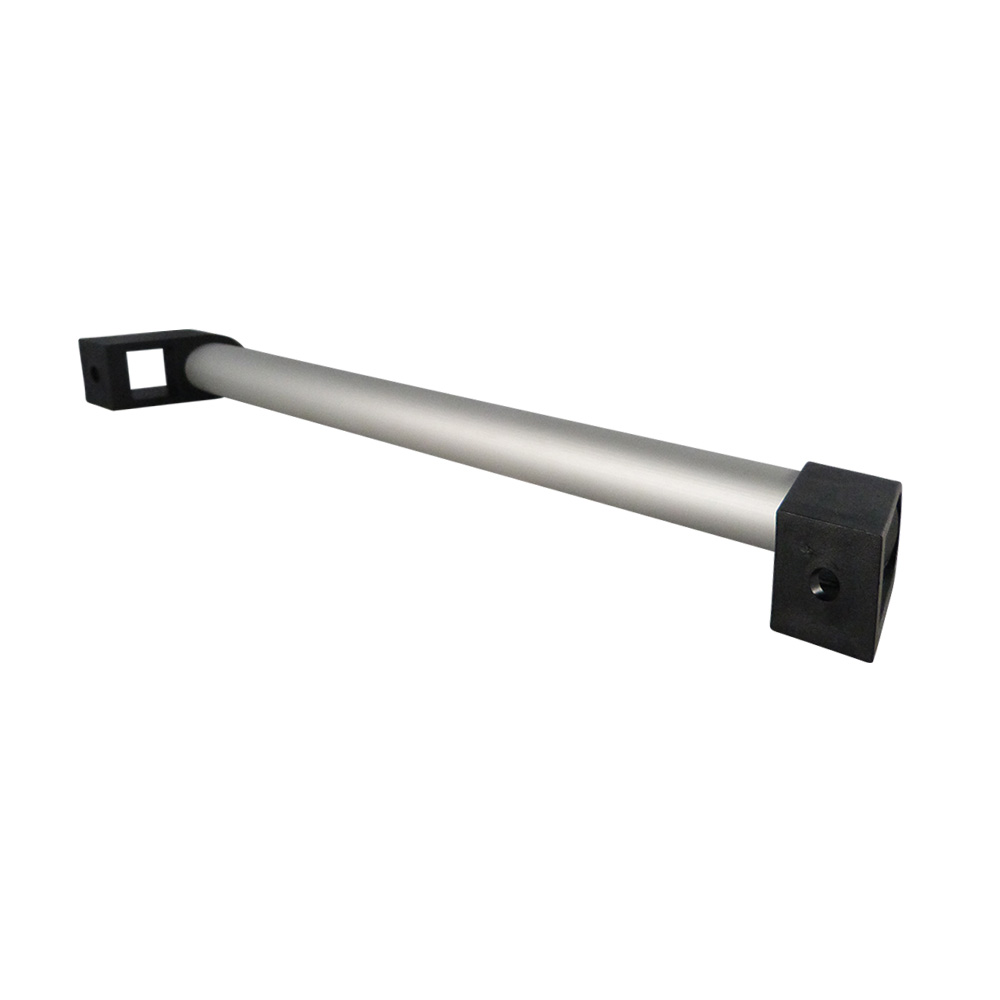

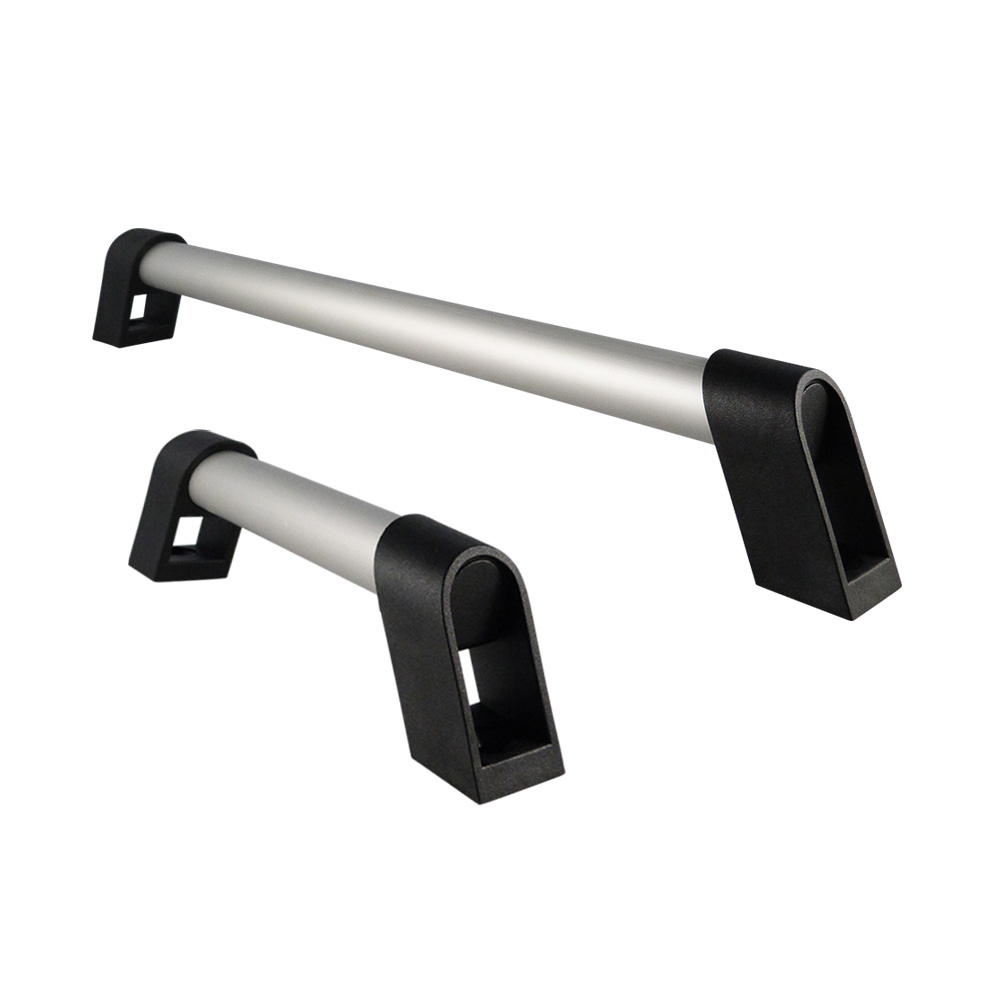

Pull handle - aluminium handle with PA end pieces

Pull handle - aluminium handle with PA end pieces
Pull handle - aluminium handle with PA end pieces
Pull handle - aluminium handle with PA end pieces
Pull handle - aluminium handle with PA end pieces
Pull handle - aluminium handle with PA end pieces
Pull handle - aluminium handle with PA end pieces
Pull handle - aluminium handle with PA end pieces
Pull handle - aluminium handle with PA end pieces
Pull handle - aluminium handle with PA end pieces
Pull handle - aluminium handle with PA end piecesdrawing_1
Product information
  • Pull handles with an aluminium tube and plastic end pieces are available in total lengths from 200 mm to 700 mm inclusive
  • Tube (handlebar) diameters Ø20mm or Ø25mm
  • End pieces also available as separate article
  • Countersunk holes measuring Ø 6.4 mm
  • Strong and lightweight design
  • This type of D-handle is available in a wide range of sizes and suitable for various applications in the furniture, electrical engineering and metalworking sectors and equipment and machine construction. Often used on doors and hatches.

Material: End pieces – PA-GF (glass fibre reinforced polyamide), Handle grip - anodised aluminium
Colour: End pieces – matt black, Handle grip – matt aluminium grey

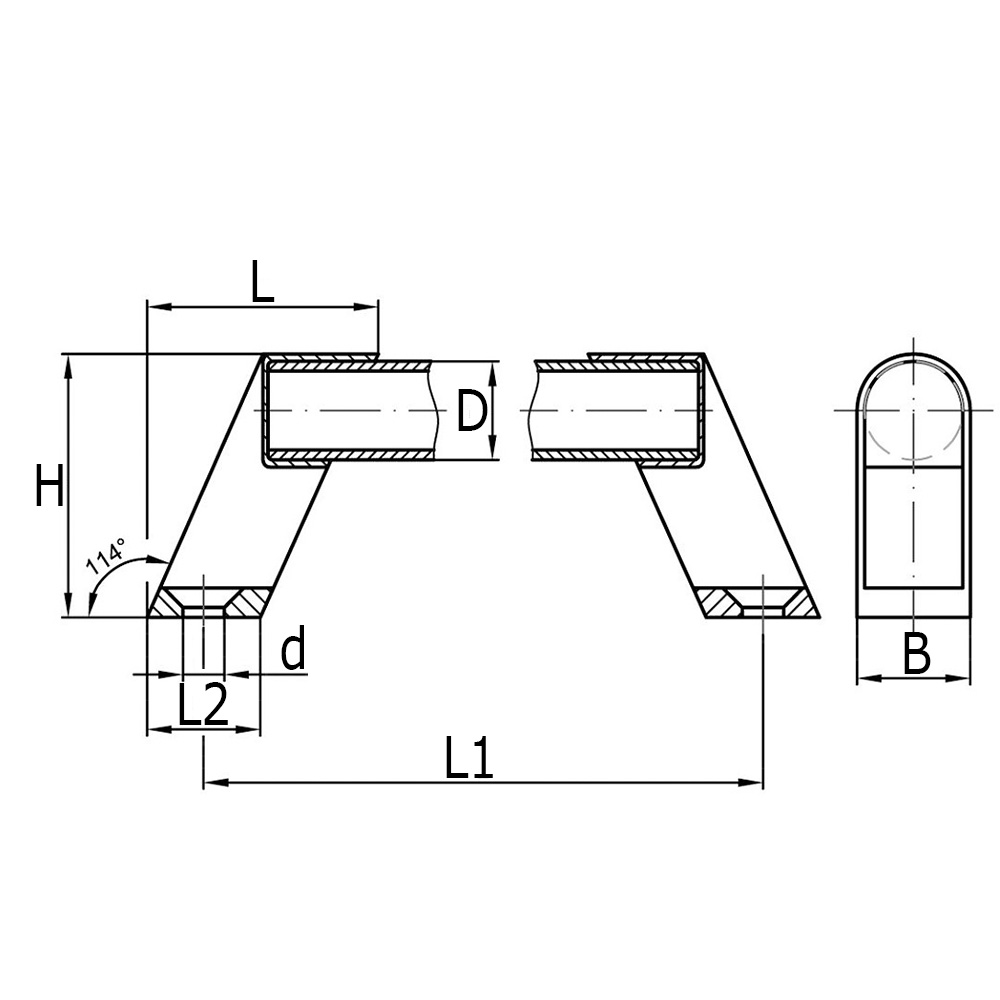

Legend
B=width, D=tube Ø, d=hole Ø, H=height, L=length of end piece, L1=centre-to-centre dimension between holes +/-1 mm, L2=length
