Ball knob ABS – DIN 319 – tapped or reamed blind hole

Ball knob ABS – DIN 319 – tapped or reamed blind holedrawing_1

Ball knob ABS – DIN 319 – tapped or reamed blind holedrawing_2

Product information

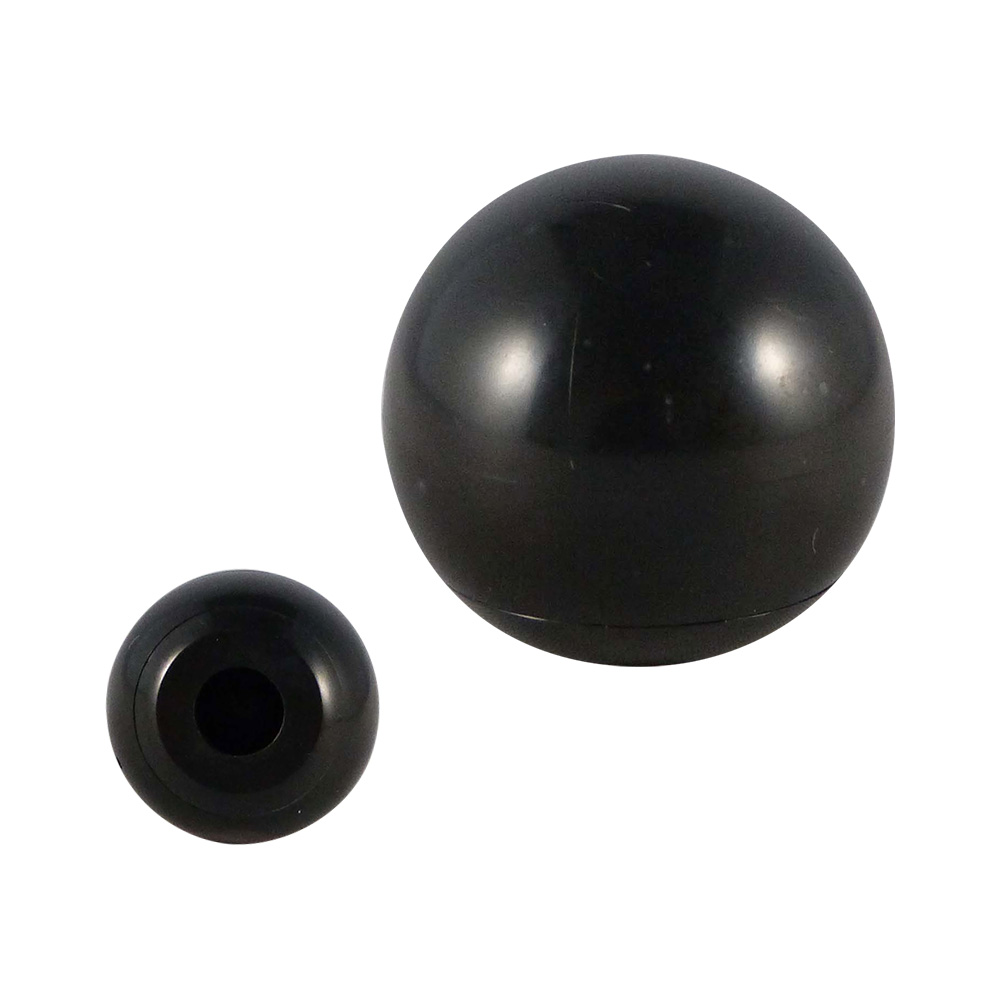

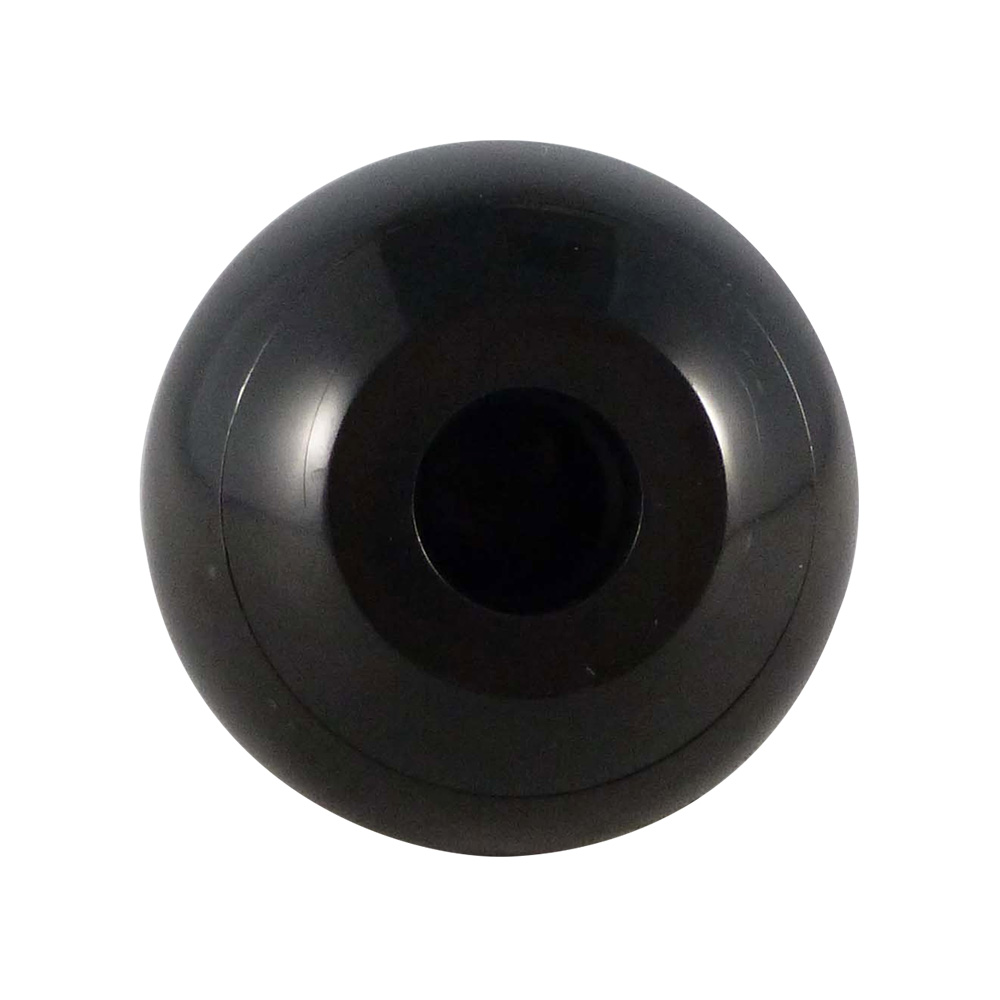

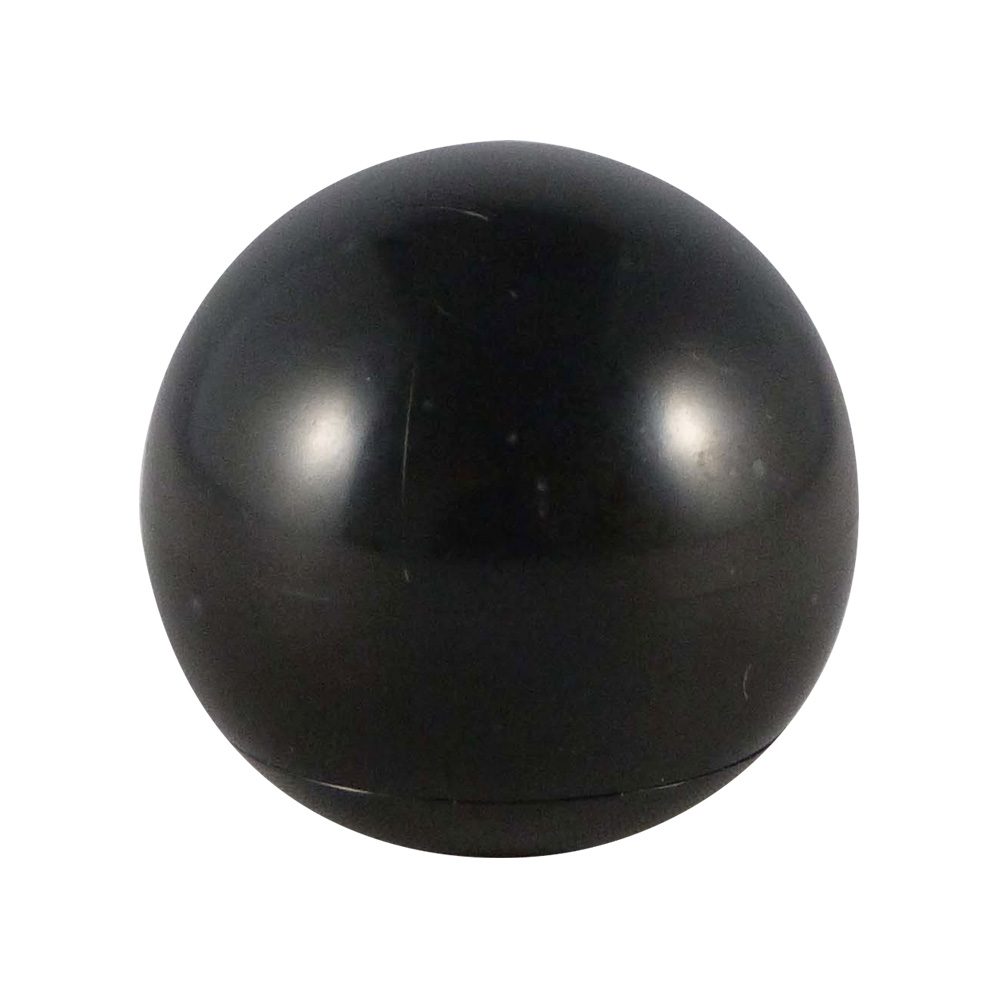

ABS ball knobs with a tapped blind hole are available in knob diameters from Ø 20 mm to Ø 40 mm inclusive
Plastic thread from M5 to M12 inclusive
Reamed holes for an interference fit in Ø 3.5 mm to Ø 12 mm inclusive
Similar to DIN 319, form C or form K
Hollow design, closed with a pre-fitted cap on the threaded side
Lightweight, hard and impact-resistant, even at low temperatures
Suitable for temperatures from -35°C to 85°C
Often used as an end knob on control levers, handles and locking pins for machines, vehicles or furniture.

Material: ABS (acrylonitrile butadiene styrene)
Colour: gloss black

Models
Type C: Tapped blind hole – form C
Type K: Reamed hole for interference fit – form K

Legend
D=Ø-Knob, d1=Ø-Blind hole, H=Height, M=Thread, Type=model, t=depth
