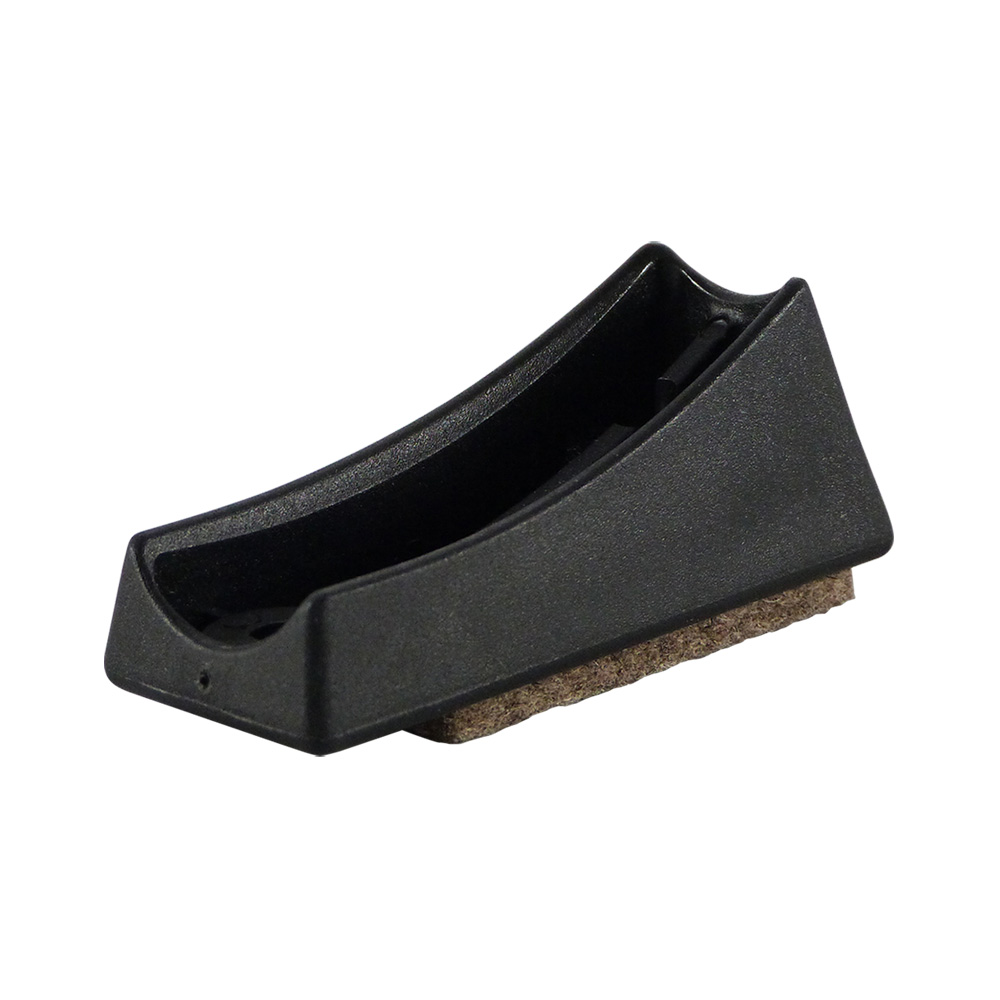

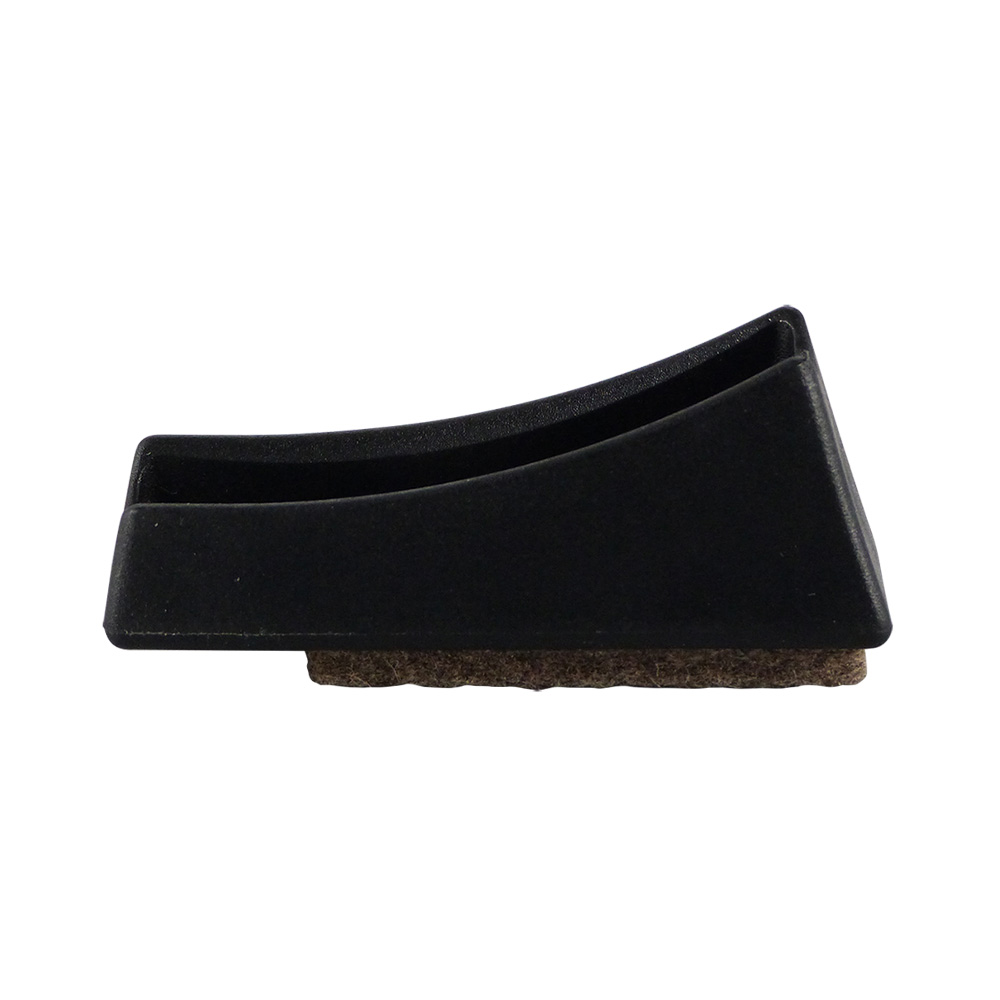

Heel-fit saddle feet with felt pad

Heel-fit saddle feet with felt paddrawing_1

Product information

This type of heel-fit saddle feet with a vibration-welded felt pad is available for round tube measuring Ø 25 mm
Suitable for tubular frames with a bend radius of 80 mm

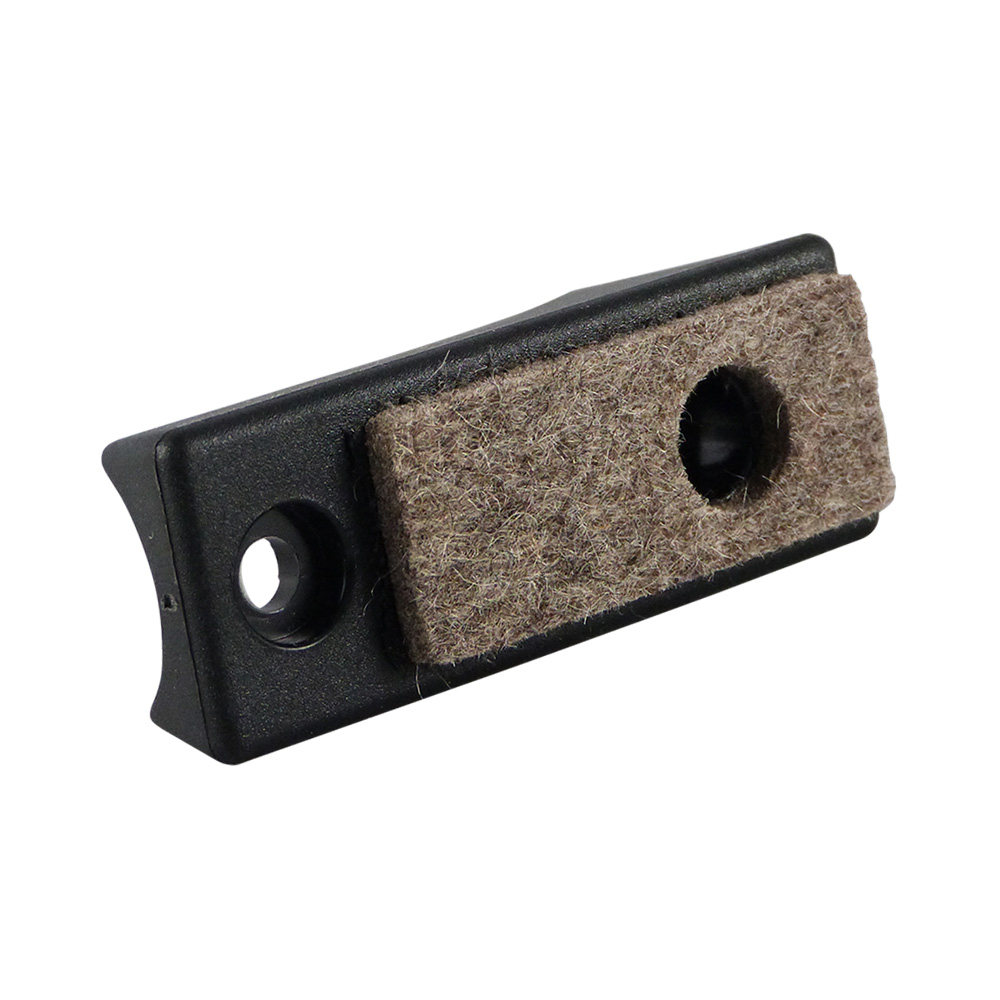

Two counterbored holes in the glide pad
Easy to attach with bolts, (self-tapping) screws, or rivets
The felt offers good protection against scratching on vulnerable surfaces such as concrete-look flooring, PVC and vinyl floors, floor tiles and wooden floors
This heel-fit saddle glide is ideal as a foot for tubular chairs/chairs with a sled base.

Material: PE (polyethylene) and felt
Colour: saddle - black, felt - grey

Legend

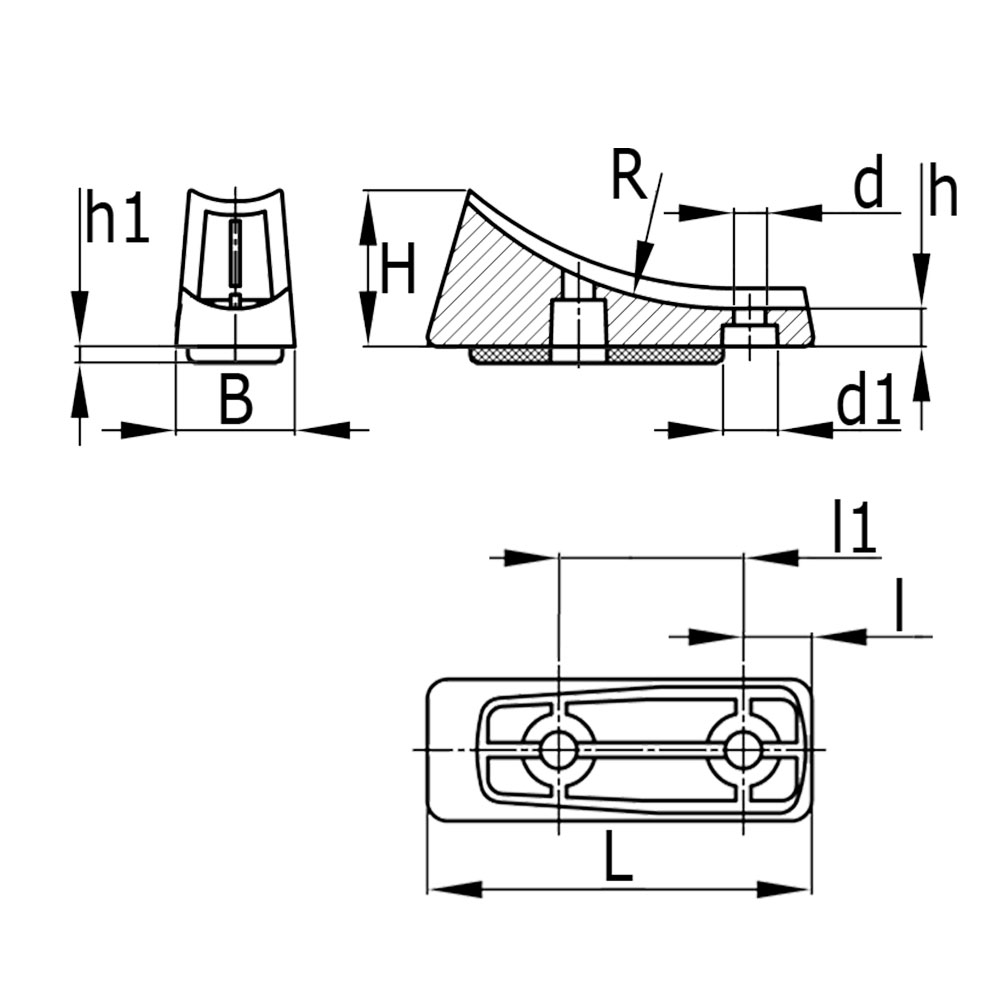

B=width, d=hole Ø, d1=counterbore Ø, H=height, h=height, h1=felt thickness, L=total length, l=dimension to hole centreline, l1=centre-to-centre dimension of the holes, R=radius, Tube size=external tube Ø

Filter by

Show all filters

Show less filters

Reset all filters

Articles

1 pages - 1

Article	Description	Tube size	B	H	l1	h	L	R	d	d1	Colour/RAL	h1	l
9370022 Z	Saddle feet for curved tubes with felt 22mm black	22	27	25,8	42,5	6,5	71	90	5,4	10	Black	3	9,5
9350025 Z	Saddle feet for curved tubes with felt 25mm black	25	30	30,2	42,3	8,3	72,5	80	5,4	10	Black	3	9,5

1 pages - 1
