Self-clamping saddle feet with peg

Product information

Self-clamping saddle feet with a flat base are available for round bar and tube diameters from Ø 10 mm to Ø 16 mm inclusive
Long, narrow model
The peg/pin prevents the saddle foot from rotating or sliding relative to the tube (NB: tube needs to be drilled)
Self-clamping saddle feet, also known as curved saddle feet, plastic round tube saddle feet or plastic tube saddles, are ideal for use as a foot/glide for furniture with a frame made from hollow tube or round bar, such as chairs and tables.

Material: PP (polypropylene)
Colour: black or natural

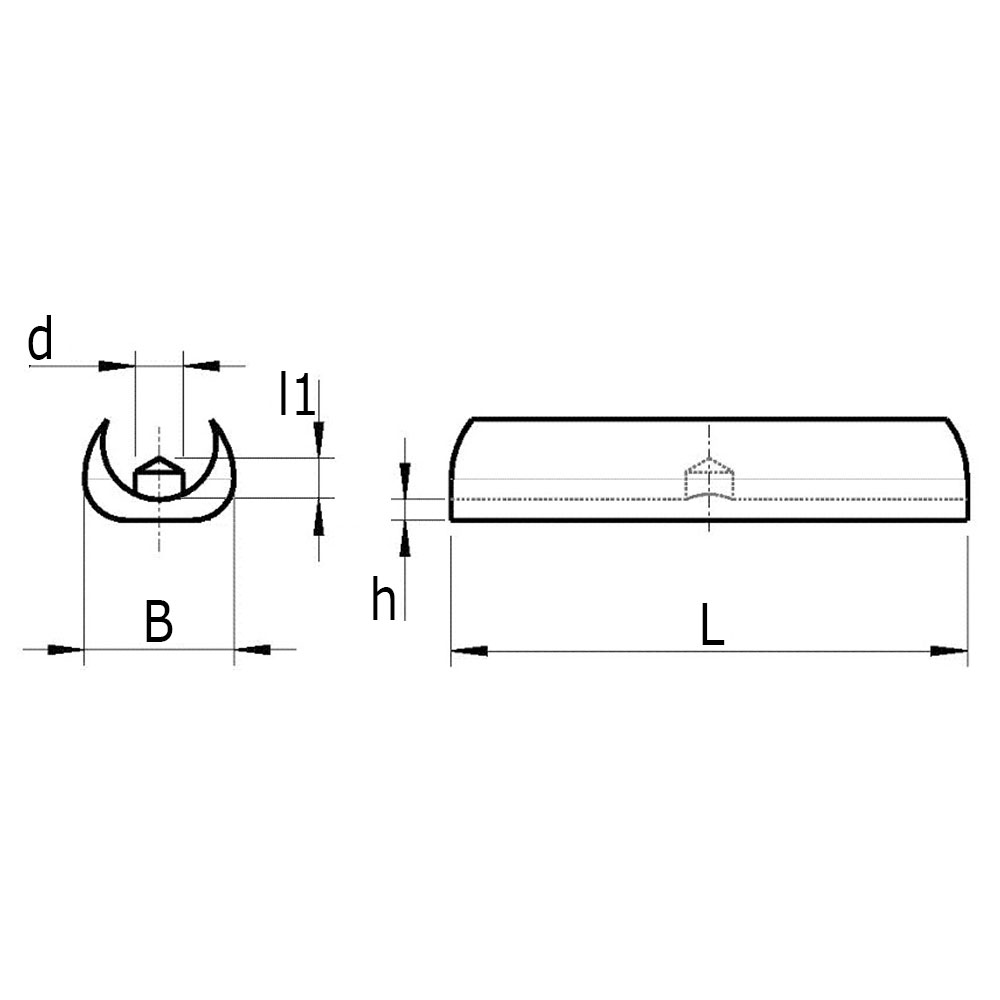

Legend
B=glide width, d=peg-Ø, h=thickness of the glide pad, L=glide length, l1=peg length, Tube size=external tube Ø

Filter by

Show all filters

Articles

1 pages - 1

Article	Description	Tube size	B	d	Colour/RAL	l1	h	L
AGK1350 N	Saddle feet for round tubes 10-11mm uncoloured	10-11	13	3,8	Natural	2,5	3	50
AGK1350 Z	Saddle feet for round tubes 10-11mm black	10-11	13	3,8	Black	2,5	3	50
AGK1450 N	Saddle feet for round tubes 12-13mm uncoloured	12-13	14	4,5	Natural	2,5	3	50
AGK1450 Z	Saddle feet for round tubes 12-13mm black	12-13	14	4,5	Black	2,5	3	50
AGK1650 N	Saddle feet for round tubes 13-14mm uncoloured	13-14	16	4,5	Natural	2,5	3	50
AGK1650 Z	Saddle feet for round tubes 13-14mm black	13-14	16	4,5	Black	2,5	3	50
AGK1850 N	Saddle feet for round tubes 15-16mm uncoloured	15-16	18	4,5	Natural	2,5	3	50
AGK1850 Z	Saddle feet for round tubes 15-16mm black	15-16	18	4,5	Black	2,5	3	50

1 pages - 1
