Self-clamping saddle feet with hole

Self-clamping saddle feet with hole
Self-clamping saddle feet with hole
Self-clamping saddle feet with hole
Self-clamping saddle feet with hole
Self-clamping saddle feet with hole
Self-clamping saddle feet with hole
Self-clamping saddle feet with hole
Self-clamping saddle feet with hole
Self-clamping saddle feet with hole
Self-clamping saddle feet with holedrawing_1
Product information

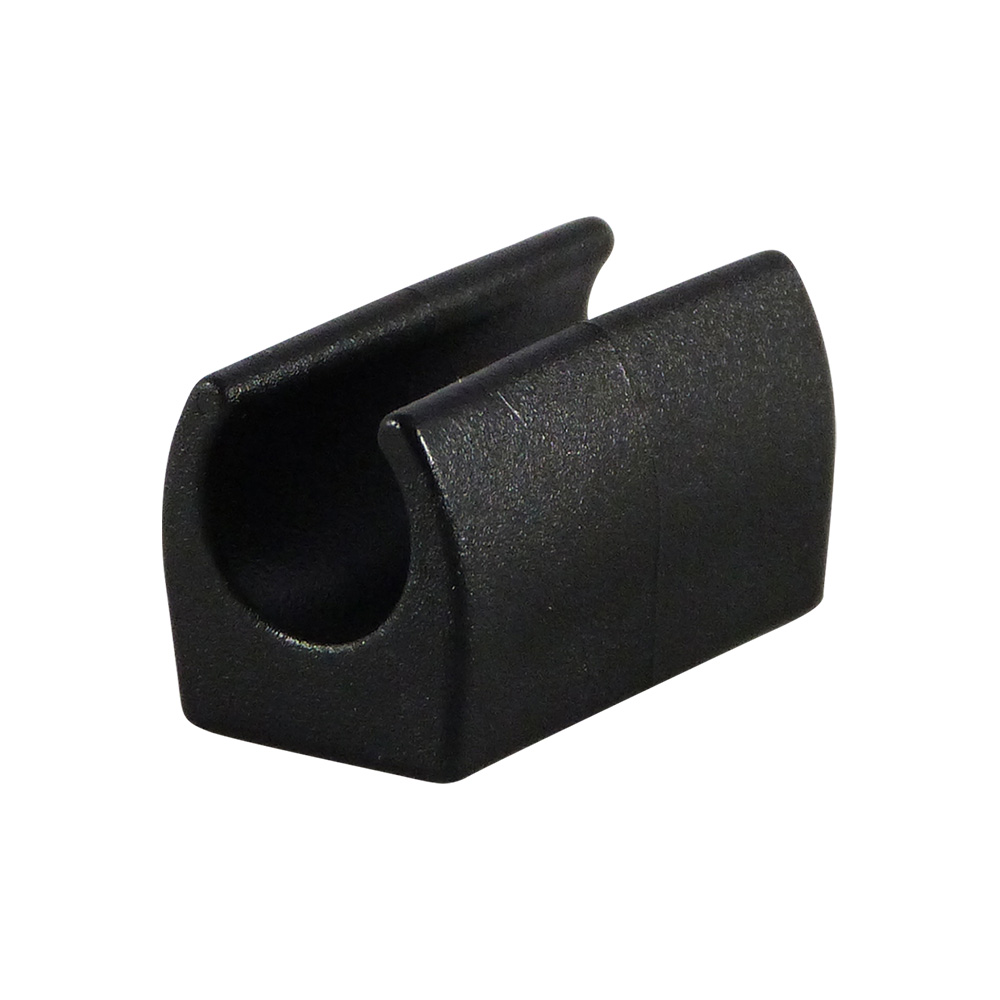

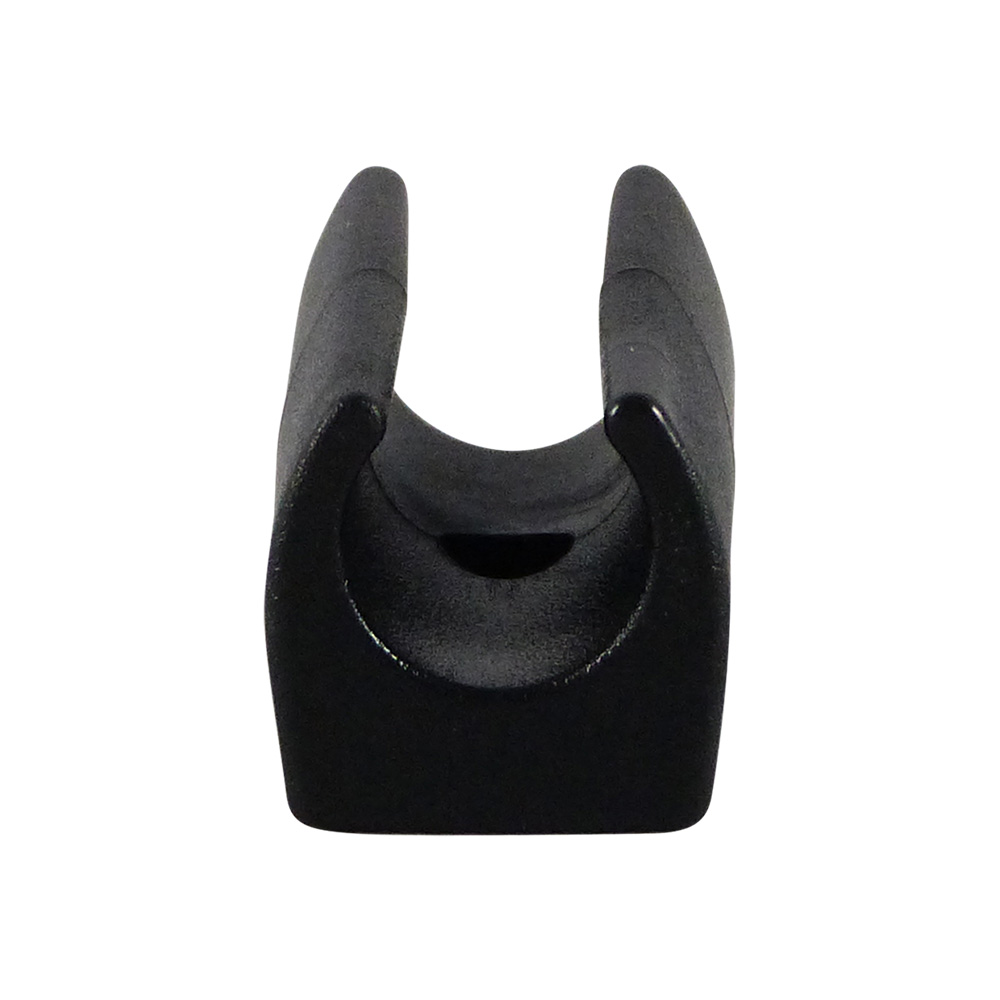

  • Self-clamping saddle feet with hole and a flat base are available for round tube from Ø 12 mm to Ø 13 mm

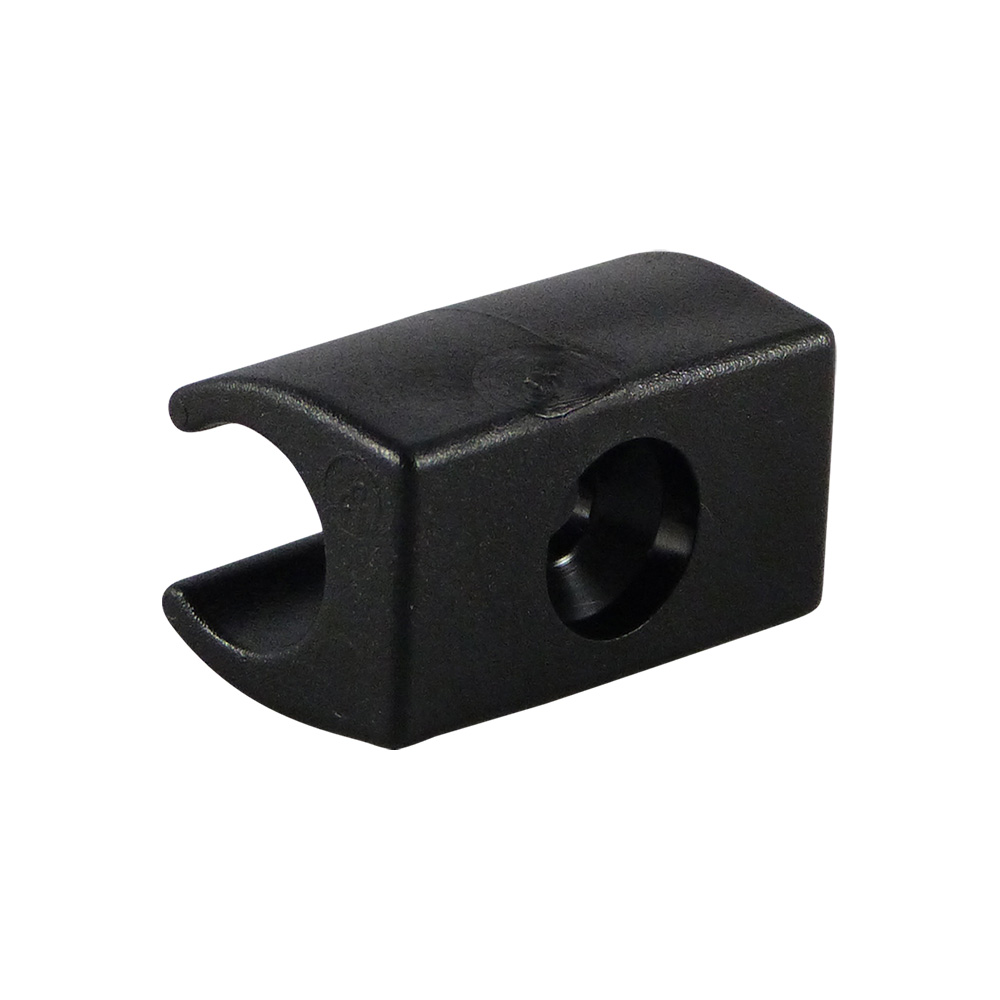

  • Countersunk hole is provided, the saddle can be fixed using a bolt, (self-tapping) screw or rivet
  • Self-clamping saddle feet, also known as curved saddle feet, plastic round tube saddle feet or plastic tube saddles, are ideal for use as a foot/glide for tubular furniture (with a sled base) such as chairs and tables.

Material: PE (polyethylene)

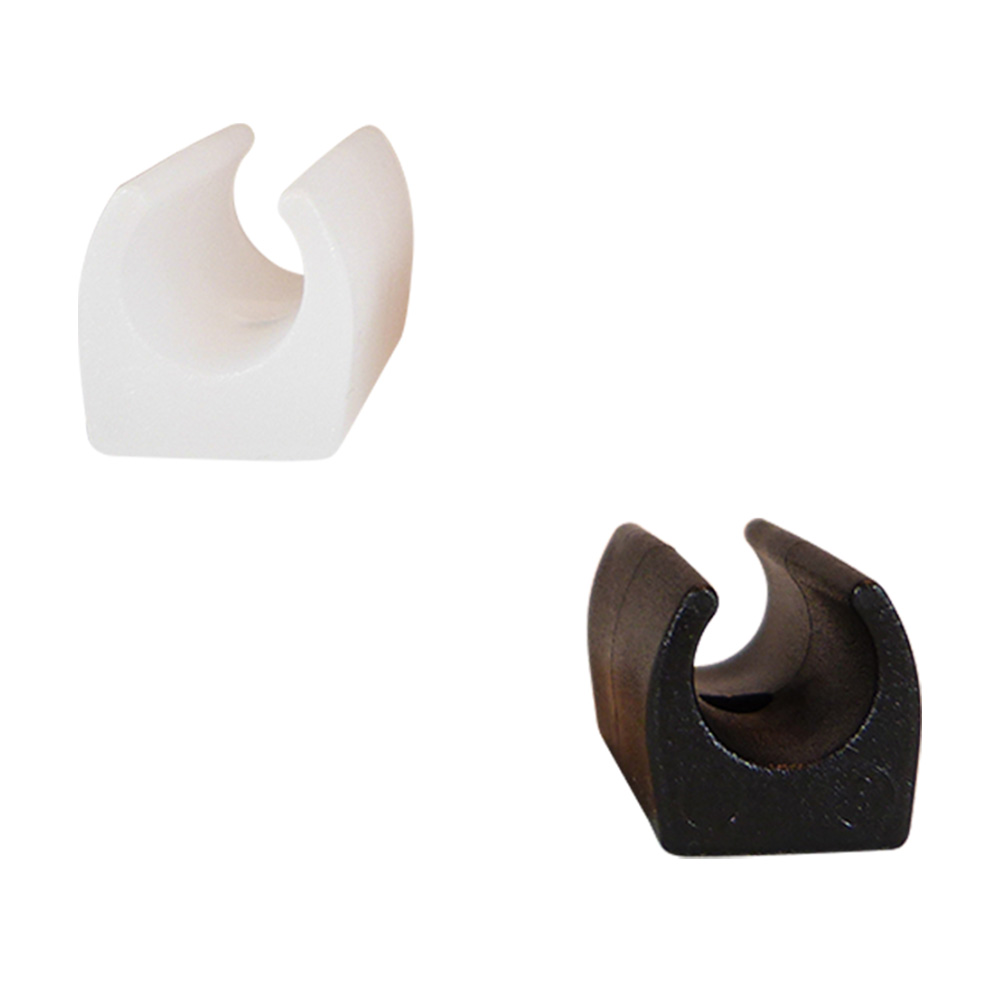

Colour: black (white available on request)



Model:
Type D: With hole

Legend

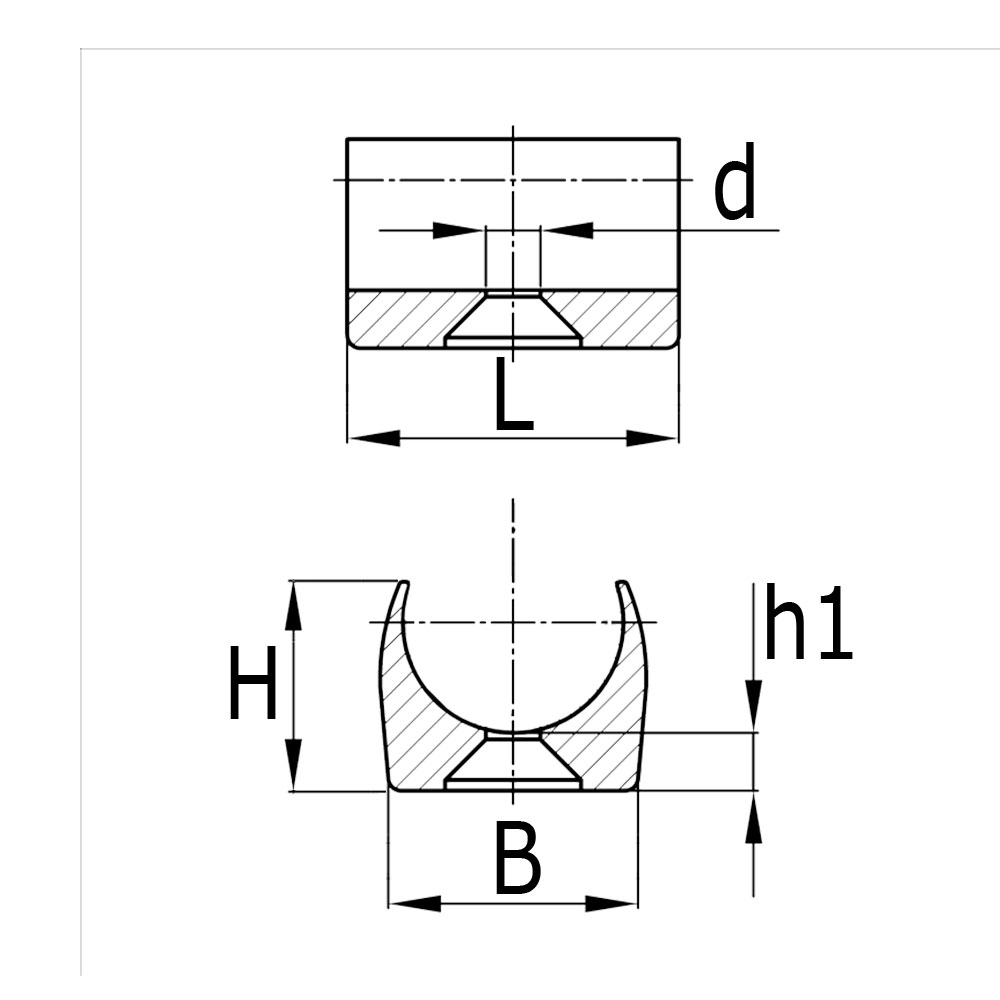

B=width of base, d=hole Ø, H=total height, h1=thickness of base, L=length of base, Tube size=external tube Ø, Type=Model

1 pages -   1

Article Description Tube size Type B d H Colour/RAL
9100012 N Saddle feet for round tubes 12-13mm naturel with bore 12,0 D 16 5,5 17,6 Black
9100012 Z Saddle feet for round tubes 12-13mm black with bore 12,0 D 16 5,5 17,6 Black
