ProductsSaddle feet furniture glidesSaddle feet - round tubeHeel-fit saddle feet
3.1.21

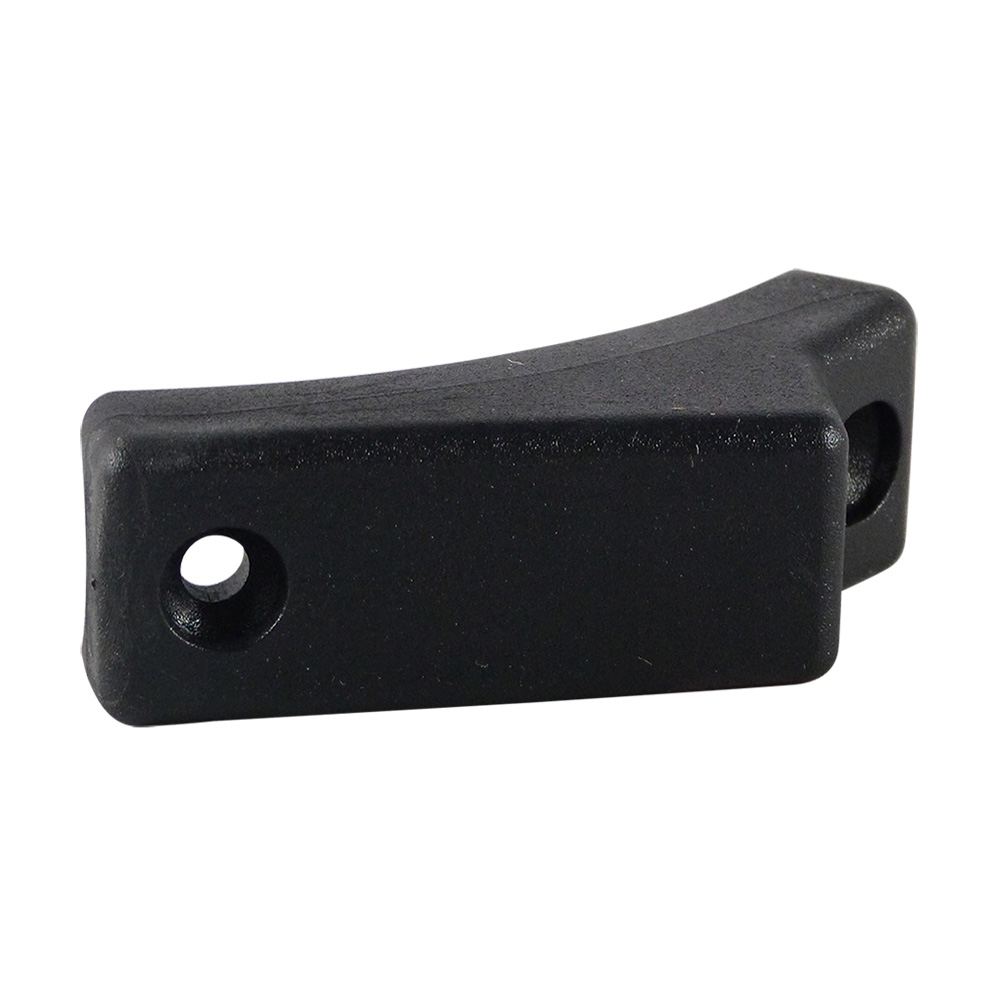

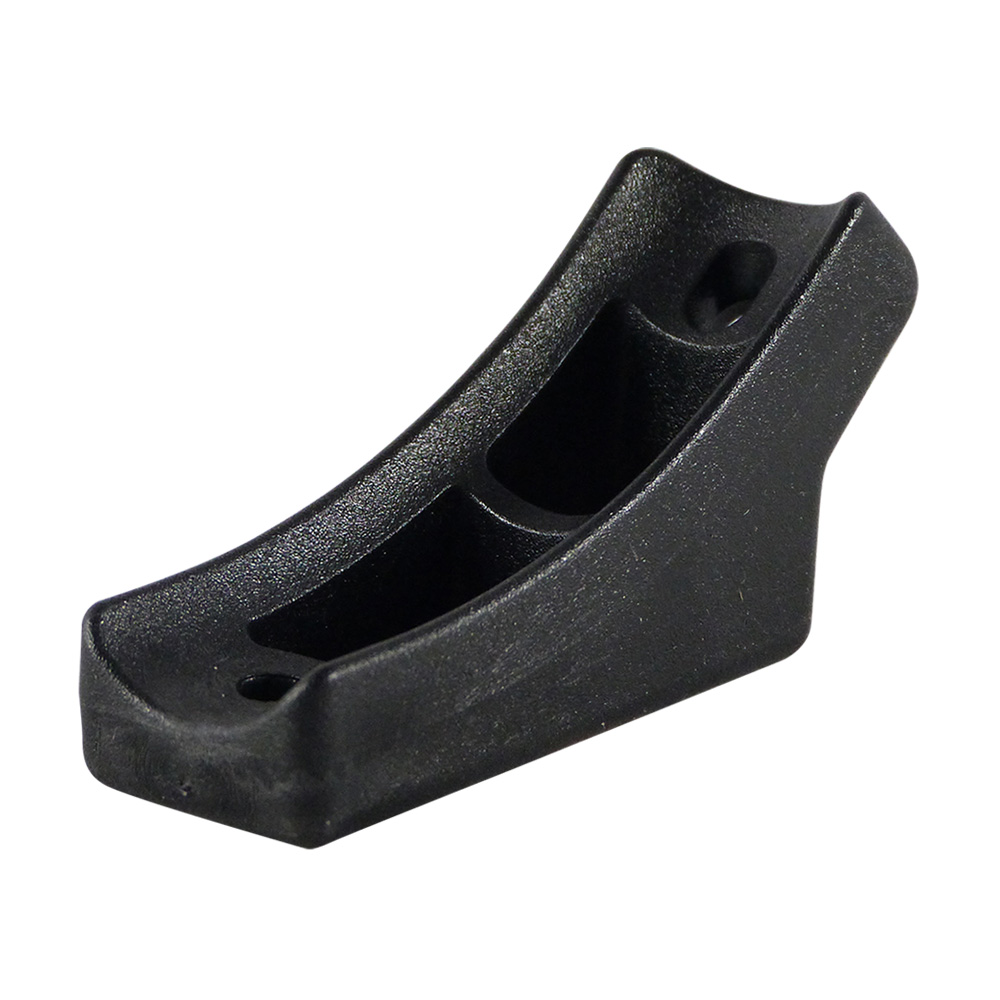

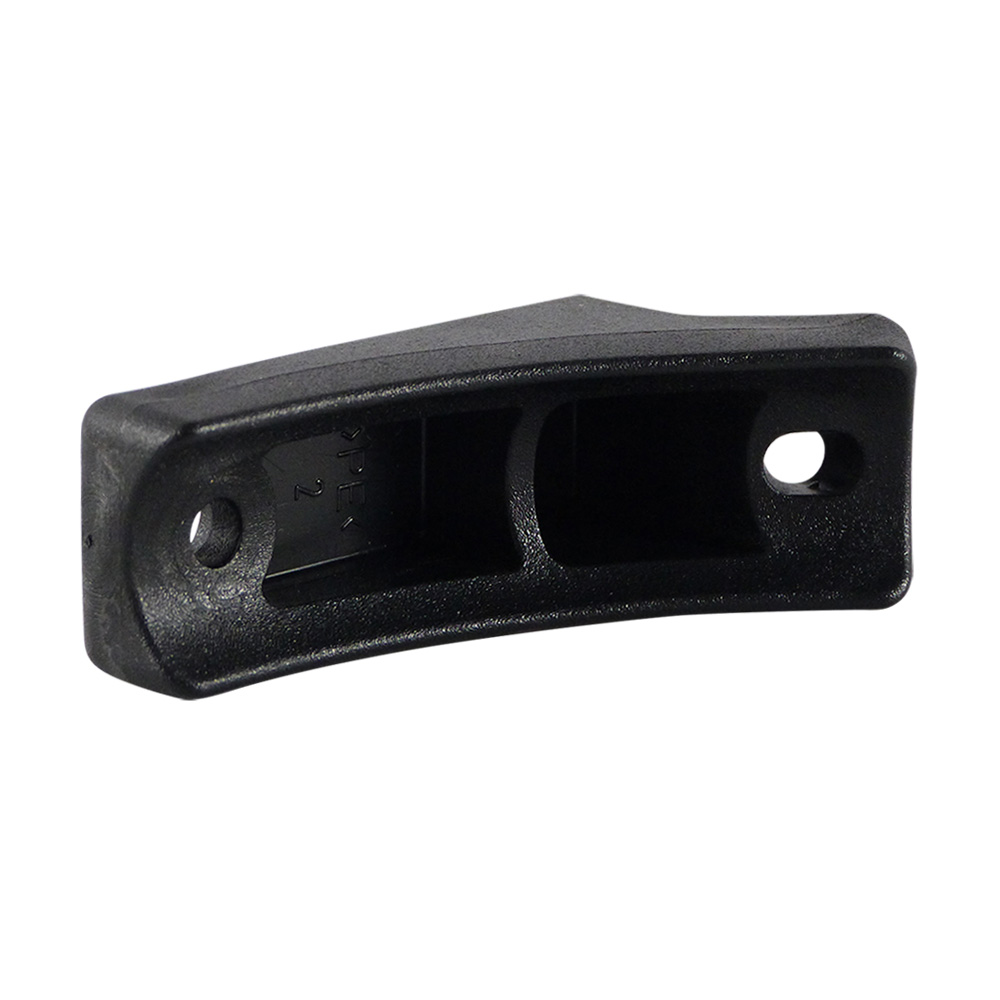

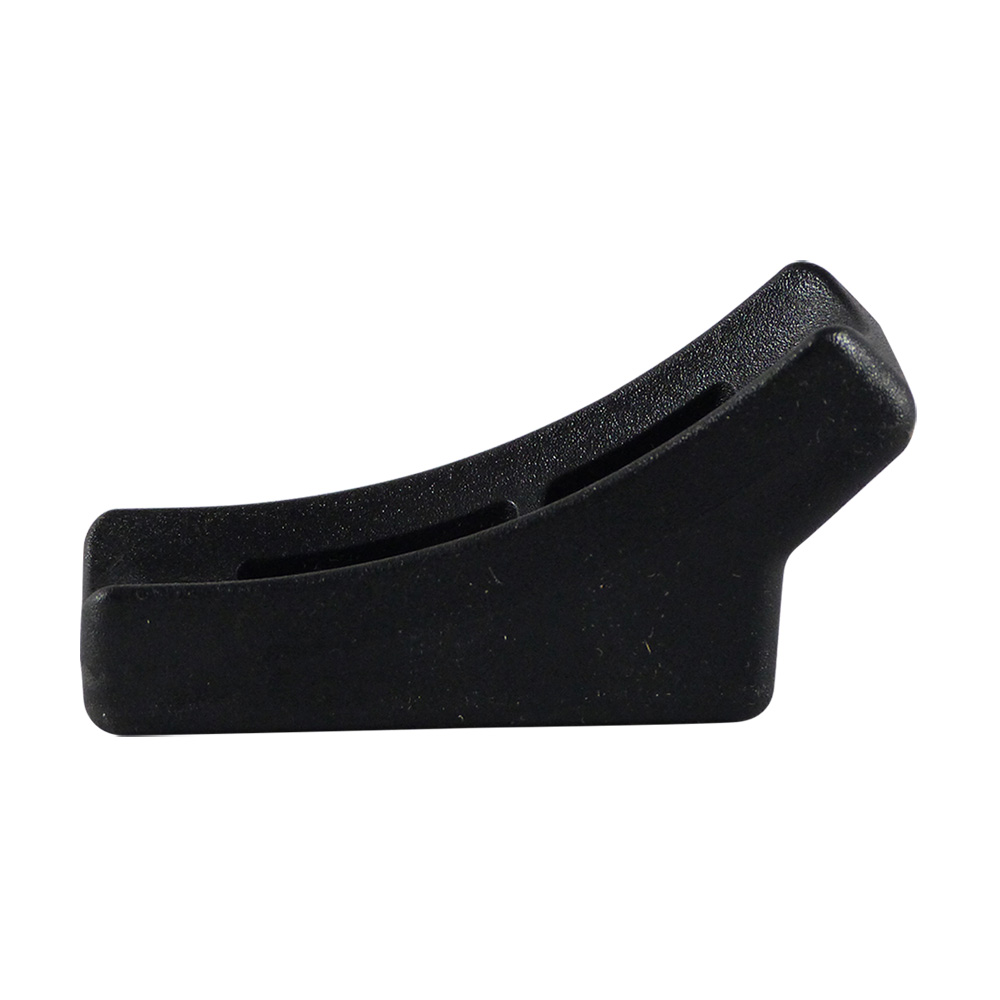

Heel-fit saddle feet

Heel-fit saddle feet
Heel-fit saddle feet
Heel-fit saddle feet
Heel-fit saddle feet
Heel-fit saddle feet
Heel-fit saddle feet
Heel-fit saddle feet
Heel-fit saddle feet
Heel-fit saddle feet
Heel-fit saddle feetdrawing_1
Product information
  • These heel-fit saddle feet are available for round tube from Ø 22 mm to Ø 25 mm inclusive
  • Suitable for tubular frames with a bend radius of 80 mm and 90 mm
  • Two countersunk holes to allow attachment with bolts, (self-tapping) screws, or rivets
  • Heel-fit tube saddles are ideal as a foot or glide for chairs and tables with a tubular frame. This design is typically used for office and school furniture.

Material: PE (polyethylene)
Colour: black

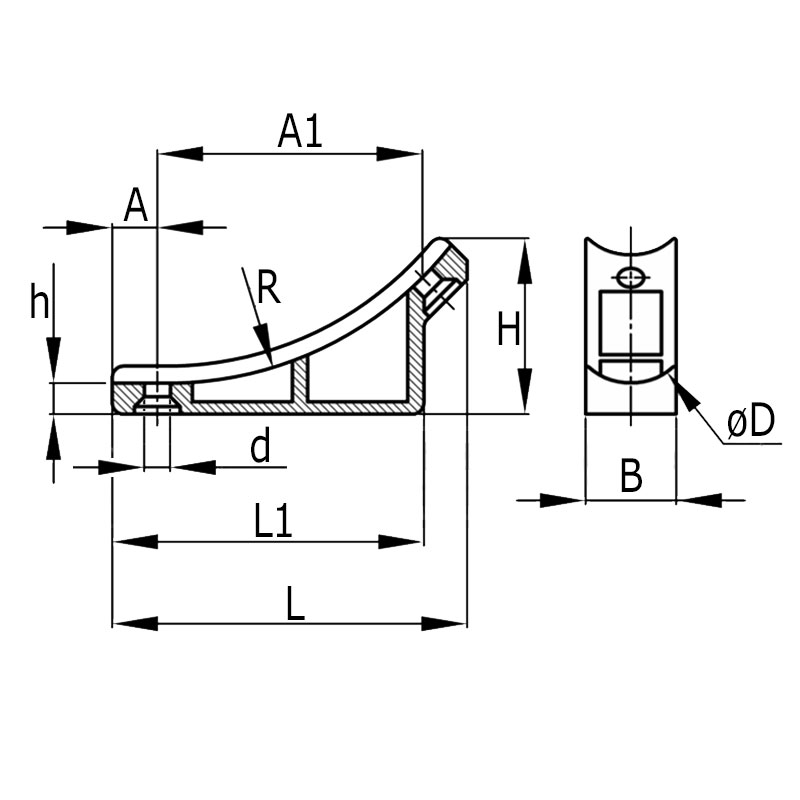

Legend
B=width, d=hole Ø, H=height, h=height, L=length, l=length to hole centre, l1=centre-to-centre dimension between holes, R=radius, Tube size=external tube Ø, Type=model

1 pages -   1

Article Description Tube size Type A B D d
9300025 Z Saddle feet for curved tubes 25mm black 25 A 10 25,5 25 5,8
