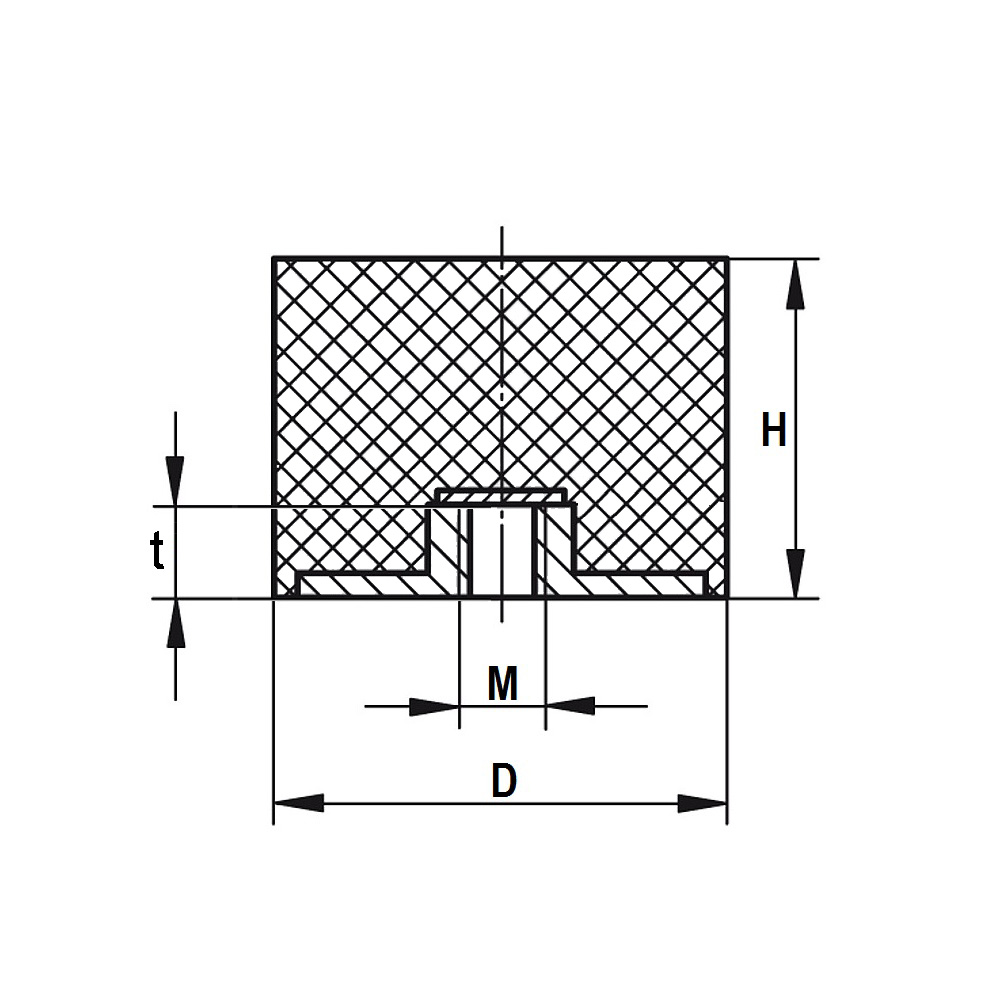

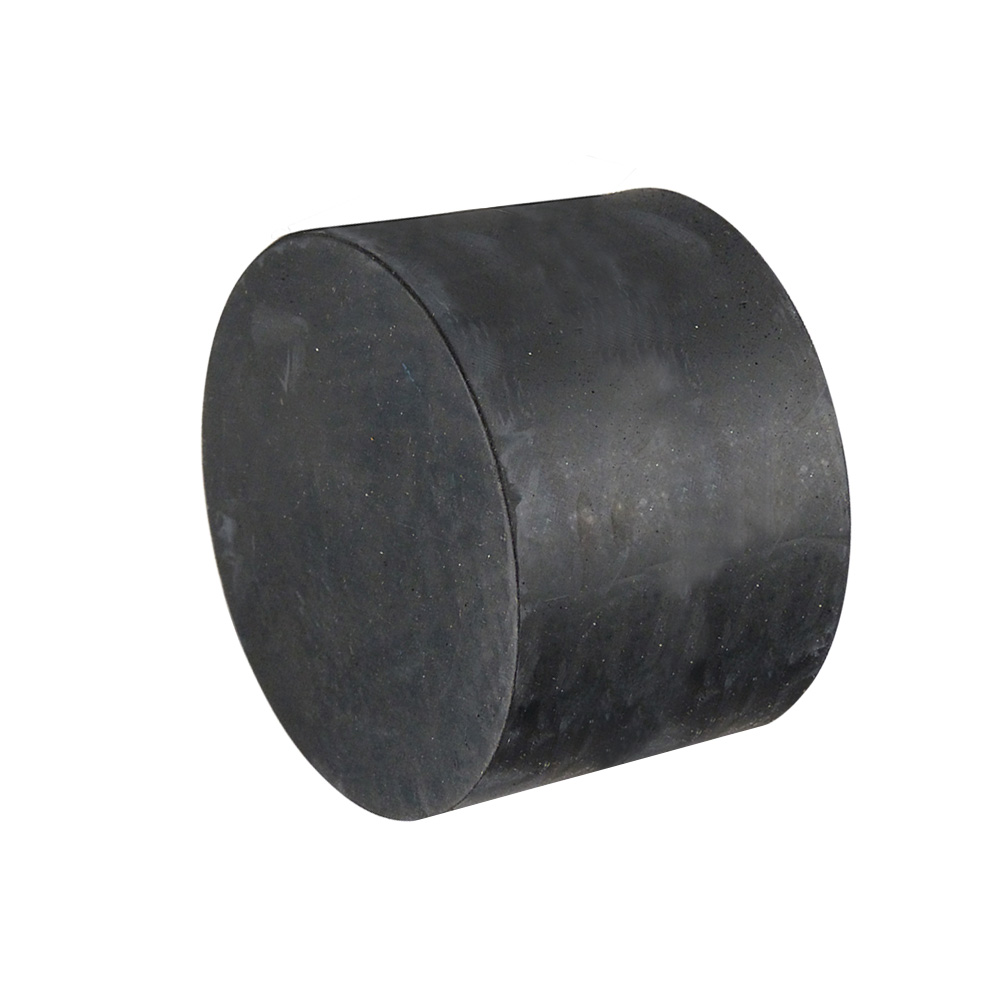

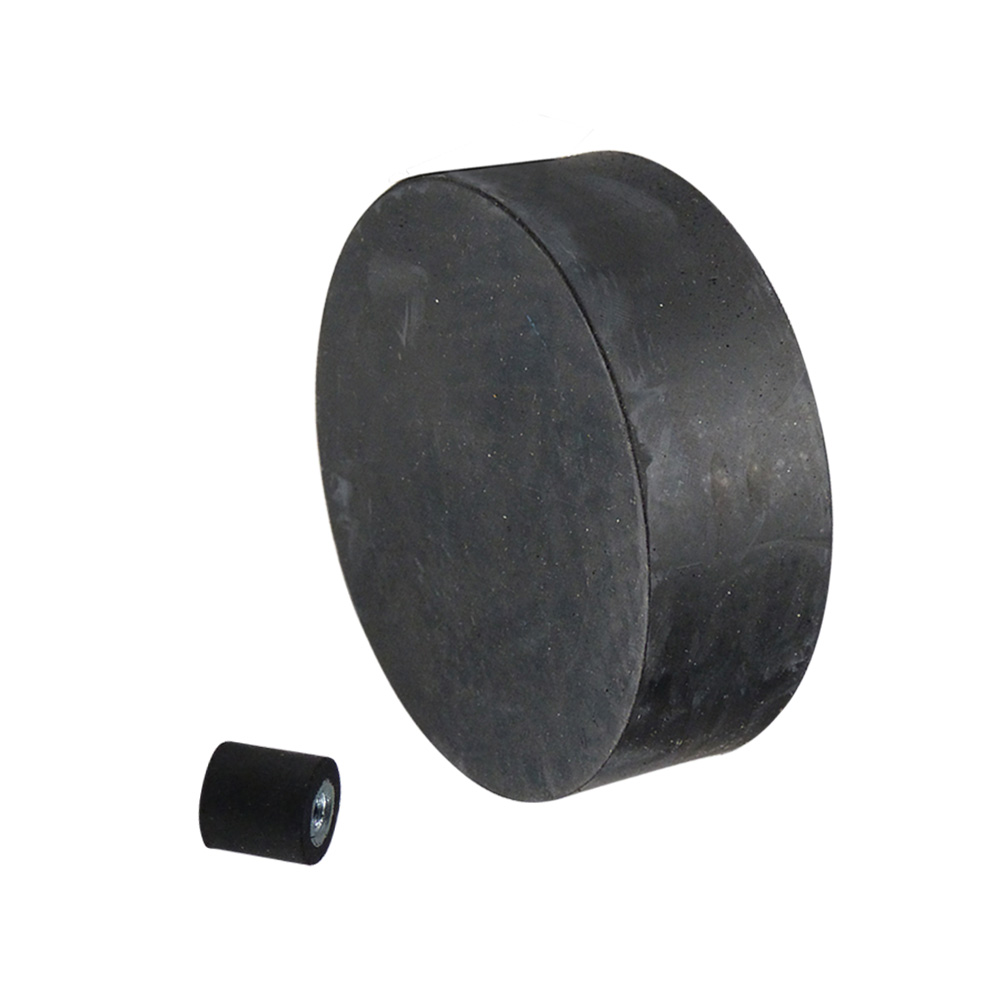

Anti-vibration bobbin mount type E - cylindricaldrawing_1

Product information

Cylindrical rubber-metal bobbin buffer mounts type E are available in diameters from Ø 8 mm to Ø 200 mm inclusive, and in heights from 6 mm to 100 mm inclusive

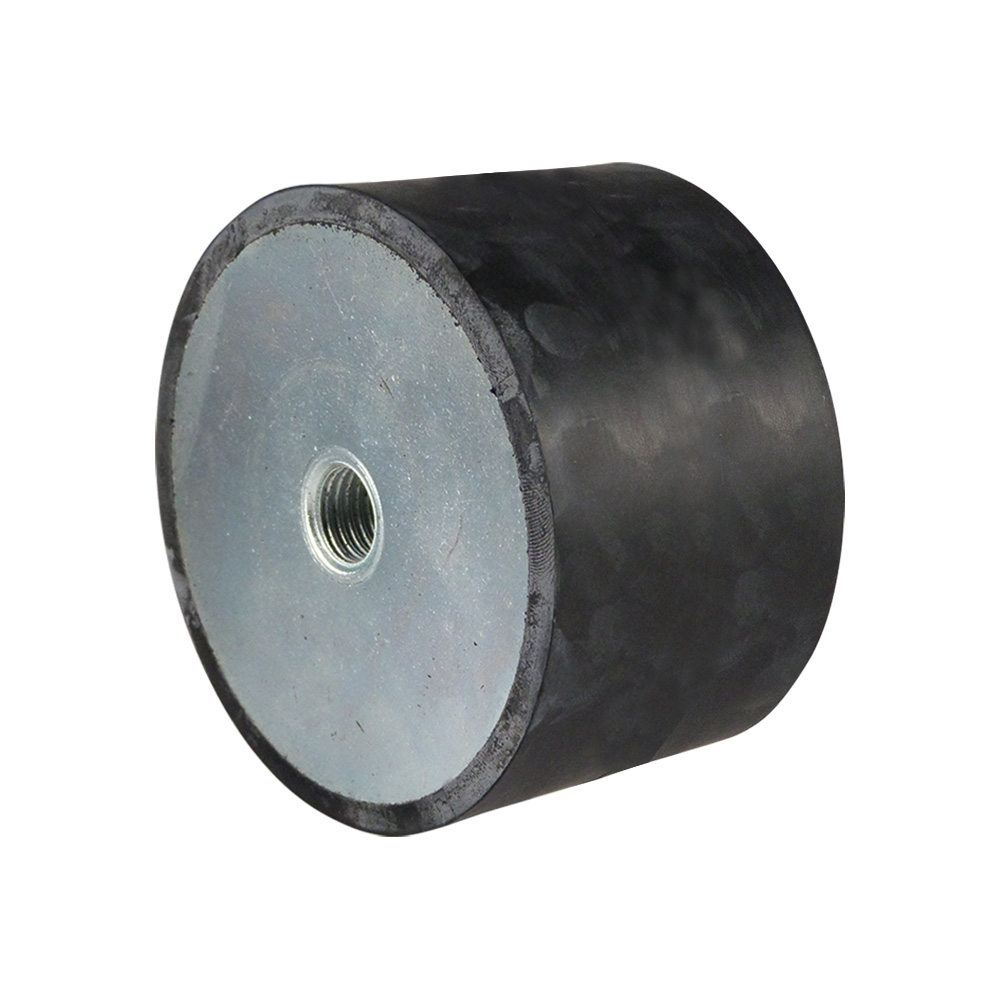

Threaded bush on one side (female thread)
Thread sizes (metric) from M3 to M20 inclusive
Suitable for temperatures from -30 °C to +80 °C
Axial damping (absorbing shock & vibration)
Flat cylindrical rubber impact buffers are suitable for use as an elastic stroke limiter or as a foot for cushioning/damping impacts and jolts in machines, generators and compressors.

Material: Rubber parts - NR (natural rubber) Shore A 55° ± 5% (medium hard) Metal parts - galvanized steel (St37) or stainless steel AISI 304 (A2)

Available on request:

Different Shore hardness
Rubber parts in SBR, NBR, CR, SI or EPDM
Different thread lengths
Metal parts in stainless steel

Legend
D=diameter, H=height, M=thread size, Mat. A=type of rubber, Mat. B=Material metal components, N=Maximum static load in Newton, Shore A °=Shore-A hardness of the rubber, t=depth of thread

Filter by

Show all filters

Show less filters

Reset all filters

Articles

1 pages - 1

Article	Description	M	H	Stiffness in N/mm	N	D	Max. deflection in mm	Material A	Material B	Shore A °	Colour/RAL	t
22.E030X18M10	Vibration damper with one threaded bush type E D30 H18 M10 S55	M10	18			30		NR	St37	55 ±5	Black	10
22.E030X40M10	Vibration damper with one threaded bush type E D30 H40 M10 S55	M10	40			30		NR	St37	55 ±5	Black	10
22.E050X12M10	Vibration damper with one threaded bush type E D50 H12 M10 S55	M10	12			50		NR	St37	55 ±5	Black	10
22.E050X12M10 SCR	Vibration damper with one threaded bush type E D50 H12 M10 S55, silicone rubber	M10	12			50		SI	St37	55 ±5	Black	10
22.E050X20M10	Vibration damper with one threaded bush type E D50 H20 M10 S55	M10	20	692	3460	50	5	NR	St37	55 ±5	Black	10
22.E050X25M10	Vibration damper with one threaded bush type E D50 H25 M10 S55	M10	25			50		NR	St37	55 ±5	Black	10
22.E050X30M10	Vibration damper with one threaded bush type E D50 H30 M10 S55	M10	30	336	2520	50	7,5	NR	St37	55 ±5	Black	10
22.E050X40M10	Vibration damper with one threaded bush type E D50 H40 M10 S55	M10	40	276	2760	50	10	NR	St37	55 ±5	Black	10
22.E050X45M10	Vibration damper with one threaded bush type E D50 H45 M10 S55	M10	45			50		NR	St37	55 ±5	Black	10
22.E050X50M10	Vibration damper with one threaded bush type E D50 H50 M10 S55	M10	50			50		NR	St37	55 ±5	Black	10
22.E050X50M10 RVS	Vibration damper with one threaded bush type E D50 H50 M10 S55with stainless steel metal parts	M10	50			50		NR	A2 (AISI 304)	55 ±5	Black	10
22.E060X40M10	Vibration damper with one threaded bush type E D60 H40 M10 S55	M10	40	354	3540	60	10	NR	St37	55 ±5	Black	10
22.E060X60M10	Vibration damper with one threaded bush type E D60 H60 M10 S55	M10	60			60		NR	St37	55 ±5	Black	10
22.E070X45M10	Vibration damper with one threaded bush type E D70 H45 M10 S55	M10	45	600	6750	70	11,25	NR	St37	55 ±5	Black	10
