Rubber buffer blocks

Product information

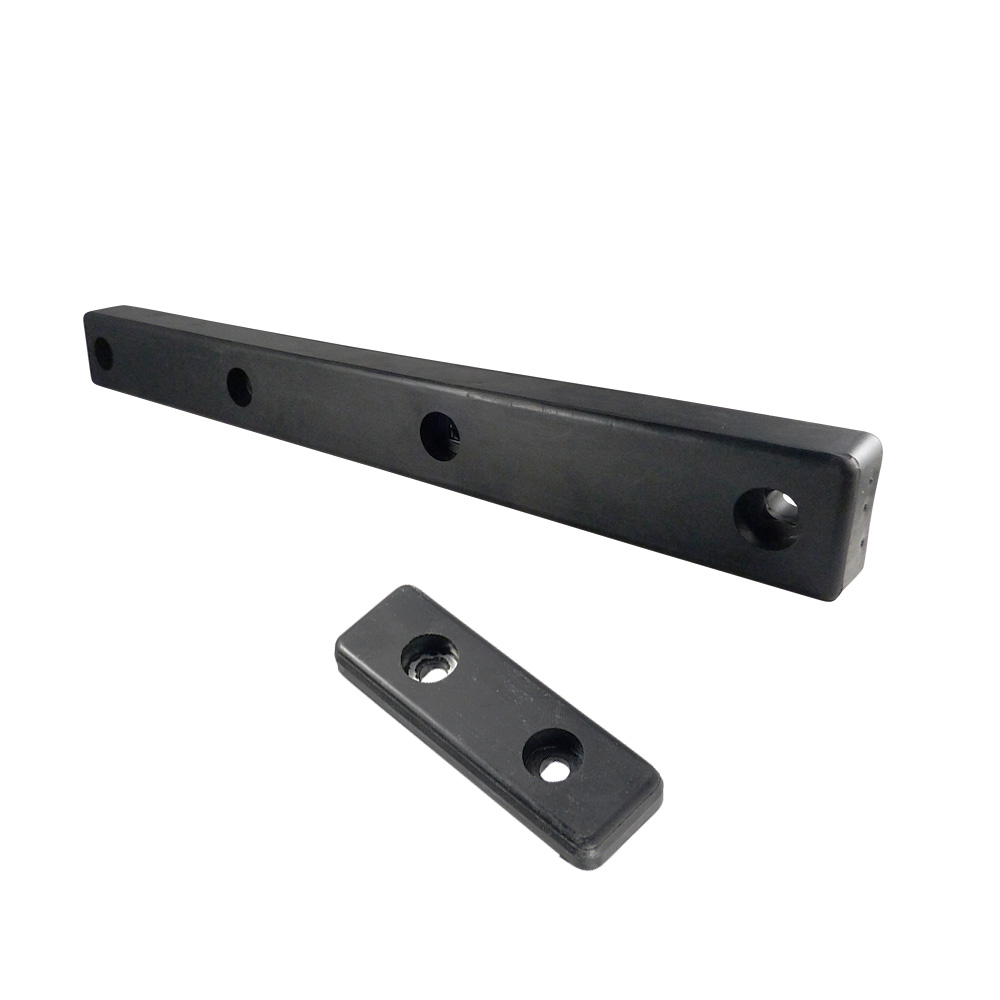

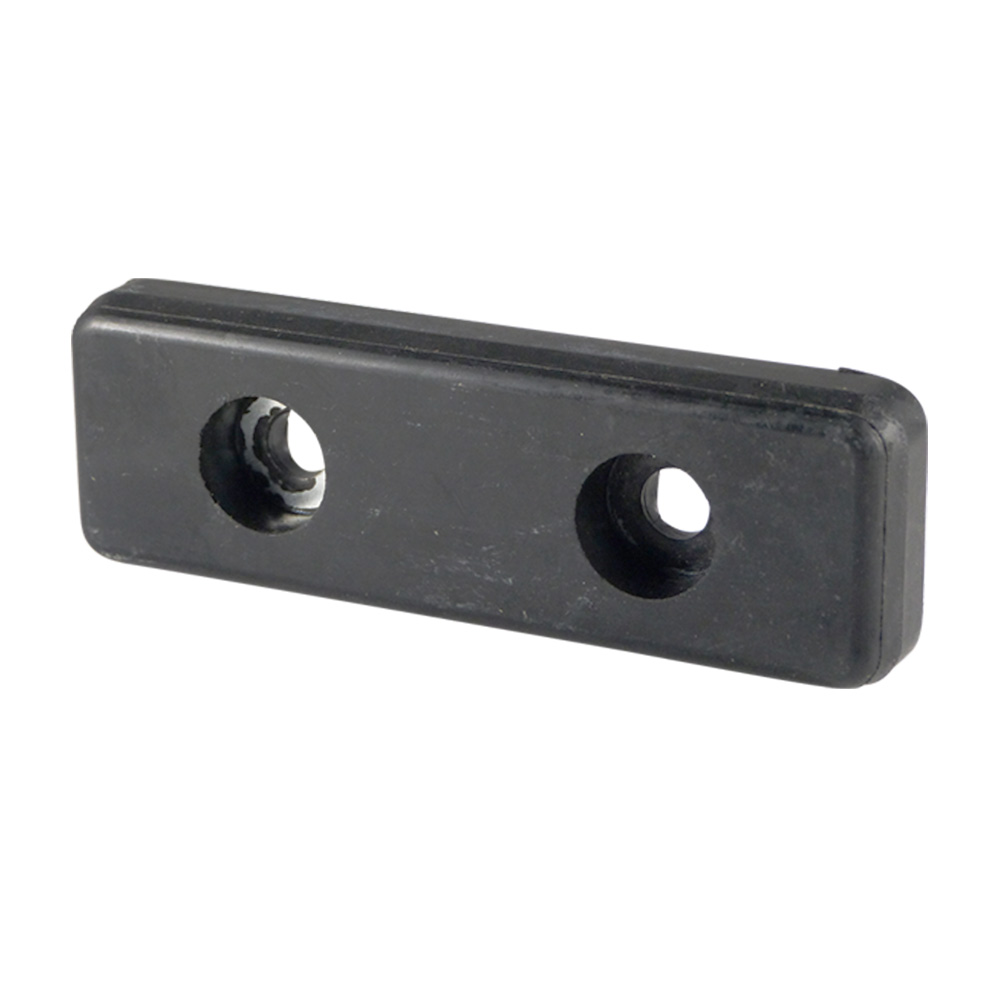

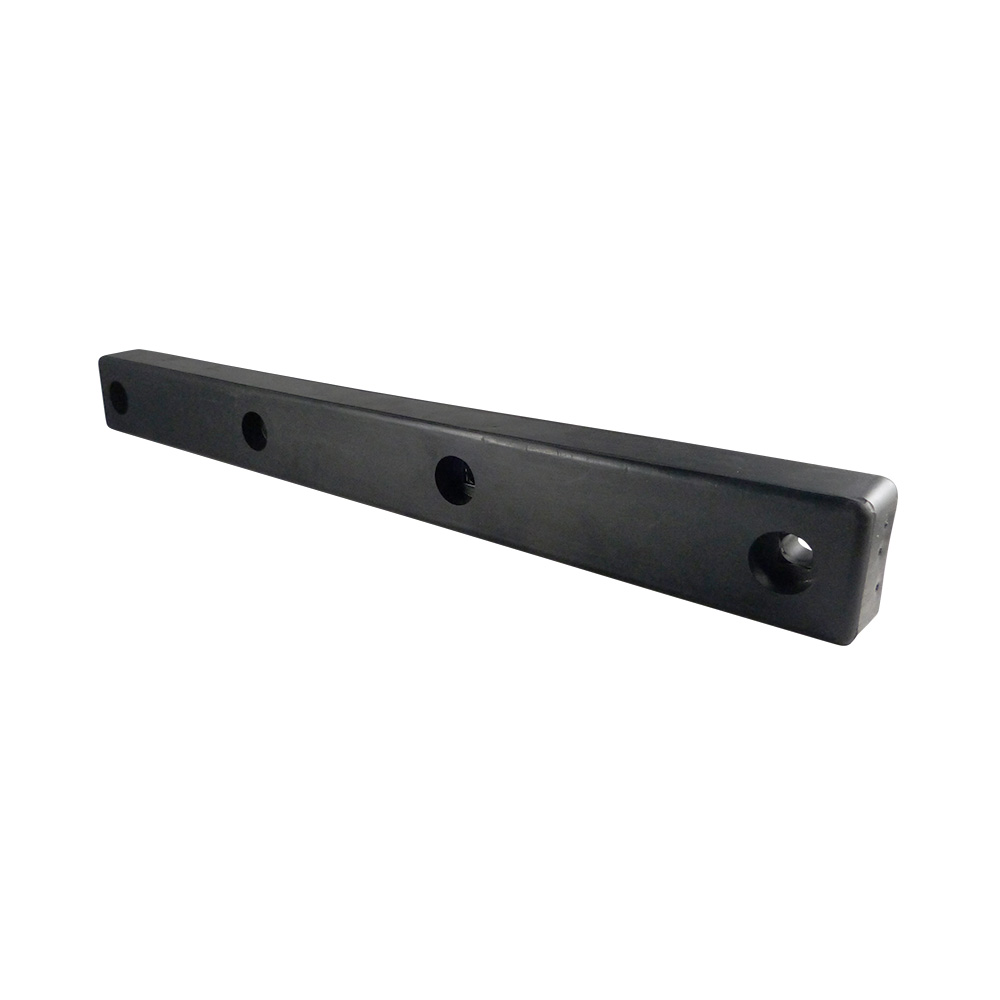

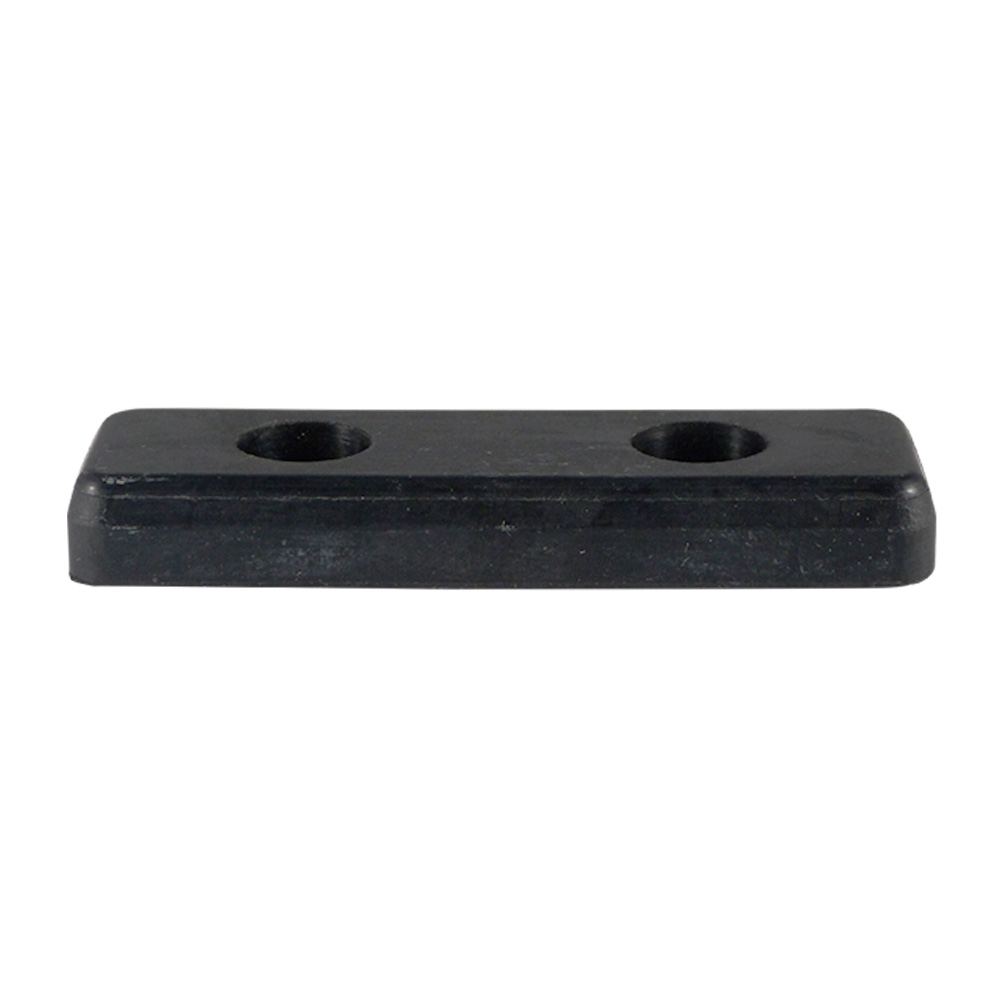

Solid rubber buffer blocks with clearance holes are available in various sizes, both square and rectangular
The clearance holes are counterbored and feature integral galvanised washers for more secure attachment
These rubber buffer/bumper blocks are mainly used for crash protection or impact protection on HGV trailers, loading docks, loading platforms, doors and vehicle tail gates.

Material: Block – NR (natural rubber), Washers - galvanised steel
Colour: Block – black, Washers - zinc-coloured

Available on request:

Legend

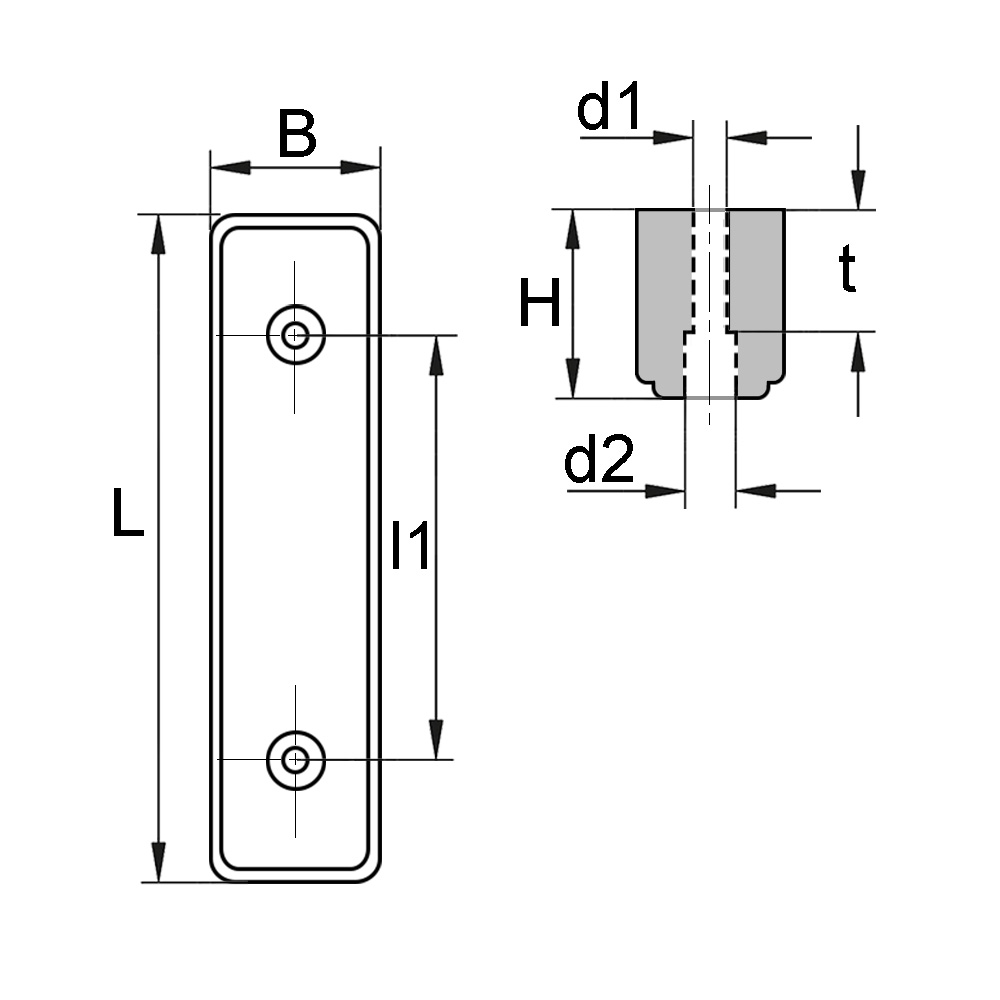

B=width, b1=hole Ø, b2=counterbore Ø, H=height, L=length, l1=dimension between hole centres

Filter by

Show all filters

Articles

1 pages - 1

Article	Description	H	L	l1	t	B	d1	d2	Bore	Material A	Version	Shore A °	Colour/RAL
22.RP-OG125x040x015	Rubber Bumper Block 125 X 40 X 15 MM	15	125	60	6	40	10	20	2	SBR	washers	70	Black
22.RP-OG125x040x040	Rubber Bumper Block 125 X 40 X 40 MM	40	125	60	21	40	8	20	2	SBR	no washers	70	Black
22.RP-OG125x043x050	Rubber Bumper Block 125 X 43 X 50 MM	50	125	60	25	43	8	20	2	SBR	washers	70	Black
22.RP-OG125x043x070	Rubber Bumper Block 125 X 43 X 70 MM	70	125	60	25	43	8	20	2	SBR	no washers	70	Black
22.RP-OG170x090x070	PVC Bumper Block 170 X 90 X 70 MM	70	170	70	29	90	8	20	2	PVC	washers		Black
22.RP-OG200x080x080	Rubber Bumper Block 200 X 80 X 80 MM	80	200	90	48	80	14	28	2	NR	washers		Black
22.RP-OG200x052x060	Rubber Bumper Block 205 X 52 X 60 MM	60	205	120	29	52	10	16	2	SBR		70	Black
22.RP-OG215x050x055	Rubber Bumper Block 215 X 50 X 55 MM	55	215	126	35	50	10	20	2	NR	washers		Black
22.RP-OG250x080x080	Rubber Bumper Block 250 X 80 X 80 MM	80	250	120	52	80	14	30	2	NR	washers		Black
22.RP-OG300x080x105	Rubber Bumper Block 300 X 80 X 105 MM	105	300	123	25	80	13	25	3	NR	washers		Black
22.RP-OG400x052x060	Rubber Bumper Block 400 X 52 X 60 MM	60	400	165	20	52	10	25	3	SBR	washers	70	Black
22.RP-OG400x052x080	Rubber Bumper Block 400 X 52 X 80 MM	80	400	165	20	52	12	25	3	SBR	washers	70	Black
22.RP-OG530x060x035	Rubber Bumper Block 530 X 60 X 35 MM	35	530	157	20	60	12	25	4	SBR	washers	70	Black
