Tiltsert end caps with PA pad for round tube

Product information

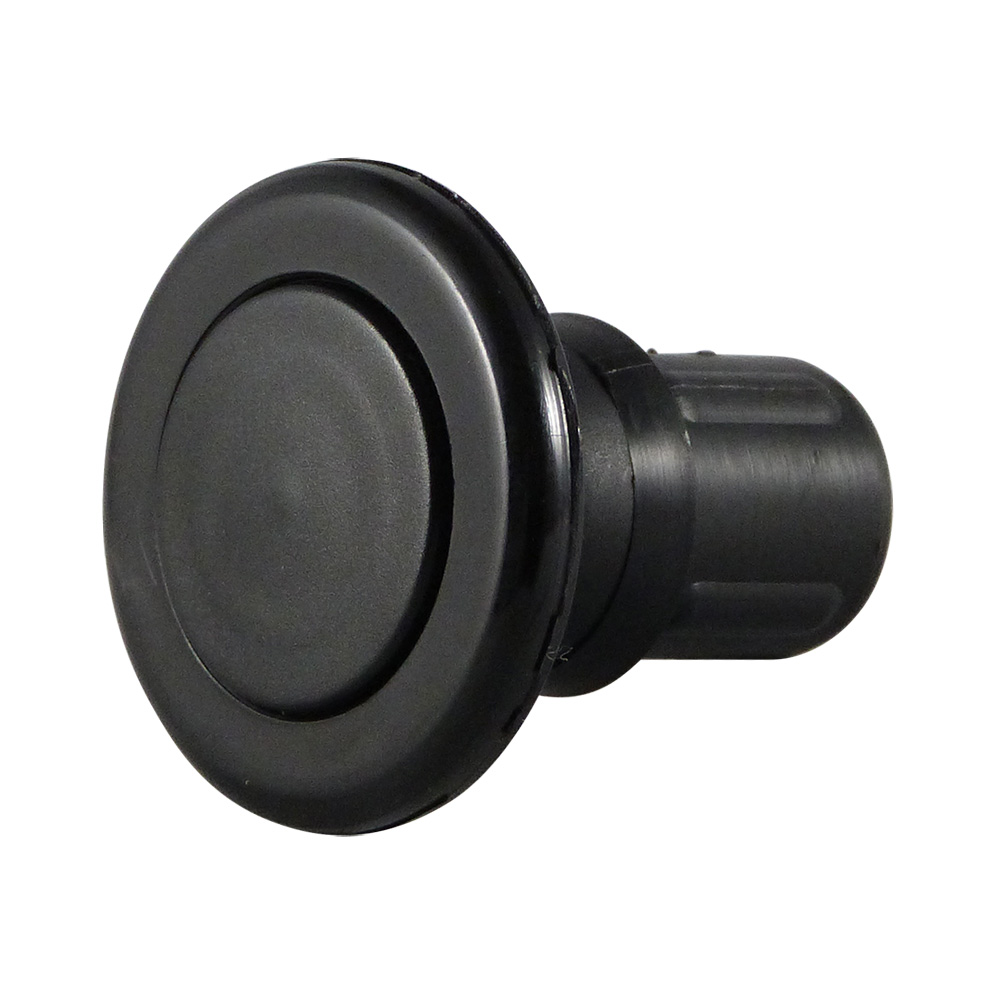

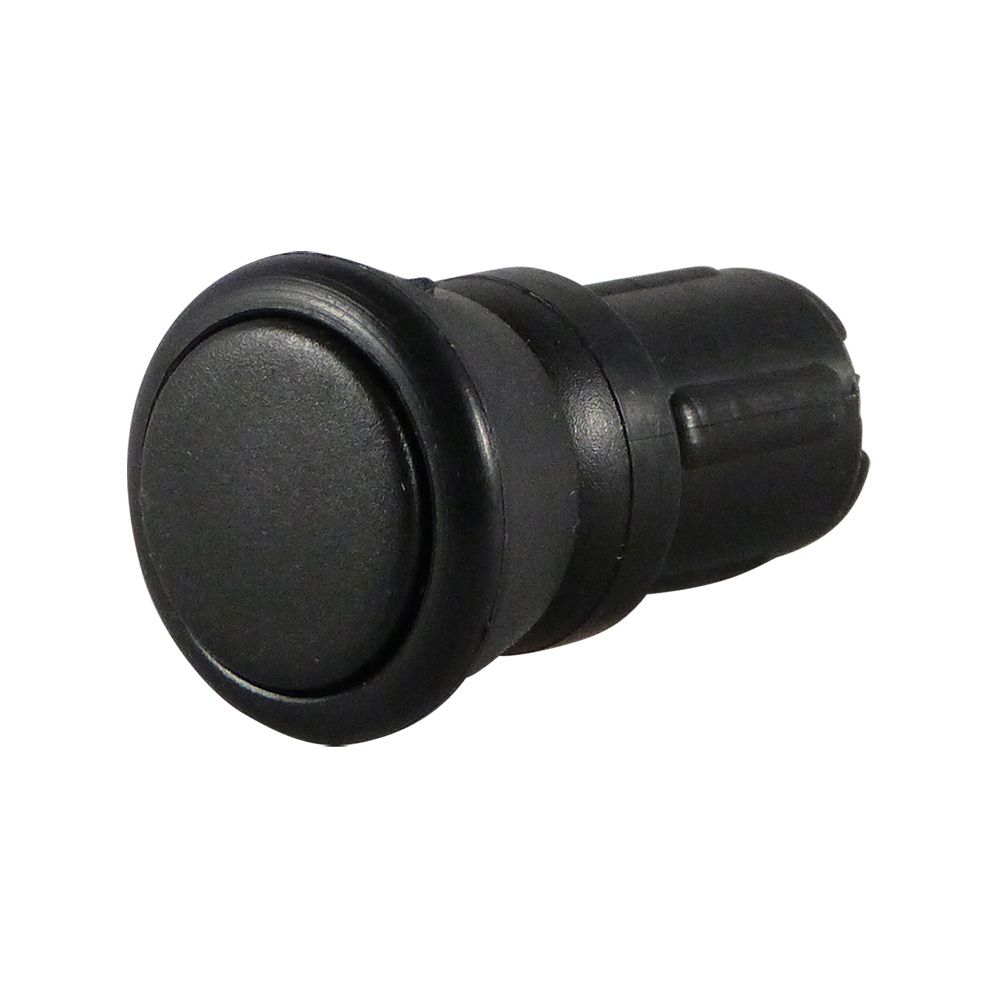

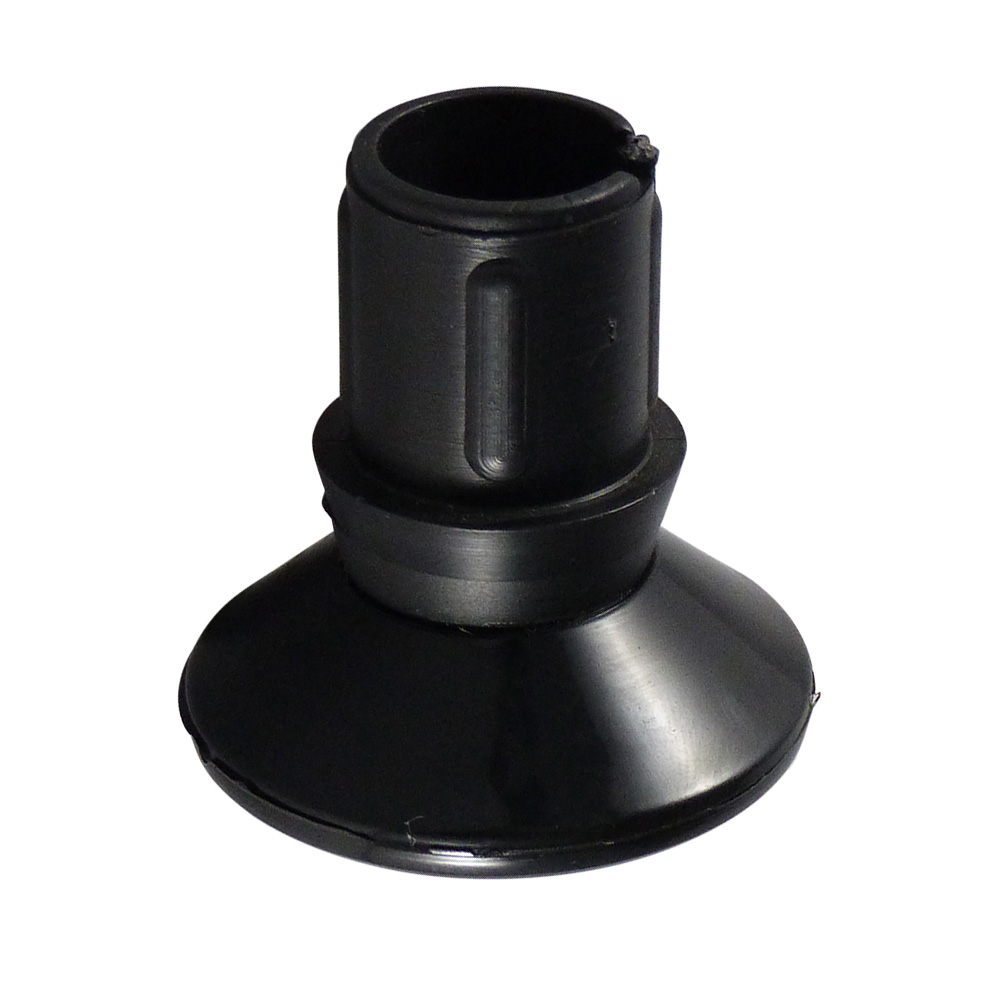

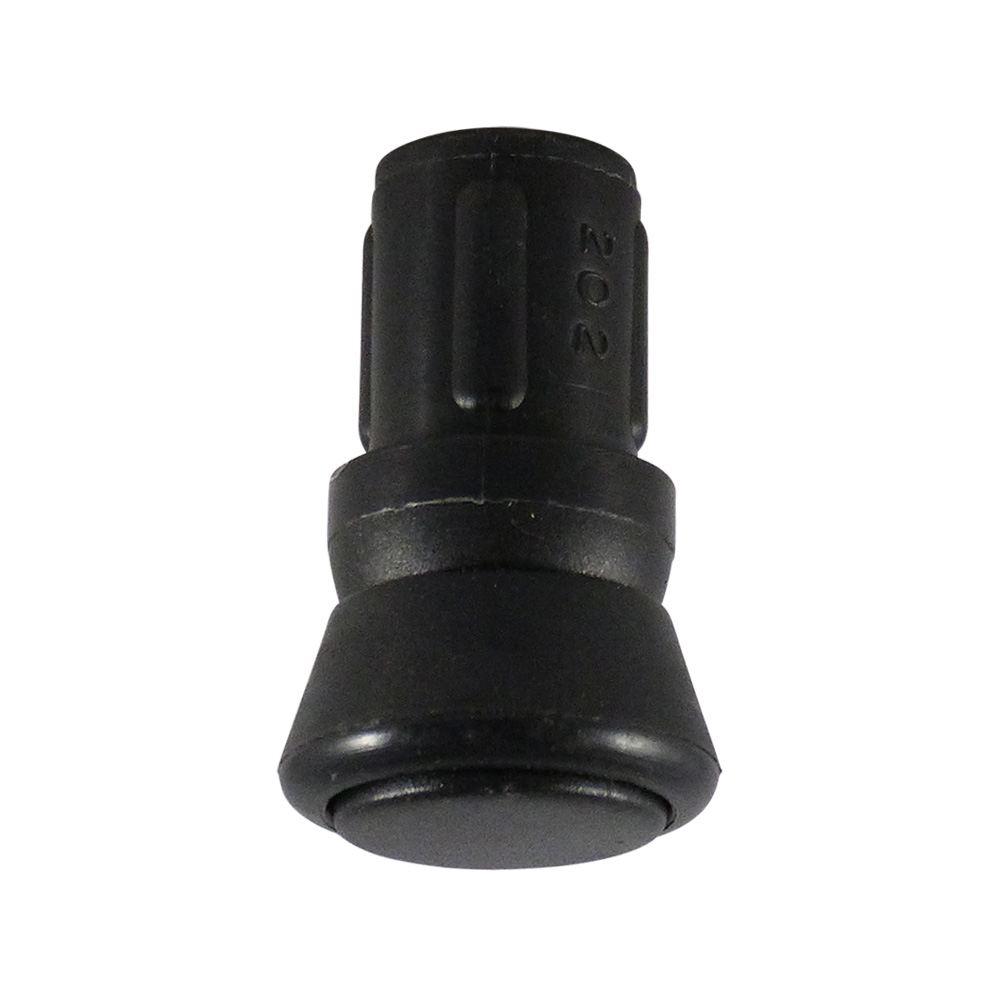

Round end cap inserts with a tilting base and nylon pad are available for chair legs with tube diameters from Ø 14 mm to Ø 28 mm inclusive, with a wall thickness varying from 1.5 mm to 2.5 mm
Also available for square tubes measuring 20 x 20 mm and 25 x 25 mm with a wall thickness of 1.5 mm
Base diameters from Ø 23 mm to Ø 30 mm inclusive
Maximum angles of inclination: 19°, 24.5°, 28° from vertical
These end cap inserts are ideal as a glide under chairs with angled legs that are typically used for major interior design projects, the hospitality industry, hospitals and schools.

Material: end cap - PE (polyethylene), pad - PA (polyamide), connector - steel
Colour: black

Legend

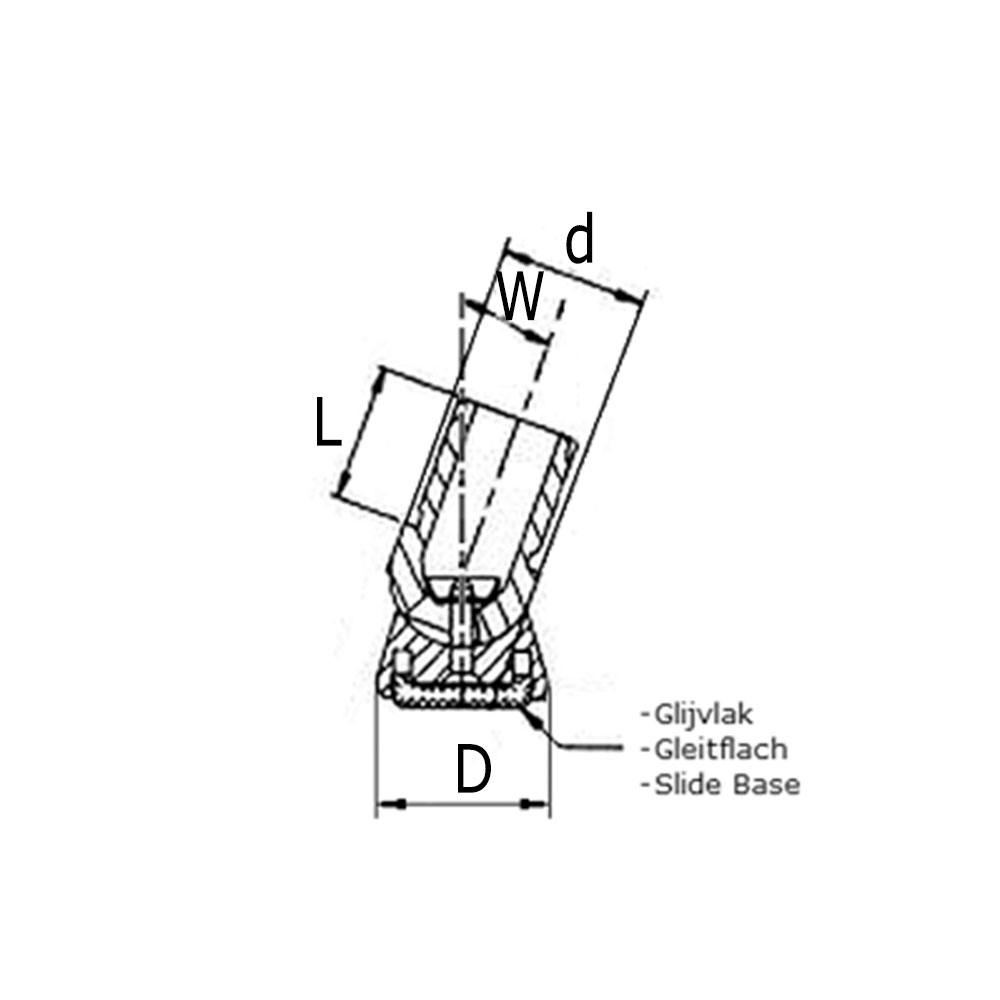

D=foot Ø, d=collar-Ø, L=shaft length, Tube size=external tube dimension, Version=tube wall thickness, W=angle of inclination in °

Filter by

Show all filters

Articles

1 pages - 1

Article	Description	Tube size	d	D	Version	W	Colour/RAL	L
65130184 Z	Tilt glides with PA glide base 30mm 18 x 2,5 - ball joint - black	18	18	30	2,5	Max 28°	Black	20
65125193 Z	Tilt glides with PA glide base 25mm 19 x 2,0 - ball joint - black	19	19	25	2	Max 28°	Black	20
65125203 Z	Tilt glides with PA glide base 25mm 20 x 2,0 - ball joint - black	20	20	25	2	Max 28°	Black	20
65137223 Z	Tilt glides with PA glide base 37mm 22 x 2,0 - ball joint - black	22	22	37	2	Max 24°	Black	20
65125283 Z	Tilt glides with PA glide base 25mm 28 x 2,0 - ball joint - black	28	28	25	2	Max 24°	Black	20

1 pages - 1
