Corner connector with head - for upright rectangular tube

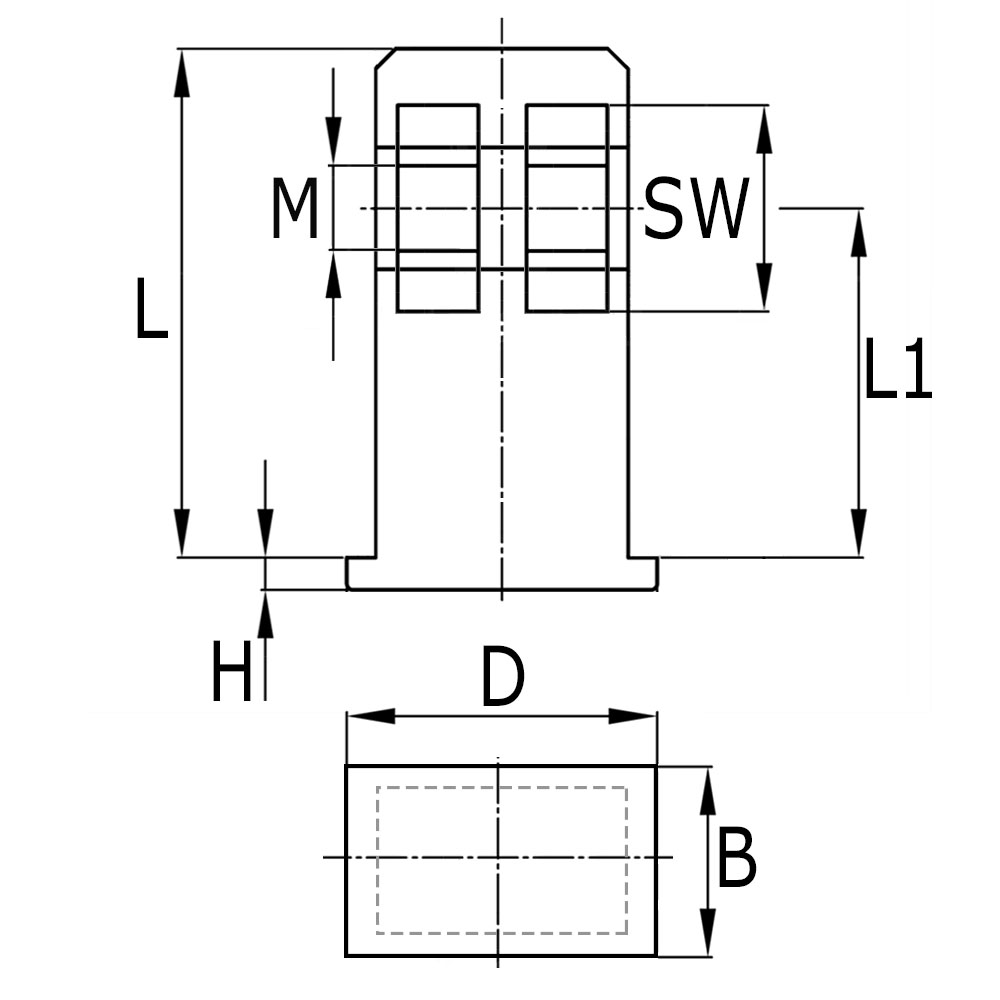

Corner connector with head - for upright rectangular tubedrawing_1

Product information

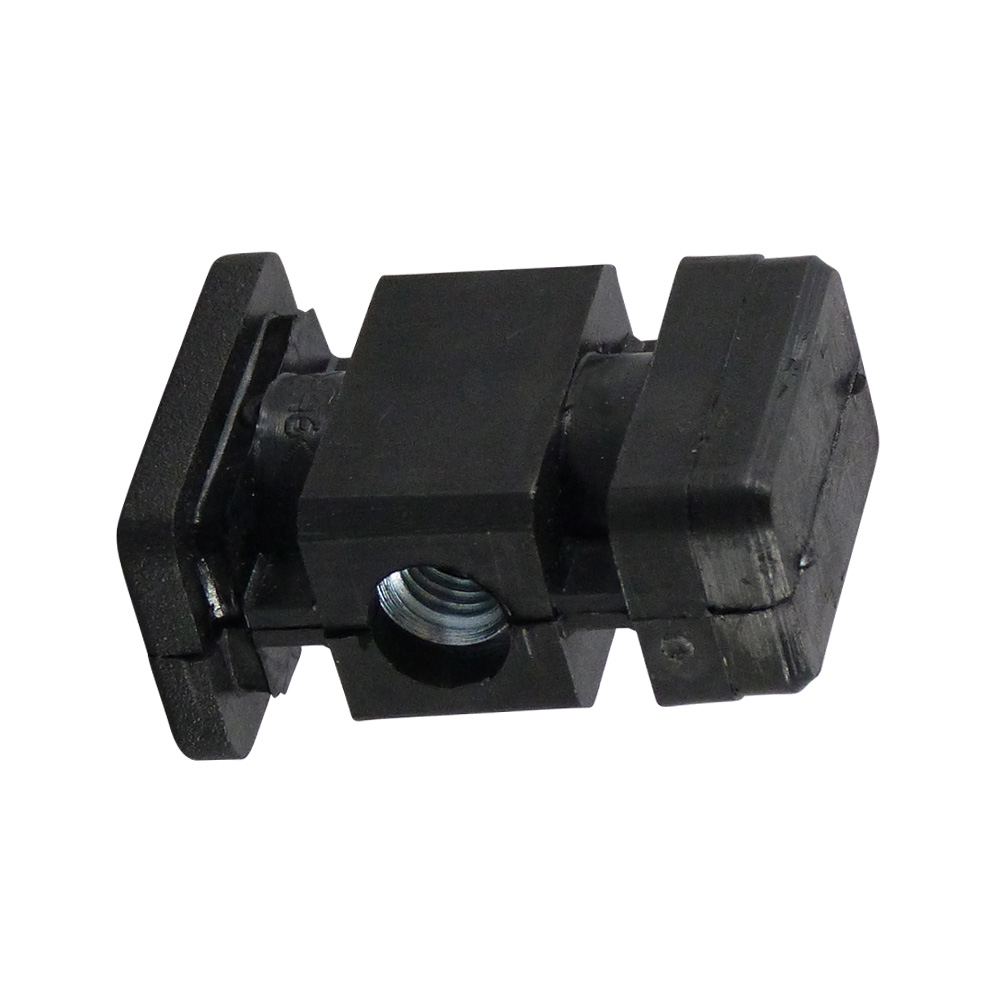

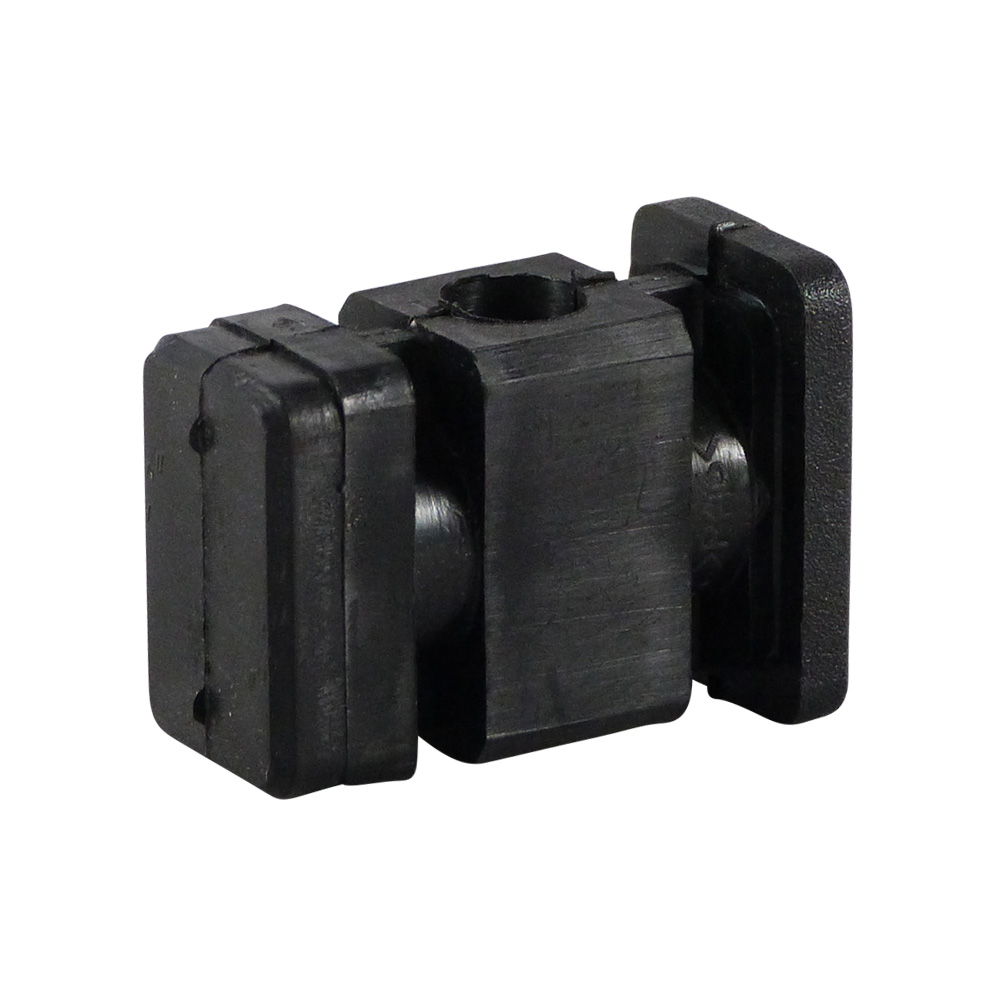

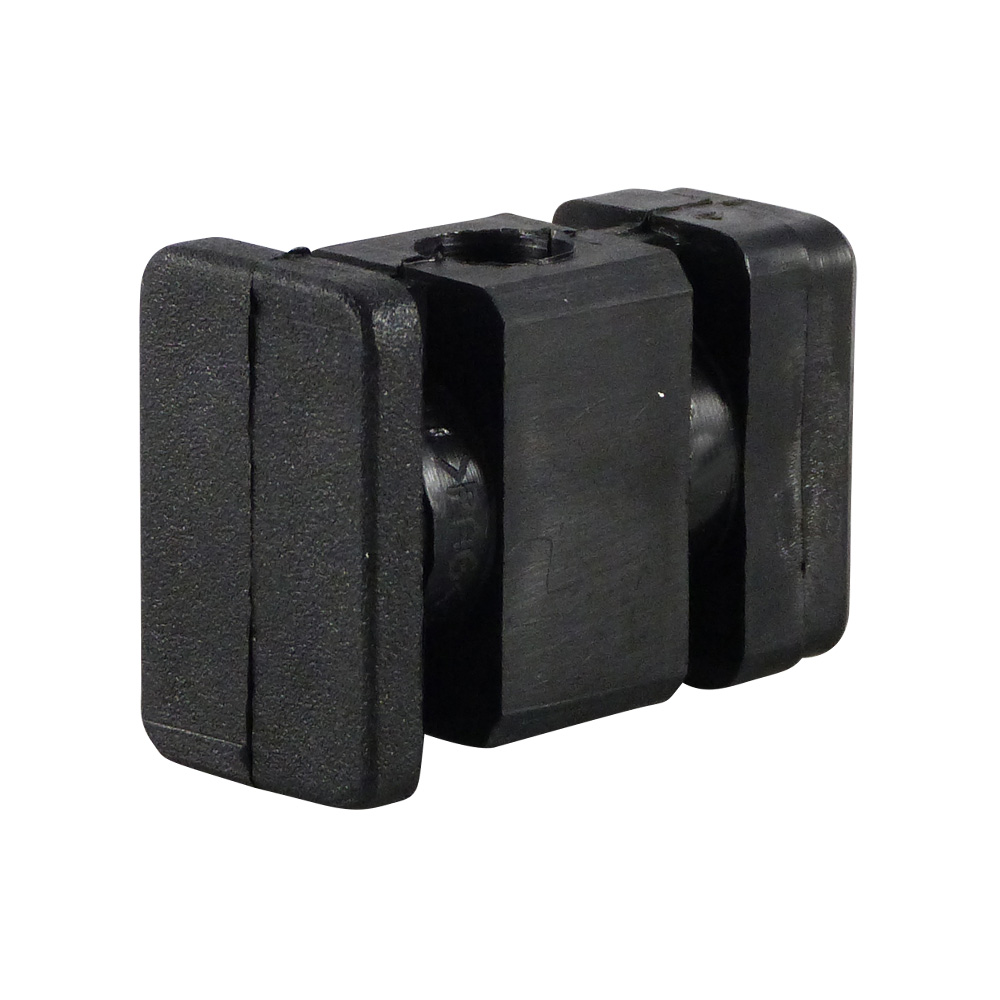

Corner connectors with separately inserted metal nuts are available for square tube or profile sizes from 30 x 20 mm to 50 x 30 mm inclusive, with wall thicknesses of 1.5 mm or 2.0 mm
Design with two coaxial recesses for hexagonal M8 or M10 nuts
Supplied with 1 or 2 separately inserted nuts
This corner connector is a two-part design, so the nuts can be replaced
The projecting head edge neatly closes the end of the tube or profile
Suitable for mounting castors under mobile displays or for mounting adjustable feet under the bases of racks or retail shelving. Also suitable for connecting profiles and tubes in frames, stands, shelving, racks, etc.

Material: Plastic insert - PA (polyamide), nuts - galvanised steel
Colour: plastic insert - black

Legend
H=head thickness, L1=length to nut centre, M=thread size, Model=wall thickness, SW=spanner size, Tube size=external tube dimensions, Type =1 or 2 separately inserted nuts

Filter by

Show all filters

Show less filters

Reset all filters

Articles

1 pages - 1

Article	Description	Tube size	D	B	L1	Version	M	SW	Type	H	Colour/RAL
68530202 Z	Inserts with metal thread for ends of rectangular traverses 30 x 20 x 1,5 M8 black	30x20	30	20	15	1,5	M 8	SW 13	1M	2	Black
68630202 Z	Inserts with metal thread for ends of rectangular traverses 30 x 20 x 1,5 M8 black	30x20	30	20	15	1,5	M 8	SW 13	1M	2	Black
68540202 Z	Inserts with metal thread for ends of rectangular traverses 40 x 20 x 1,5 M8 black	40x20	40	20	30	1,5	M 8	SW 13	1M	2	Black
68640202 Z	Inserts with metal thread for ends of rectangular traverses 40 x 20 x 1,5 2xM8 black	40x20	40	20	30	1,5	M 8	SW 13	2M	2	Black
68740302 Z	Inserts with metal thread for ends of rectangular traverses 40 x 30 x 1,5 M10 black	40x30	40	30	30	1,5	M10	SW 17	1M	2	Black
68840302 Z	Inserts with metal thread for ends of rectangular traverses 40 x 30 x 1,5 2xM10 black	40x30	40	30	30	1,5	M10	SW 17	2M	2	Black
68745253 Z	Inserts with metal thread for ends of rectangular traverses 45 x 25 x 2 M10 black	45x45	45	25	20	2,0	M10	SW 17	1M	3	Black
68845253 Z	Inserts with metal thread for ends of rectangular traverses 45 x 25 x 2 2xM10 black	45x45	45	25	20	2,0	M10	SW 17	2M	3	Black
68750253 Z	Inserts with metal thread for ends of rectangular traverses 50 x 25 x 2 M10 black	50x25	50	25	20	2,0	M10	SW 17	1M	3	Black
68850253 Z	Inserts with metal thread for ends of rectangular traverses 50 x 25 x 2 2xM10 black	50x25	50	25	20	2,0	M10	SW 17	2M	3	Black
68750302 Z	Inserts with metal thread for ends of rectangular traverses 50 x 30 x 1,5 M10 black	50x30	50	30	30	1,5	M10	SW 17	1M	2	Black
68850302 Z	Inserts with metal thread for ends of rectangular traverses 50 x 30 x 1,5 2xM10 black	50x30	50	30	20	1,5	M10	SW 17	2M	3	Black
