Protective plugs – tapered

Product information

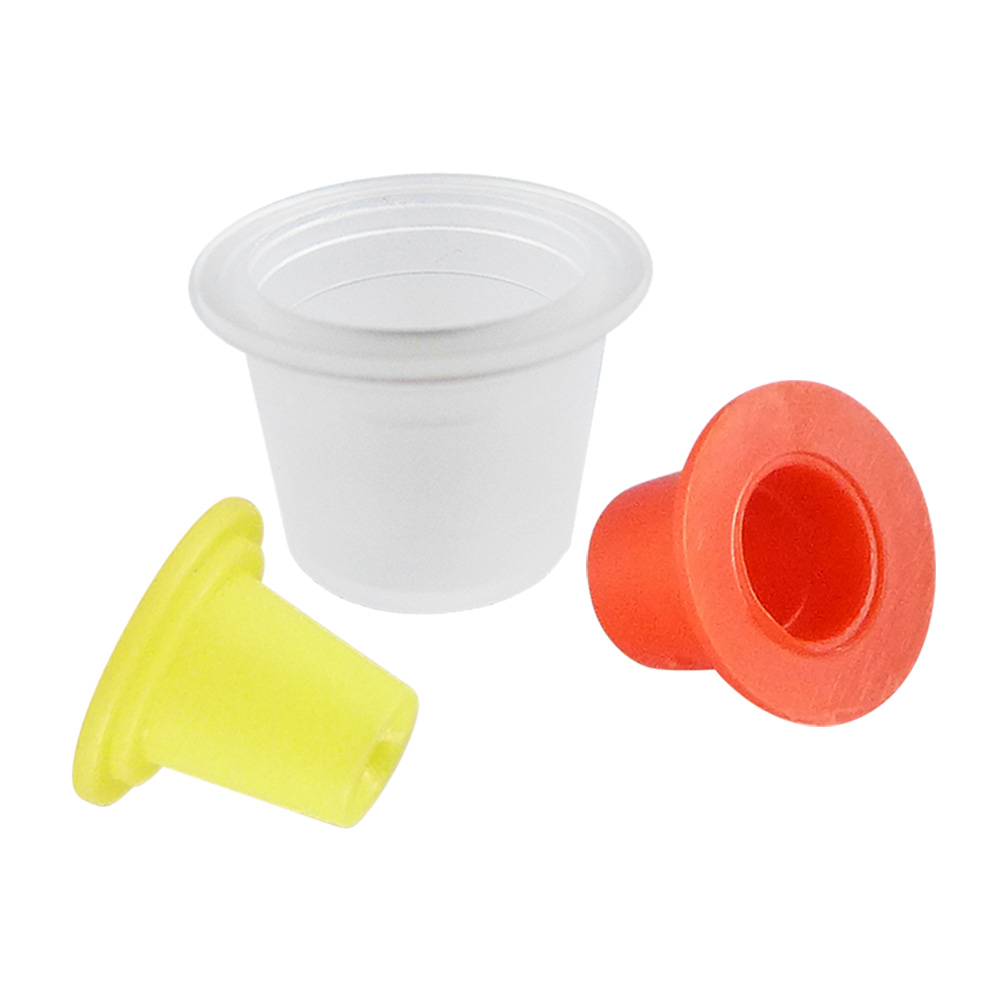

Tapered protective plugs with a shoulder for round holes, tube ends, internal and external threads are available for hole sizes from Ø 4.4 mm to Ø 102.5 mm inclusive or for tapped hole sizes from M6 to M50 inclusive
Also suitable for many other types of thread like Metric fine of coarse, BSP, BSF, BSW (Witworth), UNC, UNF
Available in signal colours yellow to increase recognition and retrievability
Tapered shaft to ensure a good fit and good retention - Suitable for cheaply, easily and quickly sealing, capping or protecting blind or clearance holes, tapped holes, internal threads, ANSI tubes, hydraulic and pneumatic fittings, etc. Often used for protection during transport or grit blasting, painting or galvanising processes.

Material: LDPE (low-density polyethylene)
Colour: natural, yellow (RAL 1016) or red

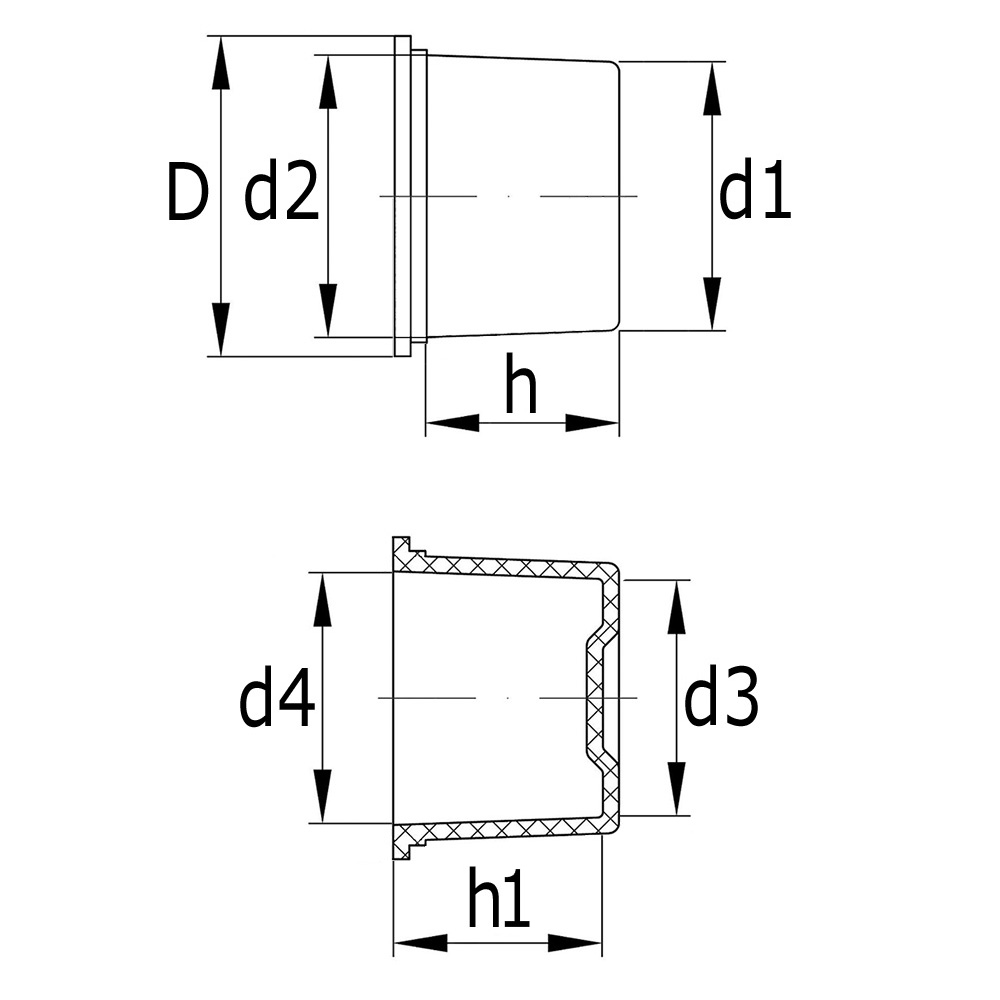

Legend
DIN13=Metric with rough/fine pitch, DIN 259=Withworth thread, M=Metric with normal pitch, h=Shaft height external, h1=Shaft height internal, d=Shaft-Ø, d1&d2=Shaft-Ø external, d3&d4=Shaft-Ø internal, D=Shoulder/flange-Ø

Filter by

Show all filters

Show less filters

Reset all filters

Articles

6 pages - « Previous 1 2 3 4 5 6 Next »

Article	Description	d2	d1	d3	d4	D	h	DIN 13	M	DIN 259	h1	Colour/RAL	Material A
CHJ0376	Conical plugs for 34,7 - 37,6 - red	37,6	34,7	33	36,2	42	17				0	Red	LDPE
CHK0349	Conical plugs for 34.9-36.4mm - red	36,4	34,9	33,1	35,2	42,7	8,2					Red	LDPE
CHK0359	Conical plugs for 35.9-40.2mm - red	40,2	35,9	33,2	37,5	44,1	24,5					Red	LDPE
CHK0363	Conical plugs for 36.3-38.3mm - red	38,3	36,3	34,6	37	42,3	12					Red	LDPE
CH029 G	Flat plugs for internal threads and bores M45 - yellow	40,5	36,7			45	22	M42 x 1,5	M42 - M45	G1 1/4		Yellow	LDPE
CH029	Flat plugs for internal threads and bores M45 - natural	40,5	36,7			45	22	M42 x 1,5	M42 - M45	G1 1/4		Natural	LDPE
CHK0369	Conical plugs for 36.9-40.6mm - red	40,6	36,9	35	39	44	22,5					Red	LDPE
CHJ0404	Conical plugs for 38,0 - 40,4 - red	40,4	38	36,4	39	45	18				0	Red	LDPE
CHK0386	Conical plugs for 38.6-40.6mm - red	40,6	38,6	37,1	39	44,5	12,7					Red	LDPE
CH030 G	Flat plugs for internal threads and bores 39,0-42,5 - yellow	42,5	39			48	23					Yellow	LDPE
CH030	Flat plugs for internal threads and bores 39,0-42,5 - natural	42,5	39			48	23					Natural	LDPE
CH031 G	Flat plugs for internal threads and bores M48 - yellow	42,9	39,6			48	19	M42x1,5 / M45x2	M48	G1 3/8		Yellow	LDPE
CH031	Flat plugs for internal threads and bores M48 - natural	42,9	39,6			48	19	M42x1,5 / M45x2	M48	G1 3/8		Natural	LDPE
CHK0396	Conical plugs for 39.6-42.7mm - red	42,7	39,6	38,2	41,1	47,6	18,5					Red	LDPE
CHK0408	Conical plugs for 40.8-44.7mm - red	44,7	40,8	37,7	41,8	49	24					Red	LDPE
CH032 G	Flat plugs for internal threads and bores 41,4-44,7 - yellow	44,7	41,4			49	19	M42 x 1,5		G1 3/8		Yellow	LDPE
CH032	Flat plugs for internal threads and bores 41,4-44,7 - natural	44,7	41,4			49	19	M42 x 1,5		G1 3/8		Natural	LDPE
CHK0414	Conical plugs for 41.4-44.8mm - red	44,8	41,4	39,7	43	49,2	19					Red	LDPE
CHJ0439	Conical plugs for 41,5 - 43,9 - red	43,9	41,5	40	42,4	48	18				0	Red	LDPE
CHK0425	Conical plugs for 42.5-44.8mm - red	44,8	42,5	40,7	43	50,7	12,6					Red	LDPE
CHK0434	Conical plugs for 43.4-48.5mm - red	48,5	43,4	42	47	53,3	24,5					Red	LDPE
CHJ0468	Conical plugs for 44,0 - 46,8 - red	46,8	44	42,5	45	51,5	19,5				0	Red	LDPE
CHK0441	Conical plugs for 44.1-46.7mm - red	46,7	44,1	42,8	45,7	49,8	18,4					Red	LDPE
CH033 G	Flat plugs for internal threads and bores M50 x 3 - yellow	46,9	44,3			51	19	M50 x 3	M52	G1 1/2		Yellow	LDPE
CH033	Flat plugs for internal threads and bores M50 x 3 - natural	46,9	44,3			51	19	M50 x 3	M52	G1 1/2		Natural	LDPE
CHR033	Flat plugs for internal threads and bores M50 x 3 - yellow	46,9	44,3			60	19	M50 x 3				Yellow	LDPE
CHK0444	Conical plugs for 44.4-47.7mm - red	47,7	44,4	42,8	46,1	51	19					Red	LDPE
CHK0452	Conical plugs for 45.2-49mm - red	49	45,2	43,7	47	53,4	24,5					Red	LDPE
CHK0459	Conical plugs for 45.9-46.3mm - red	46,3	45,9	44,3	45	50,8	9,5					Red	LDPE
CHK0460	Conical plugs for 46-50mm - red	50	46	44,3	48	54	24,8					Red	LDPE
CHJ0497	Conical plugs for 47,2 - 49,7 - red	49,7	47,2	45,7	48,1	54	19				0	Red	LDPE
CHK0472	Conical plugs for 47.2-51.9mm - red	51,9	47,2	44,5	48,7	55,8	24					Red	LDPE
CHK0475	Conical plugs for 47.5-50.3mm - red	50,3	47,5	45,2	49	54	25					Red	LDPE
CH0479 B	Flat plugs for internal threads and bores 47,9-50 - bleu	50	47,9	44,1	46,5	54	13,5	M45 X 1 /1,5 / 2 / 3 / 4			13,6	Blue	LDPE-PCR
CHK0480	Conical plugs for 48-52.7mm - red	52,7	48	46,3	50,7	57,1	25,4					Red	LDPE
CHK0486	Conical plugs for 48.6-51.2mm - red	51,2	48,6	46,7	48,9	55,5	18,7					Red	LDPE
CHJ0515	Conical plugs for 50 - 51,5 - red	51,5	50	47,6	51	56	19				0	Red	LDPE
CH0498 B	Flat plugs for internal threads and bores 49,8-51,6 - blue	51,6	49,8	46,1	48,5	56	13,5	M52 X 1 / M52 X 3 / M55 X 4		1 1/2	13,3	Blue	LDPE-PCR
CHK0498	Conical plugs for 49.8-54mm - red	54	49,8	47,5	52	58	24,3					Red	LDPE
CH0505	Flat plugs for internal threads and bores 50,5-53,3 - natural	53,3	50,5	48,8	51,3	55	14	M50 X 1 / 1,5 / 2 / 3 / 4			14,2	Natural	LDPE
CHK0511	Conical plugs for 51.1-54.4mm - red	54,4	51,1	47,7	52	57	25					Red	LDPE
CHK0515	Conical plugs for 51.5-54.1mm - red	54,1	51,5	49,6	52	58,3	18,5					Red	LDPE
CHJ0544	Conical plugs for 51,6 - 54,4 - red	54,4	51,6	50,1	52,2	59,5	19				0	Red	LDPE
CH0525	Flat plugs for internal threads and bores 52,5-54,9 - natural	54,9	52,5	50,6	52,5	58	13,5	M50 X 1 / 1,5 / 2 / 3 / 4			13,5	Natural	LDPE
CHJ0568	Conical plugs for 53,4 - 56,8 - red	56,8	53,4	53	55,5	61	20				0	Red	LDPE
CHK0535	Conical plugs for 53.5-57mm - red	57	53,5	51,2	55,3	62,4	25,1					Red	LDPE
CHK0540	Conical plugs for 54-58.4mm - red	58,4	54	50,8	55	62,4	24,5					Red	LDPE
CH0545 B	Flat plugs for internal threads and bores 54,5-56,2 - blue	56,2	54,5	51,6	54	60	13,5	M60 X 4	M60		13,5	Blue	LDPE-PCR
CHJ0575	Conical plugs for 55,0 - 57,5 - red	57,5	55	54	56,5	62	20				0	Red	LDPE
CHK0550	Conical plugs for 55-61mm - red	61	55	52,2	59	65	25					Red	LDPE
