21.1.4

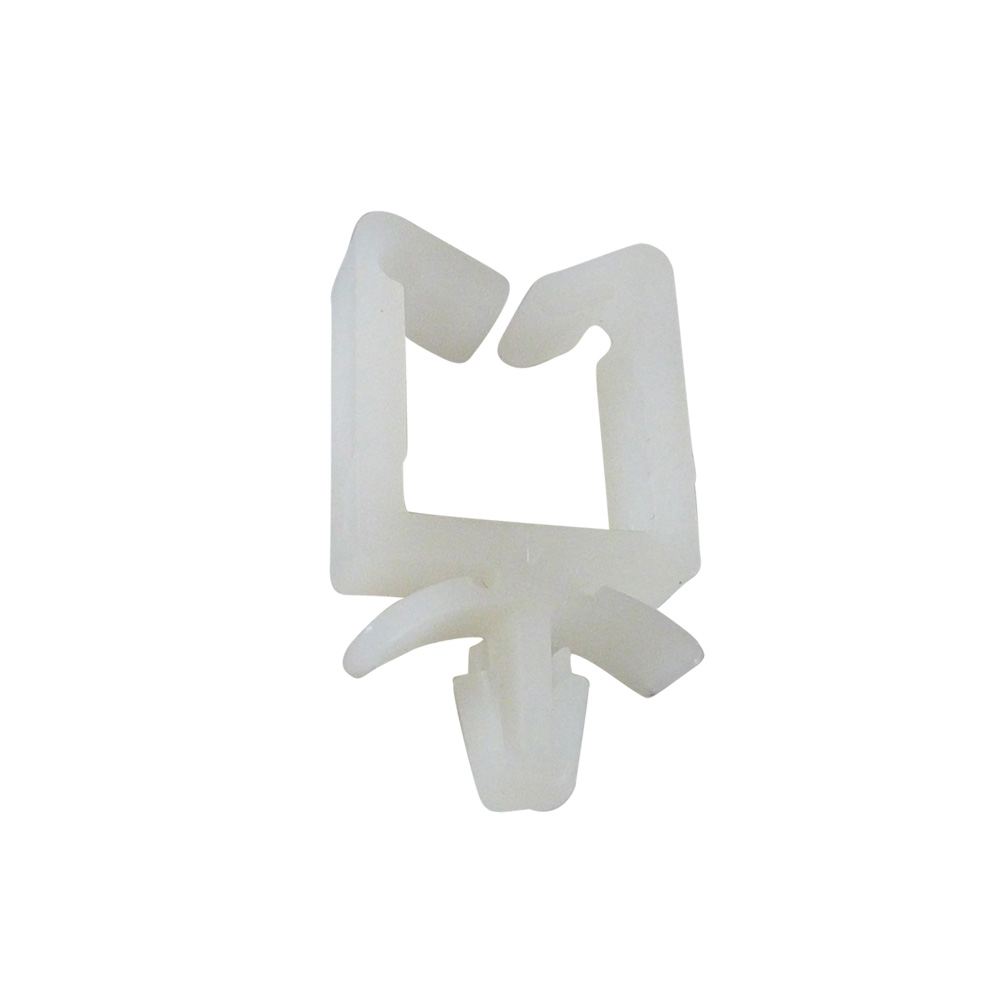

Cable clip – arrow-clip base - top entry
Product information
- Top entry cable clips with an arrow-clip base are available in various sizes and suitable for sheet thicknesses of up to 1.9 mm (and less)
- Suitable for routing, bundling and attaching electric cables, network cables or telecommunication cables
- Cable holder with cable retention via a latch arrangement or clamping action; cables can be added or removed easily
- Easy to attach to sheet material and profiles; simply press in the arrow-clip base (snap-fit)
- RoHS compliant and satisfies UL 94V-2 fire safety requirements
- Suitable for use from -0°C to 85°C
- Suitable for cable routing and cable management in electrical systems, network environments, furniture, appliances, automotive applications, etc.
Material: PA 6.6 (polyamide 6.6)
Colour: Natural
Types:
Type A: Cable holder, cable retained by clamping force
Type B: Cable holder, cable retained by latch

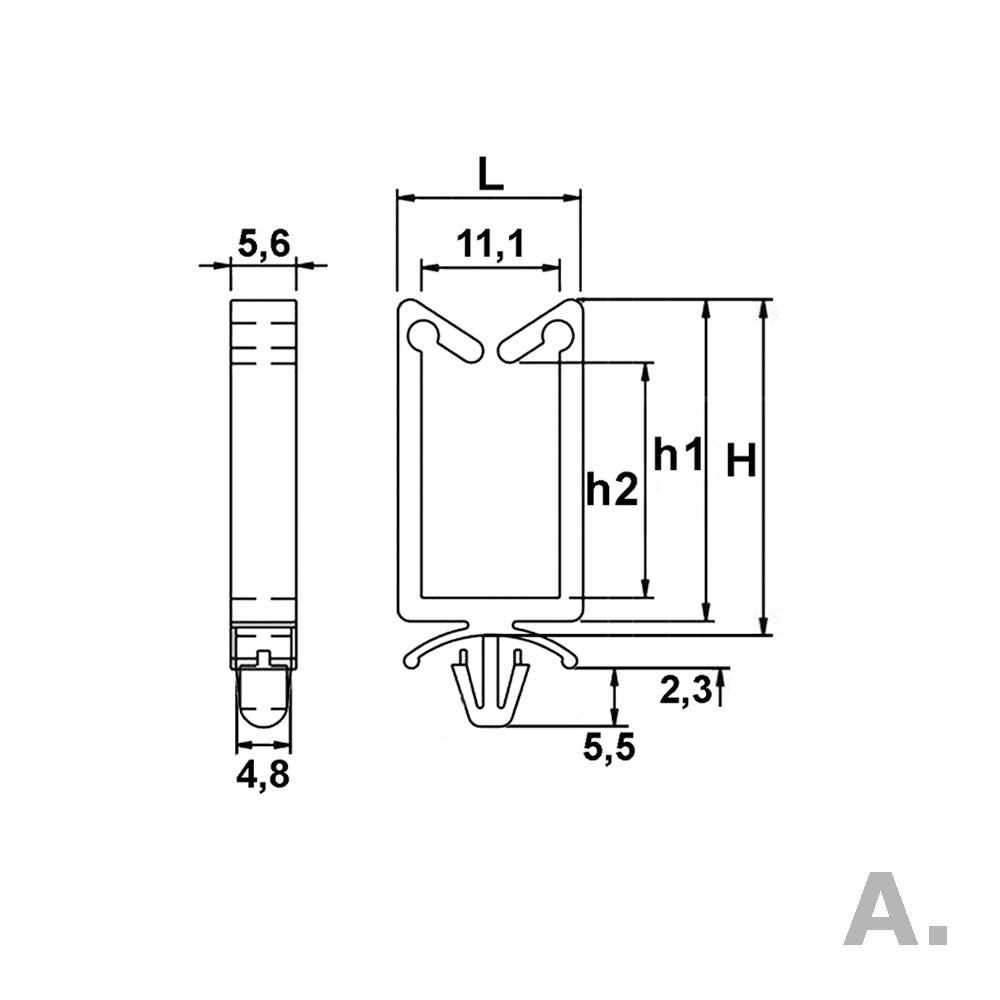

Legend
Bore=mounting hole Ø, H=height, h1=height, h1=inner height, L=Length, Tube size=maximum cable capacity, Thickness=maximum sheet sickness in mm, Type=cable retention
