21.1.9
Strain relief system for cables
Product information

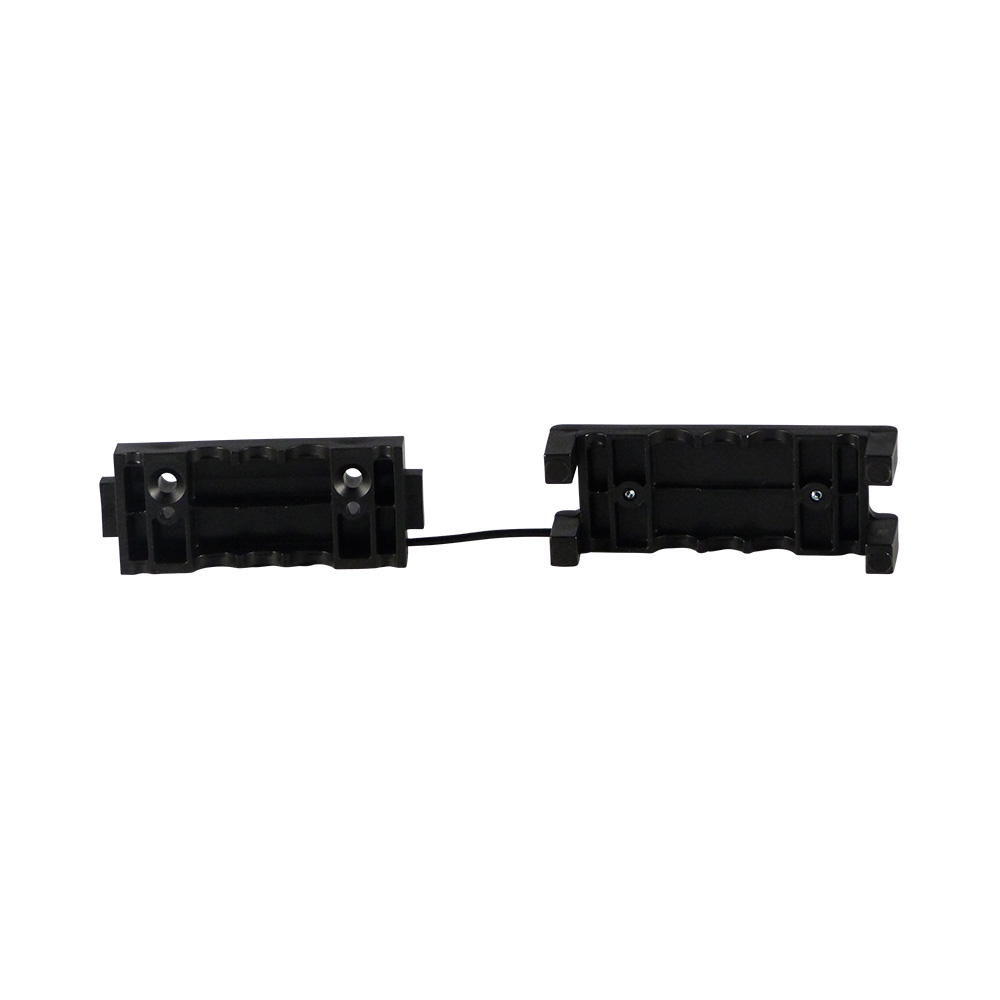

- This strain relief system for cables, also known as a cable clip, is suitable for round cables
- Suitable for a maximum of 5 cables ranging in diameter from Ø 4 mm to Ø 8 mm
- The cables are inserted in the clip, which is folded closed and screwed shut using the two screws provided
- Suitable for relieving strain on cables and leads and mounted under worktops, office furniture, workstations, cabinets or counters, etc.
Mounting instructions
- The strain relief system has two Ø 3 mm internal countersunk holes to allow screw attachment to a flat surface
Material: Housing – PP (polypropylene), Screws – galvanised steel
Colour: Housing – black or transparent, metal parts - zinc-coloured

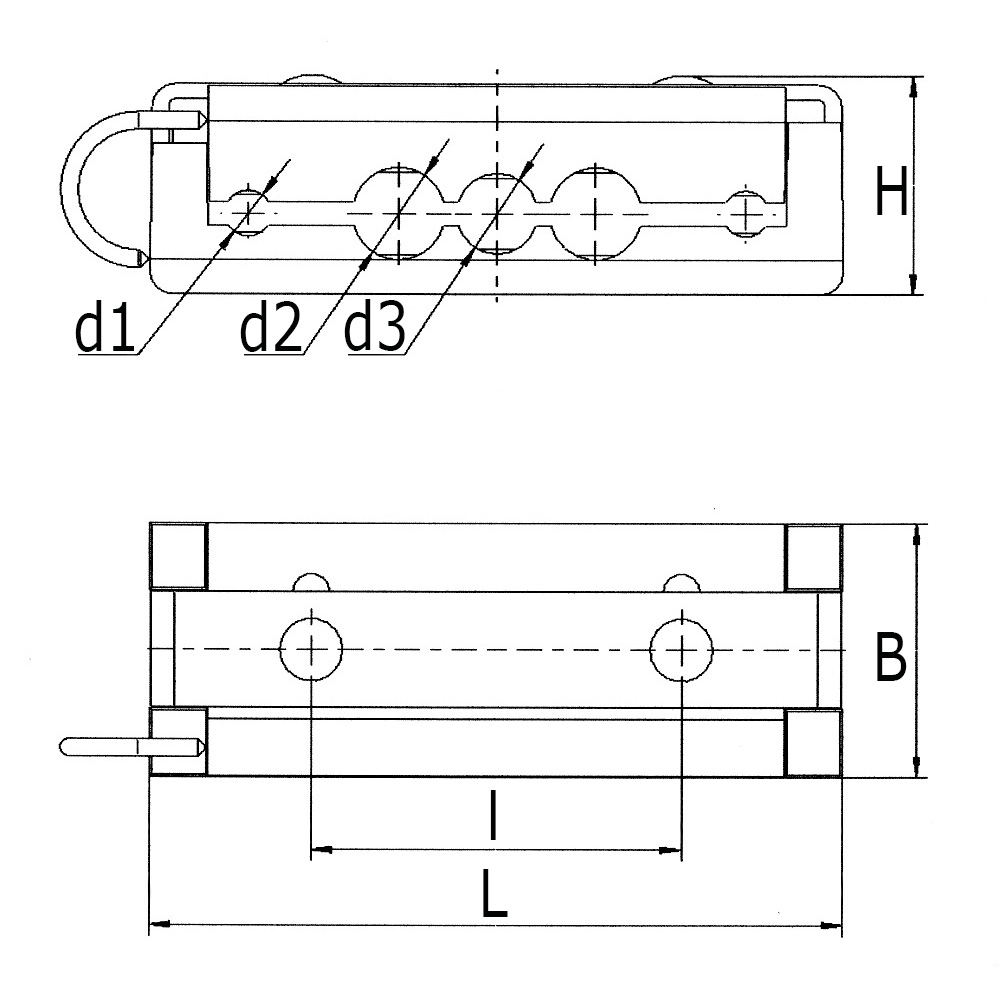

Legend
B=width, d1=hole Ø, d2=hole Ø, d3=hole Ø, H=height, L=length, l=centre-to-centre dimension between drilled holes/welding tags
