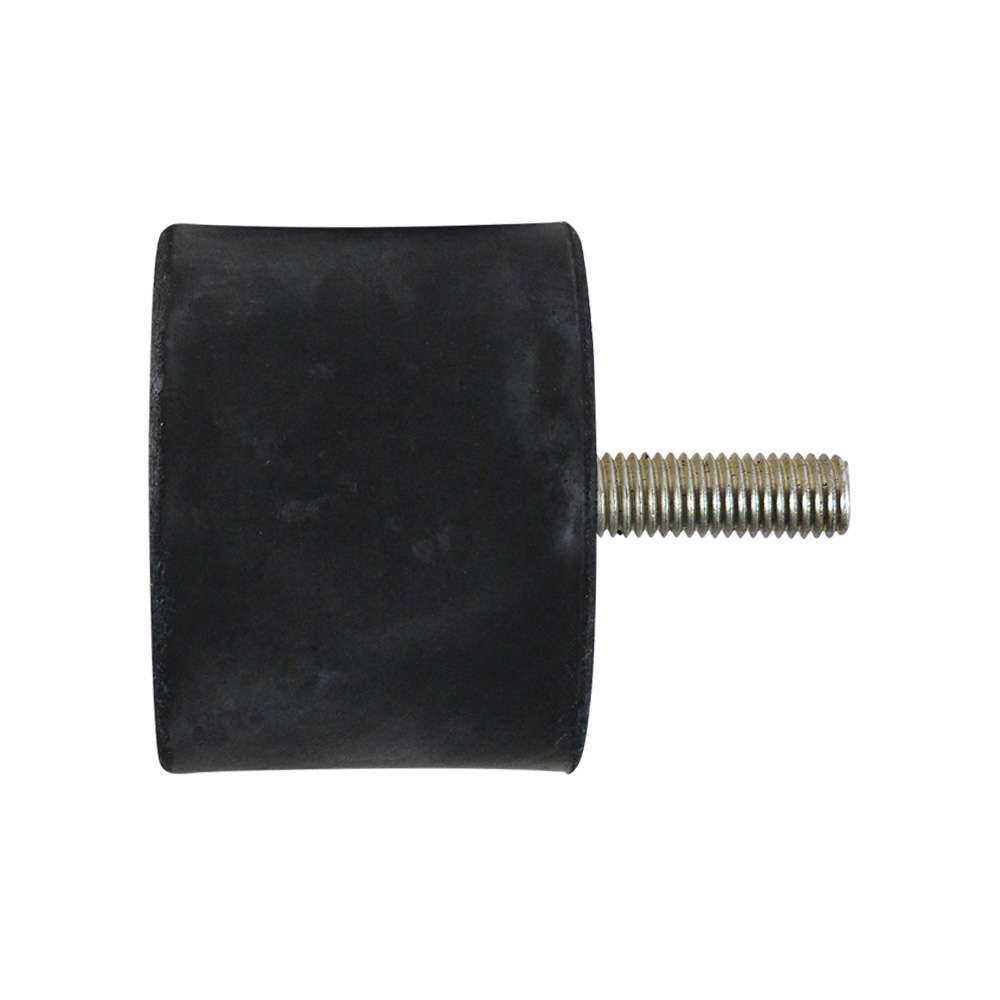

Anti-vibration bobbin mount type B - cylindrical

Anti-vibration bobbin mount type B - cylindricaldrawing_1

Product information

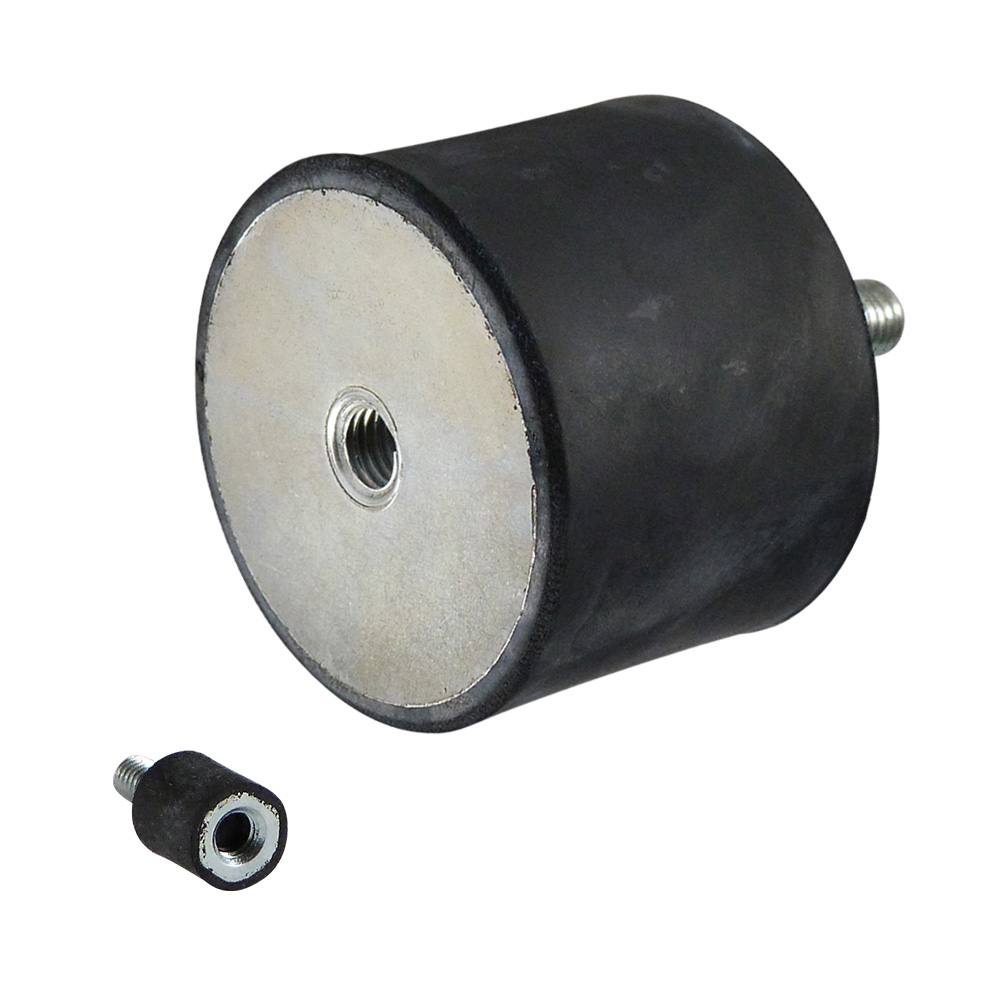

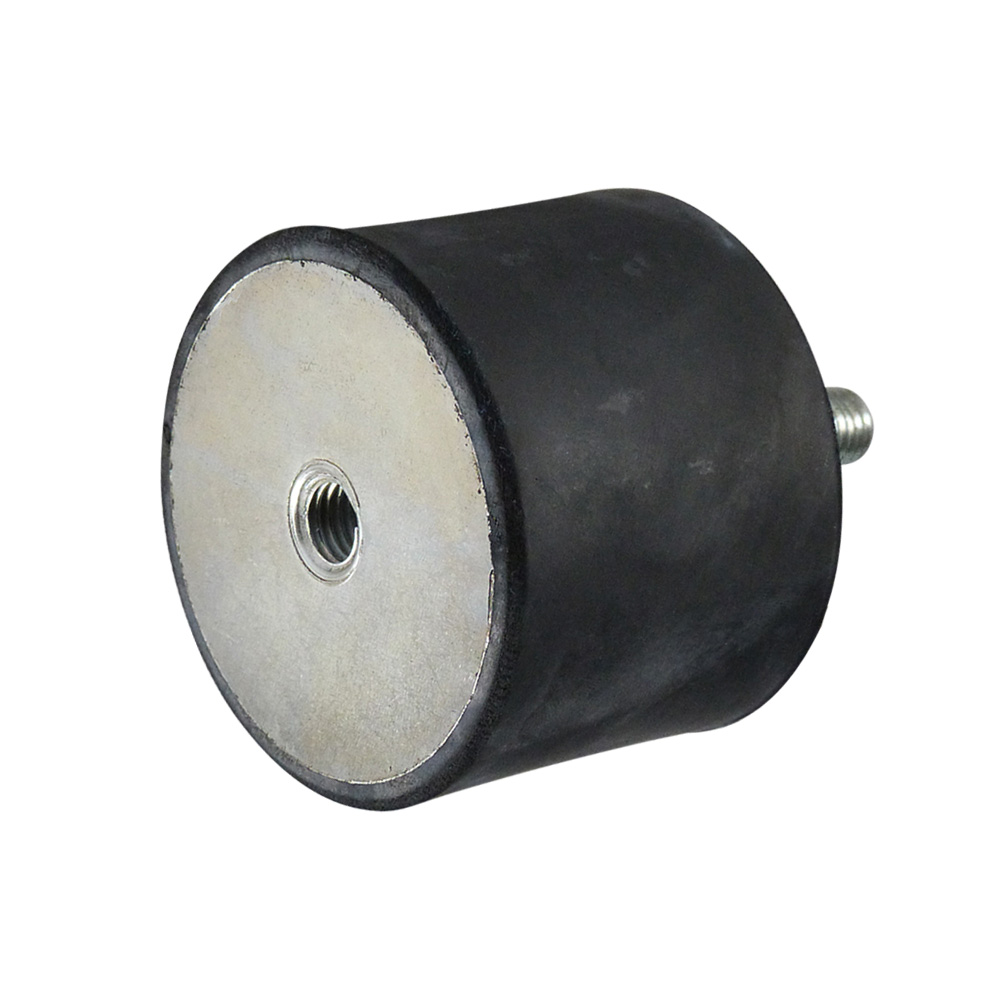

Cylindrical rubber-metal ant-vibration bobbin mounts type B are available in diameters from Ø 6 mm to Ø 200 mm inclusive, and in heights from 4 mm to 100 mm inclusive
Threaded stud (male) on one side and a threaded bush (female) on the other side
Thread sizes (metric) from M3 to M24 inclusive, in various stud lengths
Suitable for temperatures from -30 °C to +80 °C
Can be used in compression and shear
Generally used to reduce vibration and noise levels in motors, compressors, fans, pumps and control cabinets.

Material: Rubber parts - NR (natural rubber) Shore A 55° ±5% (medium hard), Metal parts - galvanised steel (St37) or stainless steel AISI 304 (A2)

Available on request:

Different Shore hardness
Rubber parts in SBR, NBR, CR, SI or EPDM
Different thread lengths
Metal parts in stainless steel

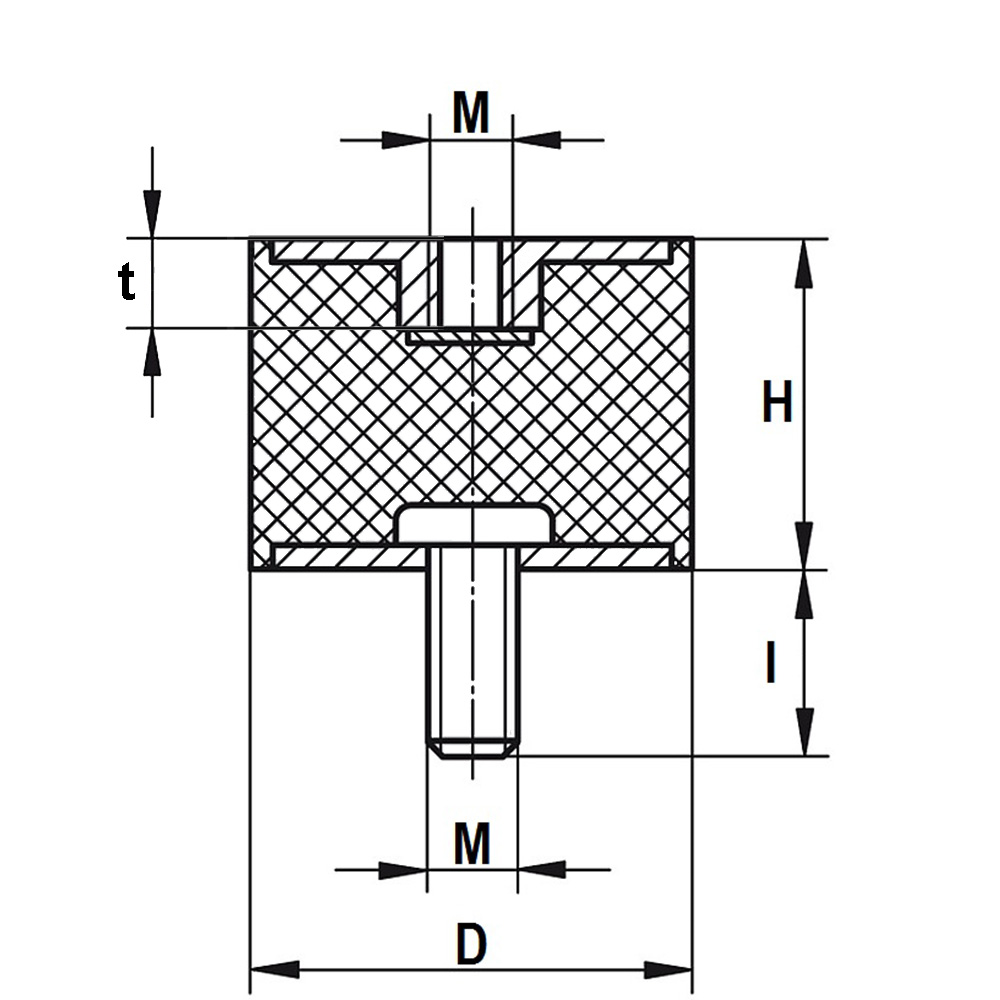

Legend
D=diameter, H=height, l=length of thread, M=thread size, Mat. A=type of rubber, Mat. B=Material metal components, N=Maximum static load in Newton, Shore A °=Shore-A hardness of the rubber, t=depth of thread

Filter by

Show all filters

Show less filters

Reset all filters

Articles

2 pages - « Previous 1 2

Article	Description	Stiffness in N/mm	N	H	l	D	Max. deflection in mm	M	t	Shore A °	Material B	MOQ	Colour/RAL	Material A
22.B030X40M8X23	Vibration damper with one threaded bolt and one threaded bush type B D30 H40 M8X23/M8	93	932	40	23	30	10	M 8	8	55° ±5	St, 37		Black	NR
22.B040X15M6X08 S65G	Vibration damper with one threaded bolt and one threaded bush type B D40 H15 M6X08/M6 - S65 - GREY 7035			15	8	40		M 6	6	65° ±5	St, 37	100	RAL 7035 - Light grey	NR
22.B040X15M6X08 S65	Vibration damper with one threaded bolt and one threaded bush type B D40 H15 M6X08/M6 - S65			15	8	40		M 6	6	65° ±5	St, 37	0	Black	NR
22.B040X15M8X23 A4	Vibration damper with one threaded bolt and one threaded bush type B D40 H15 M8X23/M8with stainless-steel metal parts A4	213	0	15	23	40	10	M 8	8	55° ±5	A4 (AISI 316)		Black	NR
22.B040X20M8X06	Vibration damper with one threaded bolt and one threaded bush type B D40 H20 M8X06/M8	1684	8420	20	6	40	5	M 8	8	55° ±5	St, 37		Black	NR
22.B040X20M8X23	Vibration damper with one threaded bolt and one threaded bush type B D40 H20 M8X23/M8	1684	8420	20	23	40	5	M 8	8	55° ±5	St, 37		Black	NR
22.B040X20M8X23 RVS	Vibration damper with one threaded bolt and one threaded bush type B D40 H20 M8X23/M8with stainless steel metal parts	1684	8420	20	23	40	5	M 8	8	55° ±5	A2 (AISI 304)		Black	NR
22.B040X20M10X13	Vibration damper with one threaded bolt and one threaded bush type B D40 H20 M10X13/M10	1684	8420	20	13	40	5	M10	10	55° ±5	St, 37		Black	NR
22.B040X25M8X23	Vibration damper with one threaded bolt and one threaded bush type B D40 H25 M8X23/M8			25	23	40		M 8	8	55° ±5	St, 37		Black	NR
22.B040X30M8X13	Vibration damper with one threaded bolt and one threaded bush type B D40 H30 M8X13/M8	210	1574	30	13	40	7,5	M 8	8	55° ±5	St, 37	100	Black	NR
22.B040X30M8X23	Vibration damper with one threaded bolt and one threaded bush type B D40 H30 M8X23/M8 S55	210	1574	30	23	40	7,5	M 8	8	55° ±5	St, 37		Black	NR
22.B040X30M8X23 A4	Vibration damper with one threaded bolt and one threaded bush type B D40 H30 M8X23/M8with stainless-steel metal parts A4	210	1574	30	23	40	7,5	M 8	8	55° ±5	A4 (AISI 316)		Black	NR
22.B040X30M8X23 RVS	Vibration damper with one threaded bolt and one threaded bush type B D40 H30 M8X23/M8 S55with stainless-steel metal parts A2	210	1574	30	23	40	7,5	M 8	8	55° ±5	A2 (AISI 304)		Black	NR
22.B040X30M8X23 S70	Vibration damper with one threaded bolt and one threaded bush type B D40 H30 M8X23/M8 S70	456	3420	30	23	40	7,5	M 8	8	70° ±5	St, 37		Black	NR
22.B040X30M10X28	Vibration damper with one threaded bolt and one threaded bush type B D40 H30 M10X28/M10	210	1574	30	28	40	7,5	M10	10	55° ±5	St, 37		Black	NR
22.B040X40M8X23	Vibration damper with one threaded bolt and one threaded bush type B D40 H40 M8X23/M8	140	1397	40	23	40	10	M 8	8	55° ±5	St, 37		Black	NR
22.B040X40M10X33	Vibration damper with one threaded bolt and one threaded bush type B D40 H40 M10X33/M10	140	1397	40	33	40	10	M10	10	55° ±5	St, 37		Black	NR
22.B050X20M8X15	Vibration damper with one threaded bolt and one threaded bush type B D50 H20 M8X15/M8	2806	14030	20	15	50	5	M 8	8	55° ±5	St, 37		Black	NR
22.B050X20M10X28	Vibration damper with one threaded bolt and one threaded bush type B D50 H20 M10X28/M10	2806	14030	20	28	50	5	M10	10	55° ±5	St, 37		Black	NR
22.B050X20M10X28 RVS	Vibration damper with one threaded bolt and one threaded bush type B D50 H20 M10X28/M10with stainless steel metal parts	2806	14030	20	28	50	5	M10	10	55° ±5	A2 (AISI 304)		Black	NR
22.B050X30M10X28 RVS	Vibration damper with one threaded bolt and one threaded bush type B D50 H30 M10X28/M10 S55 with stainless steel metal parts	440	3300	30	20	50	5	M10	10	55° ±5	A2 (AISI 304)		Black	NR
22.B050X30M10X28	Vibration damper with one threaded bolt and one threaded bush type B D50 H30 M10X28/M10 S55	440	3300	30	28	50	5	M10	10	55° ±5	St, 37		Black	NR
22.B050X40M10X28	Vibration damper with one threaded bolt and one threaded bush type B D50 H40 M10X28/M10	213	2130	40	28	50	10	M10	10	55° ±5	St, 37		Black	NR
22.B050X45M10X28	Vibration damper with one threaded bolt and one threaded bush type B D50 H45 M10X28/M10 S55	182	2046	45	28	50	11,25	M10	10	55° ±5	St, 37		Black	NR
22.B050X50M10X28	Vibration damper with one threaded bolt and one threaded bush type B D50 H50 M10X28/M10	175	2188	50	28	50	12,5	M10	10	55° ±5	St, 37		Black	NR
22.B050X50M10X28 RVS	Vibration damper with one threaded bolt and one threaded bush type B D50 H50 M10X28/M10with stainless steel metal parts	175	2188	50	28	50	12,5	M10	10	55° ±5	A2 (AISI 304)		Black	NR
22.B050X50M12X28	Vibration damper with one threaded bolt and one threaded bush type B D50 H50 M12X28/M12	175	2188	50	28	50	12,5	M12	12	55° ±5	St, 37		Black	NR
22.B060X30M10X33	Vibration damper with one threaded bolt and one threaded bush type B D60 H30 M10X33/M10			30	33	60		M10	10	55° ±5	St, 37		Black	NR
22.B060X30M10X33 RVS	Vibration damper with one threaded bolt and one threaded bush type B D60 H30 M10X33/M10 with stainless steel metal parts			30	33	60		M10	10	55° ±5	A2 (AISI 304)		Black	NR
22.B060X40M10X28	Vibration damper with one threaded bolt and one threaded bush type B D60 H40 M10X28/M10	361	3610	40	28	60	10	M10	10	55° ±5	St, 37		Black	NR
22.B070X45M10X28	Vibration damper with one threaded bolt and one threaded bush type B D70 H45 M10X28/M10	634	7130	45	28	70	11,25	M10	10	55° ±5	St, 37		Black	NR
22.B075X25M12 S70RVS	Vibration damper with one threaded bolt and one threaded bush type B D75 H25 M12X37/M12 - 70 Shore - stainless steel A2	5300	15900	25	37	75	3	M12	12	70° ±5	St, 37		Black	NR
22.B075X25M12X37	Vibration damper with one threaded bolt and one threaded bush type B D75 H25 M12X37/M12	3333	10000	25	37	75	3	M12	12	55° ±5	St, 37		Black	NR
22.B075X40M10X28	Vibration damper with one threaded bolt and one threaded bush type B D75 H40 M10X28/M10	697	6970	40	28	75	10	M10	10	55° ±5	St, 37		Black	NR
22.B075X40M12X37	Vibration damper with one threaded bolt and one threaded bush type B D75 H40 M12X37/M12	697	6970	40	37	75	10	M12	12	55° ±5	St, 37		Black	NR
22.B075X40M12X37 RVS	Vibration damper with one threaded bolt and one threaded bush type B D75 H40 M12X37/M12with stainless steel metal parts	697	6970	40	37	75	10	M12	12	55° ±5	A2 (AISI 304)		Black	NR
22.B075X45M12X37	Vibration damper with one threaded bolt and one threaded bush type B D75 H45 M12X37/M12			45	37	75		M12	12	55° ±5	St, 37		Black	NR
22.B075X50M12X37	Vibration damper with one threaded bolt and one threaded bush type B D75 H50 M12X37/M12			50	37	75		M12	12	55° ±5	St, 37		Black	NR
22.B075X55M12X37	Vibration damper with one threaded bolt and one threaded bush type B D75 H55 M12X37/M12	546	7510	55	37	75	13,75	M12	12	55° ±5	St, 37		Black	NR
22.B075X55M14X37	Vibration damper with one threaded bolt and one threaded bush type B D75 H55 M14X37/M14 S55	546	7510	55	37	75	13,75	M14	14	55° ±5	St, 37		Black	NR
22.B100X40M16X41	Vibration damper with one threaded bolt and one threaded bush type B D100 H40 M16X41/M16	1466	14660	40	41	100	10	M16	16	55° ±5	St, 37		Black	NR
22.B100X40M16X42 S40	Vibration damper with one threaded bolt and one threaded bush type B D100 H40 M16X42/M16 - S40	1399	13990	40	41	100	10	M16	16	40° ±5	St, 37		Black	NR
22.B100X50M16X41	Vibration damper with one threaded bolt and one threaded bush type B D100 H50 M16X41/M16			50	41	100		M16	16	55° ±5	St, 37		Black	NR
22.B100X55M16X41	Vibration damper with one threaded bolt and one threaded bush type B D100 H55 M16X41/M16	951	13080	55	41	100	13,75	M16	16	55° ±5	St, 37		Black	NR
22.B100X55M16X41 S65	Vibration damper with one threaded bolt and one threaded bush type B D100 H55 M16X41/M16 - S65	0	0	55	41	100	0	M16	16	65° ±5	St, 37		Black	NR
22.B100X60M16X41	Vibration damper with one threaded bolt and one threaded bush type B D100 H60 M16X41/M16	753	11290	60	41	100	15	M16	16	55° ±5	St, 37		Black	NR
22.B100X75M16X41	Vibration damper with one threaded bolt and one threaded bush type B D100 H75 M16X41/M16	514	9640	75	41	100	18,75	M16	16	55° ±5	St, 37		Black	NR
22.B150X55M16X41	Vibration damper with one threaded bolt and one threaded bush type B D150 H55 M16X41/M16			55	41	150		M16	16	55° ±5	St, 37		Black	NR
22.B150X75M20X41	Vibration damper with one threaded bolt and one threaded bush type B D150 H75 M20X41/M20			75	41	150		M20	20	55° ±5	St, 37		Black	NR
22.B200X100M20X45/20	Vibration damper with one threaded bolt and one threaded bush type B D200 H100 M20X45/M20			100	45	200		M20	20	55° ±5	St, 37		Black	NR
