Height-adjustable tube inserts – triangular

Height-adjustable tube inserts – triangulardrawing_1

Product information

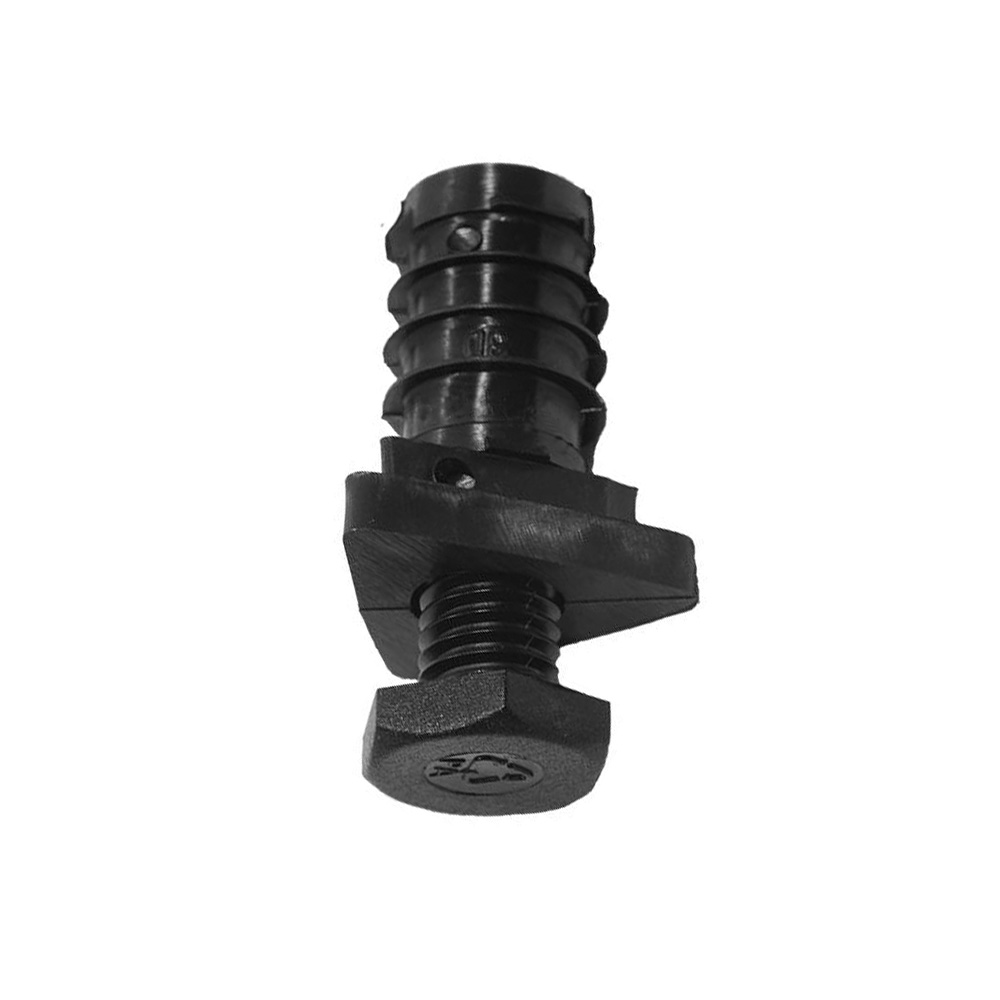

Height-adjustable tube inserts, also referred to as levelling inserts, are available for triangular tube profile measuring 30 x 30 x 30 mm, with wall thicknesses from 1.0 mm to 2.0 mm inclusive
The levelling feet have threaded stems, thread size M12 or M16
The threaded stems are 27 mm or 31 mm long
Maximum static load capacity of 300 kg (based on an axial load with the stem extended by 10 mm on a completely flat surface)
Not suitable for dynamic loads or pushing/sliding
The stem must be screwed in and out under conditions of no load
These levelling inserts are fitted as height-adjusters under tables, furniture, retail fixtures and tubular frames.

Material: PE (polyethylene)
Colour: black

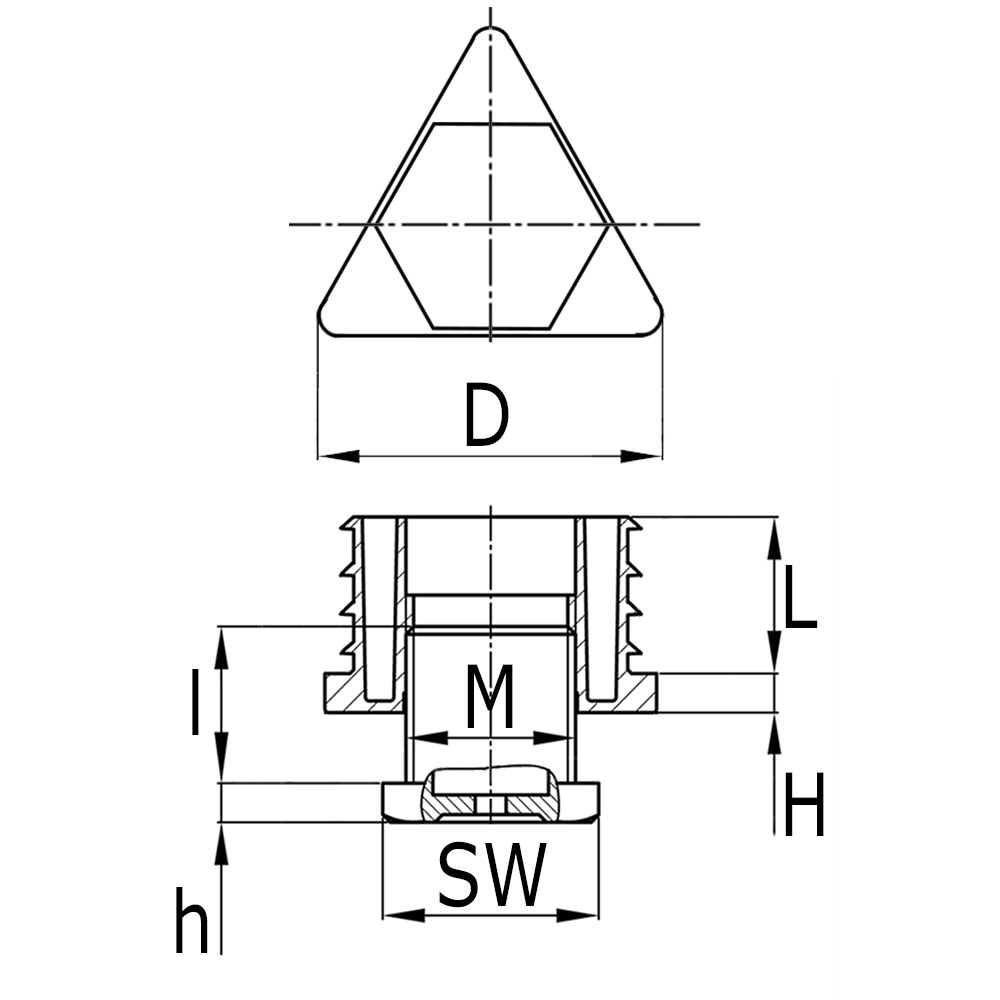

Legend
D=head length, H=head thickness, h=foot thickness, L=shaft length, l=stem length, M=thread size, Model=wall thickness, Tube size=external tube sizes

Filter by

Show all filters

Show less filters

Reset all filters

Articles

1 pages - 1

Article	Description	Tube size	Version	M	D	SW	H	Colour/RAL	h	L	l
7543030	Inserts with adjusting feet for triangle tubes 30mm black	30 x 30 x 30	1-2	M12	30	SW19	5	Black	5	33	27
7543635	Inserts with adjusting feet for triangle tubes 35mm black	35 x 35 x 35	2	M12	35	SW19	5	Black	5	33	27

1 pages - 1
