Height-adjustable inserts for 50 x 50 mm and 60 x 60 mm box-section profile

Height-adjustable inserts for 50 x 50 mm and 60 x 60 mm box-section profiledrawing_1

Height-adjustable inserts for 50 x 50 mm and 60 x 60 mm box-section profiledrawing_2

Product information

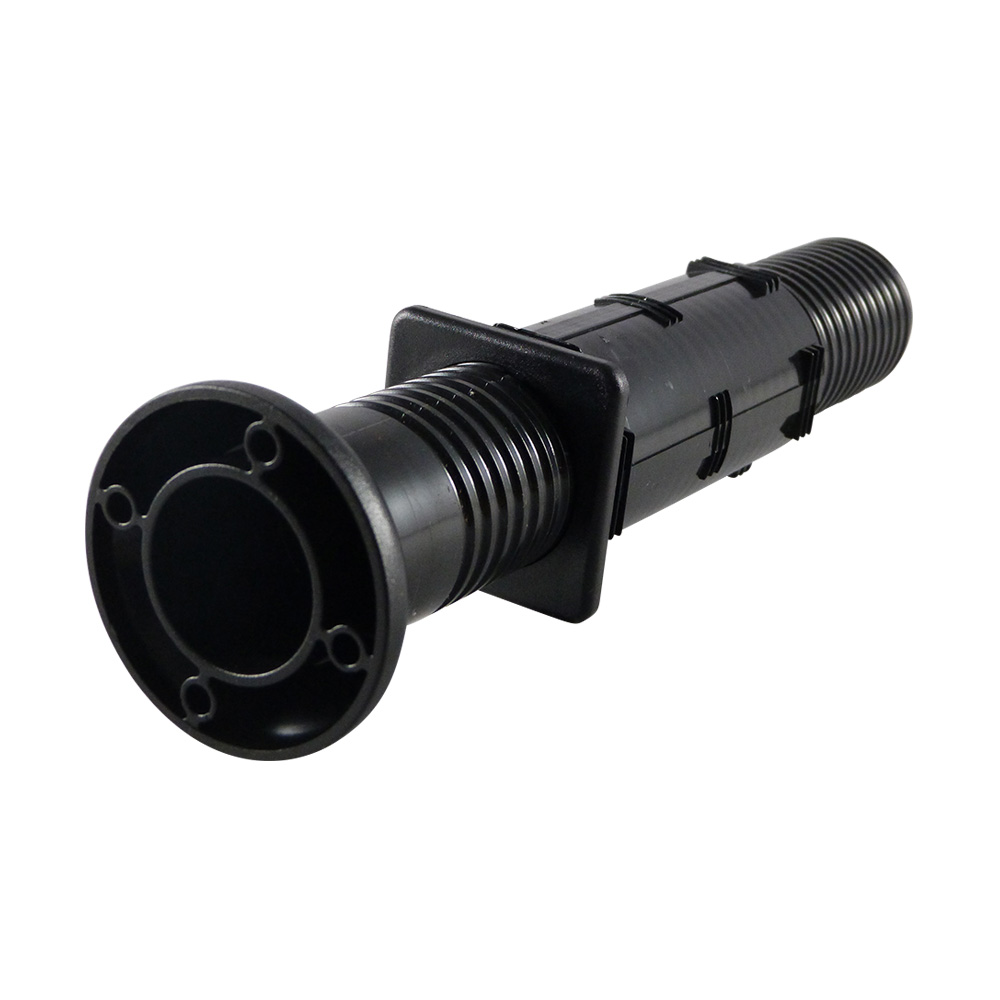

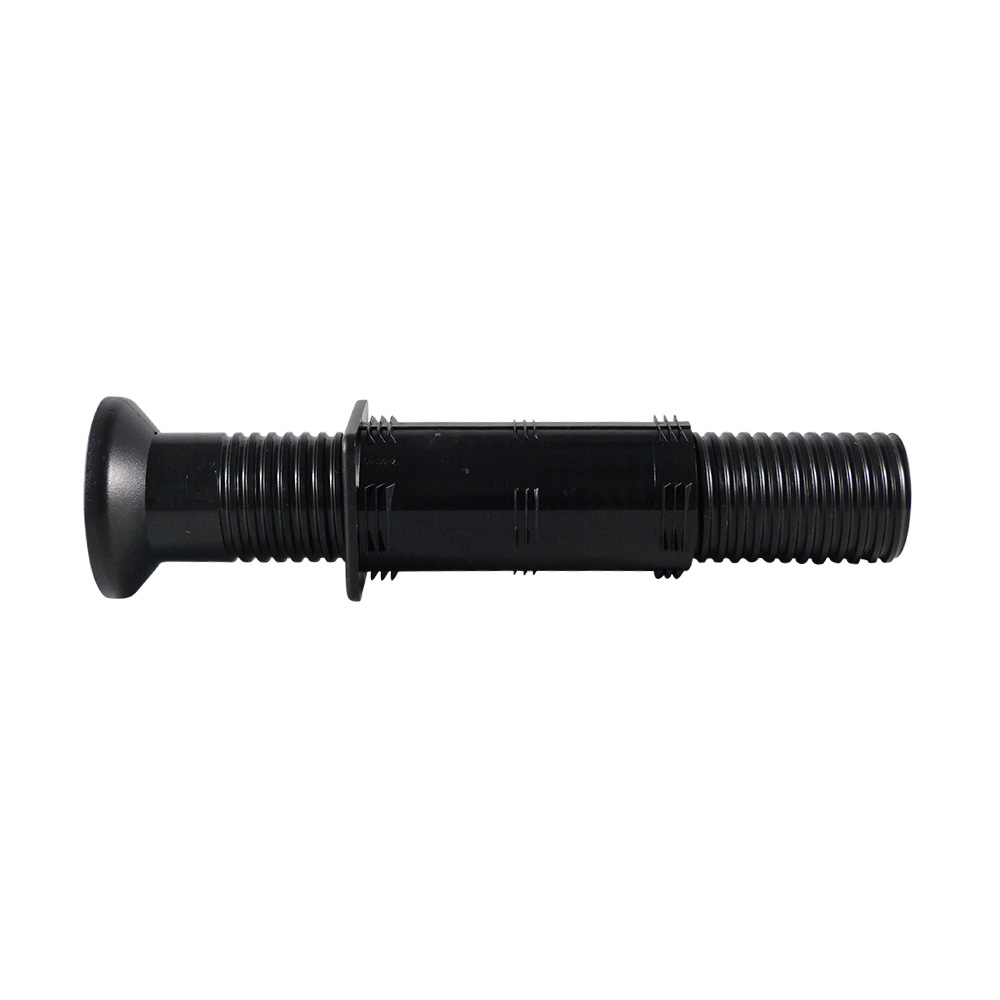

This type of height-adjustable insert with a screw-in/screw-out fixed plastic base, also referred to as a levelling foot, is available for 50 x 50 mm and 60 x 60 mm square tube, with wall thicknesses from 1.5 mm to 2.0 mm inclusive
Extensive range of adjustment, maximum infinitely variable height adjustment of 120mm
Round base, with a diameter of Ø 50 mm or Ø 70 mm, or square 50 x 50 mm base
This type of height-adjustable insert is generally used in the office furniture sector as a levelling foot for sit-stand desks, office tables, computer workstations, workbenches and writing tables where ergonomic height adjustment is an important requirement.

Material: ABS (acrylonitrile butadiene styrene)
Colour: black

Optional accessory

Anti-slip pads (4 x per foot)

Legend

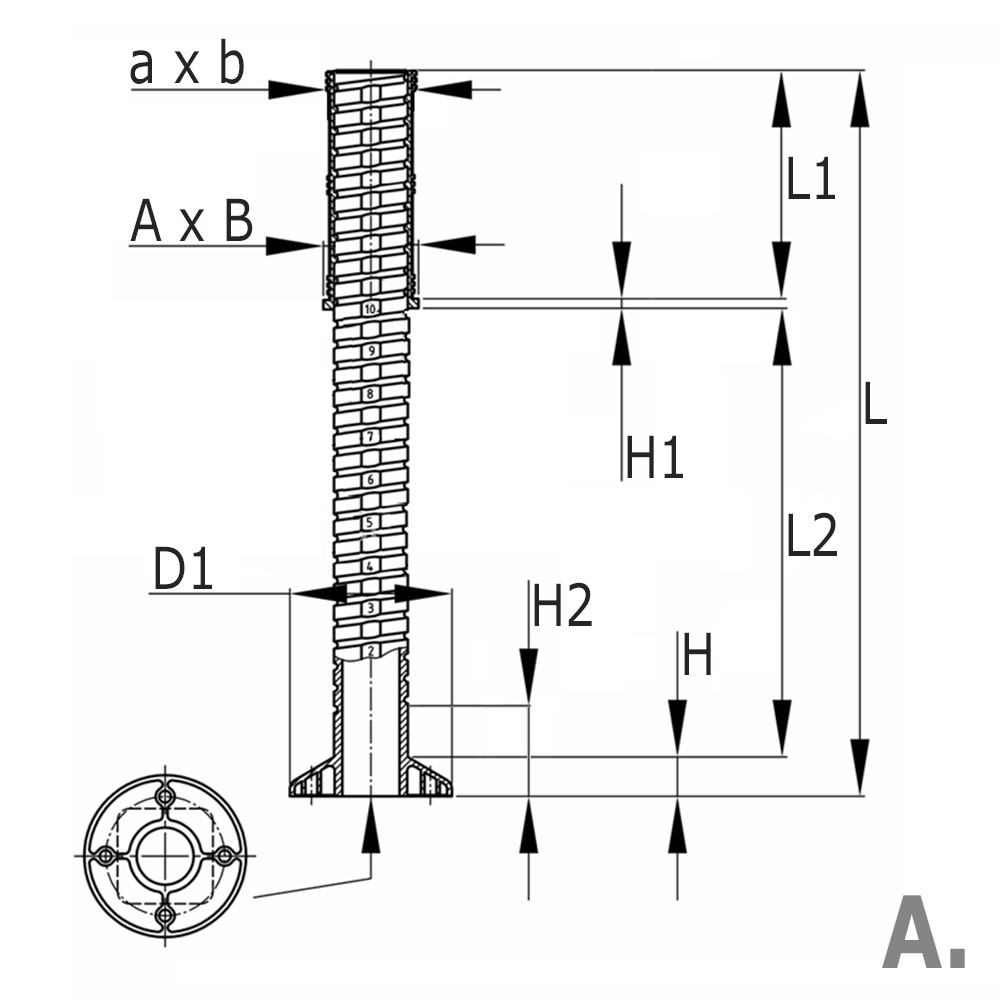

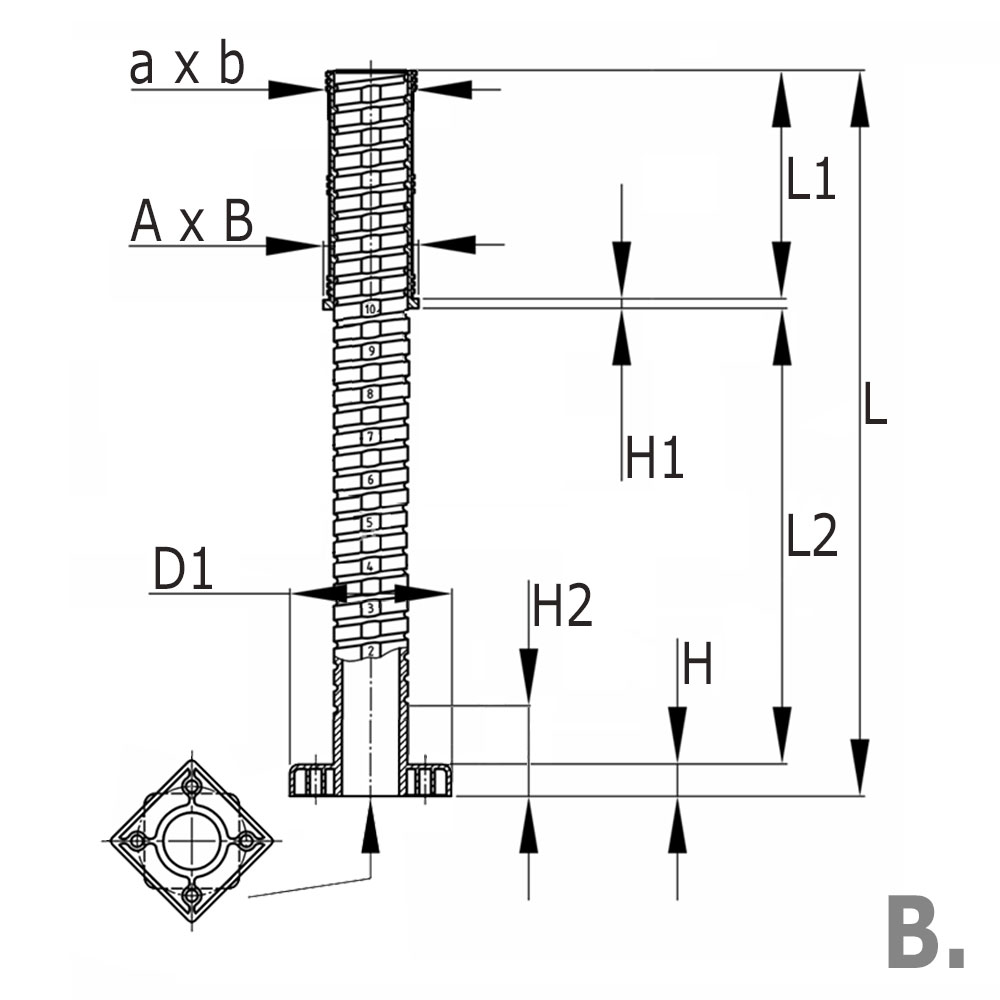

A x B=shoulder sizes, a x b=ribbing sizes, D1=foot Ø, H=foot height, H1=shoulder thickness, H2=minimum height with stem fully screwed in, L=total length, L1=shaft length, L2=adjustment range, Model=wall thickness, Tube size=external tube dimension

Filter by

Show all filters

Show less filters

Reset all filters

Articles

1 pages - 1

Article	Description	a	b	D1	Tube size	Version	Type	H	H2	A	B	Colour/RAL	H1	L	L1	L2
7003550 Z	Height adjustement for square tubes 50x50x1,5 foot 60 adjusting reach 120mm	47	47	60	50x50	1,5	A	15	20,5	50	50	Black	4	213	96	120
7005550 Z	Height adjustement for square tubes 50x50x1,5 foot 50x50 adjusting reach 120mm	47,5	47,5	50	50x50	1,5	B	12	16	50	50	Black	4	213	96	120
7002550 Z	Height adjustement for square tubes 50x50x2,0 foot 60mm adjusting reach 120mm	46,5	46,5	60	50x50	2,0	A	15	20,5	50	50	Black	4	213	96	120
7004550 Z	Height adjustement for square tubes 50x50x2,0 foot 50x50 adjusting reach 120mm	46,5	46,5	50	50x50	2,0	B	12	16	50	50	Black	4	213	96	120
7002660 Z	Height adjustement for square tubes 60x60x2,0 foot 70mm adjusting reach 120mm	56,5	56,5	70	60x60	2,0	A	15	20,5	50	50	Black	4	213	96	120

1 pages - 1
