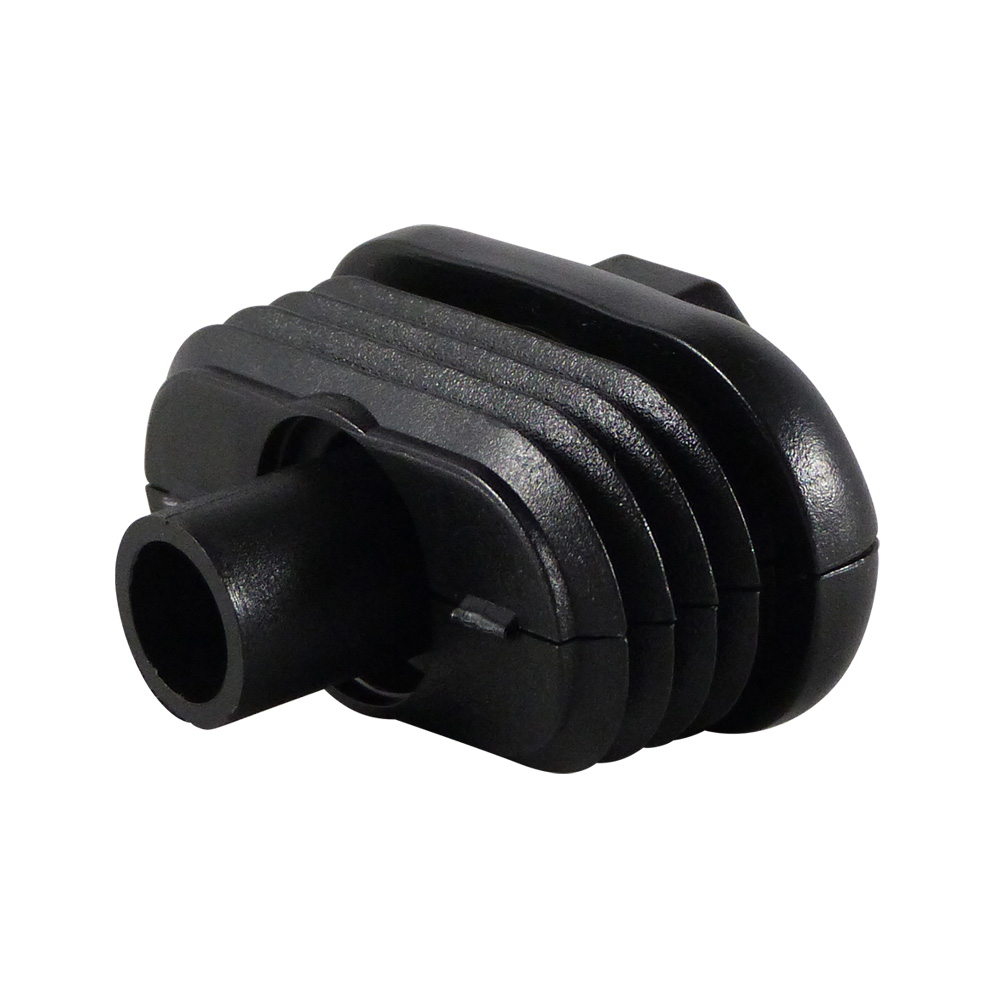

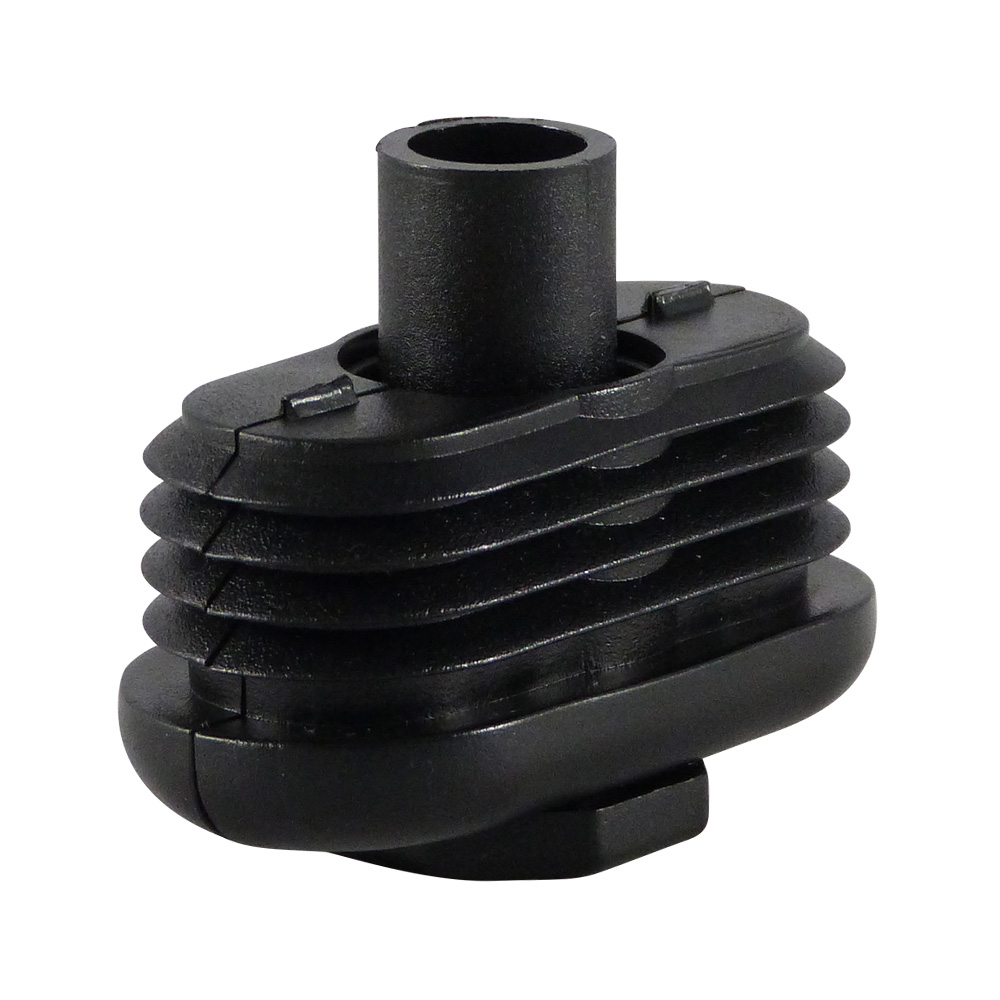

Height-adjustable tube inserts – flat oval
Product information
- Height-adjustable tube inserts, also referred to as levelling inserts, are available for flat oval tube from 38 x 20 mm to 60 x 30 mm inclusive, with wall thicknesses from 1.0 mm to 3.0 mm inclusive

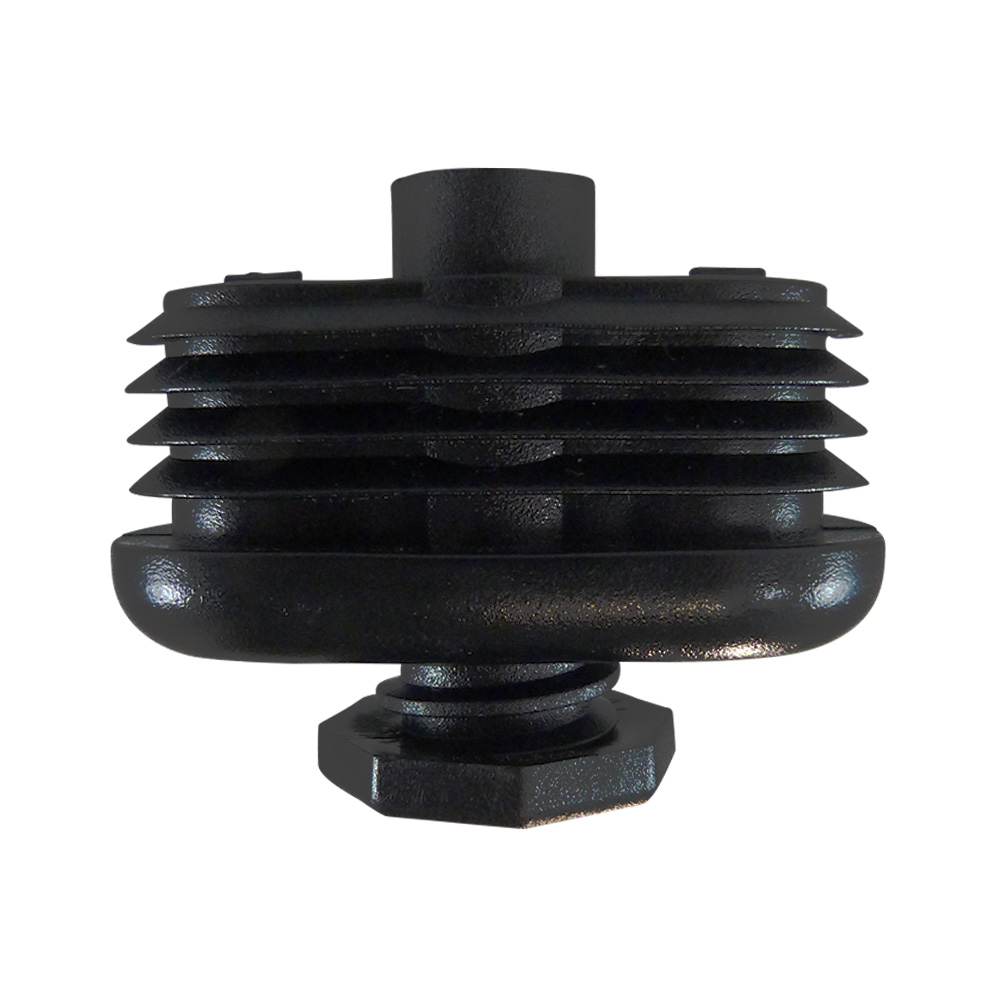

- The adjustable feet have threaded stems, thread size M8, M22 or trapezoidal thread
- The threaded stems vary in length from 20 mm to 25 mm inclusive

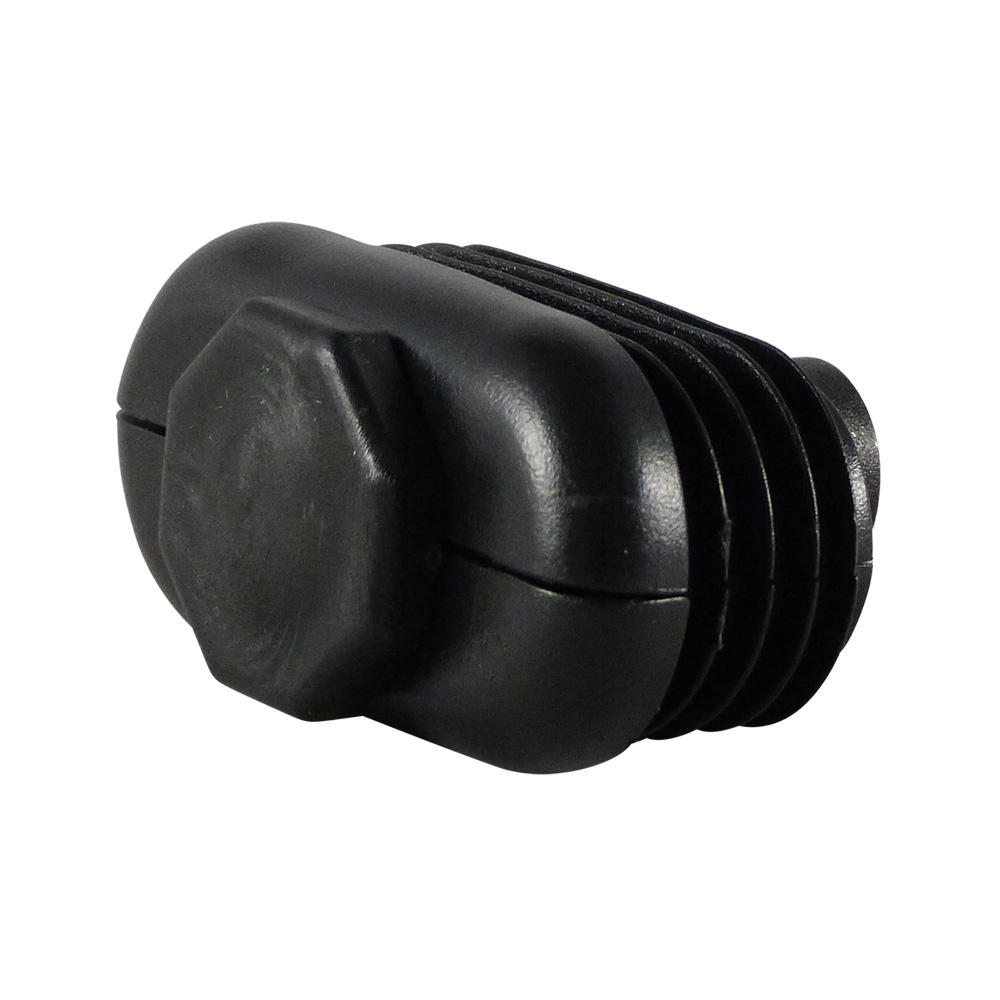

- Hexagonal foot, spanner size 27 mm or 28 mm
- Maximum static load capacity of 300 kg (based on an axial load with the stem extended by 10 mm on a completely flat surface)
- Not suitable for dynamic loads or pushing/sliding
- The stem must be screwed in and out under conditions of no load
- These levelling inserts are fitted as height-adjusters under tables, furniture, retail fixtures and tubular frames.
Material: PA (polyamide) or PE (polyethylene)
Colour: black
Additional information
Item 7193820 Z: Levelling foot with steel stem M8 x 25 and knurled edge on base. (not shown)
Legend

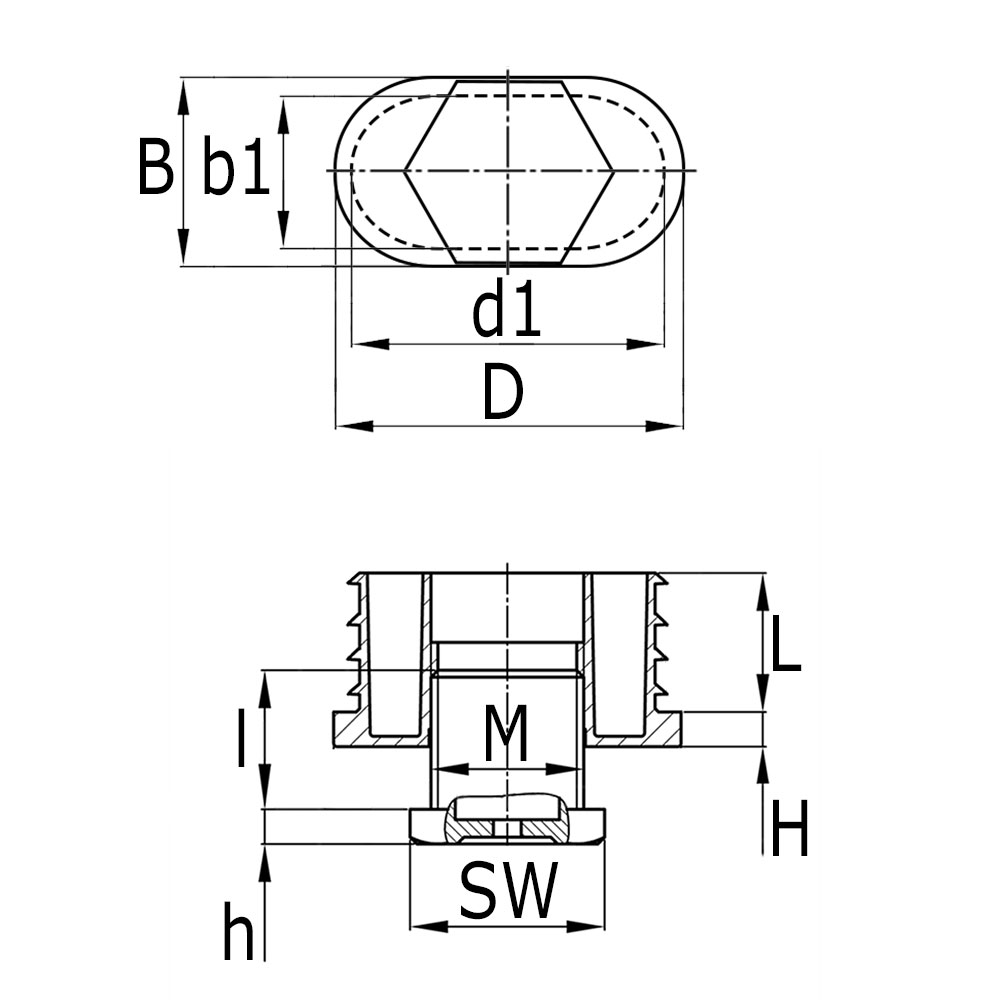

B x D= insert head size, b x d=ribbing sizes, H=head thickness, h=foot thickness, K=maximum static load capacity in kg, L=shaft length, l=length of threaded stem, M=thread size, Mat.=material, Model=wall thickness, R=radius, SW=spanner size for hexagonal foot, Tube size=external tube dimensions
