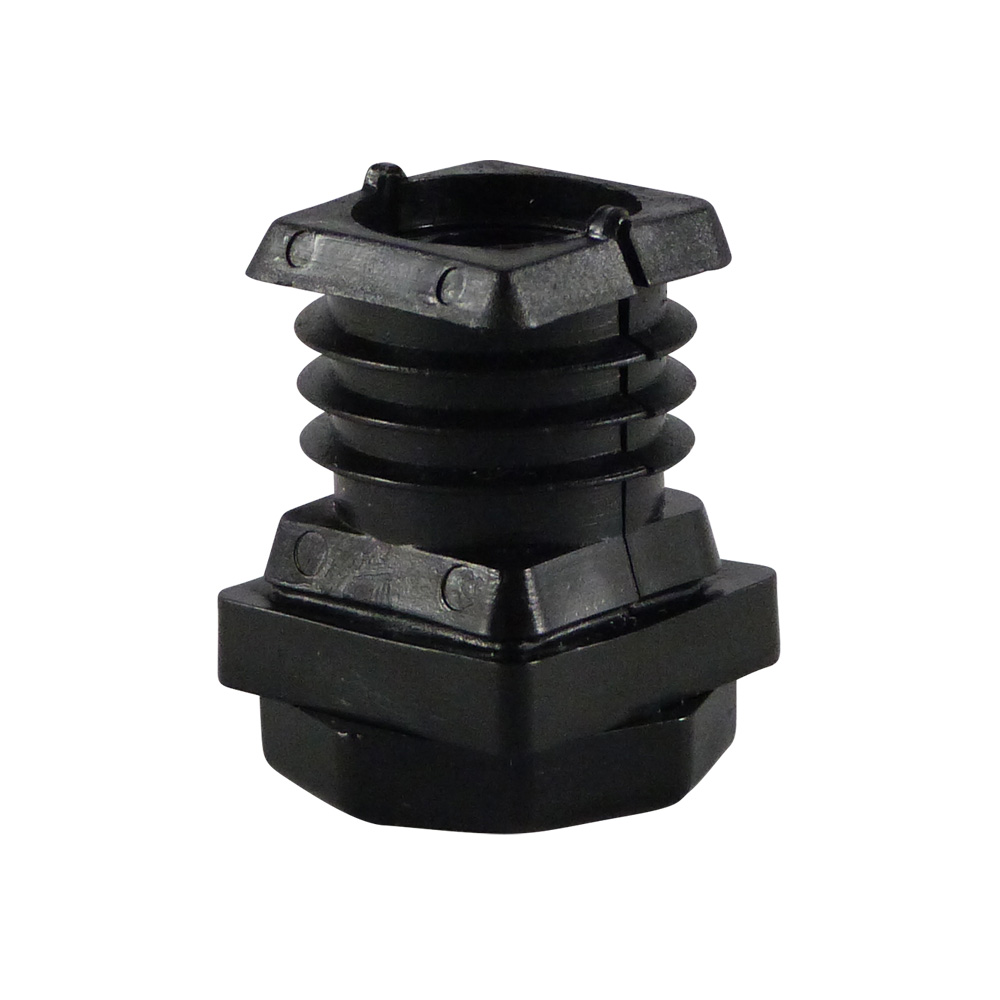

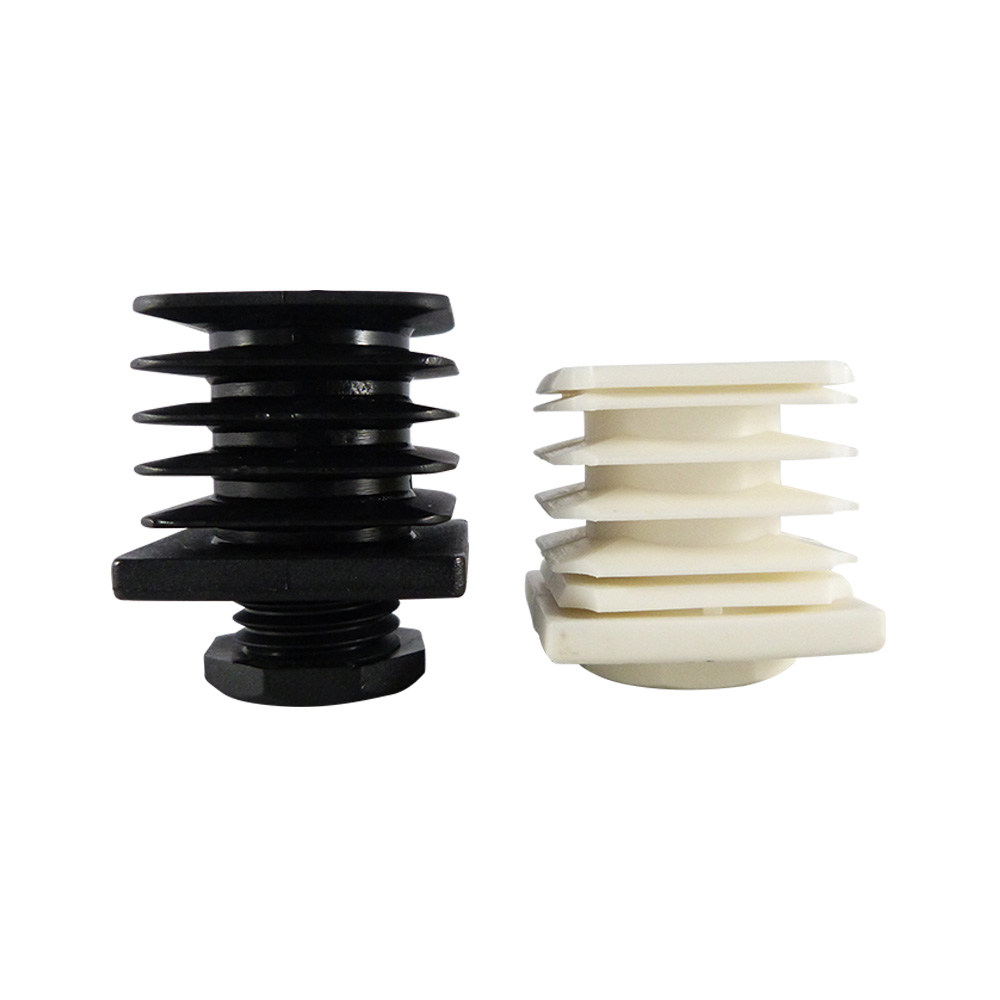

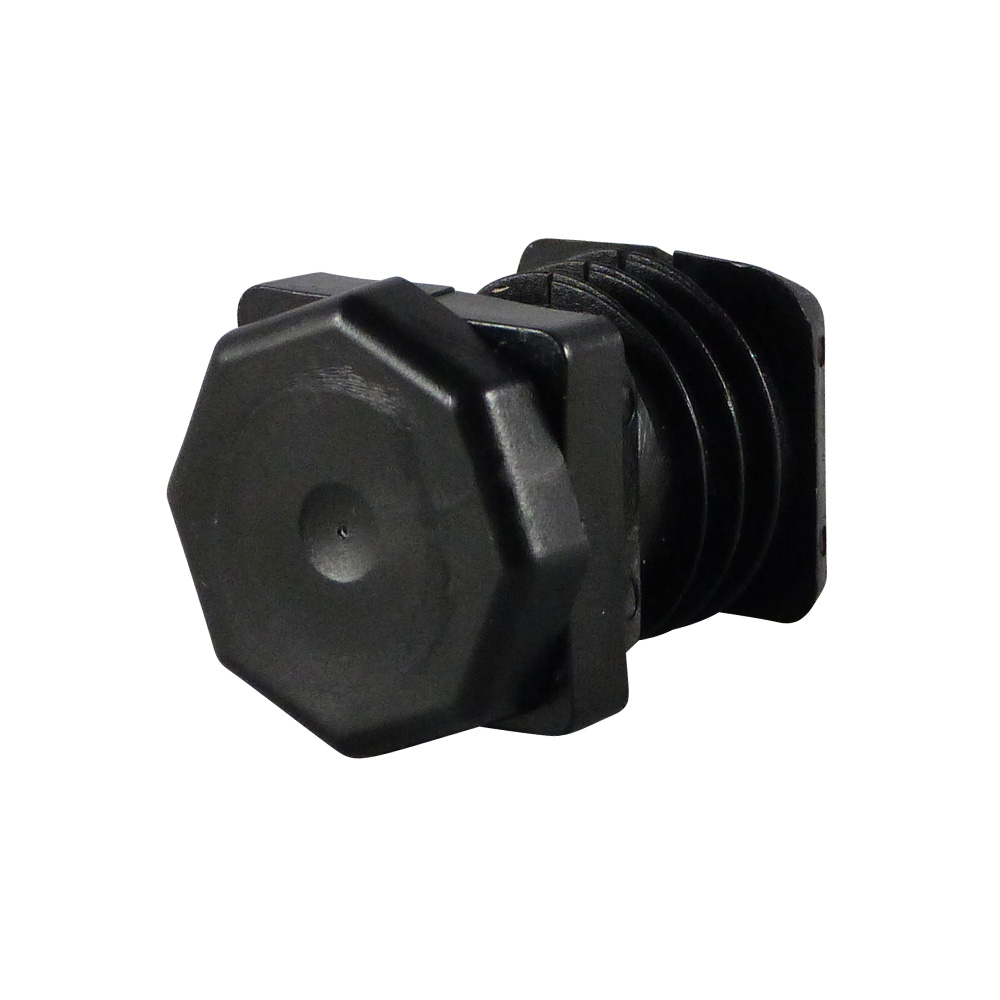

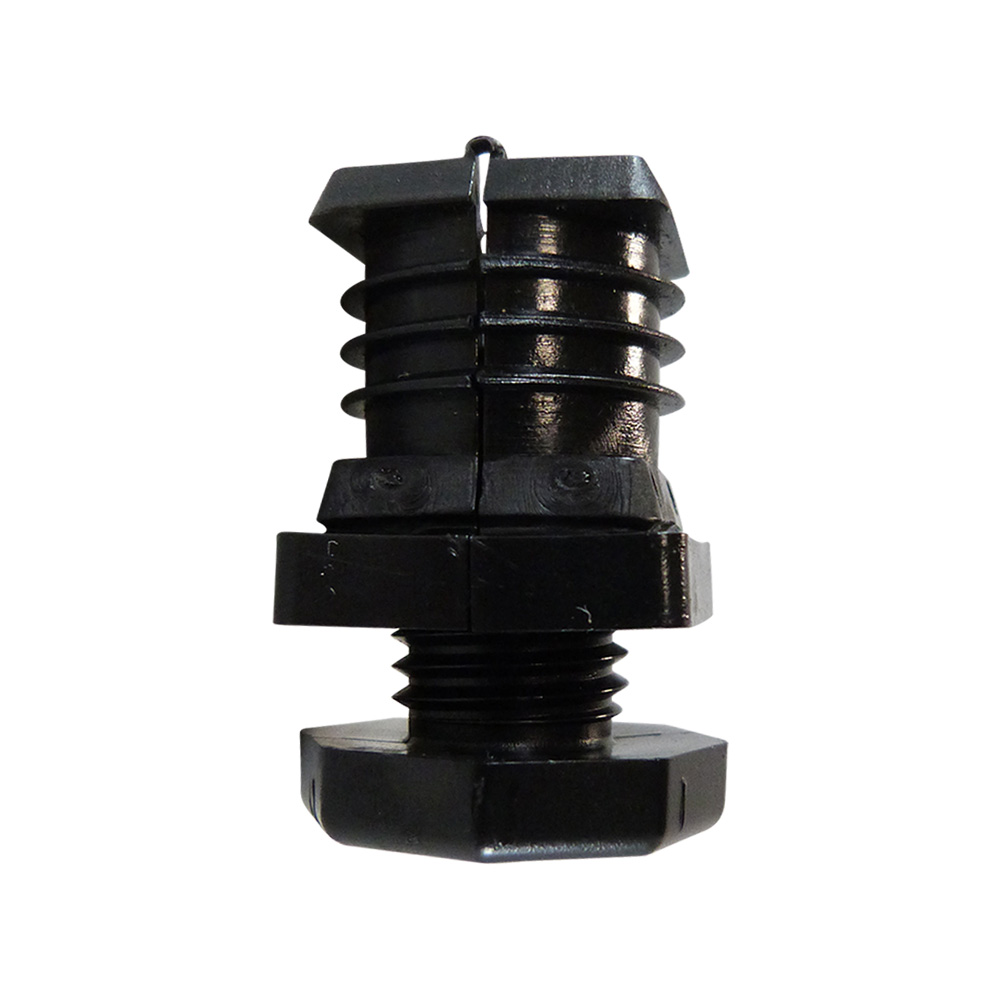

Height-adjustable tube inserts, also referred to as levelling inserts, are available for square tube or profile sizes from 20 x 20 mm to 60 x 60 mm inclusive, with wall thicknesses from 1.0 mm to 3.0 mm inclusive
The hexagonal plastic levelling feet have threaded stems sized from M10 to M30 inclusive and some models have a trapezoidal thread
The threaded stems vary in length from 20 mm to 60 mm inclusive
Maximum static load capacity of 300 kg (based on an axial load with the stem extended by 10 mm on a completely flat surface)
Not suitable as a glide or for dynamic loads
The stem must be screwed in and out under conditions of no load
These levelling inserts are fitted as height-adjusters under tables, furniture, retail fixtures and tubular frames.

Material: PA (polyamide) or PE (polyethylene)
Colour: black

Legend

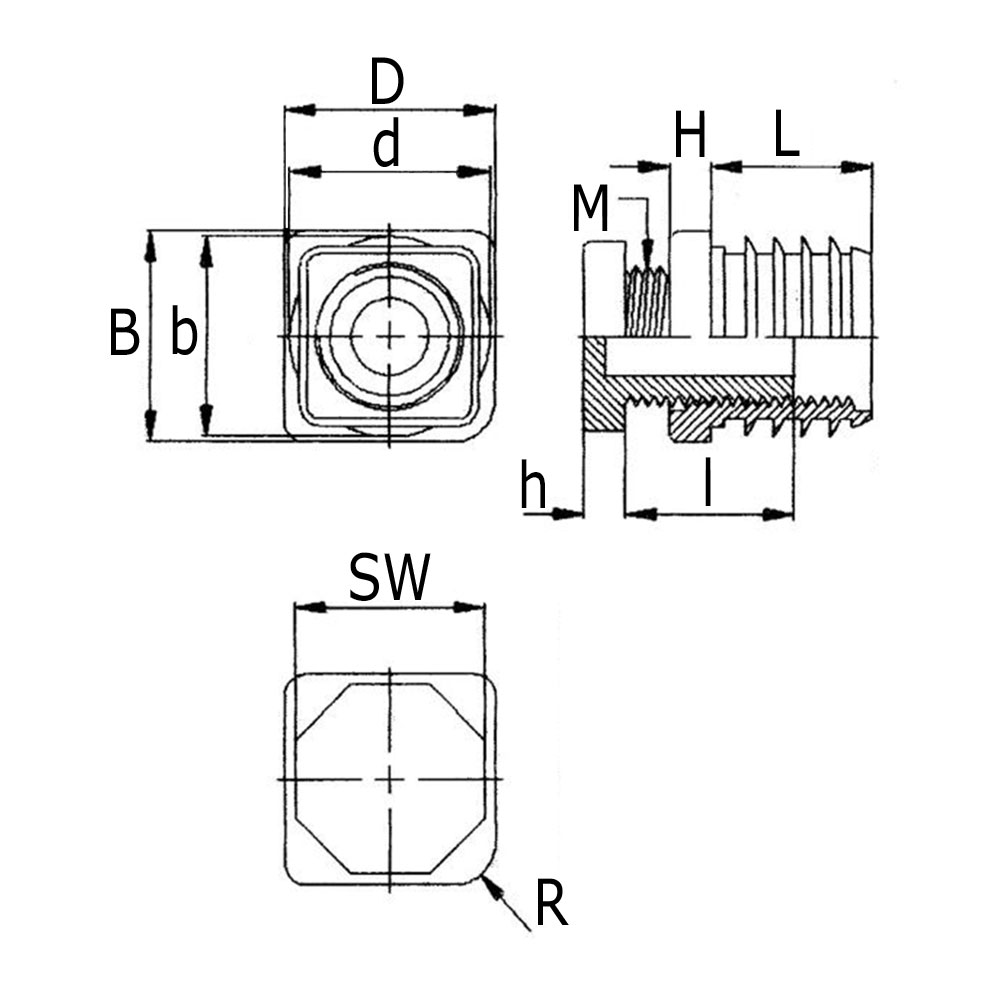

B x D= insert head size, b x d=ribbing sizes, H=head thickness, h=foot thickness, K=maximum static load capacity in kg, L=shaft length, l=length of threaded stem, M=thread size, Model=wall thickness, R=radius, SW=spanner size for hexagonal foot, Tube size=external tube dimensions, Type=drawing

Filter by

Show all filters

Show less filters

Reset all filters

Articles

1 pages - 1

Article	Description	d	b	Tube size	B	D	L	M	SW	l	Version	h	K	H	Colour/RAL
7002020 Z	Inserts for square/rectangular tubes with adjusting feet 20 x 20 M10 black black	18,6	18,6	20x20	20	20	17	M10	SW 20	25	1,5-2,0	4	100	5	Black
7002525 Z	Inserts for square/rectangular tubes with adjusting feet 25 x 25 M16 black	23,3	23,3	25x25	25	25	25	M16	SW 27	25	1,0-2,0	6	150	5,5	Black
7012525 Z	Inserts for square/rectangular tubes with adjusting feet 25 x 25 M216x60 black	23,6	23,6	25x25	25	25	23	M16	SW 28	60	1,5-2,0	6	150	5,5	Black
7003030 Z	Inserts for square/rectangular tubes with adjusting feet 30 x 30 M20 black	28,6	28,6	30x30	30	30	23	M20	SW 27	25	1,0-2,0	6	300	5,5	Black
7013030 Z	Inserts for square/rectangular tubes with adjusting feet 30 x 30 M22x60 black	28,6	28,6	30x30	30	30	23	M22	SW 28	60	1,5-2,0	6	300	5,5	Black
7003535 Z	Inserts for square/rectangular tubes with adjusting feet 35 x 35 M22 black	32,5	32,5	35x35	35	35	29,2	M22	SW 28	25	1,5-2,0	5	300	5	Black
7013535 Z	Inserts for square/rectangular tubes with adjusting feet 35 x 35 M22x60 black	32,5	32,5	35x35	35	35	29,2	M22	SW 28	60	1,5-2,0	5	300	5	Black
7004040 Z	Inserts for square/rectangular tubes with adjusting feet 40 x 40 M22 black	37	37	40x40	40	40	29	M22	SW 28	25	1,5-2,0	5	300	5	Black
7014040 Z	Inserts for square/rectangular tubes with adjusting feet 40 x 40 M22x60	42	37	40x40	40	40	32	M22	SW 28	60	1,5-2,0	5	300	5	Black
7034040 Z	Inserts for square/rectangular tubes with adjusting feet 40 x 40 x 3 M22x50	42	37	40x40	40	40	32	M22	SW 27	50	3	5	300	5	Black
7014545 Z	Inserts for square/rectangular tubes with adjusting feet 45 x 45 M30x60	42	42	45x45	45	45	32	M30	SW 41	60	1,5-2,0	5	300	5	Black
7004545 Z	Inserts for square/rectangular tubes with adjusting feet 45 x 45 M30 black	42	42	45x45	45	45	29	M30	SW 41	30	1,5-2,0	5	300	5	Black
7005050 Z	Inserts for square/rectangular tubes with adjusting feet 50 x 50 M30 black	48,5	48,5	50x50	50	50	29	M30	SW 41	30	1,5-2,0	5	300	5	Black
7015050 Z	Inserts for square/rectangular tubes with adjusting feet 50 x 50 M30x60 black	48,5	48,5	50x50	50	50	29	M30	SW 41	60	1,5-2,0	5	300	5	Black
7006060 Z	Inserts for square/rectangular tubes with adjusting feet 60 x 60 M22	58	58	60x60	60	60	30	M22	SW 27	30	1,5-2,0	5	300	5	Black
