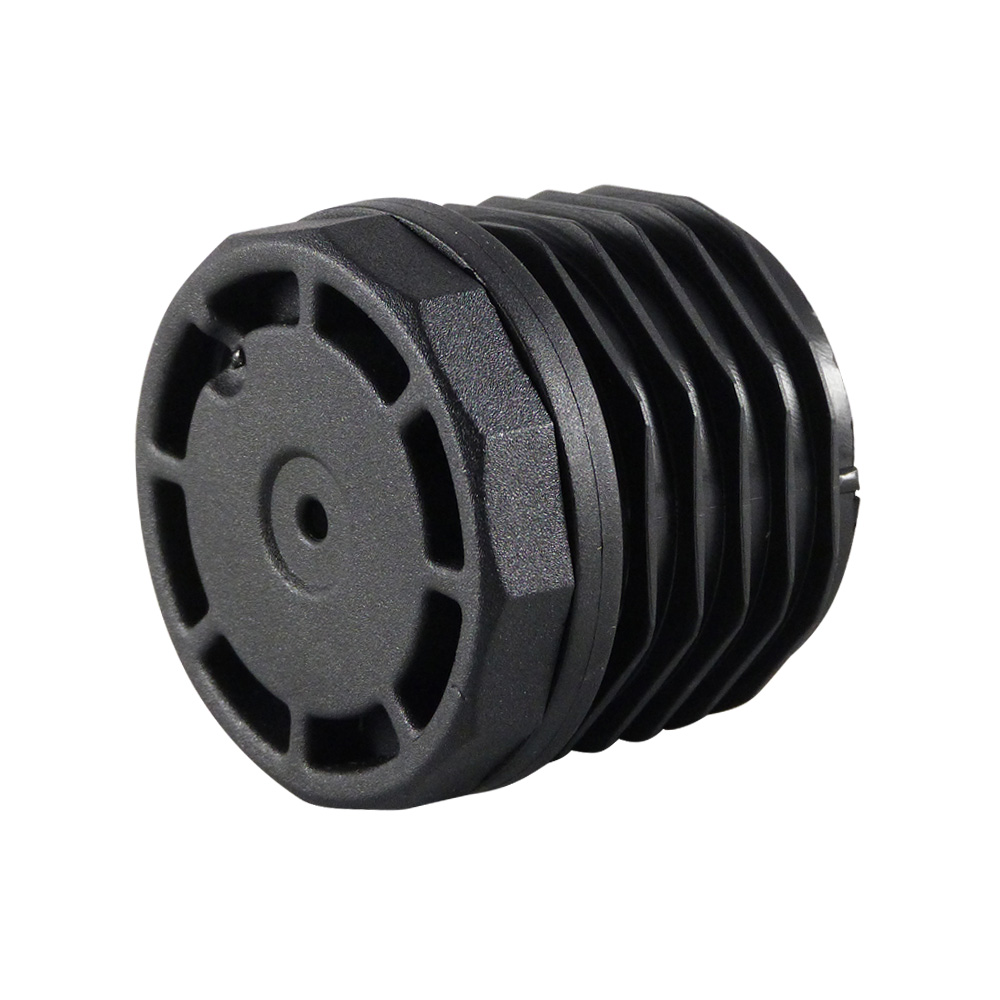

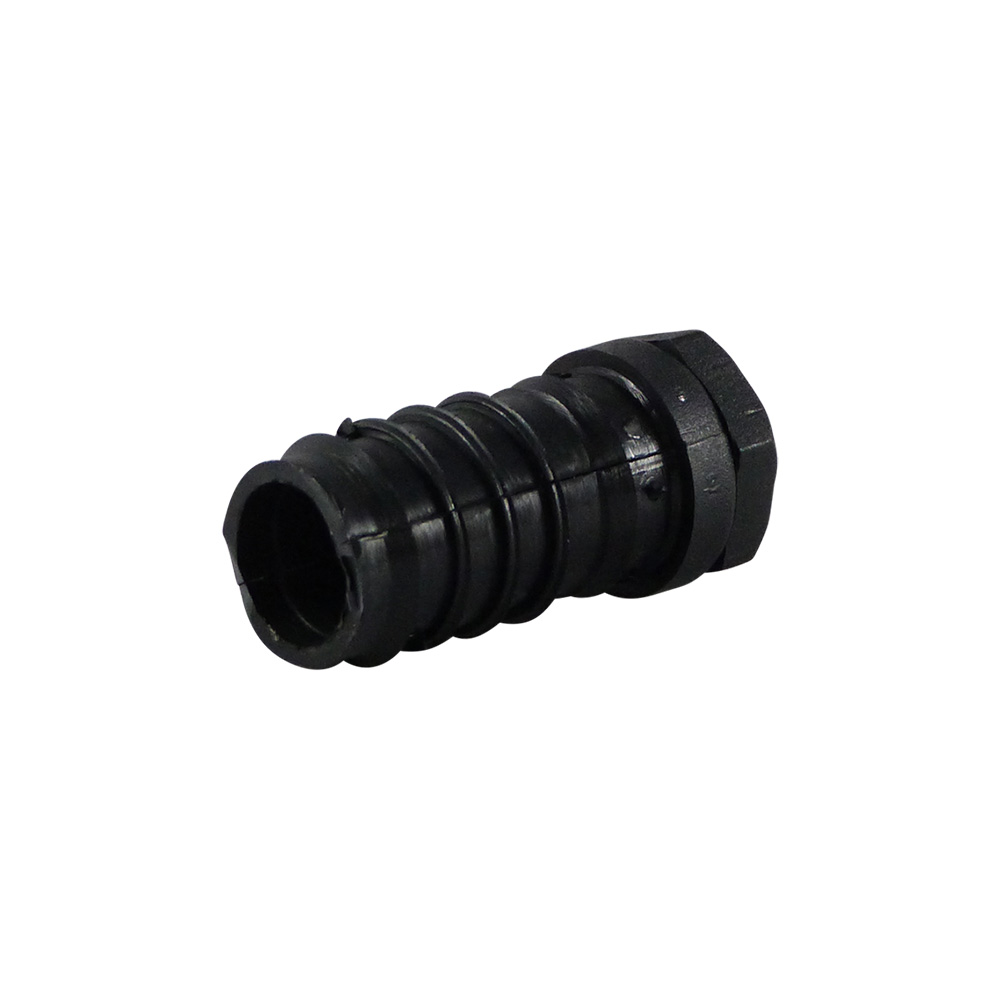

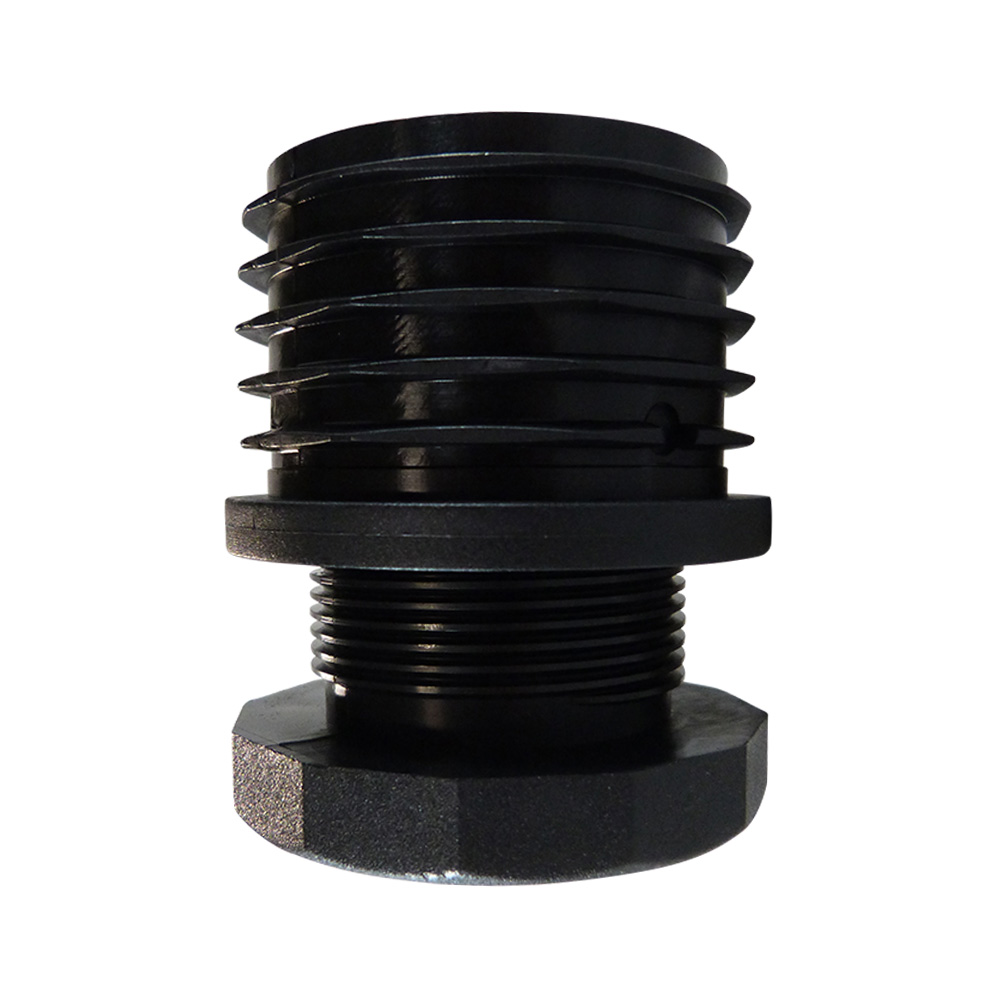

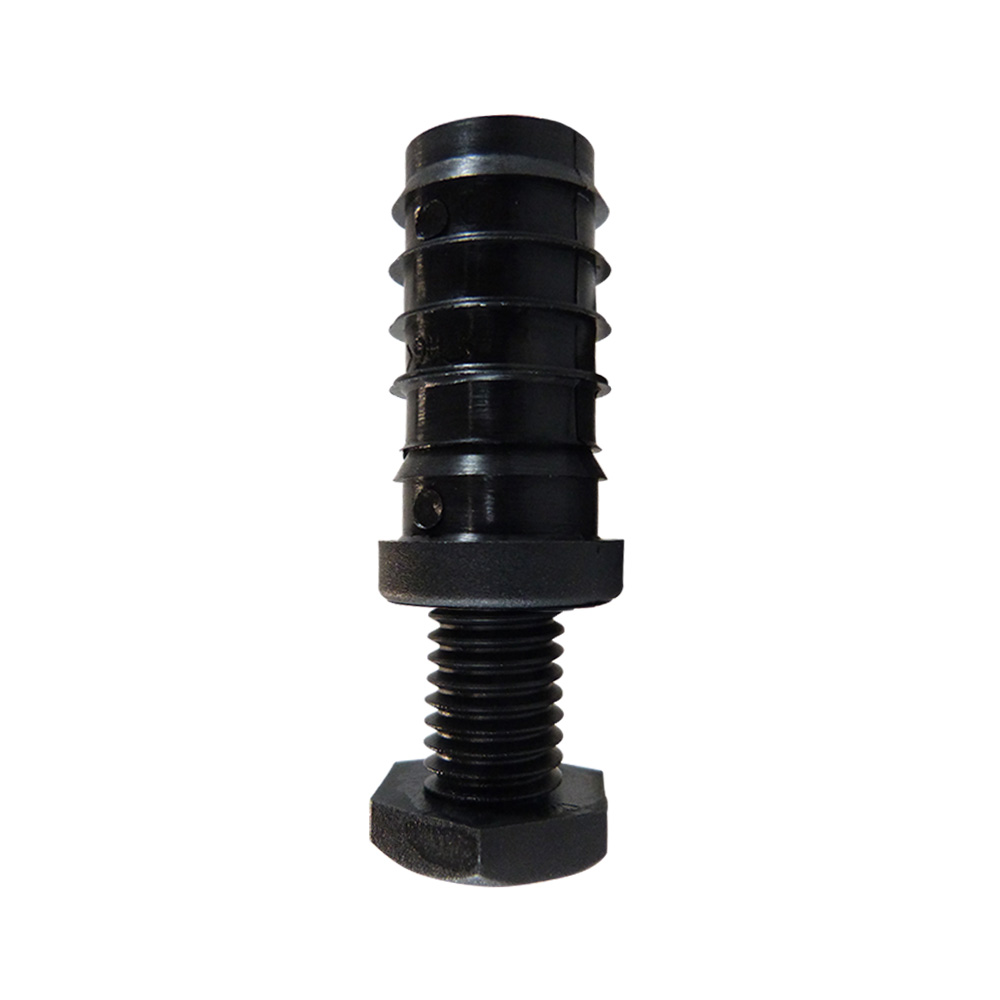

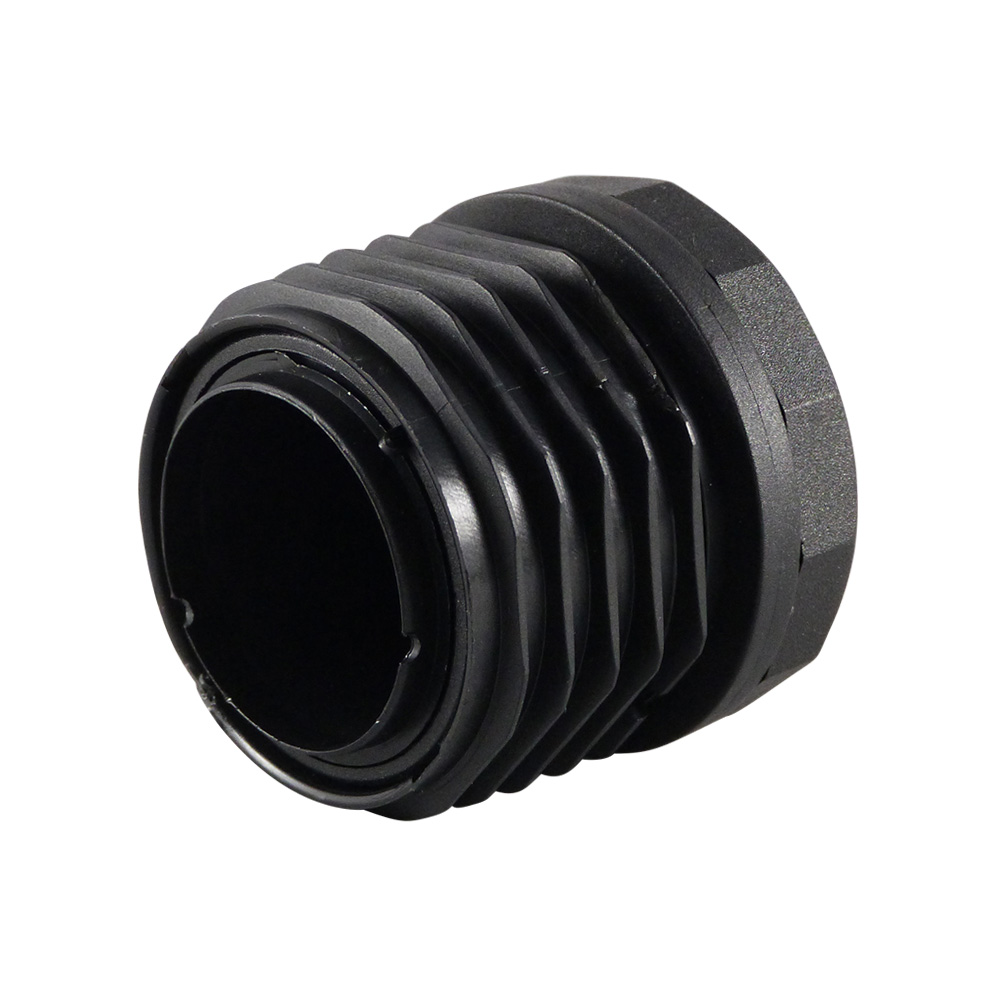

Height-adjustable tube inserts – round

Height-adjustable tube inserts – rounddrawing_1

Product information

Height-adjustable tube inserts, also referred to as levelling inserts, are available for round tube from Ø 20 mm to Ø 80 mm inclusive, with wall thicknesses from 1.0 mm to 2.0mm inclusive
The levelling feet have threaded stems, thread size from M10 to M64 inclusive
The threaded stems vary in length from 25 mm to 60 mm inclusive
Maximum static load capacity of 300 kg (based on an axial load with the stem extended by 10 mm on a completely flat surface)
Not suitable for dynamic loads or pushing/sliding
The stem must be screwed in and out under conditions of no load
These levelling inserts are fitted as height-adjusters under tables, furniture, retail fixtures and tubular frames.

Material: PA 6 (polyamide 6)
Colour: black

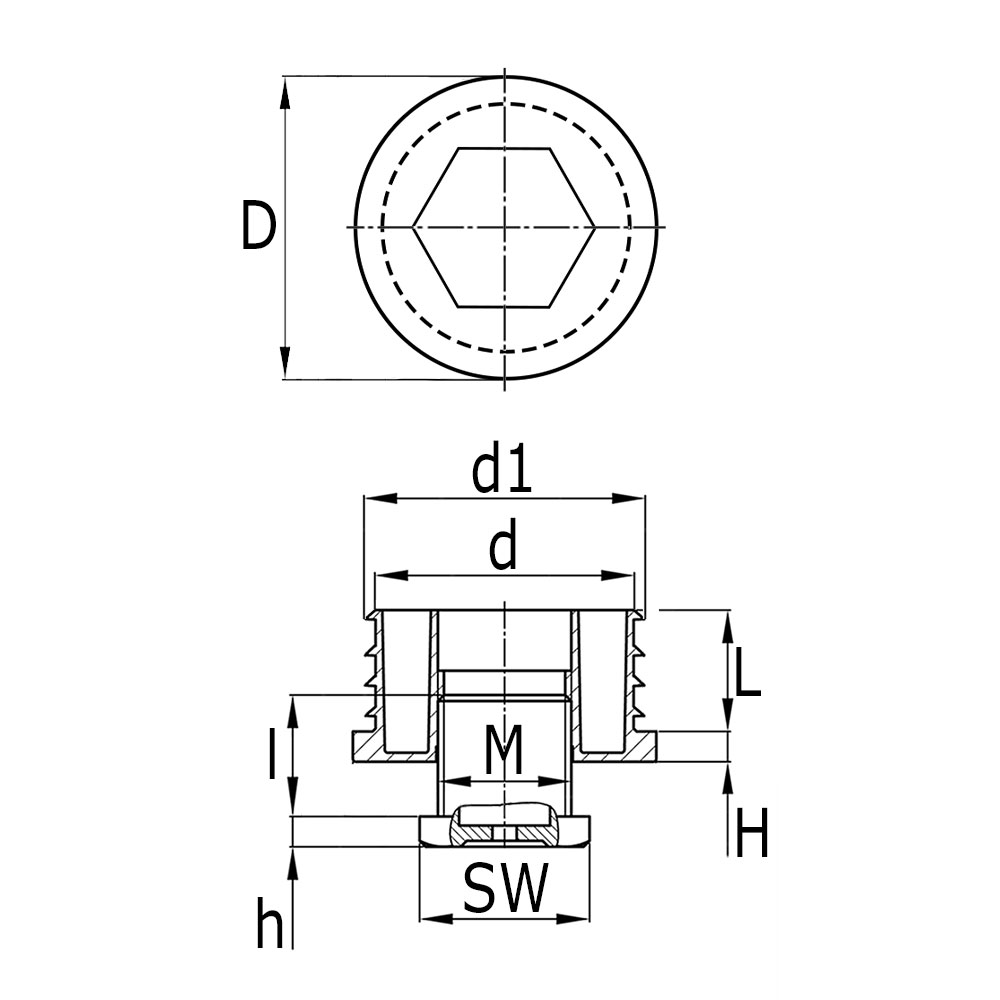

Legend
D=head Ø, d=shaft Ø, d1=ribbing Ø, H=head thickness, K=static load capacity in kg, L=shaft length, l=length of stem, M=thread size, Model=wall thickness, Tube size=external tube dimensions

Filter by

Show all filters

Show less filters

Reset all filters

Articles

1 pages - 1

Article	Description	M	Tube size	D	d	d1	Version	SW	H	Colour/RAL	h	K	L	l
7000020 Z	Inserts for round tubes with adjusting feet 20MM M12x30 black	M12	20	20	16	19	1,0-1,5	SW 19	5	Black	5	150	30	30
7000022 Z	Inserts for round tubes with adjusting feet 22MM M12x30 black	M12	22	22	17,5	20,5	1,5-2,0	SW 19	5	Black	5	150	30	30
7000025 Z	Inserts for round tubes with adjusting feet 25MM M12x30 black	M12	25	25	19,5	23,5	1,5-2,0	SW 19	5	Black	5	150	30	30

1 pages - 1
