ProductsAdjustable feet and machine feetAdjustable feet - plasticHeight-adjustable tube inserts – rectangular
7.3.11

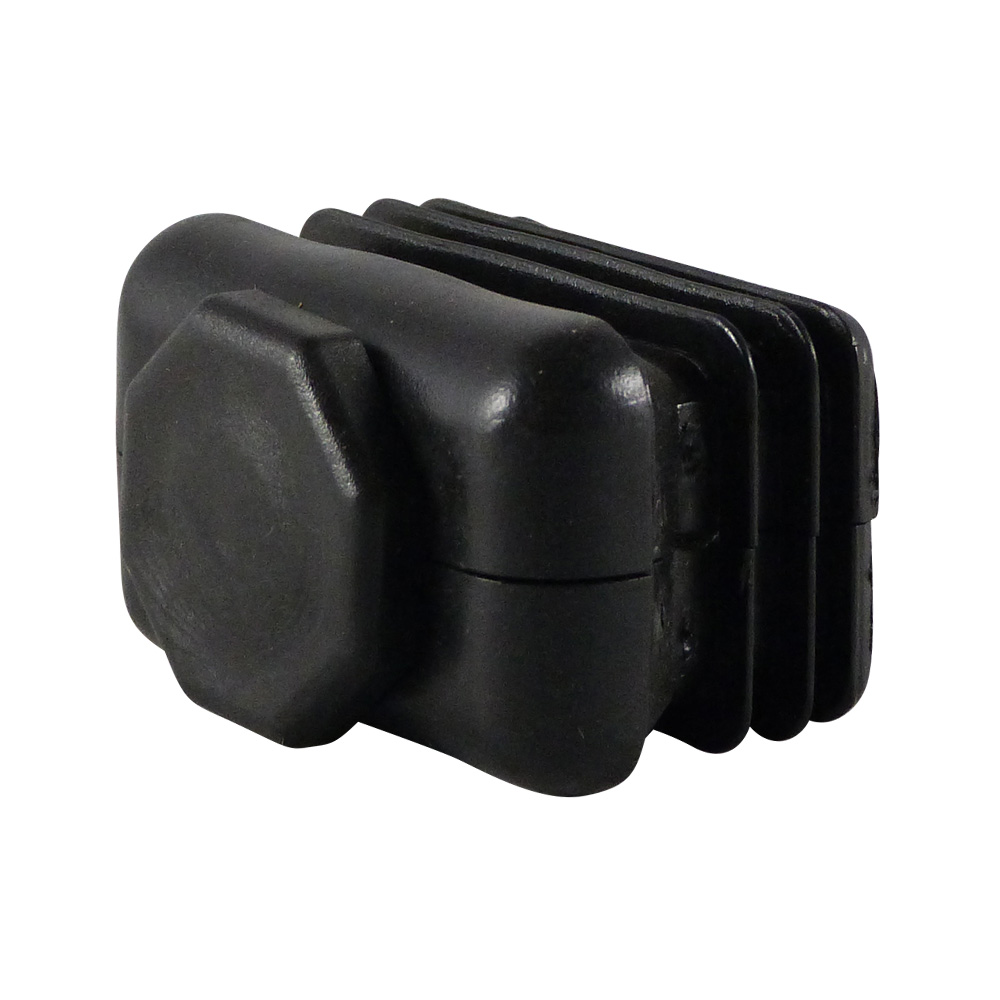

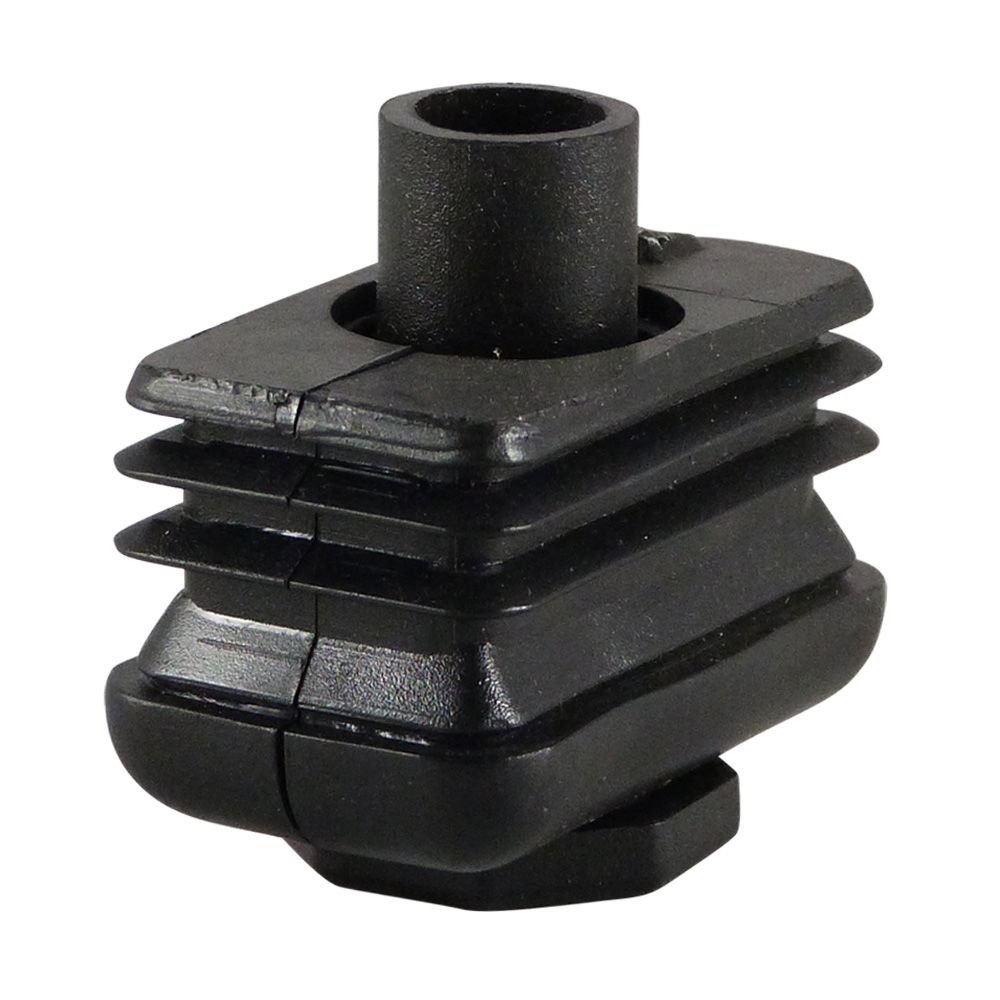

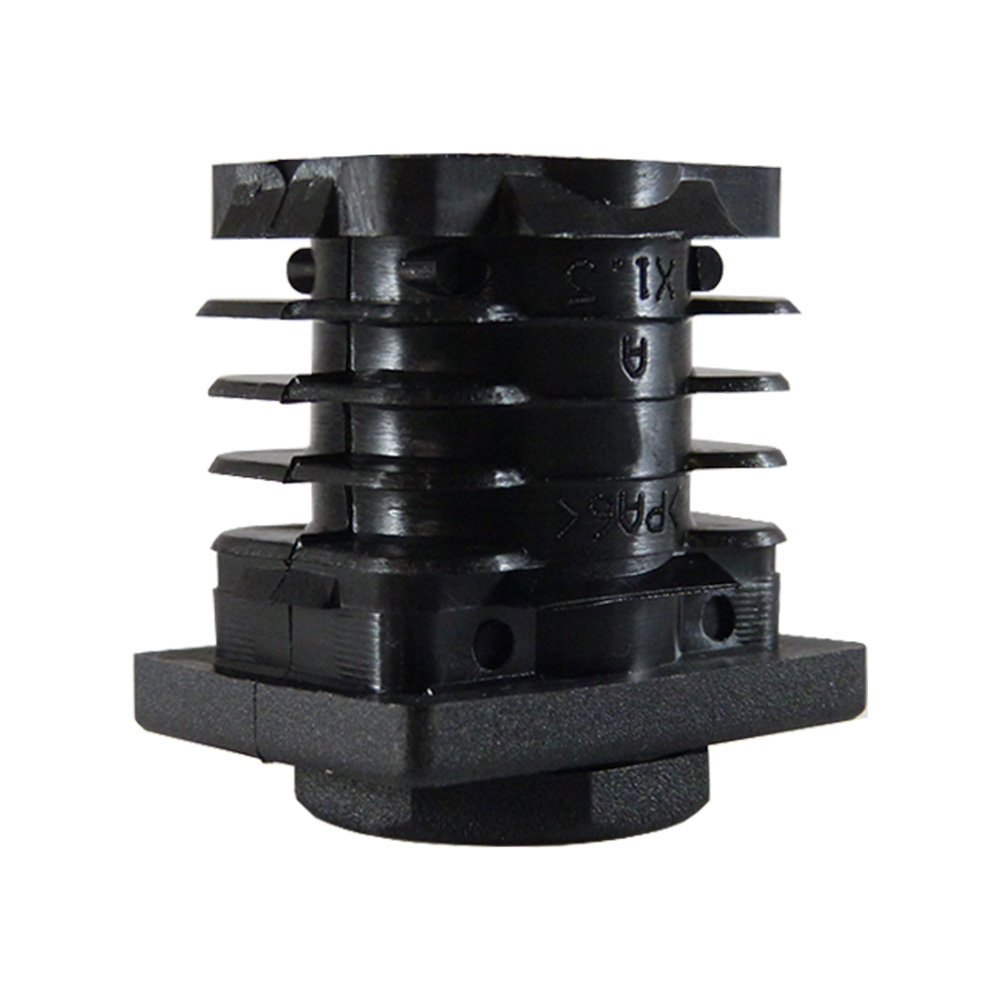

Height-adjustable tube inserts – rectangular

Height-adjustable tube inserts – rectangular
Height-adjustable tube inserts – rectangular
Height-adjustable tube inserts – rectangular
Height-adjustable tube inserts – rectangular
Height-adjustable tube inserts – rectangular
Height-adjustable tube inserts – rectangular
Height-adjustable tube inserts – rectangular
Height-adjustable tube inserts – rectangular
Height-adjustable tube inserts – rectangular
Height-adjustable tube inserts – rectangular
Height-adjustable tube inserts – rectangular
Height-adjustable tube inserts – rectangulardrawing_1
Product information
  • Height-adjustable tube inserts, also referred to as levelling inserts, are available for rectangular tube or profile sizes from 30 x 20 mm to 60 x 30 mm inclusive, with wall thicknesses from 1.0 mm to 2.0 mm inclusive
  • The hexagonal plastic levelling feet have threaded stems sized from M12 to M22 inclusive and some models have a trapezoidal thread
  • The threaded stems vary in length from 20 mm to 47 mm inclusive
  • Maximum static load capacity of 300 kg (based on an axial load with the stem extended by 10 mm on a completely flat surface)
  • Not suitable as a glide or for dynamic loads
  • The stem must be screwed in and out under conditions of no load
  • These levelling inserts are fitted as height-adjusters under tables, furniture, retail fixtures and tubular frames.

Material: PA (polyamide) or PE (polyethylene)
Colour: black

Legend

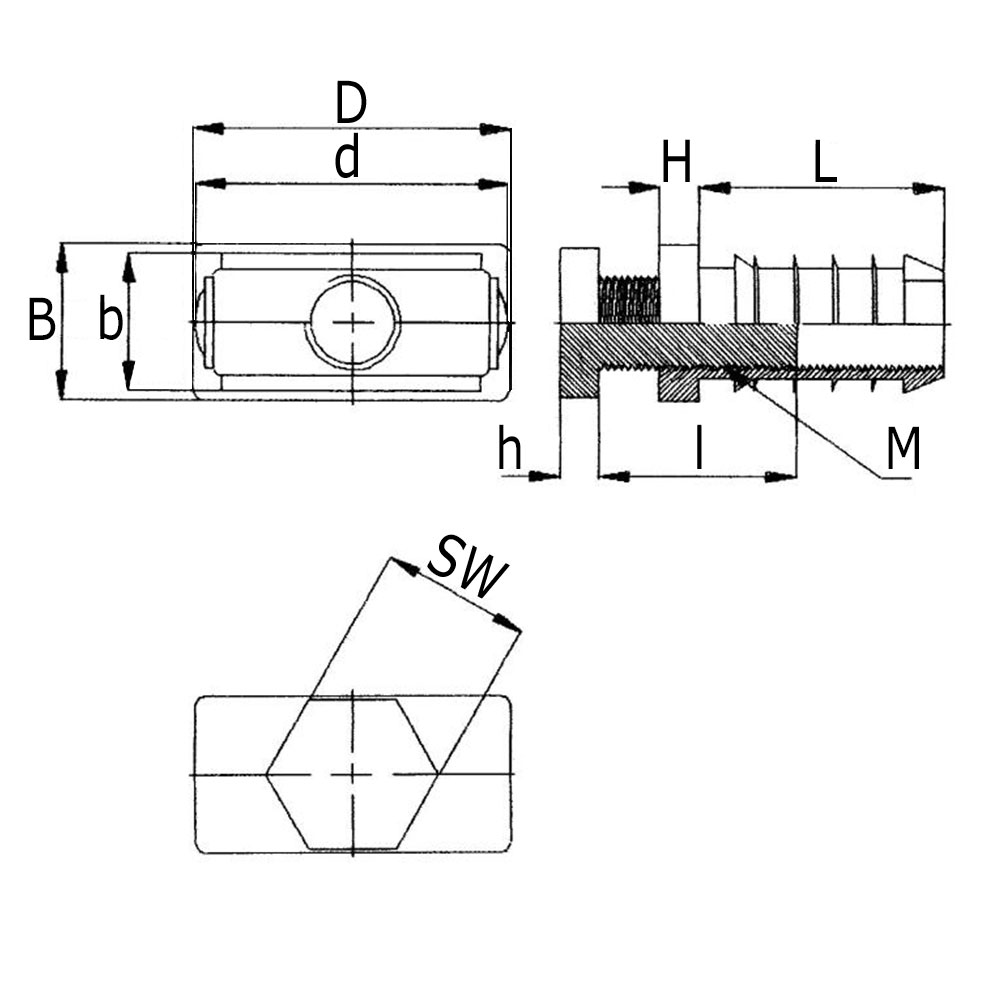

B x D= insert head size, b x d=ribbing sizes, H=head thickness, h=foot thickness, K=maximum static load capacity in kg, L=shaft length, l=length of threaded stem, M=thread size, Model=wall thickness, R=radius, SW=spanner size for hexagonal foot, Tube size=external tube dimensions, Type=drawing

Filter by
Reset all filters
1 pages -   1

Article Description Tube size M D d b Version
7003020 Z Inserts for square/rectangular tubes with adjusting feet 30 x 20 M12 black 30 x 20 M12 30 28,5 18 1-2
7004020 Z Inserts for square/rectangular tubes with adjusting feet 40 x 20 M12 black 40 x 20 M12 40 39,5 17,5 1,5
7005020 Z Inserts for square/rectangular tubes with adjusting feet 50 x 20 M12 black 50 x 20 M12 50 48,5 18,5 1-2

1 pages -   1
