ProductsTube insertsSquare threaded tube insertsHeight-adjustable inserts for 40 x 40 box-section tube – extensive range of adjustment

Height-adjustable inserts for 40 x 40 box-section tube – extensive range of adjustment

Height-adjustable inserts for 40 x 40 box-section tube – extensive range of adjustmentdrawing_1

Height-adjustable inserts for 40 x 40 box-section tube – extensive range of adjustmentdrawing_2

Product information

This type of height-adjustable insert with a screw-in/screw-out fixed plastic base, also referred to as a levelling foot, is available for 40 x 40 mm square tube, with wall thicknesses from 1.0 mm to 2.0 mm inclusive
Extensive range of adjustment, maximum infinitely variable height adjustment of 100 mm or 170 mm
Levelling foot with round base, diameter Ø 40 mm or Ø 68 mm
This type of height-adjustable insert is generally used in the office furniture sector as a levelling foot for sit-stand desks, office tables, computer workstations, workbenches and writing tables where ergonomic height adjustment is an important requirement.

Material: PA GF (glass fibre reinforced polyamide)
Colour: black

Optional accessory

Anti-slip pads (4 x per foot)

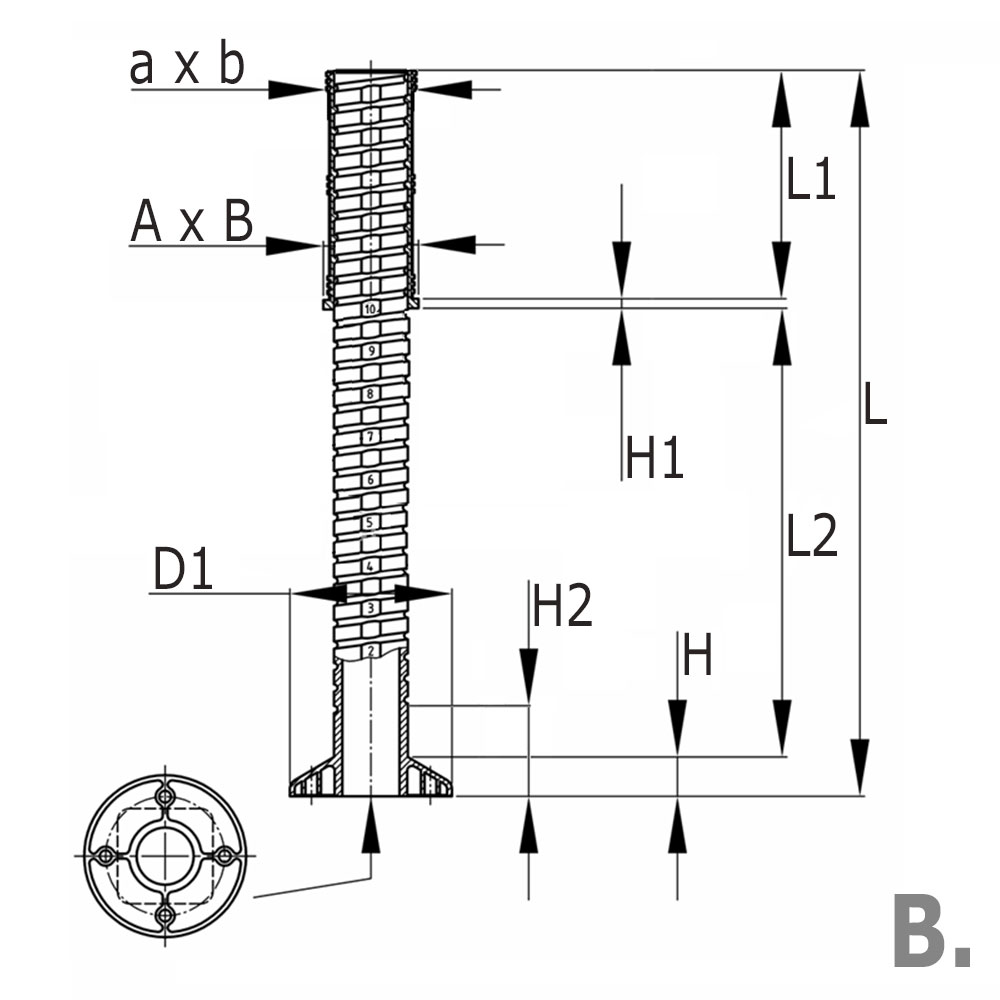

Legend
A x B=shoulder sizes, a x b=ribbing sizes, D1=foot Ø, H=foot height, H1=shoulder thickness, H2=minimum height with stem fully screwed in, L=total length, L1=shaft length, L2=adjustment range, Model=wall thickness, Tube size=external tube dimension

Filter by

Show all filters

Show less filters

Reset all filters

Articles

1 pages - 1

Article	Description	Version	Type	MOQ	a	b	D1	L	L2	Tube size	A	B	H	Colour/RAL	H1	H2	L1
7009402 Z	Height adjustement for square tubes 40x40x1,5 foot 40mm adjusting reach 100mm	1,5	A	400	37,5	37,5	40	198,5	100	40x40	40	40	15	Black	4	20,5	96
7009440 Z	Height adjustement for square tubes 40x40x1,5 foot 68mm adjusting reach 100mm	1,5	B	400	37,5	37,5	68	198,5	100	40x40	40	40	15	Black	4	20,5	96
7003440 Z	Height adjustement for square tubes 40x40x2 foot 68mm adjusting reach 100mm	2,0	B		36,5	36,5	68	198,5	100	40x40	40	40	15	Black	4	20,5	96
7004402 Z	Height adjustement for square tubes 40x40x2 foot 40mm adjusting reach 100mm	2,0	A		36,5	36,5	40	198,5	100	40x40	40	40	15	Black	4	20,5	96
7008401 Z	Height adjustement for square tubes 40x40x1,5 foot 40mm adjusting reach 170mm	1,5	A		37,5	37,5	40	283,5	170	40x40	40	40	15	Black	4	20,5	96
7008440 Z	Height adjustement for square tubes 40x40x1,5 foot 68mm adjusting reach 170mm	1,5	B	400	37,5	37,5	68	283,5	170	40x40	40	40	15	Black	4	20,5	96
7002440 Z	Height adjustement for square tubes 40x40x2 foot 68mm adjusting reach 170mm	2,0	B	200	36,5	36,5	68	283,5	170	40x40	40	40	15	Black	4	20,5	96
7004401 Z	Height adjustement for square tubes 40x40x2 foot 40mm adjusting reach 170mm	2,0	A		36,5	36,5	40	283,5	170	40x40	40	40	15	Black	4	20,5	96

1 pages - 1
