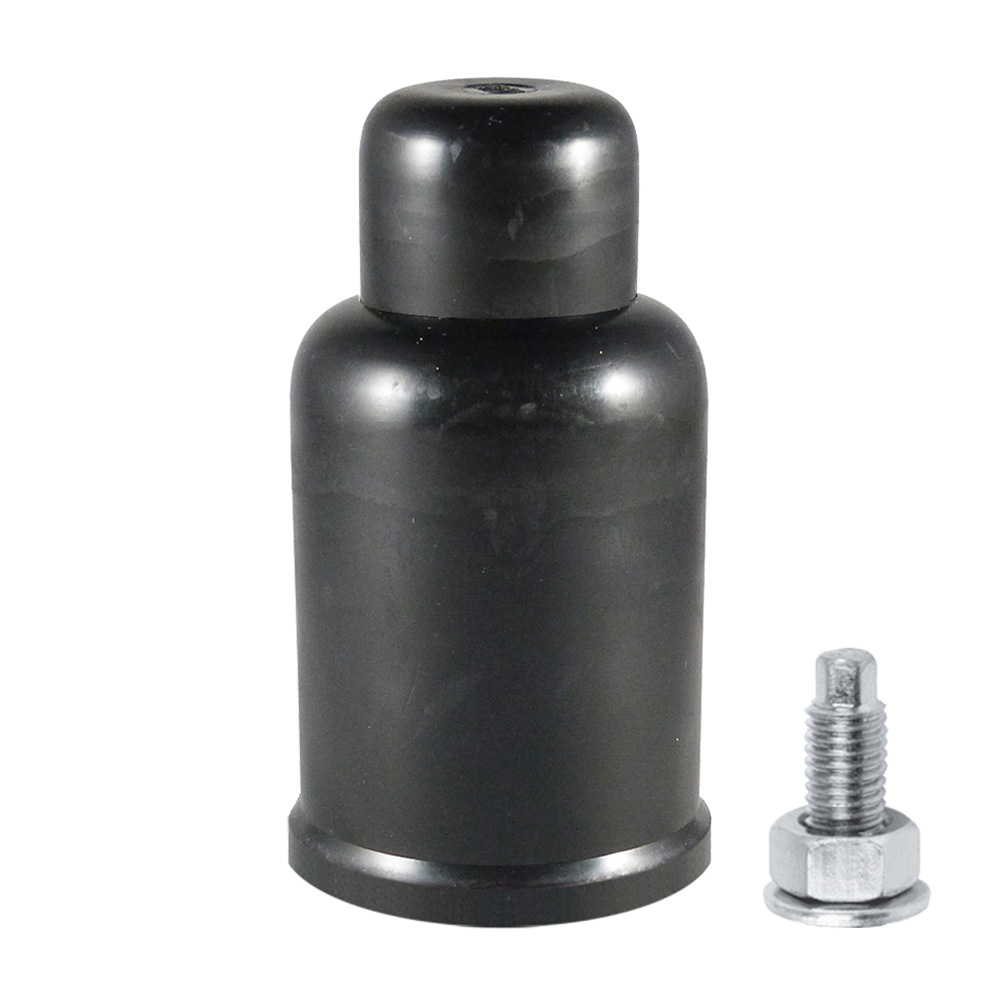

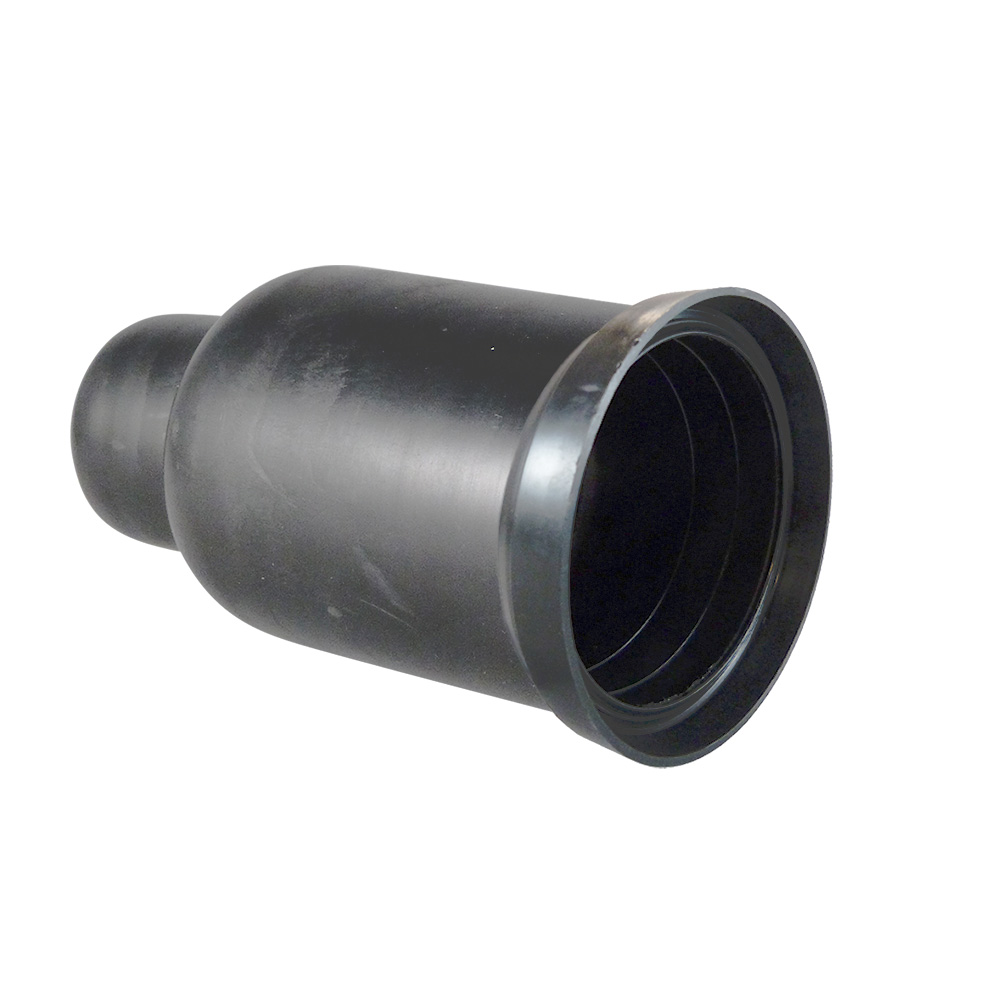

Telescopic round bolt and nut protection cap M27 SW 41 H=154 black with washer cover

Save

D :	53.4
M :	M27
d :	50
h :	154
t :	4
SW :	SW41
UNC :	1"
DIN :	DIN125/126
Colour/RAL :	Black

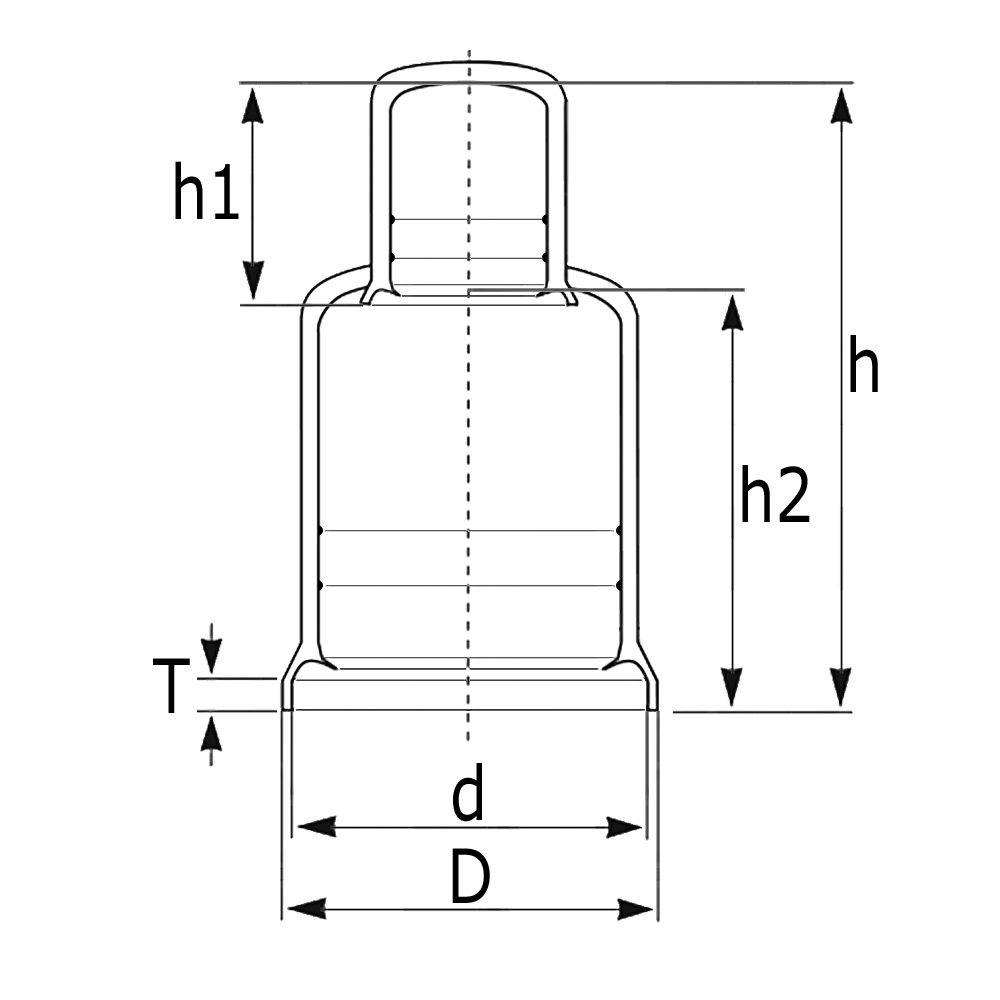

Legend
D=outside Ø, d=internal Ø washer cover, H=total internal height, H1=internal height (approximate), H2=internal height (approximate), h=internal height washer cover, M=metric thread size, Model.=*=not suitable for double nut arrangement, SW=open-ended spanner size, UNC=UNC thread

NB. H1 and H2 are estimated based on the separate component dimensions. As a result, the actual dimensions may differ by a few millimetres.
