Hollow end silicone rubber tapered plug

Hollow end silicone rubber tapered plug
Hollow end silicone rubber tapered plug
Hollow end silicone rubber tapered plug
Hollow end silicone rubber tapered plugdrawing_1

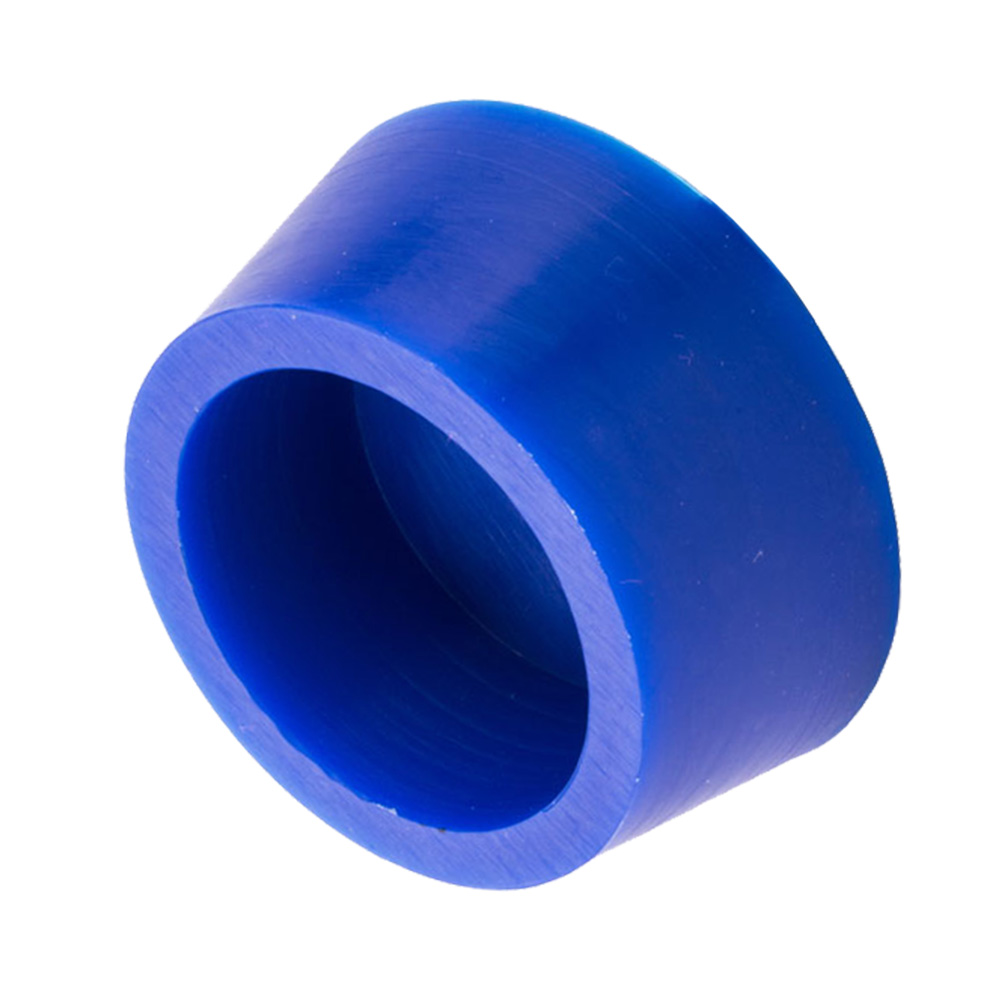

Product information
  • Tapered plugs made from silicone rubber, also known as conical plugs, are available from Ø 23 mm to Ø103 mm inclusive
  • This hollow end model is lighter and saves costs in comparison to the solid variety
  • Heat-resistant silicone rubber, capable of withstanding 315°C
  • The tapered shape makes it possible to plug varying hole diameters
  • Reusable
  • For sealing and closing bottles, pipes, cylinders, glassware, vessels, etc.
  • Tapered plugs are suitable for masking, plugging or capping holes, drillings and pipes during transport or surface treatment processes such as grit blasting, galvanising processes, anodising, cathodic dip coating, electrocoating , powder coating etc.

Material: Silicone rubber
Colours: various

Available on request in
  • Different sizes
  • Colours for size identification

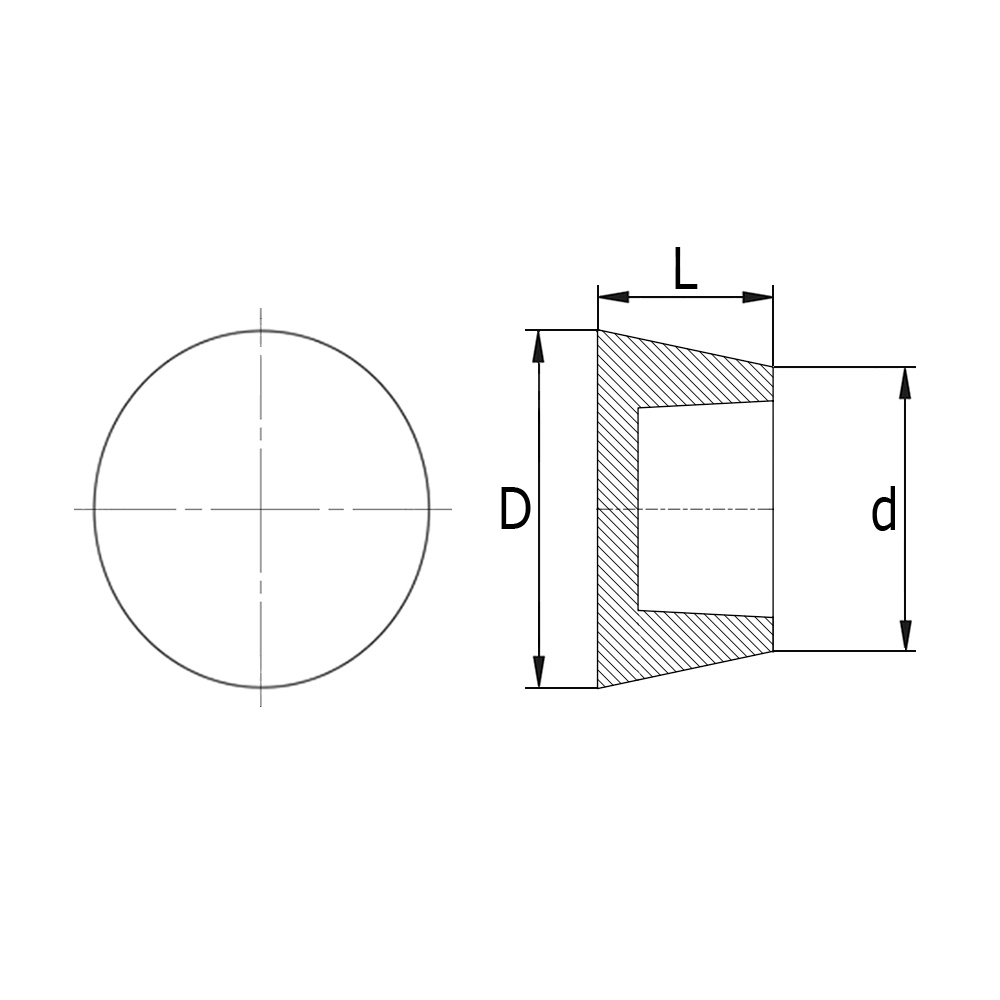

Legend
Tube size=taper range from small Ø to large Ø, D=large Ø, d=small Ø, L=height

Filter by
1 pages -   1

Article Description D d Tube size M L
61.0270.025 Hohl Conical Plug 23-27 L=25.4 Silicone 27 23 24 - 26 M24 25,4
61.0280.025 Hohl Conical Plug 24-28 L=25.4 Silicone 28 24 25 - 27 M26 25,4
61.0320.025 Hohl Conical Plug 26-32 L=25.4 Silicone 32 26 27 - 31 0 25,4
61.0340.025 Hohl Conical Plug 27-34 L=25.4 Silicone 34 27 28 - 33 M26 - M30 25,4
61.0370.025 Hohl Conical Plug 30-37 L=25.4 Silicone 37 30 31 - 36 M32 - M34 25,4
61.0390.025 Hohl Conical Plug 31-39 L=25.4 Silicone 39 31 32 - 38 M34 25,4
61.0410.025 Hohl Conical Plug 33-41 L=25.4 Silicone 41 33 34 - 40 0 25,4
61.0430.025 Hohl Conical Plug 36-43 L=25.4 Silicone 43 36 37 - 42 0 25,4
61.0450.025 Hohl Conical Plug 37-45 L=25.4 Silicone 45 37 38 - 44 M38 - M45 25,4
61.0460.025 Hohl Conical Plug 38-46 L=25.4 Silicone 46 38 39 - 45 0 25,4
61.0500.025 Hohl Conical Plug 42-50 L=25.4 Silicone 50 42 44 - 48 0 25,4
61.0530.025 Hohl Conical Plug 45-53 L=25.4 Silicone 53 45 47 - 51 0 25,4
61.0560.025 Hohl Conical Plug 48-56 L=25.4 Silicone 56 48 50 - 54 0 25,4
61.0627.025 Hohl Conical Plug 50-62.7 L=25.4 Silicone 62,7 50 53 - 60 0 25,4
61.0640.025 Hohl Conical Plug 54-64 L=25.4 Silicone 64 54 58 - 62 0 25,4
61.0680.025 Hohl Conical Plug 58-68 L=25.4 Silicone 68 58 60 - 66 0 25,4
61.0750.025 Hohl Conical Plug 62-75 L=25.4 Silicone 75 62 65 - 73 0 25,4
61.0820.038 Hohl Conical Plug 68-82 L=38.1 Silicone 82 68 70 - 80 0 38,1
61.0890.038 Hohl Conical Plug 76-89 L=38.1 Silicone 89 76 77 - 87 0 38,1
61.0900.025 Hohl Conical Plug 75-90 L=25.4 Silicone 90 75 77 - 87 0 25,4
61.0900.039 Hohl Conical Plug 75-90 L=39 Silicone 90 75 77 - 87 0 39
61.1010.038 Hohl Conical Plug 82.5-101 L=38.1 Silicone 101 82,5 88 - 99 0 38,1
61.1030.039 Hohl Conical Plug 83-103 L=39 Silicone 103 83 90 - 100 0 39
