ProductsGas springs and accessoriesBall and socket jointsBall and socket joints

15.4.1

Ball and socket joints

Ball and socket joints

Ball and socket joints

Ball and socket joints

Ball and socket jointsdrawing_1

Productinformatie

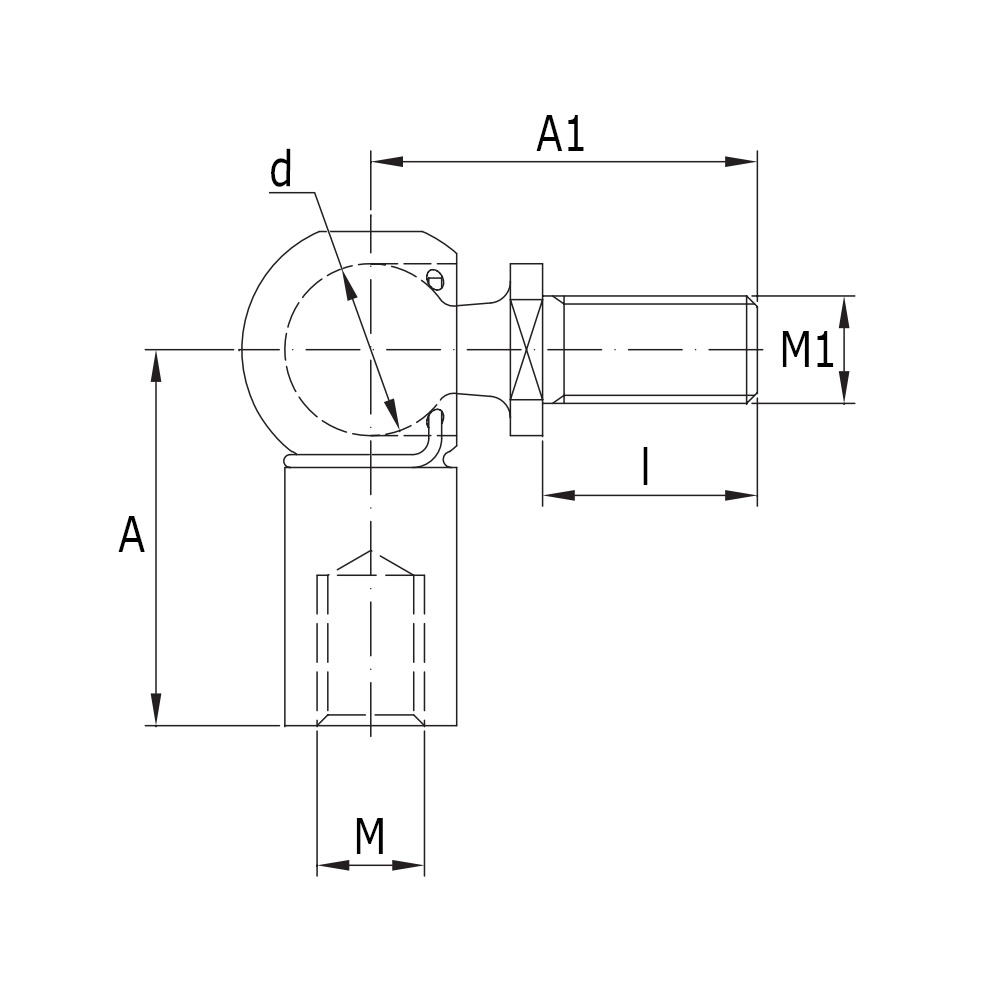

Legend
A=Installation length, A1=Bolt length, d=Socket-Ø, l=Thread length, M=Internal thread size, M1=Thread size, N=Max. axial capacity in Newton, Type=Standarized type description

Filter by

Show all filters

Show less filters

Reset all filters

Articles

1 pages - 1

Article	Description	A	A1	l	d	M	M1
36.6690180808	Ball and socket joint, intern. M8, extern. M8, A=18, nut incl. - galvanised steel	18	23	12	10	M 8	M 8
36.6690200808	Ball and socket joint, intern. M8, extern. M8, A=20, nut incl. - galvanised steel	20	22,5	12,5	10	M 8	M 8
36.6690300808	Ball and socket joint, intern. M8, extern. M8, A=30, nut incl. - galvanised steel	30	29	16	13	M 8	M 8
36.6690300810	Ball and socket joint, intern. M8, extern. M10, A=30, nut incl. - galvanised steel	30	29	16	13	M 8	M10
36.6690351010	Ball and socket joint, intern. M10, extern. M10, A=35, nut incl. - galvanised steel	35	36	20	16	M10	M10
36.6690451414	Ball and socket joint, intern. M14x1.5, extern. M14x1.5, A=45, nut incl. - galvanised steel	45	48	28	19	M14x1,5	M14x1,5

1 pages - 1
